Crosspipe - PipeWire graph GTK4/Libadwaita GUI.

Crosspipe is a visual graph manager for PipeWire, built with GTK4/Libadwaita and Vala, following the GNOME HIG.

Features

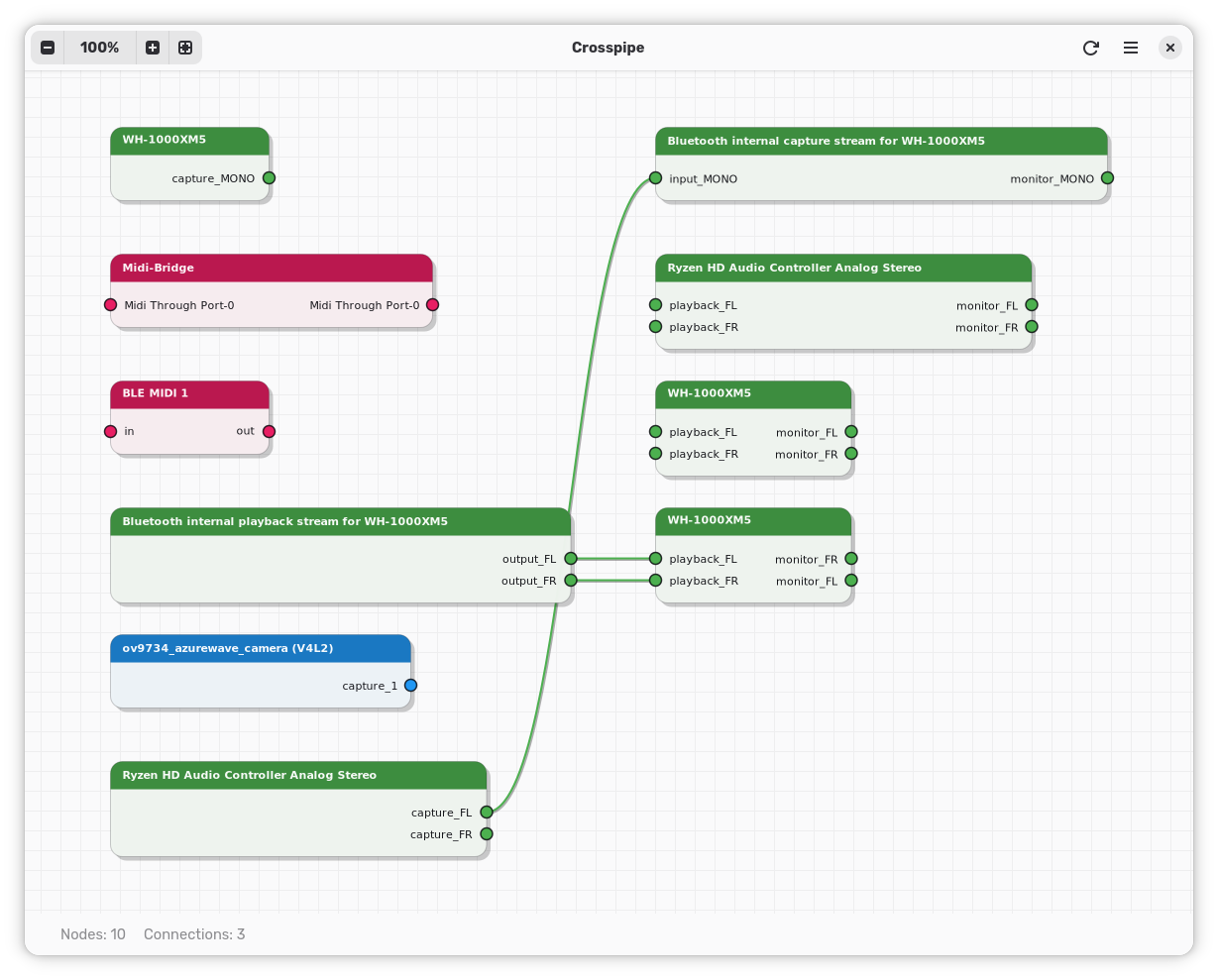

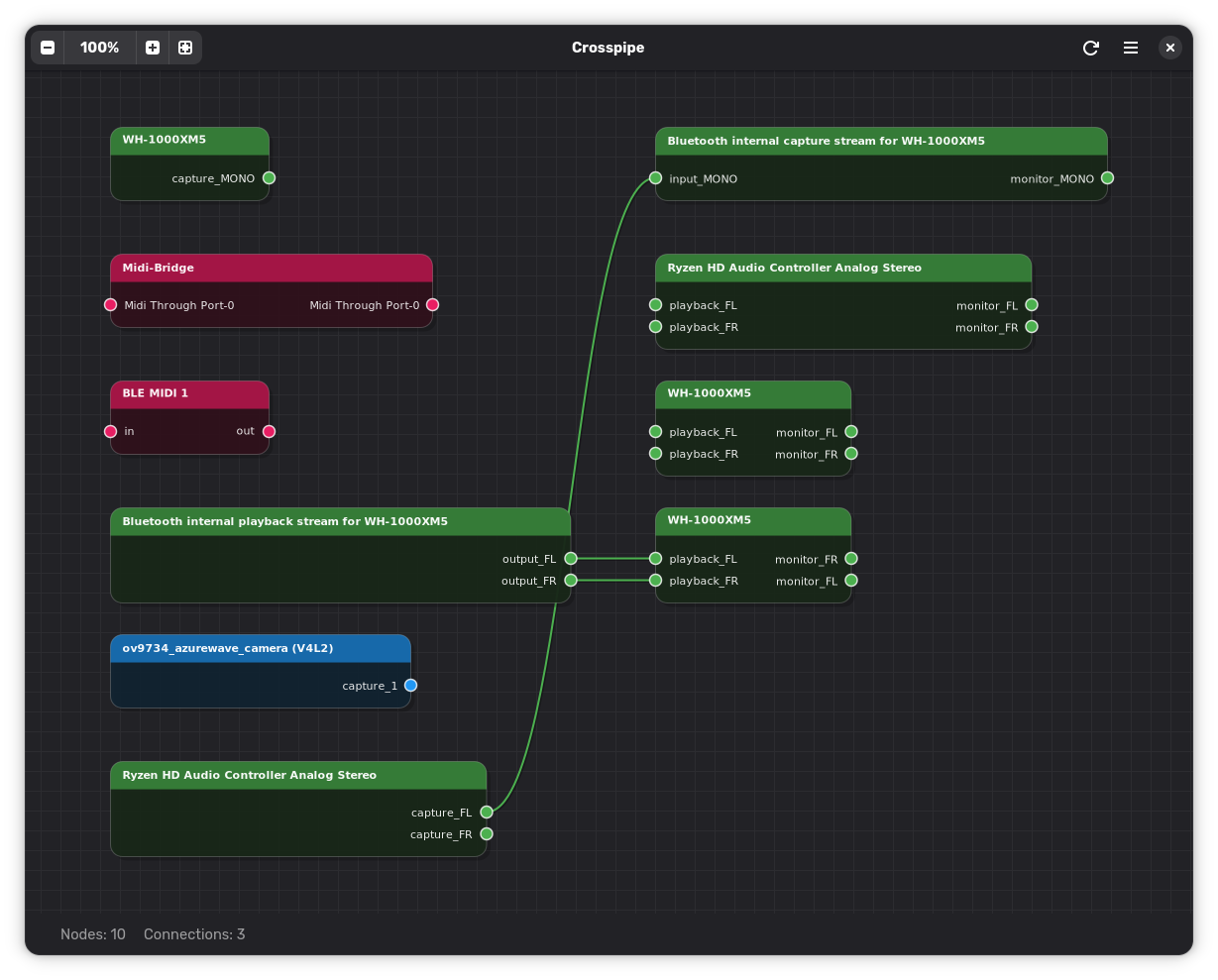

• Visual graph of PipeWire nodes and connections
• Drag-and-drop connection management
• Native GTK4/Libadwaita interface, following GNOME HIG

Installing

flatpak install flathub io.github.dp0sk.Crosspipe

Dependencies

• GTK4 >= 4.10
• libadwaita >= 1.4
• libgee 0.8
• libpipewire 0.3
• libxml-2.0
• valac

Building Flatpak from source

Clone the repository:

git clone https://github.com/dp0sk/Crosspipe.git
cd Crosspipe

Build & Install using the manifest:

flatpak-builder builddir io.github.dp0sk.Crosspipe.yml --user --install

Run:

flatpak run io.github.dp0sk.Crosspipe

Uninstall:

flatpak uninstall --user io.github.dp0sk.Crosspipe

Building from source (meson)

Clone the repository:

git clone https://github.com/dp0sk/Crosspipe.git
cd Crosspipe

Set up the build directory:

meson setup build

Compile:

meson compile -C build

Install (requires root or sudo):

sudo meson install -C build

Run:

crosspipe
