AAS Generator - Blueprint & Rules Documentation

This document explains how to create and configure Blueprints for automated Submodel generation using the AAS Generator rules engine.

For German readers: A detailed article about this system is available at XITASO: Automatisierte Erstellung von AAS (German language). Note that the article may reference an older version of the AAS Generator, so please refer to this documentation for the latest features and API details.

Tip: While this documentation covers the API and JSON structure in detail, the Mnestix Browser provides a visual "Templates and Blueprints" section that simplifies blueprint creation and management.

Overview

The AAS Generator transforms structured JSON data into AAS-compliant Submodel instances using a three-tier architecture:

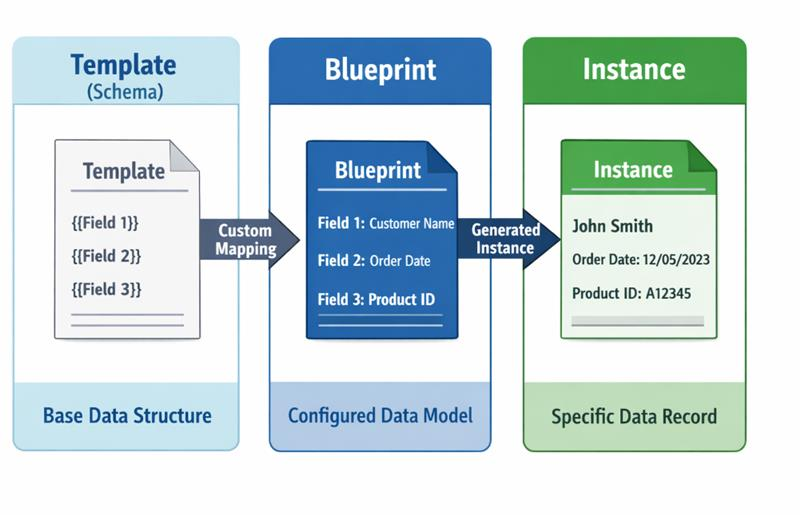

Template → Blueprint → Instance

The Three Tiers

Tier	Description	Created By
Template	A base Submodel schema defining the structure. Often based on IDTA standards (e.g., Nameplate, ContactInformation). Has `kind: "Template"` and placeholder fields.	API endpoint or imported from standards
Blueprint	A Template with added mapping rules (qualifiers) that define how JSON data maps to each field.	Users via Mnestix Browser UI or API
Instance	The final generated Submodel with `kind: "Instance"` and actual data values populated from the input JSON.	AAS Generator (automatically)

Supported Submodel Element Types

The following element types support data mapping via qualifiers:

Element Type	Mapping Support	Notes
`Property`	✅ Full	Value mapping via `SMT/MappingInfo`
`MultiLanguageProperty`	✅ Full	Multi-language via `SMT/MappingInfo/multiLanguage`, or single language via `SMT/MappingInfo/value`
`Blob`	✅ Partial	Value and contentType mapping (`SMT/MappingInfo/value`, `SMT/MappingInfo/contentType`)
`File`	✅ Full	Value and contentType mapping via `SMT/MappingInfo/value` and `SMT/MappingInfo/contentType`
`SubmodelElementCollection`	✅ Full	Supports collection duplication
`SubmodelElementList`	✅ Full	Supports collection duplication
`Entity`	✅ Partial	Multi-field mapping: `globalAssetId`, `entityType`, `idShort`, `displayName`
`RelationshipElement`	✅ Partial	Multi-field mapping: `first`, `second`, `idShort`, `displayName`
`AnnotatedRelationshipElement`	✅ Partial	Multi-field mapping: `first`, `second`, `idShort`, `displayName`

Elements that are not mappable are always copied unchanged from the blueprint to the generated instance. This allows you to include static content or fixed structures in your blueprints.

Template Qualifiers (Mapping Rules)

Mapping rules are embedded as qualifiers within Submodel elements. The AAS Generator reads these qualifiers during processing to determine how to populate values.

Qualifier Format

{
  "kind": "TemplateQualifier",
  "type": "SMT/<RuleType>",
  "value": "<rule-configuration>",
  "valueType": "xs:string"
}

Available Rule Types

Qualifier Type	Purpose
`SMT/MappingInfo`	Map a JSON path or Jsonata expression to an element's value (legacy format)
`SMT/MappingInfo/<FieldName>`	Map data to a specific element field (e.g., `idShort`, `globalAssetId`)
`SMT/CollectionMappingInfo`	Duplicate an element for each array item
`SMT/FilterMappingInfo`	Conditionally include/exclude an element based on a boolean expression
`SMT/Cardinality`	Define whether the data is required or optional

Rule Type Details

1. Static Values (No Qualifier)

For fields with constant values that don't change between instances, simply set the value directly in the blueprint without any mapping qualifier.

Blueprint:

{
  "modelType": "Property",
  "idShort": "ManufacturerCountry",
  "valueType": "xs:string",
  "value": "Germany"
}

Result: The value "Germany" is copied unchanged to every generated instance.

2. Path Mapping (`SMT/MappingInfo`)

Maps a JSON path from the input data to an element's value. This is the most common rule type.

Qualifier:

{
  "kind": "TemplateQualifier",
  "type": "SMT/MappingInfo",
  "value": "product.serialNumber",
  "valueType": "xs:string"
}

Blueprint Element:

{
  "modelType": "Property",
  "idShort": "SerialNumber",
  "valueType": "xs:string",
  "value": "",
  "qualifiers": [
    {
      "kind": "TemplateQualifier",
      "type": "SMT/MappingInfo",
      "value": "product.serialNumber",
      "valueType": "xs:string"
    }
  ]
}

Input Data:

{
  "product": {
    "serialNumber": "SN-12345-XYZ"
  }
}

Generated Instance:

{
  "modelType": "Property",
  "idShort": "SerialNumber",
  "valueType": "xs:string",
  "value": "SN-12345-XYZ"
}

Path Expression Syntax

Expression	Description	Example
`field`	Top-level field	`serialNumber`
`parent.child`	Nested object access	`product.details.name`
`array[0]`	Specific array index	`contacts[0].name`
`array[*]`	Array wildcard (for collections)	`contacts[*].email`

2b. Multi-Field Mapping (`SMT/MappingInfo/<FieldName>`)

Extends path mapping to target specific fields on an element beyond just value. The SMT/MappingInfo (legacy) qualifier maps to value by default. The new format SMT/MappingInfo/<FieldName> allows mapping to any supported field.

Supported Fields:

FieldName	Target	Applicable Model Types	Notes
`value`	Element value	Property, Blob, File, MultiLanguageProperty	Default (same as legacy `SMT/MappingInfo`)
`contentType`	File content type	File, Blob	MIME type string or JSONata expression extracting from URL
`idShort`	Element identifier	All	Auto-sanitized to `[a-zA-Z][a-zA-Z0-9_]*`
`globalAssetId`	Entity asset reference	Entity	String (URI)
`entityType`	Entity type enum	Entity	`SelfManagedEntity` or `CoManagedEntity`
`displayName`	Display name text	All	Sets `text` for current generation language
`first`	Relationship first reference	RelationshipElement, AnnotatedRelationshipElement	AAS Reference JSON object
`second`	Relationship second reference	RelationshipElement, AnnotatedRelationshipElement	AAS Reference JSON object
`multiLanguage`	Multi-language value	MultiLanguageProperty	JSON object with language keys (see below)

Example: Entity with globalAssetId + idShort

Blueprint:

{
  "modelType": "Entity",
  "idShort": "PartTemplate",
  "entityType": "SelfManagedEntity",
  "globalAssetId": "",
  "qualifiers": [
    {
      "kind": "TemplateQualifier",
      "type": "SMT/MappingInfo/idShort",
      "value": "component.partNumber",
      "valueType": "xs:string"
    },
    {
      "kind": "TemplateQualifier",
      "type": "SMT/MappingInfo/globalAssetId",
      "value": "'https://asset.example.com/' & component.partNumber",
      "valueType": "xs:string"
    }
  ]
}

Input Data:

{
  "component": {
    "partNumber": "Housing_001"
  }
}

Generated Instance:

{
  "modelType": "Entity",
  "idShort": "Housing_001",
  "entityType": "SelfManagedEntity",
  "globalAssetId": "https://asset.example.com/Housing_001"
}

Example: RelationshipElement with first/second

Blueprint:

{
  "modelType": "RelationshipElement",
  "idShort": "HasPart",
  "first": {},
  "second": {},
  "qualifiers": [
    {
      "type": "SMT/MappingInfo/first",
      "value": "relationship.parentRef",
      "valueType": "xs:string"
    },
    {
      "type": "SMT/MappingInfo/second",
      "value": "relationship.childRef",
      "valueType": "xs:string"
    }
  ]
}

idShort Sanitization

When mapping to idShort, the generator auto-sanitizes the value to conform to AAS naming rules ([a-zA-Z][a-zA-Z0-9_]*):

Characters not matching [a-zA-Z0-9_] are replaced with _
If the result does not start with a letter ([a-zA-Z]), i is prepended
A warning is logged when sanitization changes the value

Examples:

Input "TE-Housing-123" → idShort "TE_Housing_123"
Input "123abc" → idShort "i123abc"
Input "_value" → idShort "i_value"

Example: File with contentType Mapping

The File element supports mapping both value (file URL) and contentType (MIME type). You can set contentType in two ways:

Option A: Map from data field

Blueprint:

{
  "modelType": "File",
  "idShort": "ProductImage",
  "value": "",
  "contentType": "",
  "qualifiers": [
    {
      "kind": "TemplateQualifier",
      "type": "SMT/MappingInfo/value",
      "value": "product.image.url",
      "valueType": "xs:string"
    },
    {
      "kind": "TemplateQualifier",
      "type": "SMT/MappingInfo/contentType",
      "value": "product.image.contentType",
      "valueType": "xs:string"
    }
  ]
}

Input Data:

{
  "product": {
    "image": {
      "url": "https://example.com/images/product_photo.png",
      "contentType": "image/png"
    }
  }
}

Option B: Infer contentType from file extension using JSONata

Blueprint:

{
  "modelType": "File",
  "idShort": "CompanyLogo",
  "value": "",
  "contentType": "",
  "qualifiers": [
    {
      "kind": "TemplateQualifier",
      "type": "SMT/MappingInfo/value",
      "value": "companyLogo",
      "valueType": "xs:string"
    },
    {
      "kind": "TemplateQualifier",
      "type": "SMT/MappingInfo/contentType",
      "value": "$lookup({\"svg\":\"image/svg+xml\",\"png\":\"image/png\",\"jpg\":\"image/jpeg\",\"jpeg\":\"image/jpeg\",\"pdf\":\"application/pdf\"}, $split($split(companyLogo,'?')[0], '.')[-1])",
      "valueType": "xs:string"
    }
  ]
}

Input Data:

{
  "companyLogo": "https://www.example.com/logo.svg?v=2"
}

Generated Instance (Option A):

{
  "modelType": "File",
  "idShort": "ProductImage",
  "value": "https://example.com/images/product_photo.png",
  "contentType": "image/png"
}

Generated Instance (Option B):

{
  "modelType": "File",
  "idShort": "CompanyLogo",
  "value": "https://www.example.com/logo.svg?v=2",
  "contentType": "image/svg+xml"
}

Note on Extension Parsing: The JSONata expression $split($split(companyLogo,'?')[0], '.')[-1] first removes query parameters by splitting on ?, then extracts the file extension. Unknown extensions result in an empty contentType value.

Value Type Validation

When mapping to value, the generator validates that the mapped value conforms to the element's declared valueType:

valueType	Validation
`xs:string`	Always passes
`xs:integer`, `xs:int`, `xs:long`, `xs:short`	Must be a valid integer
`xs:decimal`, `xs:double`, `xs:float`	Must be a valid number
`xs:boolean`	Must be `true`, `false`, `0`, or `1`
`xs:dateTime`	Must be a valid date-time string
`xs:date`	Must be a valid date string
`xs:anyURI`	Always passes
Unknown types	Value passes through with a warning

Error Conditions

Most structural errors in this table are now caught at save time by the Blueprint Validation system. The generation-time errors remain as a fallback for blueprints imported or modified outside the API.

Condition	Behavior
Unknown field name (not in allowlist)	Error: `"Unsupported MappingInfo field '<FieldName>'"`
Field not applicable to model type	Error: `"Field '<FieldName>' is not applicable to model type '<ModelType>'"`
Duplicate field mapping on same element	Error: `"Duplicate mapping for field '<FieldName>' on element '<idShort>'"`
Value type mismatch	Error: `"Mapped value '<value>' does not conform to valueType '<valueType>'"`
Malformed qualifier type (e.g. `SMT/MappingInfo/a/b`)	Error: `"Malformed qualifier type '...'. Expected 'SMT/MappingInfo' or 'SMT/MappingInfo/<FieldName>'"`

Combining with Collection Mapping

Multi-field mapping works with SMT/CollectionMappingInfo for dynamic element creation:

{
  "modelType": "Entity",
  "idShort": "ComponentTemplate",
  "entityType": "CoManagedEntity",
  "globalAssetId": "",
  "qualifiers": [
    { "type": "SMT/CollectionMappingInfo", "value": "vec.components[*]" },
    { "type": "SMT/MappingInfo/idShort", "value": "vec.components[*].partNumber" },
    { "type": "SMT/MappingInfo/globalAssetId", "value": "vec.components[*].assetId" },
    { "type": "SMT/MappingInfo/entityType", "value": "vec.components[*].entityType" }
  ]
}

Each duplicated element gets its own idShort, globalAssetId, and entityType from the corresponding array item.

3. Collection Mapping (`SMT/CollectionMappingInfo`)

Duplicates a Submodel element for each item in an array. This enables dynamic list generation.

Use Case: You have an array of contacts in your data and want to create a ContactPerson collection for each one.

Qualifier:

{
  "kind": "TemplateQualifier",
  "type": "SMT/CollectionMappingInfo",
  "value": "sourceData.contactPersons[*]",
  "valueType": "xs:string"
}

Blueprint Element:

{
  "modelType": "SubmodelElementCollection",
  "idShort": "contactPerson",
  "qualifiers": [
    {
      "type": "SMT/CollectionMappingInfo",
      "value": "sourceData.contactPersons[*]"
    }
  ],
  "value": [
    {
      "modelType": "Property",
      "idShort": "Name",
      "valueType": "xs:string",
      "qualifiers": [
        {
          "type": "SMT/MappingInfo",
          "value": "sourceData.contactPersons[*].name"
        }
      ]
    },
    {
      "modelType": "Property",
      "idShort": "Email",
      "valueType": "xs:string",
      "qualifiers": [
        {
          "type": "SMT/MappingInfo",
          "value": "sourceData.contactPersons[*].email"
        }
      ]
    }
  ]
}

Input Data:

{
  "sourceData": {
    "contactPersons": [
      { "name": "John Doe", "email": "john@example.com" },
      { "name": "Jane Smith", "email": "jane@example.com" }
    ]
  }
}

Generated Instance:

{
  "value": [
    {
      "modelType": "SubmodelElementCollection",
      "idShort": "contactPerson_0",
      "value": [
        { "idShort": "Name", "value": "John Doe" },
        { "idShort": "Email", "value": "john@example.com" }
      ]
    },
    {
      "modelType": "SubmodelElementCollection",
      "idShort": "contactPerson_1",
      "value": [
        { "idShort": "Name", "value": "Jane Smith" },
        { "idShort": "Email", "value": "jane@example.com" }
      ]
    }
  ]
}

How Collection Processing Works

The generator finds all SMT/CollectionMappingInfo qualifiers
Qualifiers are sorted by nesting depth (shallowest first) - counted by [*] occurrences
For each array item in the data, the element is duplicated
The idShort is suffixed with an index (_0, _1, _2, ...)
Child element paths have [*] replaced with the actual index ([0], [1], ...)
The process repeats recursively for nested collections

Nested Collections

The generator supports nested collections (arrays within arrays). The algorithm processes collections from shallowest to deepest.

Example: Contact persons with multiple phone numbers each.

Blueprint paths:

sourceData.contactPersons[*]                    # Outer collection
sourceData.contactPersons[*].phone_numbers[*]   # Nested collection
sourceData.contactPersons[*].phone_numbers[*].value  # Value in nested collection

Input Data:

{
  "sourceData": {
    "contactPersons": [
      {
        "name": "SpongeBob",
        "phone_numbers": [
          { "name": "Office", "value": "+1 234 56789" }
        ]
      },
      {
        "name": "Squidward",
        "phone_numbers": [
          { "name": "Office", "value": "+2 234 56789" },
          { "name": "Cell", "value": "+2 1907 1234" }
        ]
      }
    ]
  }
}

Result: Creates contactPerson_0 with one phone number, and contactPerson_1 with two phone numbers (phone_numbers_0, phone_numbers_1).

4. Filter Rules (`SMT/FilterMappingInfo`)

Conditionally includes or excludes an element from generation based on a boolean expression. Evaluated against the input data using Jsonata expressions.

Use Case: You want to include contact information only for certain types of contacts, or include battery specifications only for electric vehicles.

Qualifier:

{
  "kind": "TemplateQualifier",
  "type": "SMT/FilterMappingInfo",
  "value": "vehicle.engineType = 'electric'",
  "valueType": "xs:string"
}

Blueprint Element:

{
  "modelType": "SubmodelElementCollection",
  "idShort": "BatteryInfo",
  "qualifiers": [
    {
      "kind": "TemplateQualifier",
      "type": "SMT/FilterMappingInfo",
      "value": "vehicle.engineType = 'electric'",
      "valueType": "xs:string"
    }
  ],
  "value": [
    {
      "modelType": "Property",
      "idShort": "CapacityKWh",
      "valueType": "xs:integer",
      "qualifiers": [
        {
          "type": "SMT/MappingInfo",
          "value": "vehicle.battery.capacityKWh"
        }
      ]
    }
  ]
}

Input Data:

{
  "vehicle": {
    "engineType": "electric",
    "battery": { "capacityKWh": 85 }
  }
}

Result: Since vehicle.engineType = 'electric' evaluates to true, the BatteryInfo collection is included in the generated instance.

If the condition evaluated to false, the BatteryInfo element would be omitted entirely.

Filter Expression Syntax

Filter expressions use Jsonata syntax and must evaluate to a boolean value:

Operator	Description	Example
`=`	Equals	`type = 'electric'`
`!=`	Not equals	`status != 'inactive'`
`>`	Greater than	`quantity > 10`
`<`	Less than	`price < 100`
`>=`	Greater than or equal	`rating >= 4.5`
`<=`	Less than or equal	`age <= 65`
`and`	Logical AND	`type = 'electric' and year >= 2020`
`or`	Logical OR	`status = 'active' or status = 'pending'`
`in`	Value in array	`region in ['EU', 'NA']`

5. Jsonata Expressions in Mapping Rules

Mapping rules (SMT/MappingInfo) support Jsonata expression syntax, enabling advanced data transformations beyond simple path navigation. Refer to the Jsonata documentation and to the Jsonata.Net.Native GitHub repository for a complete list of functions and operators. Note that not all exotic Jsonata features may be supported. We recommend constructing your input data as close as possible to the desired blueprint structure to minimize the need for complex transformations.

Built-in Jsonata Functions

String Functions:

Function	Description	Example
`$length(str)`	Returns the number of characters	`$length(name)`
`$substring(str, start[, length])`	Extracts substring	`$substring(code, 0, 3)`
`$substringBefore(str, chars)`	Text before first occurrence	`$substringBefore(email, '@')`
`$substringAfter(str, chars)`	Text after first occurrence	`$substringAfter(email, '@')`
`$contains(str, pattern)`	Tests if pattern exists (returns boolean)	`$contains(description, 'waterproof')`
`$split(str, separator)`	Splits string into array	`$split(tags, ',')`
`$join(array, separator)`	Joins array elements	`$join(parts, '-')`
`$uppercase(str)`	Converts to uppercase	`$uppercase(code)`
`$lowercase(str)`	Converts to lowercase	`$lowercase(code)`
`$trim(str)`	Removes whitespace	`$trim(input)`
`$replace(str, pattern, replacement)`	Replaces occurrences	`$replace(text, 'old', 'new')`

Numeric Functions:

Function	Description	Example
`$number(value)`	Converts to number	`$number('42')`
`$string(value)`	Converts to string	`$string(42)`
`$abs(number)`	Absolute value	`$abs(-5)` returns `5`
`$floor(number)`	Rounds down	`$floor(3.7)` returns `3`
`$ceil(number)`	Rounds up	`$ceil(3.2)` returns `4`
`$round(number[, precision])`	Rounds to decimal places	`$round(3.14159, 2)` returns `3.14`
`$power(base, exponent)`	Base raised to power	`$power(2, 3)` returns `8`
`$sqrt(number)`	Square root	`$sqrt(16)` returns `4`

Jsonata Expression Examples

Example 1: Extract part of a code

{
  "type": "SMT/MappingInfo",
  "value": "$substring(sku, 0, 3)"
}

Input: "sku": "ABC-12345" → Output: "ABC"

Example 2: Convert number to string

{
  "type": "SMT/MappingInfo",
  "value": "$string(quantity)"
}

Input: "quantity": 42 → Output: "42"

Example 3: Check if text contains substring (returns boolean)

{
  "type": "SMT/MappingInfo",
  "value": "description ~> $contains('wireless')"
}

Input: "description": "wireless charging pad" → Output: true

Example 4: Compare numeric values (returns boolean)

{
  "type": "SMT/MappingInfo",
  "value": "price > 1000"
}

Input: "price": 1500 → Output: true

Example 5: Combine string operations

{
  "type": "SMT/MappingInfo",
  "value": "$uppercase($substringBefore(email, '@'))"
}

Input: "email": "john.doe@example.com" → Output: "JOHN.DOE"

Pipe Operator (`~>`)

The pipe operator passes the left operand as the argument to the right function:

"John Smith" ~> $split(' ') ~> $join('-')

Equivalent to: $join($split("John Smith", ' '), '-') → Result: "John-Smith"

6. Cardinality (`SMT/Cardinality`)

Defines whether a mapped value is required or optional.

Value	Behavior
`One`	Mandatory - Generation fails with error if data is missing
`ZeroToOne`	Optional - Empty value is set if data is missing
`OneToMany`	Mandatory collection - At least one item required
`ZeroToMany`	Optional collection - Empty collection if data is missing

Values are case-sensitive. The validator rejects any other value.

Qualifier:

{
  "kind": "TemplateQualifier",
  "type": "SMT/Cardinality",
  "value": "One",
  "valueType": "xs:string"
}

Complete Element with Cardinality:

{
  "modelType": "Property",
  "idShort": "SerialNumber",
  "valueType": "xs:string",
  "value": "",
  "qualifiers": [
    {
      "type": "SMT/Cardinality",
      "value": "One"
    },
    {
      "type": "SMT/MappingInfo",
      "value": "product.serialNumber"
    }
  ]
}

If product.serialNumber is missing in the input data:

With "One": Error thrown, generation fails
With "ZeroToOne": Element created with empty value

Complete Blueprint Example

Here's a complete blueprint demonstrating filters, collections, and Jsonata expressions:

{
  "modelType": "Submodel",
  "kind": "Template",
  "id": "https://example.com/blueprints/product-info-v2",
  "idShort": "ProductInformation",
  "submodelElements": [
    {
      "modelType": "Property",
      "idShort": "ProductName",
      "valueType": "xs:string",
      "value": "",
      "qualifiers": [
        {
          "kind": "TemplateQualifier",
          "type": "SMT/Cardinality",
          "value": "One",
          "valueType": "xs:string"
        },
        {
          "kind": "TemplateQualifier",
          "type": "SMT/MappingInfo",
          "value": "product.name",
          "valueType": "xs:string"
        }
      ]
    },
    {
      "modelType": "Property",
      "idShort": "ProductCode",
      "valueType": "xs:string",
      "value": "",
      "qualifiers": [
        {
          "kind": "TemplateQualifier",
          "type": "SMT/MappingInfo",
          "value": "$uppercase($substring(product.sku, 0, 3))",
          "valueType": "xs:string"
        }
      ],
      "description": [
        {
          "language": "en",
          "text": "First 3 characters of SKU in uppercase, using Jsonata transformation"
        }
      ]
    },
    {
      "modelType": "Property",
      "idShort": "HasWarranty",
      "valueType": "xs:boolean",
      "value": "",
      "qualifiers": [
        {
          "kind": "TemplateQualifier",
          "type": "SMT/MappingInfo",
          "value": "$string(product.warranty.monthsIncluded) ~> $contains('24')",
          "valueType": "xs:string"
        }
      ],
      "description": [
        {
          "language": "en",
          "text": "Returns true if warranty includes 24 months"
        }
      ]
    },
    {
      "modelType": "SubmodelElementCollection",
      "idShort": "BatteryInfo",
      "qualifiers": [
        {
          "kind": "TemplateQualifier",
          "type": "SMT/FilterMappingInfo",
          "value": "product.type = 'battery-powered'",
          "valueType": "xs:string"
        }
      ],
      "value": [
        {
          "modelType": "Property",
          "idShort": "CapacityMah",
          "valueType": "xs:integer",
          "qualifiers": [
            {
              "type": "SMT/MappingInfo",
              "value": "product.battery.capacityMah"
            }
          ]
        },
        {
          "modelType": "Property",
          "idShort": "ChargingTimeHours",
          "valueType": "xs:decimal",
          "qualifiers": [
            {
              "type": "SMT/MappingInfo",
              "value": "$string(product.battery.chargingTimeMinutes) ~> $number($) / 60",
              "valueType": "xs:string"
            }
          ]
        }
      ]
    },
    {
      "modelType": "SubmodelElementCollection",
      "idShort": "CertificationInfo",
      "qualifiers": [
        {
          "kind": "TemplateQualifier",
          "type": "SMT/FilterMappingInfo",
          "value": "product.certifications ~> $length($) > 0",
          "valueType": "xs:string"
        }
      ],
      "value": [
        {
          "modelType": "SubmodelElementCollection",
          "idShort": "Certification",
          "qualifiers": [
            {
              "kind": "TemplateQualifier",
              "type": "SMT/CollectionMappingInfo",
              "value": "product.certifications[*]",
              "valueType": "xs:string"
            }
          ],
          "value": [
            {
              "modelType": "Property",
              "idShort": "Name",
              "valueType": "xs:string",
              "qualifiers": [
                {
                  "type": "SMT/MappingInfo",
                  "value": "product.certifications[*].name"
                }
              ]
            },
            {
              "modelType": "Property",
              "idShort": "IsValid",
              "valueType": "xs:boolean",
              "qualifiers": [
                {
                  "type": "SMT/MappingInfo",
                  "value": "product.certifications[*].expiryDate > '2025-01-01'",
                  "valueType": "xs:string"
                }
              ]
            }
          ]
        }
      ]
    },
    {
      "modelType": "SubmodelElementCollection",
      "idShort": "Contacts",
      "value": [
        {
          "modelType": "SubmodelElementCollection",
          "idShort": "Contact",
          "qualifiers": [
            {
              "kind": "TemplateQualifier",
              "type": "SMT/CollectionMappingInfo",
              "value": "company.employees[*]",
              "valueType": "xs:string"
            }
          ],
          "value": [
            {
              "modelType": "Property",
              "idShort": "FullName",
              "valueType": "xs:string",
              "qualifiers": [
                {
                  "type": "SMT/MappingInfo",
                  "value": "company.employees[*].fullName"
                }
              ]
            },
            {
              "modelType": "Property",
              "idShort": "Email",
              "valueType": "xs:string",
              "qualifiers": [
                {
                  "type": "SMT/MappingInfo",
                  "value": "company.employees[*].email"
                }
              ]
            },
            {
              "modelType": "Property",
              "idShort": "EmailDomain",
              "valueType": "xs:string",
              "qualifiers": [
                {
                  "type": "SMT/MappingInfo",
                  "value": "company.employees[*].email ~> $substringAfter('@')",
                  "valueType": "xs:string"
                }
              ],
              "description": [
                {
                  "language": "en",
                  "text": "Extracted domain from email using Jsonata"
                }
              ]
            },
            {
              "modelType": "Property",
              "idShort": "Phone",
              "valueType": "xs:string",
              "qualifiers": [
                {
                  "type": "SMT/Cardinality",
                  "value": "ZeroToOne"
                },
                {
                  "type": "SMT/MappingInfo",
                  "value": "company.employees[*].phone"
                }
              ]
            }
          ]
        }
      ]
    }
  ]
}

Corresponding Input Data:

{
  "product": {
    "name": "PowerPack Pro",
    "type": "battery-powered",
    "sku": "ABC-12345",
    "warranty": {
      "monthsIncluded": 24
    },
    "battery": {
      "capacityMah": 5000,
      "chargingTimeMinutes": 120
    },
    "certifications": [
      { "name": "CE", "expiryDate": "2026-06-15" },
      { "name": "FCC", "expiryDate": "2025-12-31" }
    ]
  },
  "company": {
    "employees": [
      {
        "fullName": "Alice Johnson",
        "email": "alice@example.com",
        "phone": "+1-555-0101"
      },
      {
        "fullName": "Bob Williams",
        "email": "bob@example.com"
      }
    ]
  }
}

Key Features Demonstrated:

Filter Rules: BatteryInfo and CertificationInfo are only included when conditions are met
Jsonata Functions: String transformations ($uppercase, $substring, $substringAfter) and numeric operations
Collections with Filtering: Certifications collection with filter checking if array is not empty
Nested Collections: Contact collection with multiple properties including computed fields
Invalid Date Comparison: expiryDate > '2025-01-01' shows filtering by date

Conditional Element Inclusion

How Filters Work

When a filter rule is evaluated:

The Jsonata expression is evaluated against the input data
If the expression evaluates to true (or truthy), the element is included in the output
If the expression evaluates to false (or falsy), the element is excluded from the output

This is useful for:

Only including optional sections when data is present
Showing specifications only for relevant product types
Creating conditional sections based on status or configuration

Filter Examples

Example: Include only for specific type

{
  "type": "SMT/FilterMappingInfo",
  "value": "product.type = 'electrical'"
}

Example: Check if array has items

{
  "type": "SMT/FilterMappingInfo",
  "value": "certifications ~> $length(certifications) > 0"
}

Example: Multiple conditions

{
  "type": "SMT/FilterMappingInfo",
  "value": "product.type = 'battery' and product.warranty.monthsIncluded >= 12"
}

Data Preparation

The AAS Generator expects input data as a homogeneous JSON structure. Before calling the API, transform your source data appropriately.

Common Data Sources

Source	Transformation Needed
ERP Systems (SAP, etc.)	Export to JSON, flatten nested structures
Excel/CSV	Convert to JSON array of objects
Engineering Tools (PLM, CAD)	Use tool's JSON export or build integration
Databases	Query and serialize to JSON

Data Structure Best Practices

Flatten deeply nested structures where possible
Use consistent field names across all records
Ensure arrays contain homogeneous objects (same fields in each item)
Handle null/missing values before submission (or rely on cardinality rules)

Example transformation:

Excel Row:
| Product | Serial | Contact1_Name | Contact1_Email | Contact2_Name | Contact2_Email |

Transformed JSON:
{
  "product": "Widget",
  "serial": "W-001",
  "contacts": [
    { "name": "...", "email": "..." },
    { "name": "...", "email": "..." }
  ]
}

MultiLanguageProperty Mapping

MultiLanguageProperty elements support two mapping approaches:

Approach 1: Multi-language from data (`SMT/MappingInfo/multiLanguage`) — Recommended

Maps a JSON object where keys are language codes and values are the translated texts. This allows multiple languages in a single generation call without requiring a language parameter in the request.

Blueprint:

{
  "modelType": "MultiLanguageProperty",
  "idShort": "CompanyName",
  "value": [],
  "qualifiers": [
    {
      "kind": "TemplateQualifier",
      "type": "SMT/MappingInfo/multiLanguage",
      "value": "company.name",
      "valueType": "xs:string"
    }
  ]
}

Input Data:

{
  "company": {
    "name": {
      "de": "Xitaso Software Lösungen",
      "en": "Xitaso Software Solutions"
    }
  }
}

Generated Instance:

{
  "modelType": "MultiLanguageProperty",
  "idShort": "CompanyName",
  "value": [
    { "text": "Xitaso Software Lösungen", "language": "de" },
    { "text": "Xitaso Software Solutions", "language": "en" }
  ]
}

Behavior:

The expression must resolve to a JSON object (e.g., {"en": "Hello", "de": "Hallo"}).
Each property becomes a language entry: key → language, value → text.
Entries where the value is null or an empty string are skipped.
If all entries are empty/null, the element is treated as missing (respects cardinality rules).
Non-string values (numbers, booleans) are converted to their string representation.

Approach 2: Legacy single language from request (`SMT/MappingInfo/value`)

Maps a scalar value and wraps it with the language parameter from the API request. Only one language per generation call.

⚠️ Deprecation Warning: This is the legacy behavior and is still supported for backward compatibility, but using SMT/MappingInfo/multiLanguage is recommended for new blueprints. This feature might be deprecated in the future.

Request:

{
  "blueprintsIds": ["my-blueprint"],
  "data": { "description": "Product description text" },
  "language": "en"
}

Blueprint:

{
  "modelType": "MultiLanguageProperty",
  "idShort": "Description",
  "value": [],
  "qualifiers": [
    {
      "kind": "TemplateQualifier",
      "type": "SMT/MappingInfo",
      "value": "description",
      "valueType": "xs:string"
    }
  ]
}

Generated MLP:

{
  "modelType": "MultiLanguageProperty",
  "idShort": "Description",
  "value": [
    { "language": "en", "text": "Product description text" }
  ]
}

Note: Using SMT/MappingInfo/value (or the legacy SMT/MappingInfo) on a MultiLanguageProperty requires the language parameter in the API request. If your data already contains language codes as keys, prefer SMT/MappingInfo/multiLanguage instead.

API Usage

Create a Blueprint

POST /api/v2/Blueprints
Content-Type: application/json

{
  // Your blueprint JSON (see example above)
}

Generate Submodel from Blueprint

POST /api/v2/DataIngest/{base64EncodedAasId}
Content-Type: application/json

{
  "blueprintsIds": ["https://example.com/blueprints/contact-info-v1"],
  "data": {
    "company": {
      "name": "ACME Corporation",
      "employees": [...]
    }
  },
  "language": "en",
  "debug": true
}

Debug Mode

Set "debug": true to receive detailed logs about the generation process. This helps diagnose mapping issues.

Response with debug info:

{
  "results": [
    {
      "blueprintId": "contact-info-v1",
      "success": true,
      "generatedSubmodelId": "https://example.com/submodels/abc123",
      "debugInfo": {
        "logs": [
          "Started DuplicateCollectionsStep",
          "Processing collection at path 'company.employees[*]' (depth: 1, mandatory: false, elements: 2)",
          "Successfully duplicated 2 elements for collection with mapping path 'company.employees[*]'",
          "Finished DuplicateCollectionsStep",
          "Started ResolveMappingExpressionsStep",
          "Finished ResolveMappingExpressionsStep",
          "Started AssignMappedFieldsStep",
          "Successfully mapped value 'ACME Corporation' from path 'company.name' to field 'value'",
          "..."
        ]
      }
    }
  ]
}

Blueprint Validation

When saving a blueprint via the API (Create or Update), the system validates the qualifier structure to catch errors that would inevitably cause generation failures. This provides immediate feedback instead of failing silently at AAS generation time.

Validation Rules

The following checks are performed on all qualifiers in the blueprint:

SMT/MappingInfo Qualifiers

Rule	Description
InvalidQualifierSegmentCount	Qualifier type has more than 3 segments (e.g. `SMT/MappingInfo/value/extra`)
EmptyMappingExpression	Qualifier value is empty or missing
UnknownFieldName	Field name (3rd segment) is not recognized
FieldNotApplicableToModelType	Field is not valid for the element's model type
UnsupportedModelType	Element's model type is not supported for mapping
DuplicateMappingField	Two qualifiers target the same field on the same element
MlpValueAndMultiLanguageConflict	Both `value` and `multiLanguage` mappings on same MultiLanguageProperty
InvalidJsonataSyntax	JSONata expression cannot be parsed

SMT/FilterMappingInfo Qualifiers

Rule	Description
EmptyFilterExpression	Qualifier value is empty or missing
InvalidFilterJsonataSyntax	JSONata expression cannot be parsed

SMT/CollectionMappingInfo Qualifiers

Rule	Description
EmptyCollectionPath	Qualifier value is empty or missing
InvalidCollectionJsonPath	JSONPath expression cannot be parsed
CollectionPathMissingWildcard	Path does not end with `[*]`
InvalidCollectionParentModelType	Parent element is not SubmodelElementCollection, SubmodelElementList, or Entity

SMT/Cardinality Qualifiers

Rule	Description
InvalidCardinalityValue	Value is not one of: `One`, `ZeroToOne`, `OneToMany`, `ZeroToMany`

Field-to-Model-Type Applicability

Not all fields can be mapped on every element type. The following matrix defines what is allowed:

Model Type	Allowed Fields
`Property`	`value`, `idShort`, `displayName`
`MultiLanguageProperty`	`value`, `idShort`, `displayName`, `multiLanguage`
`Blob`	`value`, `contentType`, `idShort`, `displayName`
`File`	`value`, `contentType`, `idShort`, `displayName`
`Entity`	`idShort`, `displayName`, `globalAssetId`, `entityType`
`RelationshipElement`	`idShort`, `displayName`, `first`, `second`
`AnnotatedRelationshipElement`	`idShort`, `displayName`, `first`, `second`
`SubmodelElementCollection`	`idShort`, `displayName`
`SubmodelElementList`	`idShort`, `displayName`
`ReferenceElement`	`idShort`, `displayName`
`Range`	`idShort`, `displayName`

Model types not in this list (e.g. Operation, BasicEventElement, Capability) are unsupported for mapping qualifiers.

MLP Conflict Rules

On a MultiLanguageProperty, the following combinations are invalid:

SMT/MappingInfo (bare) + SMT/MappingInfo/multiLanguage — both write to the value field with incompatible semantics
SMT/MappingInfo/value + SMT/MappingInfo/multiLanguage — same conflict
SMT/MappingInfo + SMT/MappingInfo/value — aliases for the same field (treated as duplicate)

Use either value (scalar + language parameter) or multiLanguage (language-keyed object), not both.

Error Response

When validation fails, the API returns 422 Unprocessable Entity with all detected issues:

{
  "errors": [
    {
      "rule": "FieldNotApplicableToModelType",
      "path": "Nameplate > SerialNumber",
      "message": "Field 'first' is not valid on model type 'Property'. Allowed fields: value, idShort, displayName."
    },
    {
      "rule": "InvalidJsonataSyntax",
      "path": "Nameplate > ManufacturerName",
      "message": "Invalid JSONata syntax: Expected ']' at position 6."
    }
  ]
}

The path field uses the element's idShort breadcrumb trail. If an element lacks an idShort, the array index is used as fallback.

Note: These validations also run at generation time as defense-in-depth, since blueprints can be imported or modified outside the API.

Error Handling

Common Errors

Error	Cause	Solution
`Mandatory mapping 'path' not found`	Required field missing in input data	Add data or change cardinality to `ZeroToOne`
`could not find matching value field`	Malformed qualifier or element structure	Verify blueprint JSON structure
`parent must be SubmodelElementCollection or SubmodelElementList`	Collection qualifier on wrong element type	Move qualifier to SMC or SML element

Error Response Format

{
  "results": [
    {
      "blueprintId": "my-blueprint",
      "success": false,
      "message": "Mandatory mapping 'product.serialNumber' not found.",
      "errorInfo": {
        "logs": ["...processing steps before error..."],
        "qualifier": "SMT/MappingInfo",
        "qualifierPath": "product.serialNumber"
      }
    }
  ]
}

Mnestix AAS Generator

Home

Uh oh!

Blueprint and Rules

AAS Generator - Blueprint & Rules Documentation

Overview

The Three Tiers

Supported Submodel Element Types

Template Qualifiers (Mapping Rules)

Qualifier Format

Available Rule Types

Rule Type Details

1. Static Values (No Qualifier)

2. Path Mapping (SMT/MappingInfo)

Path Expression Syntax

2b. Multi-Field Mapping (SMT/MappingInfo/<FieldName>)

Example: Entity with globalAssetId + idShort

Example: RelationshipElement with first/second

idShort Sanitization

Example: File with contentType Mapping

Value Type Validation

Error Conditions

Combining with Collection Mapping

3. Collection Mapping (SMT/CollectionMappingInfo)

How Collection Processing Works

Nested Collections

4. Filter Rules (SMT/FilterMappingInfo)

Filter Expression Syntax

5. Jsonata Expressions in Mapping Rules

Built-in Jsonata Functions

Jsonata Expression Examples

Pipe Operator (~>)

6. Cardinality (SMT/Cardinality)

Complete Blueprint Example

Conditional Element Inclusion

How Filters Work

Filter Examples

Data Preparation

Common Data Sources

Data Structure Best Practices

MultiLanguageProperty Mapping

Approach 1: Multi-language from data (SMT/MappingInfo/multiLanguage) — Recommended

Approach 2: Legacy single language from request (SMT/MappingInfo/value)

API Usage

Create a Blueprint

Generate Submodel from Blueprint

Debug Mode

Blueprint Validation

Validation Rules

SMT/MappingInfo Qualifiers

SMT/FilterMappingInfo Qualifiers

SMT/CollectionMappingInfo Qualifiers

SMT/Cardinality Qualifiers

Field-to-Model-Type Applicability

MLP Conflict Rules

Error Response

Error Handling

Common Errors

Error Response Format

Further Reading

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Mnestix AAS Generator

Documentation

Migration

Clone this wiki locally

2. Path Mapping (`SMT/MappingInfo`)

2b. Multi-Field Mapping (`SMT/MappingInfo/<FieldName>`)

3. Collection Mapping (`SMT/CollectionMappingInfo`)

4. Filter Rules (`SMT/FilterMappingInfo`)

Pipe Operator (`~>`)

6. Cardinality (`SMT/Cardinality`)

Approach 1: Multi-language from data (`SMT/MappingInfo/multiLanguage`) — Recommended

Approach 2: Legacy single language from request (`SMT/MappingInfo/value`)
