JMeter API Chaining

This repository contains a JMeter performance and functional test suite designed to validate a financial system's API. It demonstrates API Chaining, data-driven testing, and realistic load simulation.

The primary goal is to simulate a complete transaction lifecycle—from Admin authentication to various financial exchanges—ensuring data integrity and system stability under load.

Testcase Scenarios for API Chaining in JMeter Test

1. Admin Authentication & Token Chaining:

   • Logs in as an Admin once to generate a bearer token.
   • The token is extracted and shared globally across all thread groups for secure API access.

2. Agent-to-Customer Deposit:

   • Threads: 5 Agents.
   • Action: Performing deposits for 10 unique customers.
   • Data Source: deposit.csv.

3. Customer-to-Customer Fund Transfer (Send Money):

   • Threads: 5 Customers.
   • Action: Sending money to 10 different recipient customers.
   • Data Source: sendMoney.csv.

4. Customer-to-Merchant Payment:

   • Threads: 5 Customers.
   • Action: Making payments to 2 registered merchants.
   • Data Source: payment.csv.

---

Technical Implementation

• API Chaining: Uses JSON Extractors to pass dynamic variables (like Auth Tokens) between different requests.
• Data Driven: Integrated 3 separate CSV files to manage credentials for Agents, Customers, and Merchants.
• Dynamic Values: Utilizes the Random Variable Controller to generate dynamic transaction amounts, ensuring realistic balance fluctuations.
• Load Balancing: Each thread group is configured with a 120-second ramp-up period to simulate a gradual increase in traffic.
• Assertions: Every request includes Response Assertions to verify successful status codes (e.g., 200 OK, 201 Created) and ensure no transaction failure.

---

Prerequisites

• Install JAVA JDK (LTS) & Apache JMeter 5.x
• Plugins: Plugins Manager (recommended)
• External CSV data files (included in 'resources' the repo)

How to run!

1. Clone this repository:

   git clone https://github.com/ehasan321/JMeter-API-chaining.git
   cd JMeter-API-chaining


2. Ensure all required CSV datasets are moved into the root directory of the project folder.
3. Run the JMeter test in CLI (Non-GUI) mode to optimize performance and generate the results file:

   jmeter -n -t DMoney_Jmeter_API_chaining.jmx -l DMoney.jtl -e -o Reports

• -n: Run in non-GUI mode.
• -t: Path to the JMX source file.
• -l: Path to the JTL file to log sample results.
• -e -o: Generate an HTML report in the specified "Reports" folder.

4. View the Results: navigate to the Reports directory and open index.html

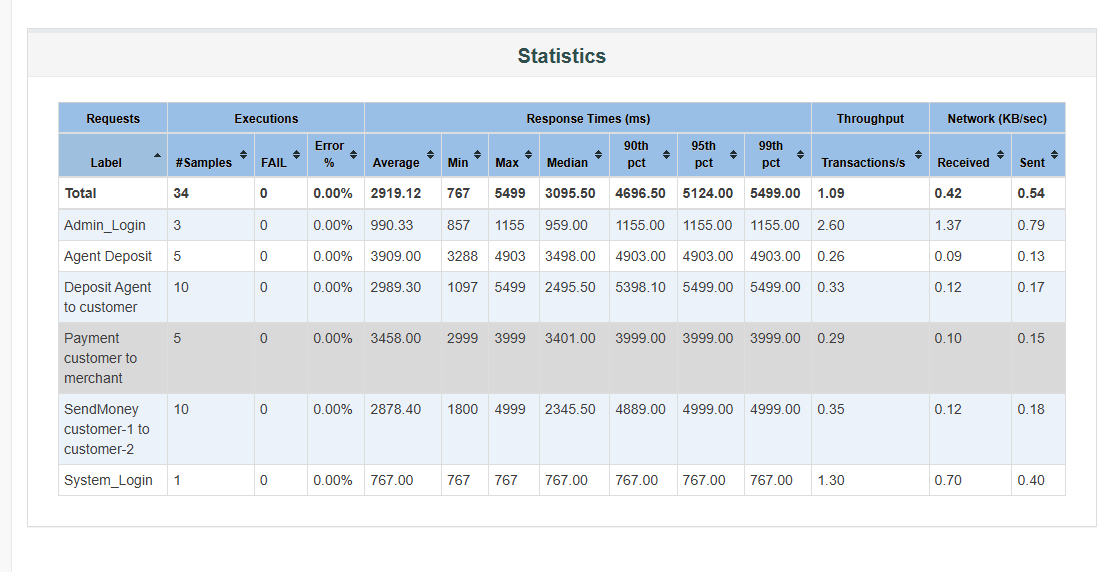

Summary & Statistics

---

This is what I have done in this project!

• API Chaining
• Multiple Scenarios
• Data-Driven Testing
• Automated Assertions
• HTML Report Generation

This project demonstrates end-to-end API testing with token chaining, data-driven CSV inputs, realistic load simulation across 4 user roles, automated response validation, and an interactive HTML dashboard for performance analysis.

---

Contributing

Contributions are welcome! If you would like to help improve this project, please feel free to contribute, simply fork the repository, create a feature branch, and submit a pull request with your changes.

Author: @HASAN
