screen: 关于使用rgb565格式刷新ST7789屏幕,rgb565的格式问题 #181

@lijunru-hub

Description

@lijunru-hub

因为ST7789仅支持RGB565格式的图像,做项目时需要显示灰度图像。再多次尝试后,发现以下问题:

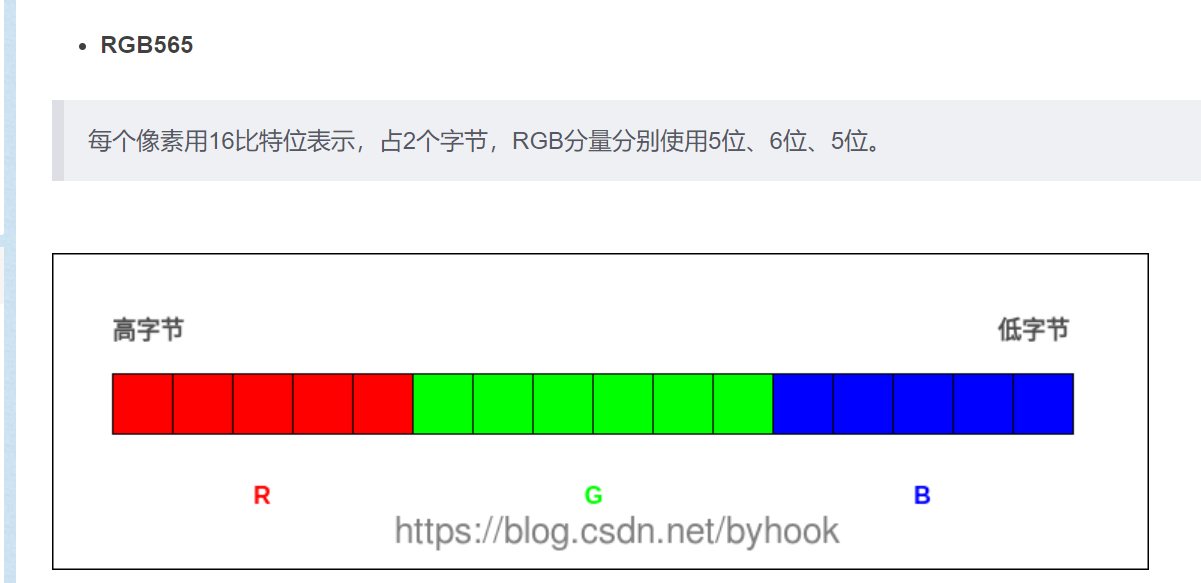

使用RGB565标准格式进行灰度转RGB565时
企业微信截图_16500090742202
图像有问题

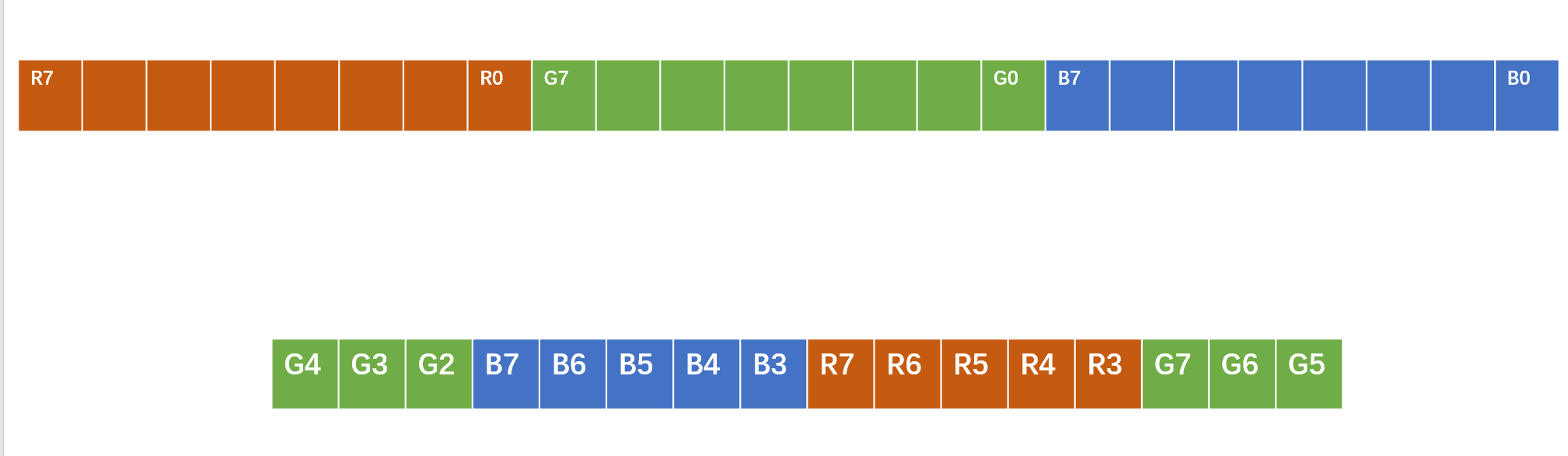

应按照下图进行转码
企业微信截图_16500263909742

附上GREY转RGB565的代码

static uint16_t gray_to_565(uint8_t r, uint8_t g, uint8_t b)
{
    return ((uint16_t)((r & 0xF8) | ((b & 0xF8) << 5) | ((g & 0x1c) << 11) | ((g & 0xE0) >> 5)));
}

希望官方能补充该部分的文档,或者提供彩屏显示灰度的驱动
