worksheet.addRow() with wrap text settings on the xlsx file throws the _nextRow and _lastRowNumber off...

[vchouhan]

I'm working on a project which requires me to read a .xlsx file which already has some default settings defined and columns names provided. The first 3 rows are formatted with labels and the first writable row starts at line 4 which shows up correctly at the actualRowCount value. I noticed that the worksheet.addRow() was writing to line _nextRow 29 and while the _lastRow count was set to 28. As the first 28 rows starting line 4 had the format cell wrap text enabled.

Steps to re-create the issue with screen grab

• Create a XLS file and select the first 10 rows and apply the wrap text alignment using the format cells.
• Read the file using the workbook.xlsx.readFile() and write rows to the worksheet.
• Log the _nextRow and _lastRowCount and actualRowCount.

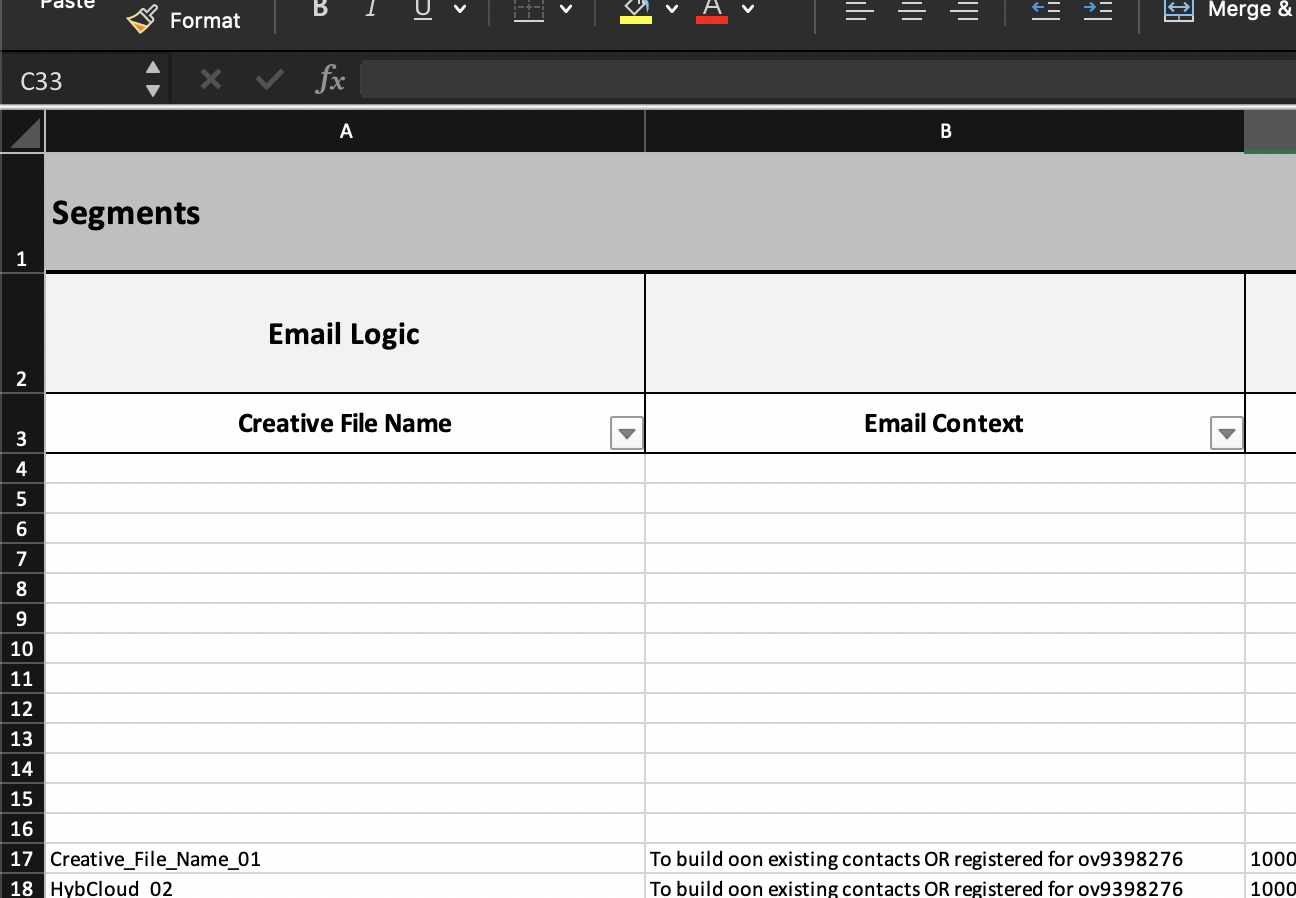

• XLSX file template screen

• Wrap text for each cell enabled till row 16

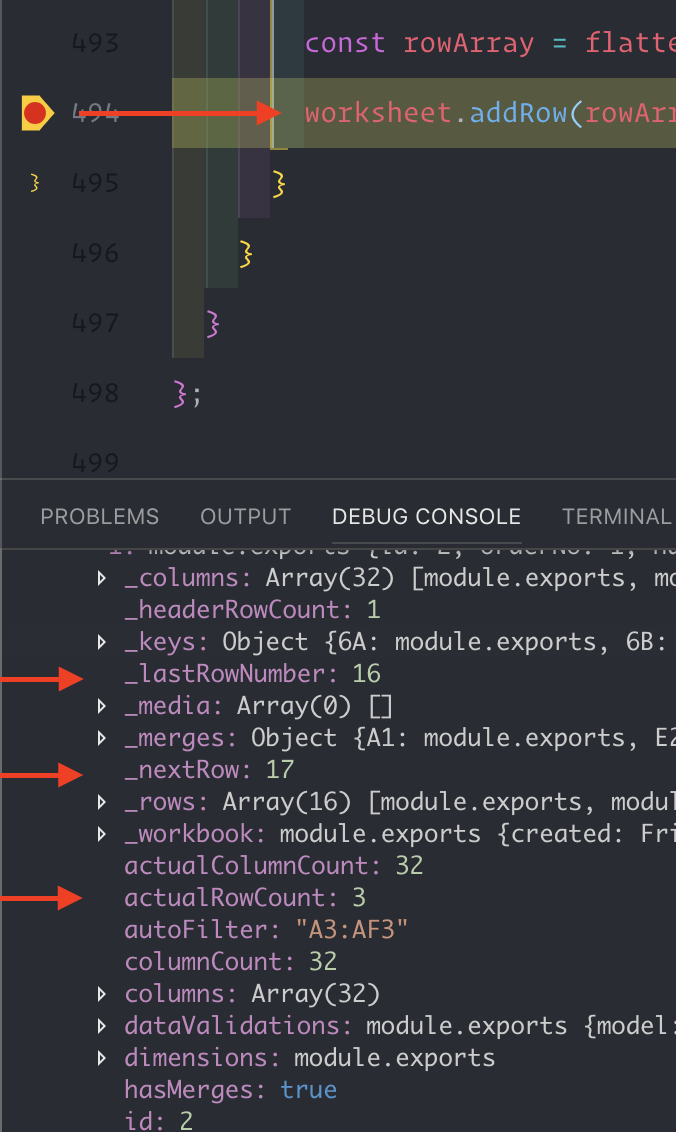

• Debugging breakpoint with

• file generated with rows starting at line 17
