fix: Changed the UI and functionality of buttons in Lux Meter #1303

harsh-2711 · 2018-07-28T23:29:29Z

Fixes #1284

Changes:

Changed the label in the BottomNavigationMenu
Changed the saved icon to record and pause icon
Added delete and export data features

Screenshot/s for the changes:
confusingBtns.zip

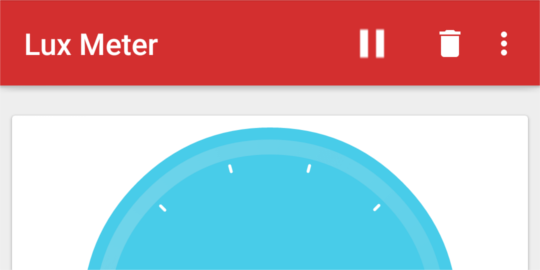

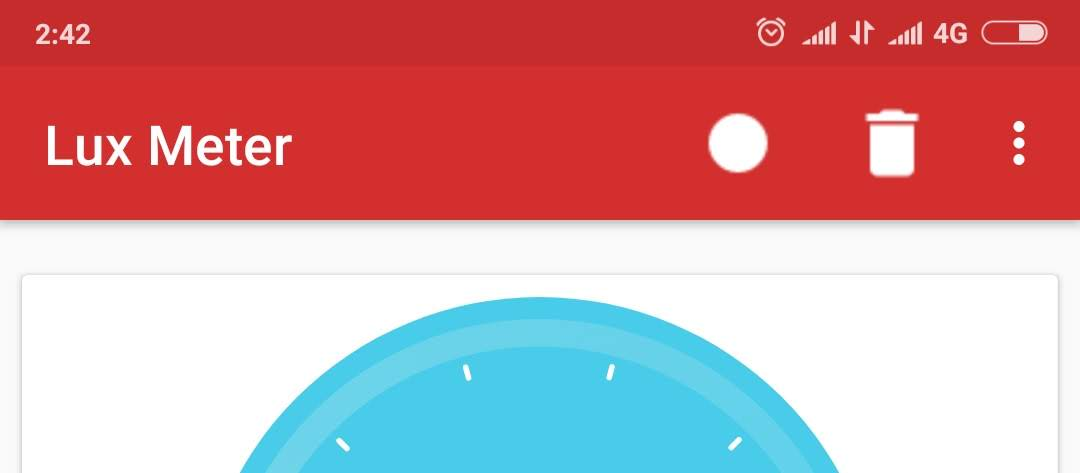

The updated icons screenshot: (@harsh-2711 please resize screenshots in PRs, I've done it here)

Checklist: [Please tick following check boxes with [x] if the respective task is completed]

I have used resources from strings.xml, dimens.xml and colors.xml without hard-coding them
No modifications done at the end of resource files strings.xml, dimens.xml or colors.xml
I have reformatted code in every file included in this PR [CTRL+ALT+L]
My code does not contain any extra lines or extra spaces
I have requested reviews from other members

APK for testing:
app-debug.zip

CloudyPadmal

For icons use xml/svg files

CloudyPadmal · 2018-07-30T11:43:05Z

app/src/main/java/org/pslab/activity/LuxMeterActivity.java

                }
-                invalidateOptionsMenu();
+                break;
+            case R.id.save_csv_data:


Change this to record_csv_data as it is changed in all other places

harsh-2711 · 2018-07-30T17:32:16Z

@CloudyPadmal All changes are done. Please review.

harsh-2711 · 2018-07-30T17:38:33Z

app/src/main/res/drawable/delete_icon.xml

+        android:viewportHeight="24.0"
+        android:tint="?attr/colorControlNormal">
+    <path
+        android:fillColor="#FFF"


The color is hard coded because referring to resources file from this file isn't supported on API <21.

Avjeet · 2018-07-30T21:15:08Z

icon is showing properly

CloudyPadmal

Icons are not sharp. Can you use vector drawables provided by Android Studio itself?

harsh-2711 · 2018-08-02T07:35:28Z

@CloudyPadmal I have used vector drawables only. You can check the extension of the file it's .xml. I have also updated the apk. Have a look.

CloudyPadmal · 2018-08-02T10:37:24Z

app/src/main/res/drawable/record_icon.xml

+        android:height="24dp"
+        android:viewportWidth="24.0"
+        android:viewportHeight="24.0"
+        android:tint="?attr/colorControlNormal">


Applying tint attributes shows a warning

Resource references will not work correctly in images generated for this vector icon for API < 21

Current min SDK is 16. Please remove this tint attribute from icons in this PR.

Sure @CloudyPadmal

Avjeet · 2018-08-02T20:47:29Z

@harsh-2711 In this PR, even If I don't click on Export data the CSV file is still getting created in my external storage, if that is the case then what is point of having export data button.

Avjeet · 2018-08-02T20:50:46Z

@harsh-2711 Can you make this PR only concerned with UI and remove the play/pause functionalities because I created them in my PR.

CloudyPadmal

Fix only the issue you have mentioned this PR is fixing. Refer to best practices.

Avjeet · 2018-08-03T23:07:09Z

@harsh-2711 what is the update on this?

harsh-2711 · 2018-08-04T10:02:07Z

@Avjeet Only changing the buttons makes no sense. I have completed working on the issue of the file being created. I will soon update the PR. Also, I will change the title of this PR.

harsh-2711 · 2018-08-04T11:29:49Z

@Avjeet @CloudyPadmal I have made the suggested changes. Please review. I have also made this suggested changes in PR #1320. Good catch @Avjeet

Avjeet · 2018-08-04T20:36:10Z

@harsh-2711 Actually the problem I mentioned can be solved by storing the data initially in some temporary database and then if the user presses export data then retrieve the data from the database and store it in CSV file which I had done in PR. Doing this will also allow us to create the Logged data activity that Mario mentioned in the previous meeting. I have made that changes in PR #1323.
That is why I asked to make this PR related to UI i.e., change the icons, remove the setting and Map option.
Moreover, in this PR we have another issue that it is difficult for the user to understand play pause if the lux meter always keeps running.

harsh-2711 · 2018-08-05T04:57:05Z

@Avjeet A user opens an instrument only when he wants to use it. Therefore, it's not logical to freeze the instrument until he clicks the play button. In this PR, the user will be able to use the instrument as soon as he opens it and will able to record the data if he wants. Also, for the database issue, I can store the data first in a database and then in a file when a user clicks Export Data if you want (Currently I am doing the same but I am storing data in a file). Else you can add this functionality in your PR #1323. And I don't think there's anything difficult for a user to understand how to use the buttons in the instrument as I have used the icons from Material Design library of Google.

…nstrument

CloudyPadmal

We'll move forward from here

Avjeet · 2018-08-07T04:01:57Z

@harsh-2711 In last meeting it has been discussed there is no need of delete and export button here in lux meter it will be shifted to logged data activity and also could you try to make a icon like this

@CloudyPadmal what do you think??

mariobehling

@harsh-2711 Please change the button in a way that users can understand that this is a recording button more easily, e.g. as proposed by @Avjeet or something similar to below.

Avjeet · 2018-08-08T12:02:17Z

@CloudyPadmal @harsh-2711 @cweitat I think the changes from this PR also got merged into the code with the PR #1333.
@harsh-2711 You shouldn't have squashed the changes in the PR #1333 until your previous PR got merged.

harsh-2711 · 2018-08-08T16:18:34Z

@Avjeet I did a rebase and reset so all the commits got squashed. But I did make a note about that in the PR body. I think @cweitat missed it.

Avjeet · 2018-08-08T16:19:41Z

@harsh-2711 Ok harsh I have made the new icon and all the changes in my PR pls review it.
So should we close this PR then ?
