pycohortflow

Lightweight cohort flow diagrams built on Matplotlib.

Turn a plain Python list of cohort steps into a publication-ready vertical flow chart with a single function call. Colours, fonts, spacing, and box geometry are fully customisable via TOML configuration files.

About

pycohortflow is a Python library for programmatically generating cohort flow diagrams — vertical flowcharts that document participant progression through clinical studies, randomised controlled trials and systematic reviews, with explicit exclusion counts and reasons at each step.

The library targets the reproducibility and reporting-standard requirements of medical research. Cohort flow diagrams in this form are required by CONSORT (Consolidated Standards of Reporting Trials) for randomised trials and PRISMA 2020 (Preferred Reporting Items for Systematic Reviews and Meta-Analyses) for systematic reviews and meta-analyses. pycohortflow produces the structural elements those standards expect — a vertical main column with side panels for exclusions, automatic participant-count tracking and customisable per-step labels — without prescribing a single fixed template.

Diagrams are defined as data: a Python list of cohort steps drives the layout, exclusion counts are computed automatically with non-decreasing-N validation, and visual style is controlled by version-controllable TOML files held separately from the data. The same input renders the same diagram across machines and over time, eliminating the manual vector-editor adjustments that typically break reproducibility between manuscript revisions. Output formats include PNG, SVG, PDF and EPS, ready for journal submission.

No Python installed?

Use the Interactive Generator to build diagrams directly in your browser and export them as SVG, PNG or PDF.

Installation

pip install pycohortflow

Quick Start

from pycohortflow import plot_cfd
import matplotlib.pyplot as plt

data = [
    {"heading": "Registered Patients", "N": 350,
     "description": "Total patients registered in database"},
    {"heading": "Screening", "N": 150,
     "exclusion_description": "Did not meet inclusion criteria"},
    {"heading": "Eligible", "N": 120,
     "exclusion_description": "Declined / Lost to follow-up"},
    {"heading": "Final Analysis", "N": 115,
     "exclusion_description": "Data incomplete"},
]

fig, ax = plot_cfd(
    data,
    figure_title="Clinical Cohort Flow Diagram",
)
plt.show()

Built-in Styles

Three styles ship with the package:

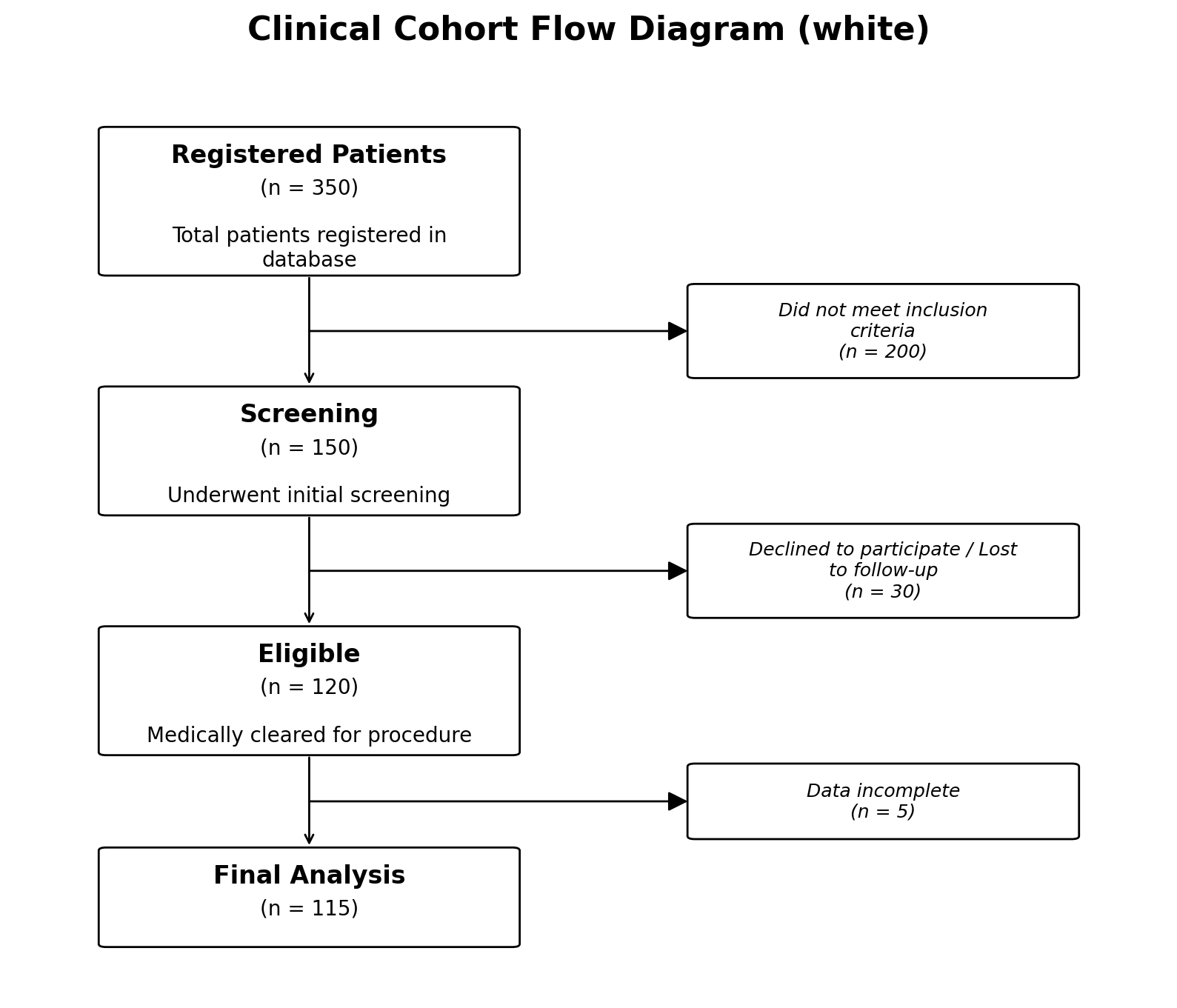

# Clean white boxes (default)
fig, ax = plot_cfd(data, style="white")

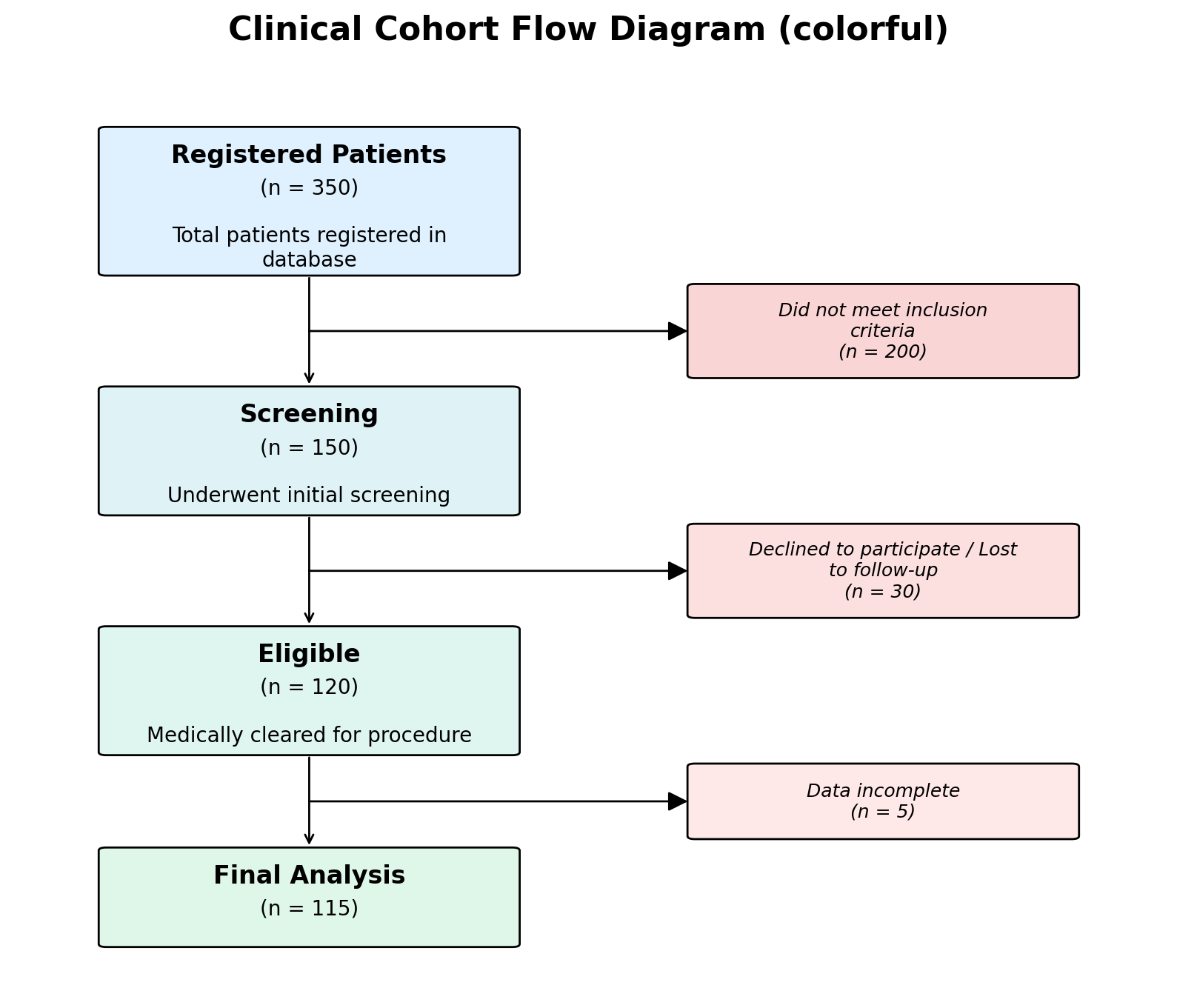

# Pastel gradient backgrounds
fig, ax = plot_cfd(data, style="colorful")

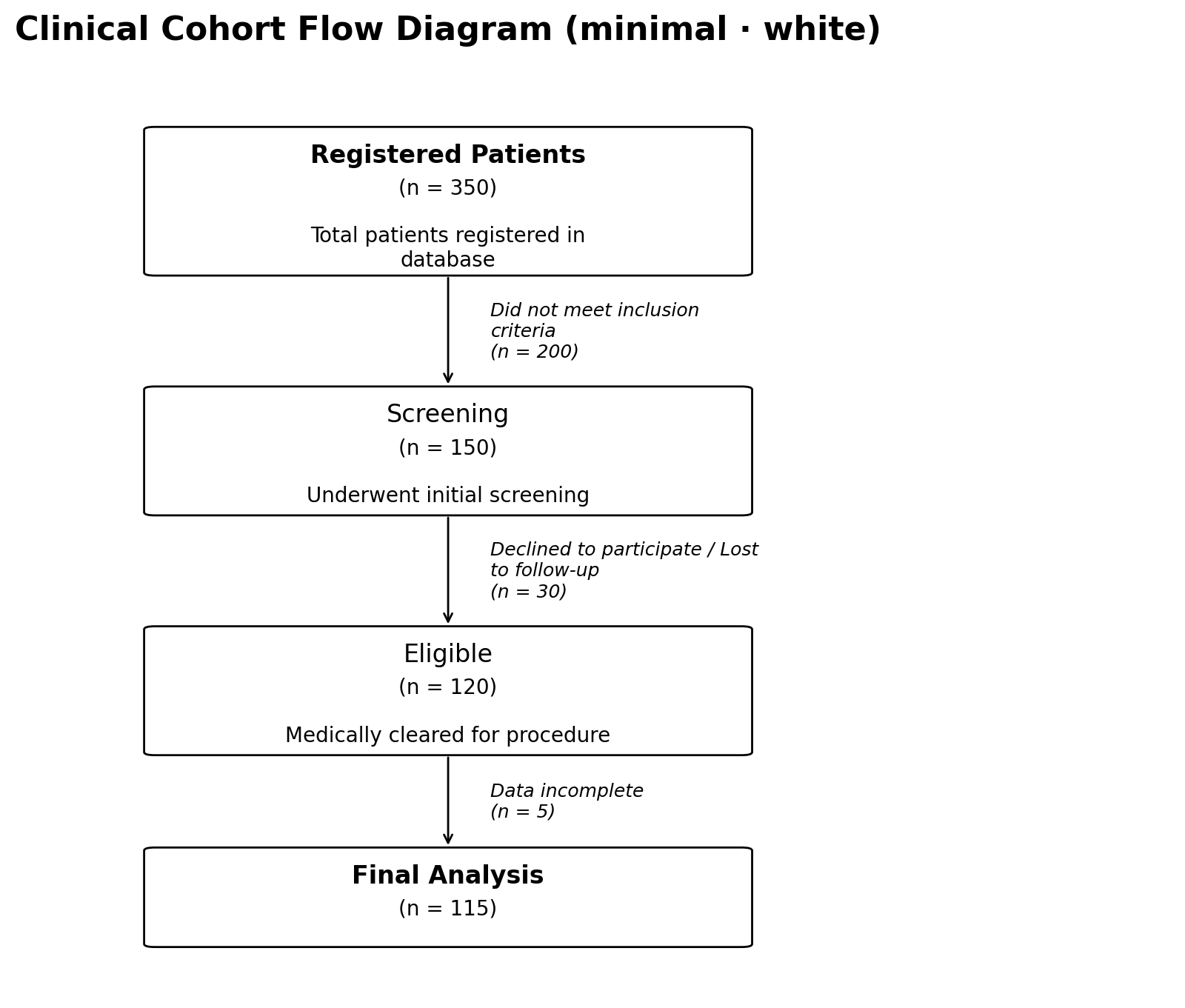

# Notebook-style: white boxes, normal-weight headings, italic side
# text instead of an exclusion box
fig, ax = plot_cfd(data, style="minimal")

# Transparent figure background (for slides / posters)
fig, ax = plot_cfd(data, transparent=True)

Customisation

Create a TOML file with only the values you want to override:

[figure]
dpi = 300

[colors]
main_start = "#cce5ff"
main_end   = "#d4edda"

Then pass it when plotting:

fig, ax = plot_cfd(data, style_config_path="my_style.toml")

See the full documentation for all available options.

Saving Figures

fig, ax = plot_cfd(
    data,
    save_dir="output",
    img_name="flow_chart",
    save_format=["png", "svg", "pdf"],
)

Sharing a figure with a non-Python user

Use plot_and_export to render the figure and write a paste-ready .cohort.json + .style.toml pair that reproduces the same diagram in the Interactive Generator:

from pycohortflow import plot_and_export

fig, ax, exp = plot_and_export(
    data,
    out_dir="export",
    name="study",
    style="colorful",
    figure_title="My Study",
    save_format=["png", "pdf"],
)
# export/study.png             (figure)
# export/study.cohort.json     → paste into "Cohort data (JSON)"
# export/study.style.toml      → paste into "TOML overrides"

Full details in the docs.

Requirements

• Python >= 3.9
• Matplotlib >= 3.5

License

EUPL-1.2 (European Union Public Licence v1.2) — see LICENSE for the full text.

---

Roadmap

The list below is auto-generated from docs/roadmap.rst; edit that file (and run python scripts/sync_roadmap.py) to update it.

• Add: Small Diagram version (delivered as the minimal style in v0.1.3)
• Add: Verbose option for communication of saving options (delivered as verbose=False in v0.1.3)
• Add: Export Python data + resolved style as a paste-ready .cohort.json + .style.toml pair for the Interactive Generator (delivered as export() and plot_and_export() in v0.1.4)
• Add: "Load Bundle" button in the Interactive Generator that reads a single combined JSON file (data + style + meta) and auto-populates all inputs, removing the two-textarea paste step
• Add: Python-based PRISMA2020 style generation, if necessary
• Add: Diagrams for multiple Arms (e.g. something like CONSORT style)
• Add: Multi-source / multi-center patient recruitment — support several parallel input streams (e.g. one box per recruiting site or registry) that merge into a single downstream cohort flow, including aggregated participant counts and per-source labelling
• Add: Full test coverage — assert per-node color and exclusion_color overrides actually change rendered facecolor; assert [exclusion] mode can be overridden via a custom TOML file; cover the verbose=True print path; consider an image-comparison regression test
• Consider: switch the verbose=True print path to standard Python logging so callers can control level, destination and handlers without per-call flags

Citing pycohortflow

If you use pycohortflow in your research, please cite both the descriptive paper and the specific software version you used. The Zenodo link is the concept DOI, which always resolves to the latest archived version; from there, pick the version DOI matching the release you actually used so readers can reproduce your analysis.

• Paper (methodology and design): Schwarz, F. (2026). pycohortflow: Lightweight, customisable cohort flow diagrams in Python and JavaScript. MetaArXiv. https://doi.org/10.31222/osf.io/ncya2

• Software version (for reproducibility): Schwarz, Friedrich. Pycohortflow. Zenodo, 2026. https://doi.org/10.5281/zenodo.20052730

A CITATION.cff file is included in the repository; GitHub's "Cite this repository" button and Zotero's importer will produce these citations automatically.
