Big Sur optimizations #719

zwaldowski · 2020-12-01T17:51:11Z

Adopts new APIs for the visual design where they make sense for macOS 11. It looks pretty spiffy.

This is the additional optimization mentioned in #715. It is separate from other open PRs and can be reviewed separately, although it will experience a trivial merge conflict if #714 is merged first.

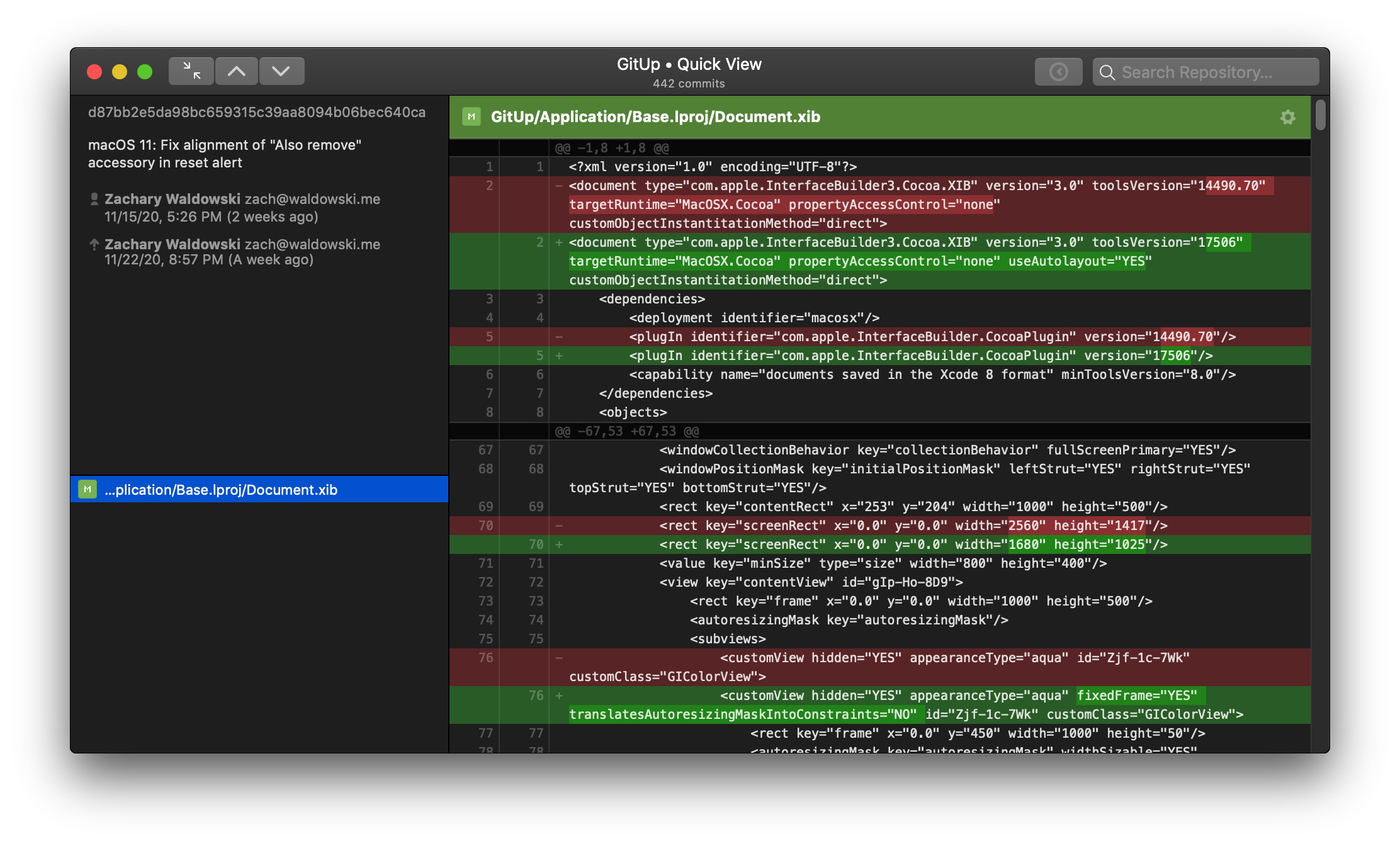

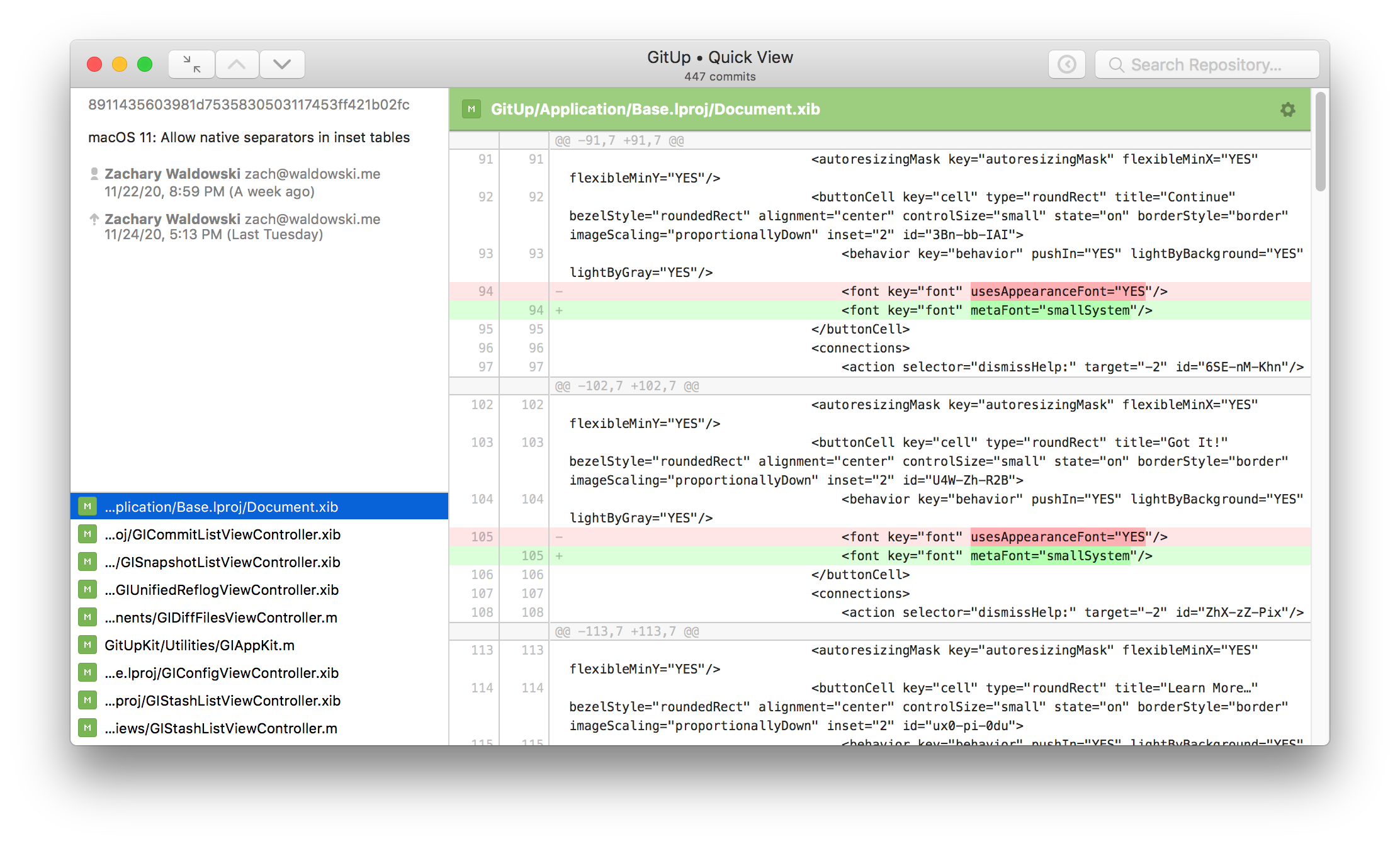

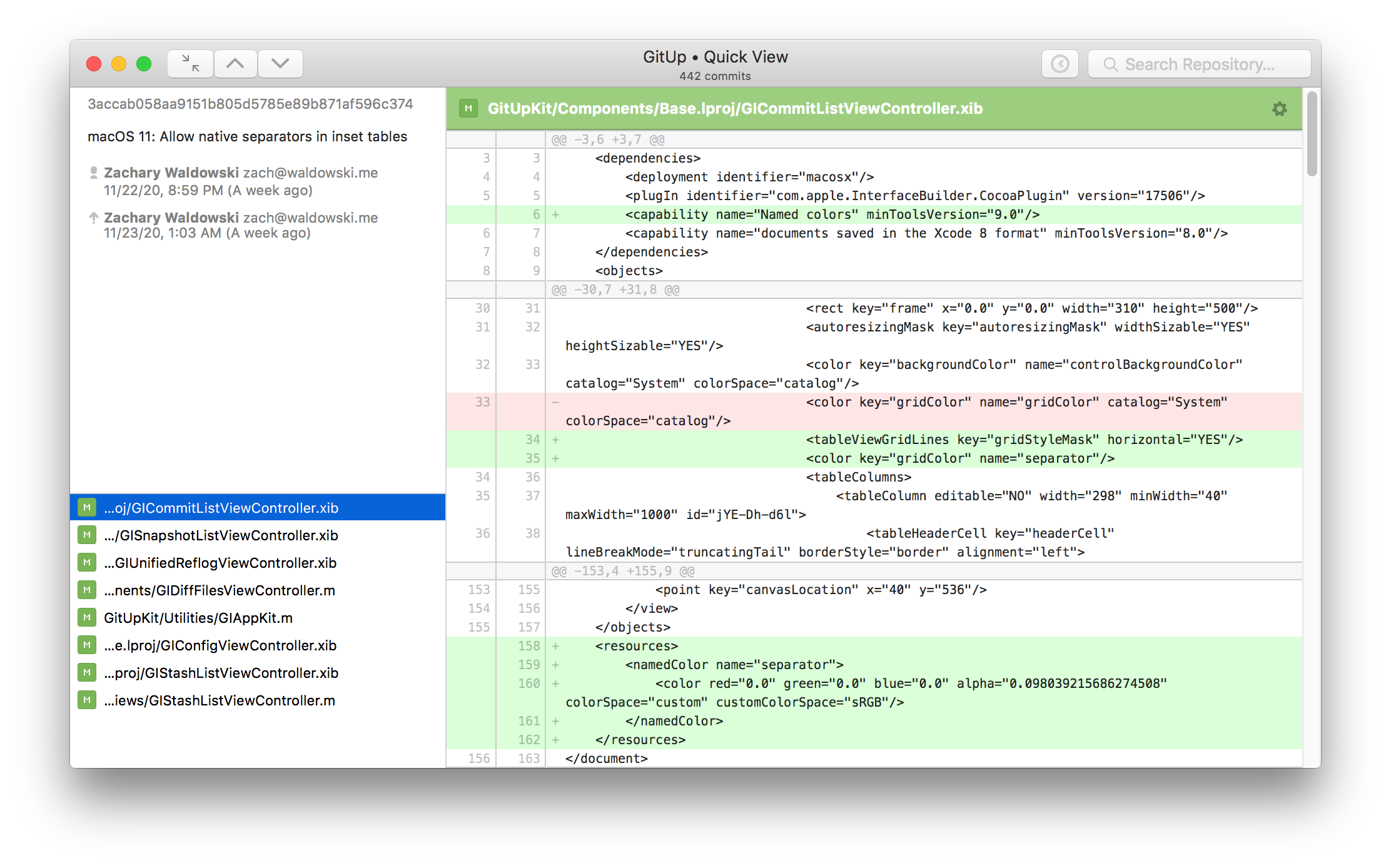

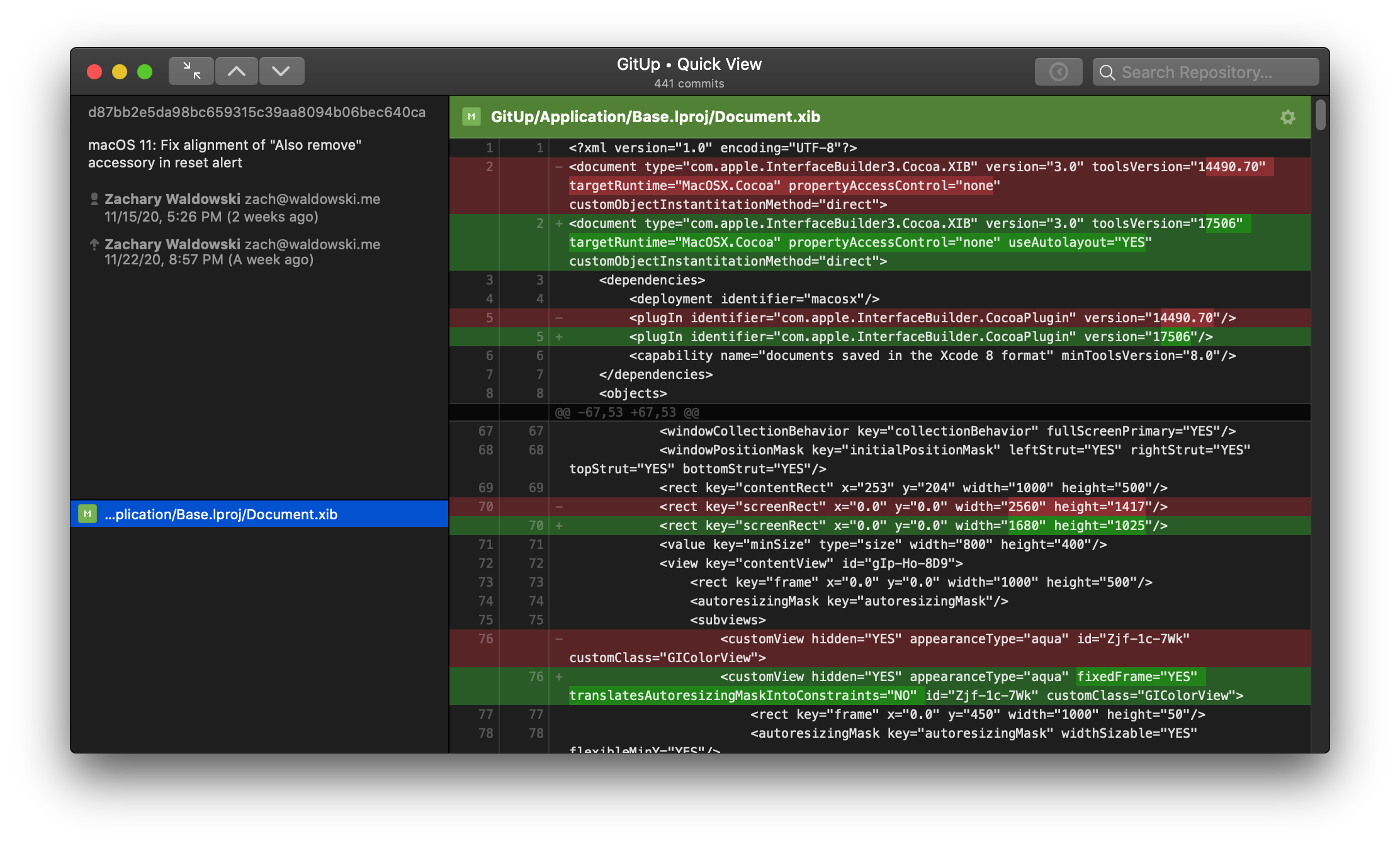

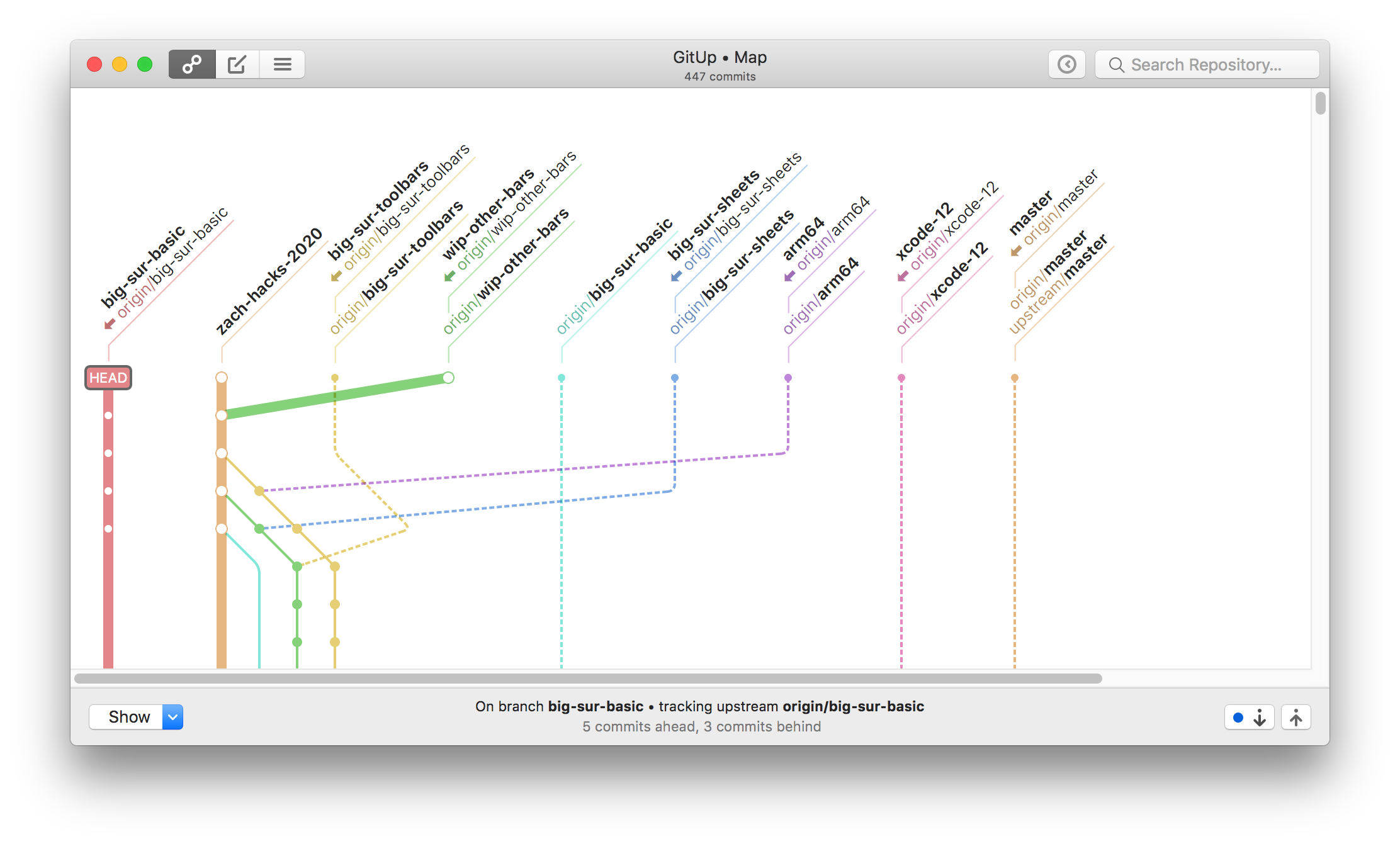

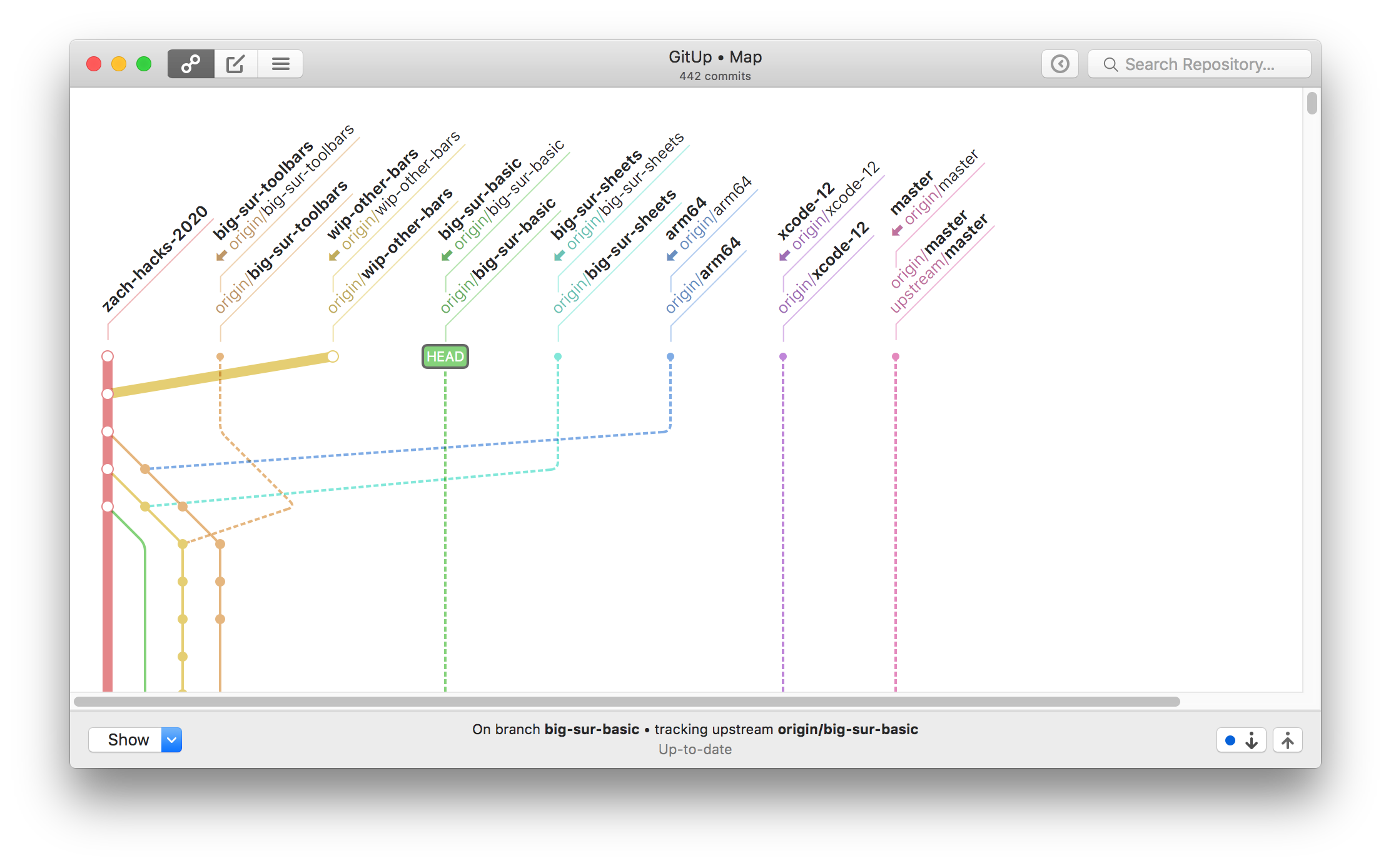

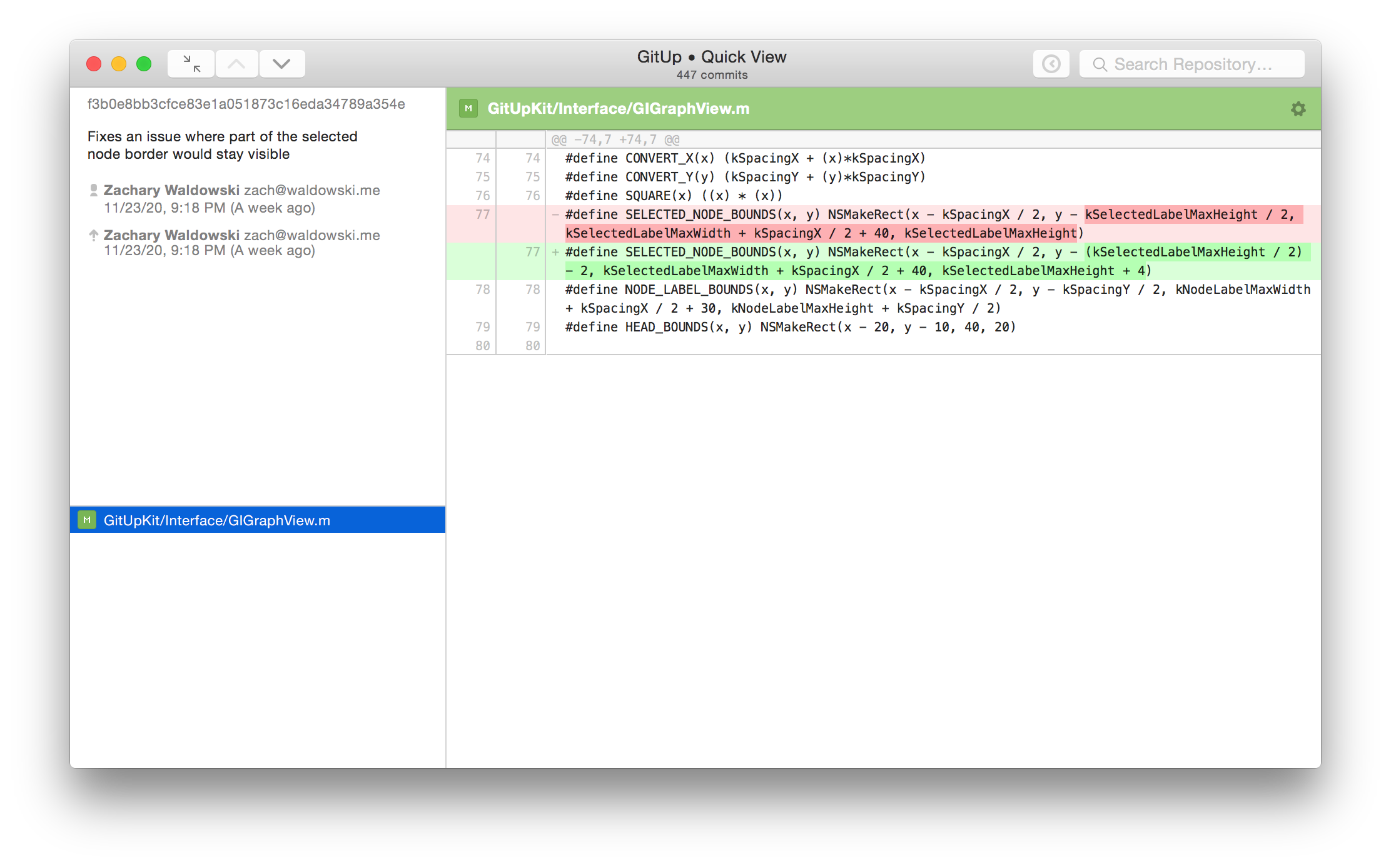

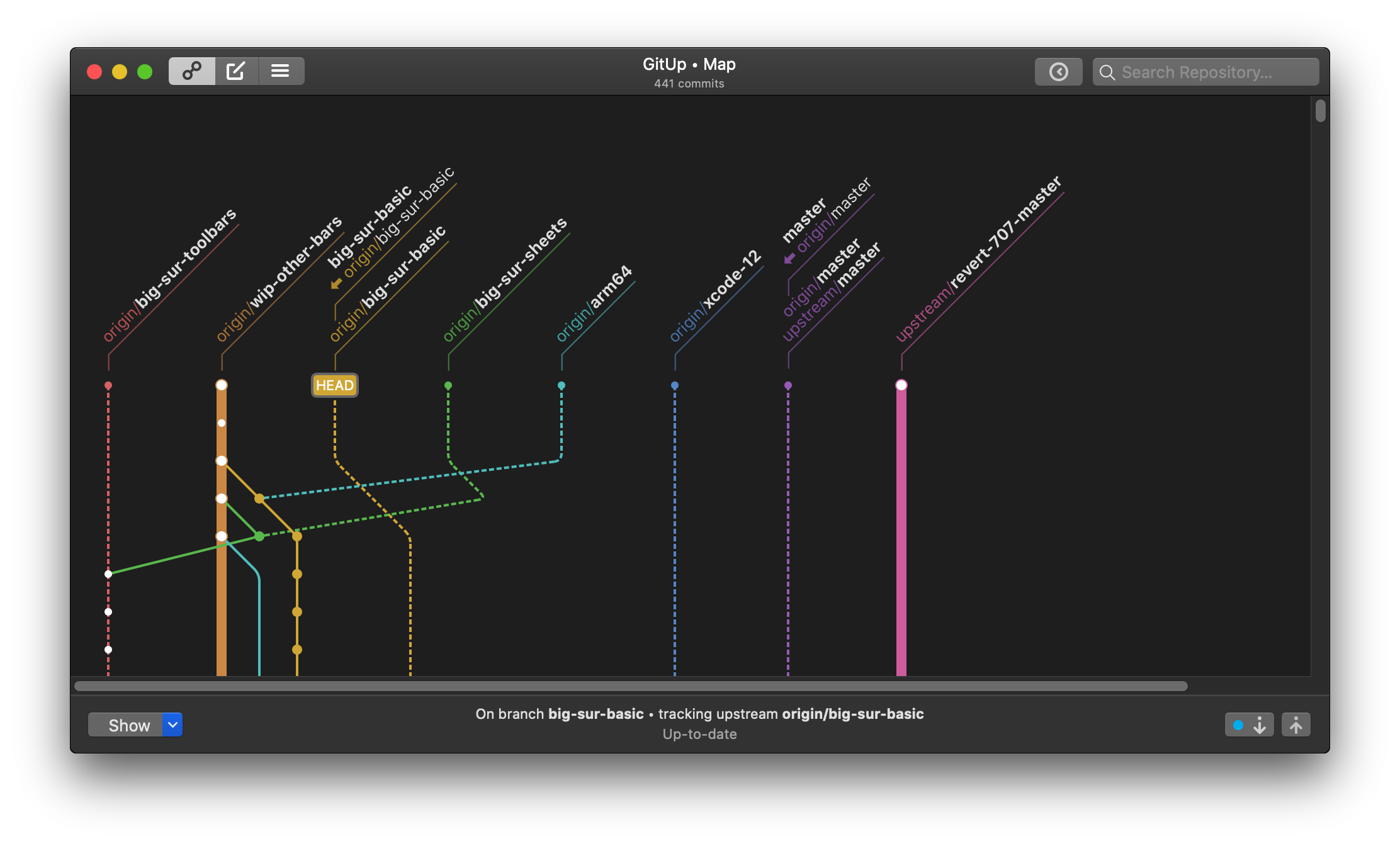

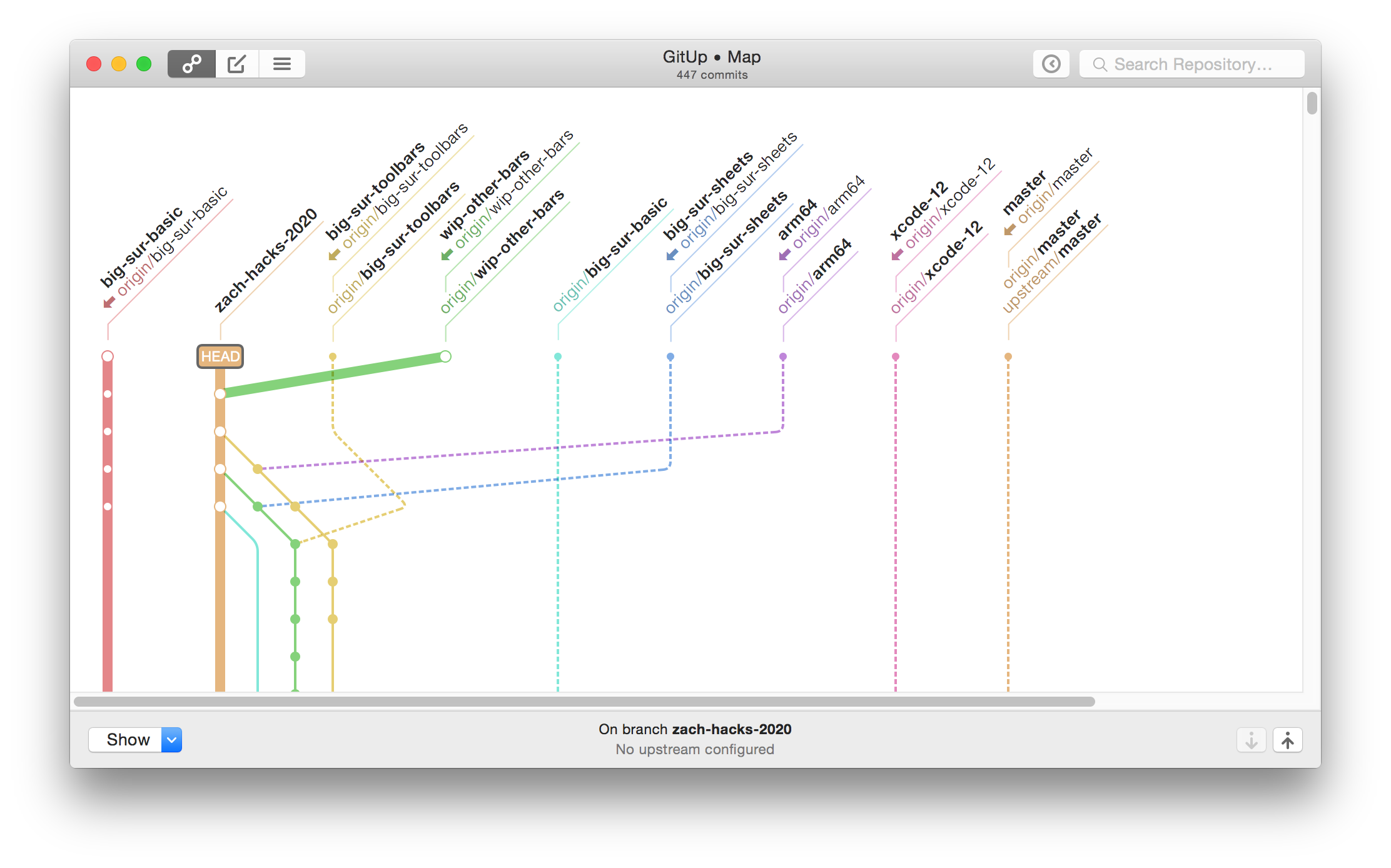

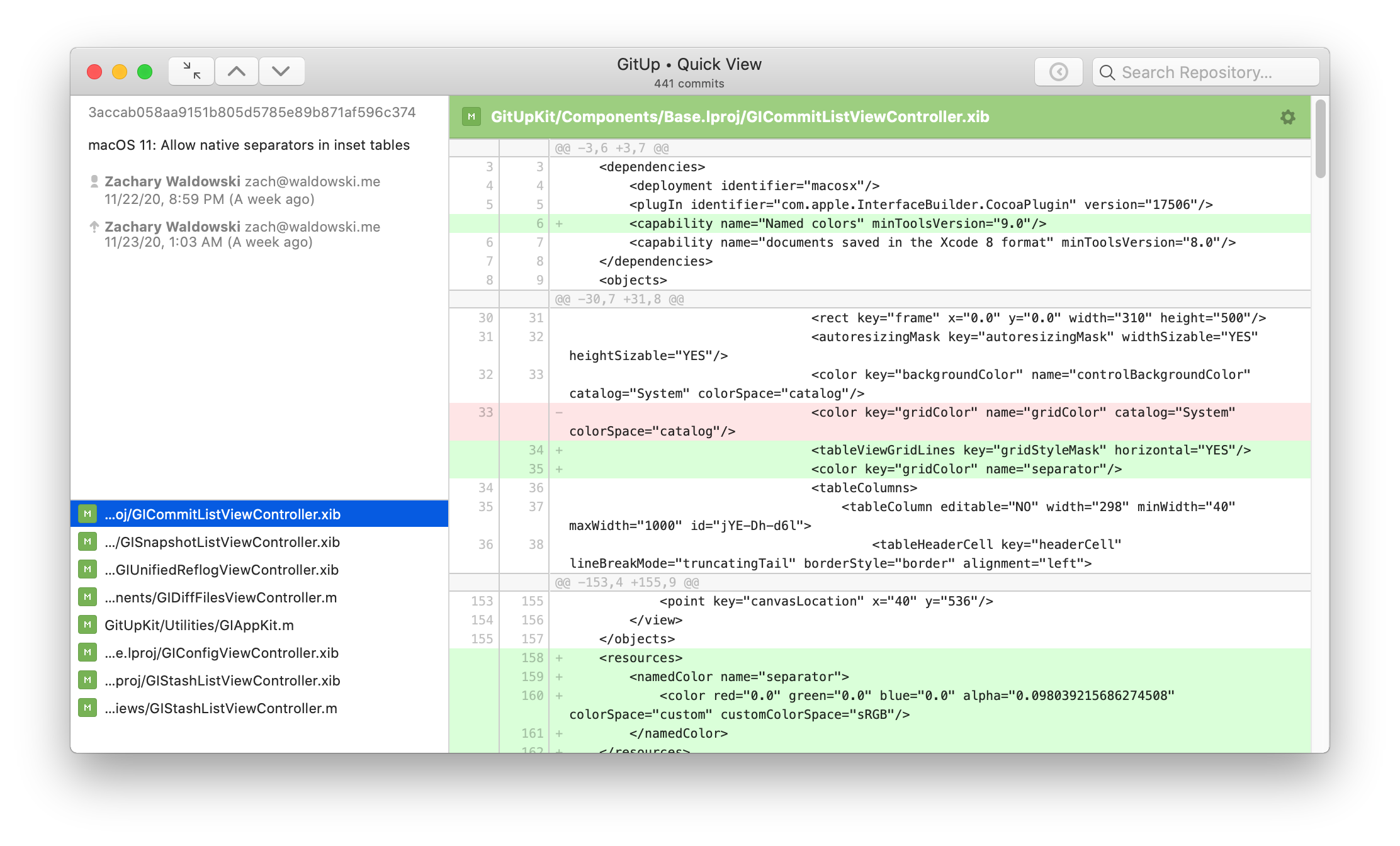

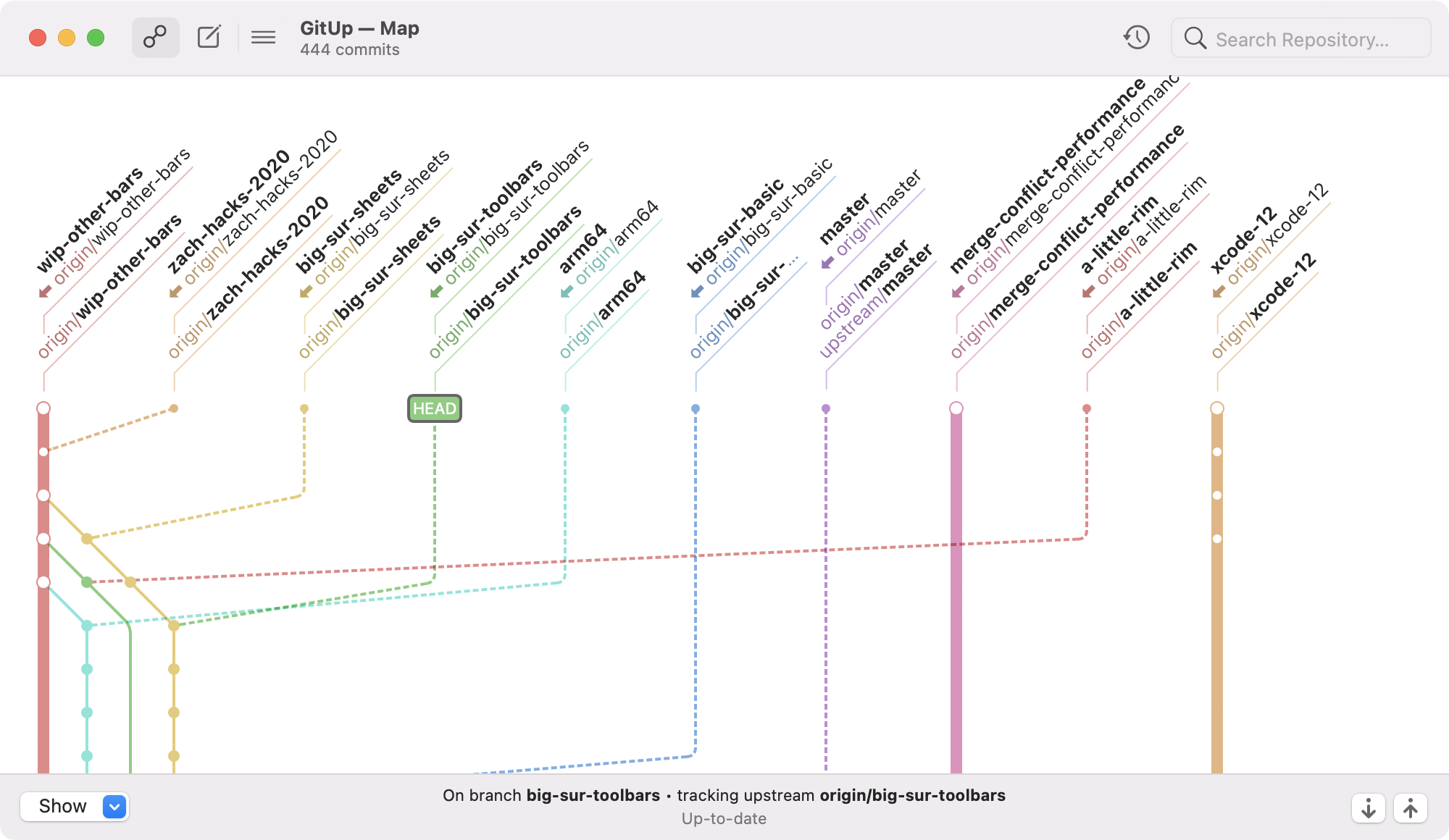

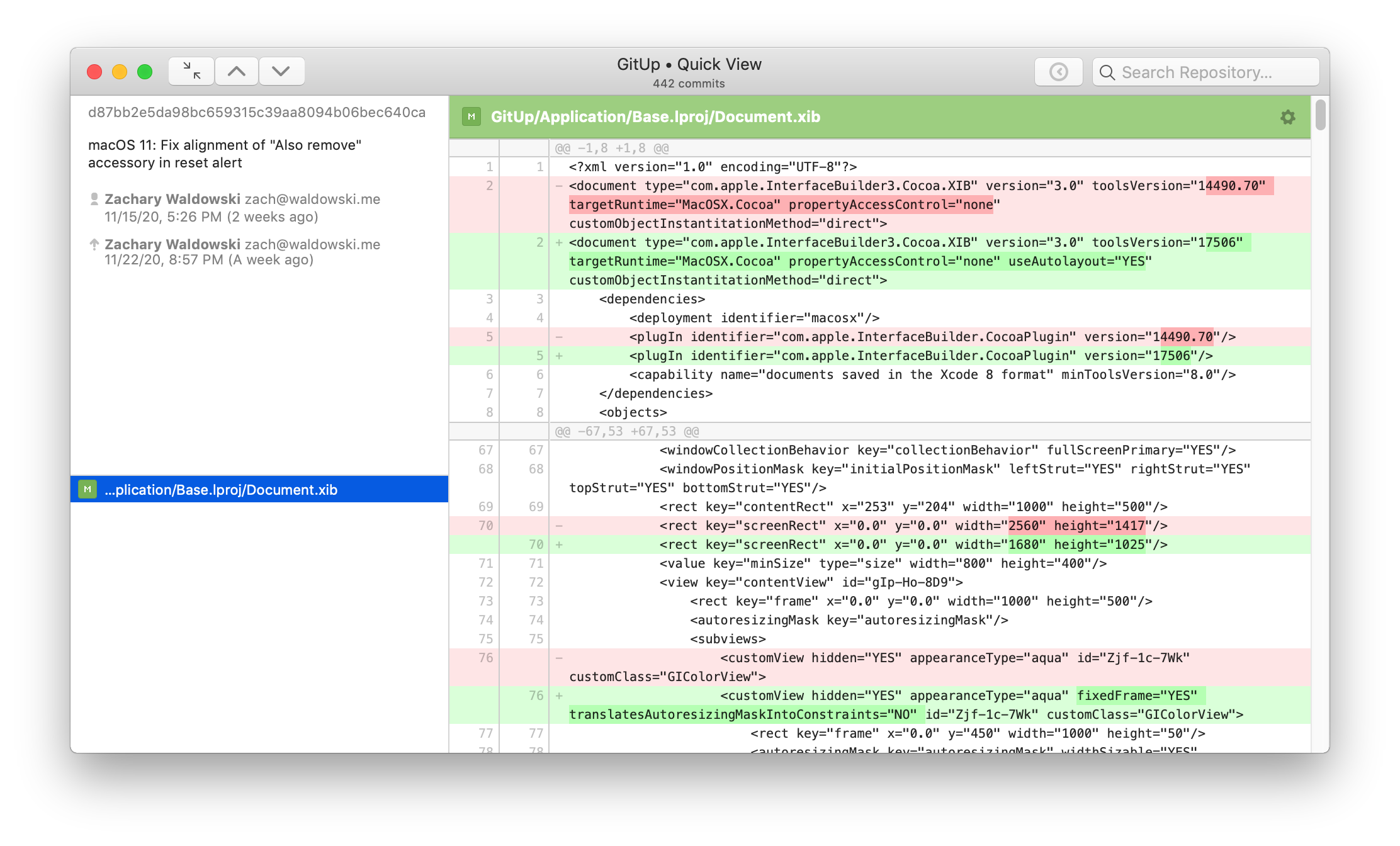

The big change here is reworking the main toolbar to have a fixed layout. The map/commit/stashes control switches to show the up/down/close controls in a Quick View (rather than switching sides of the window), and the snapshots button and search bar disable instead of being hidden. For code complexity’s sake, this applies on 10.15 and below as well. The two-line window title remains as-is on 10.15 and below. This is definitely open to discussion, but it’s been working well for me in a week of daily use.

Additionally:

Uses appropriate symbols for the main window controls.
Restores window title using native window subtitle.

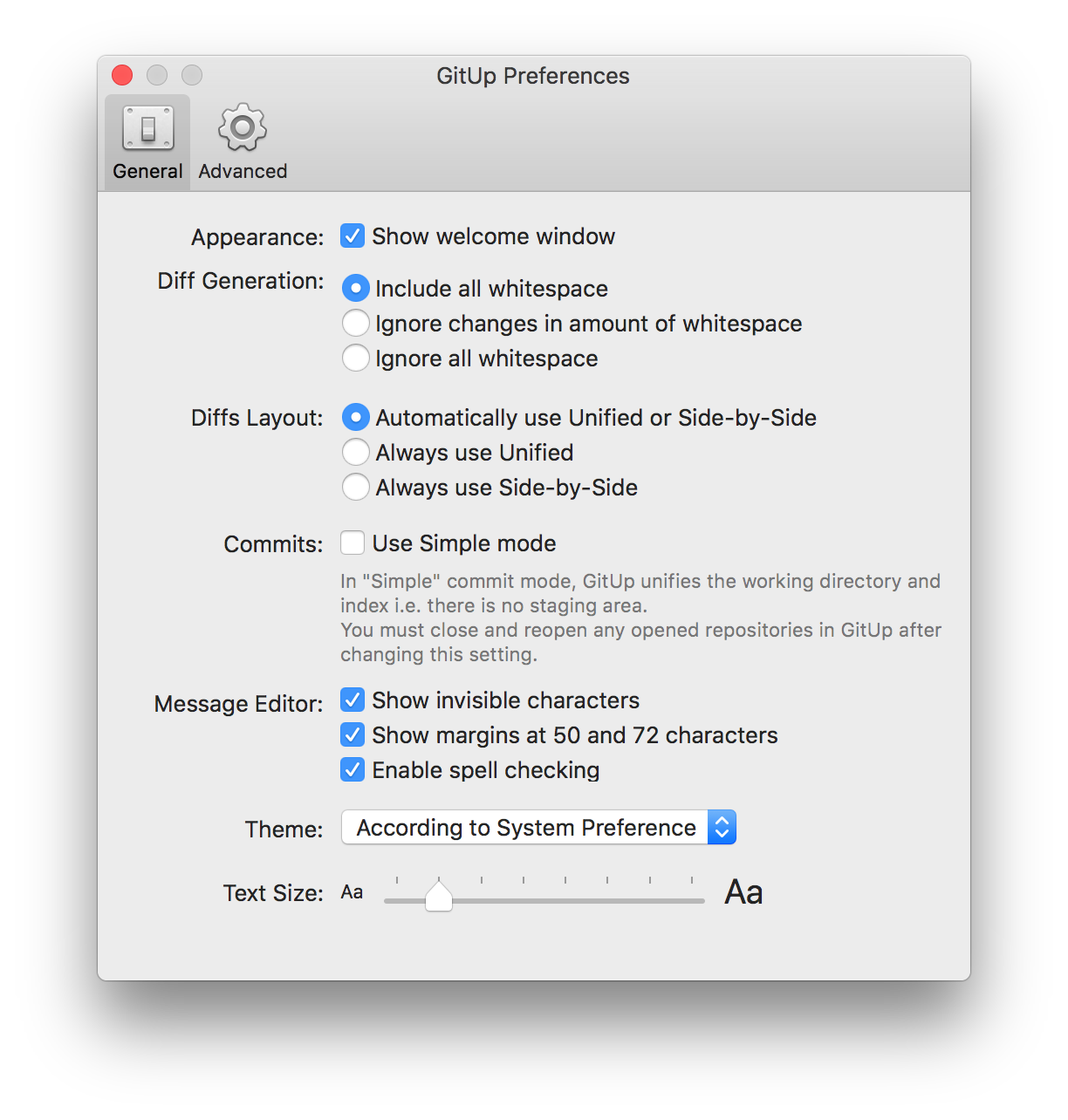

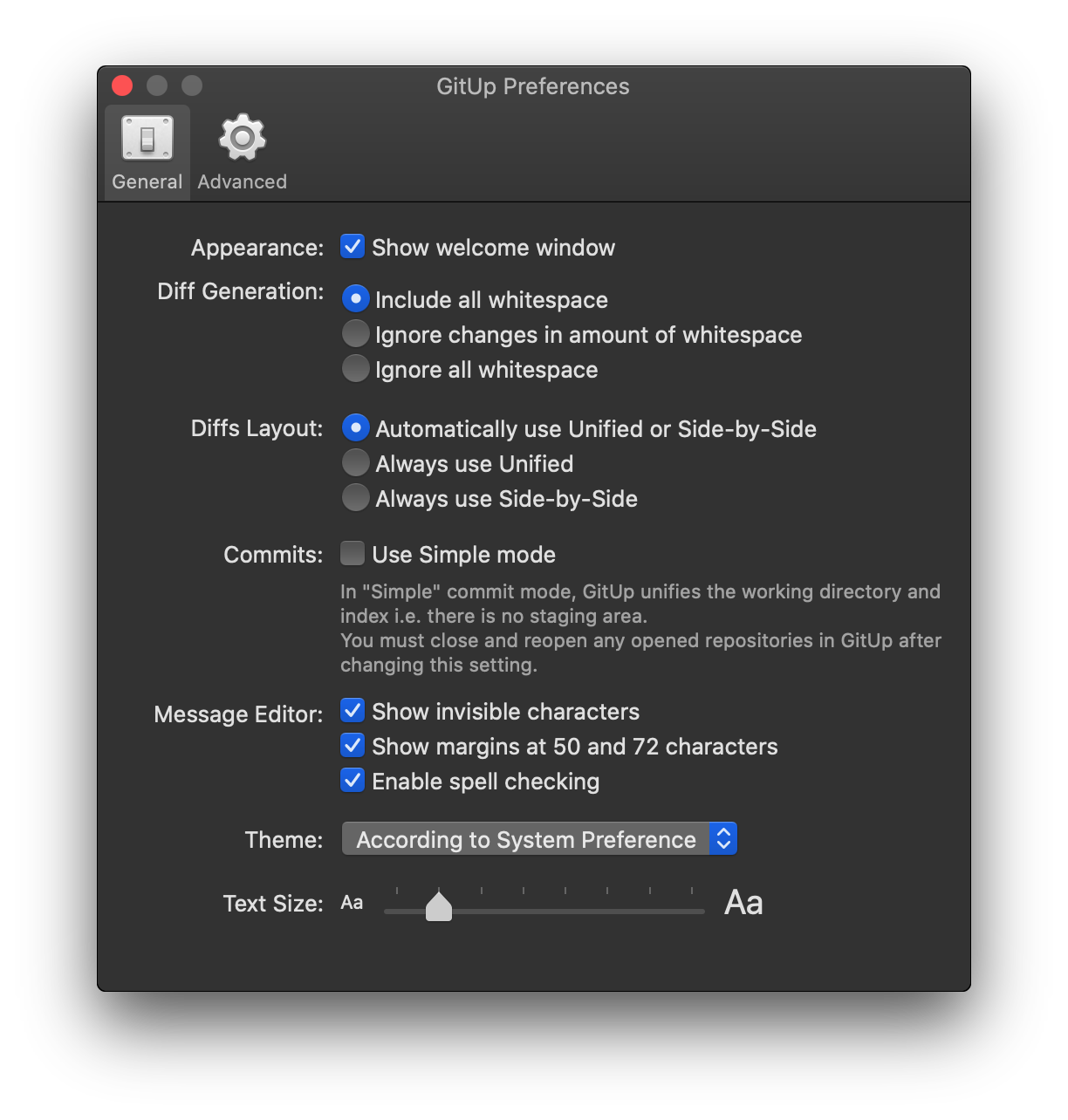

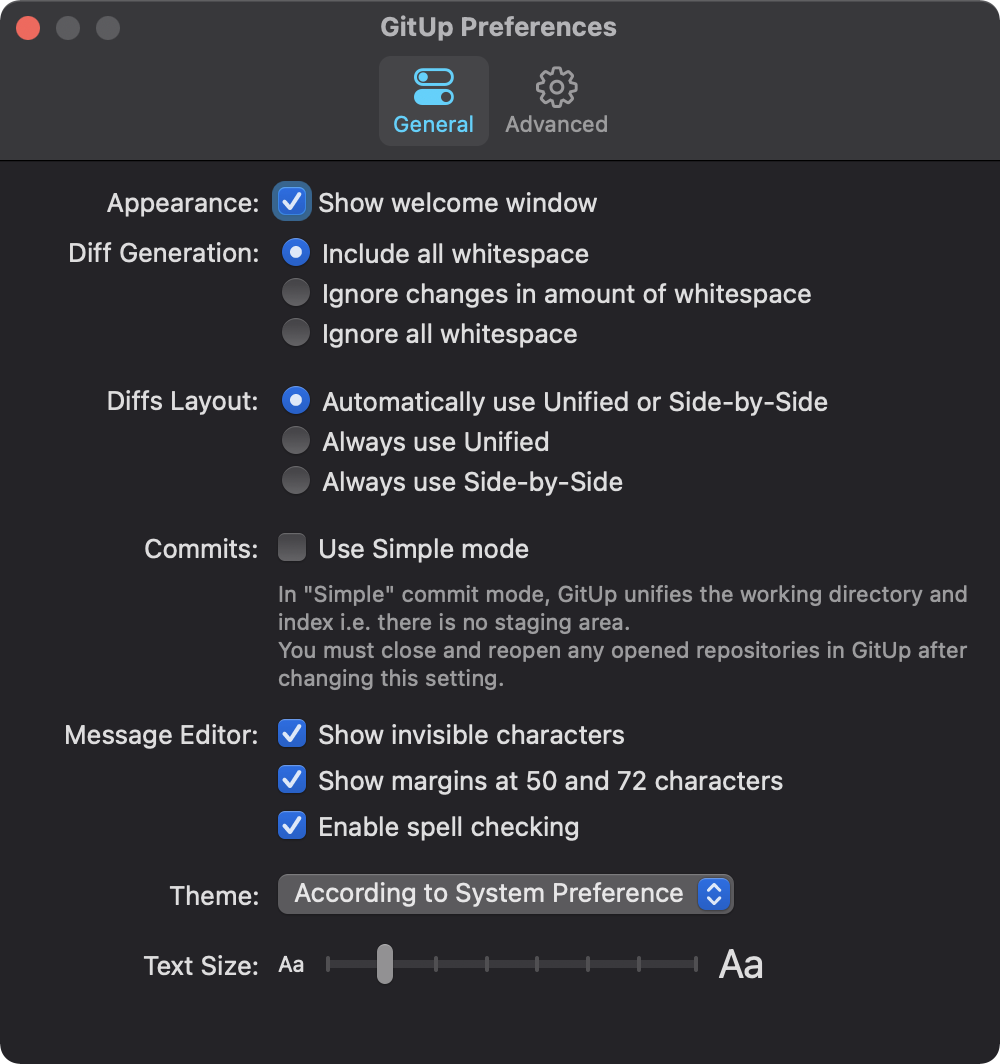

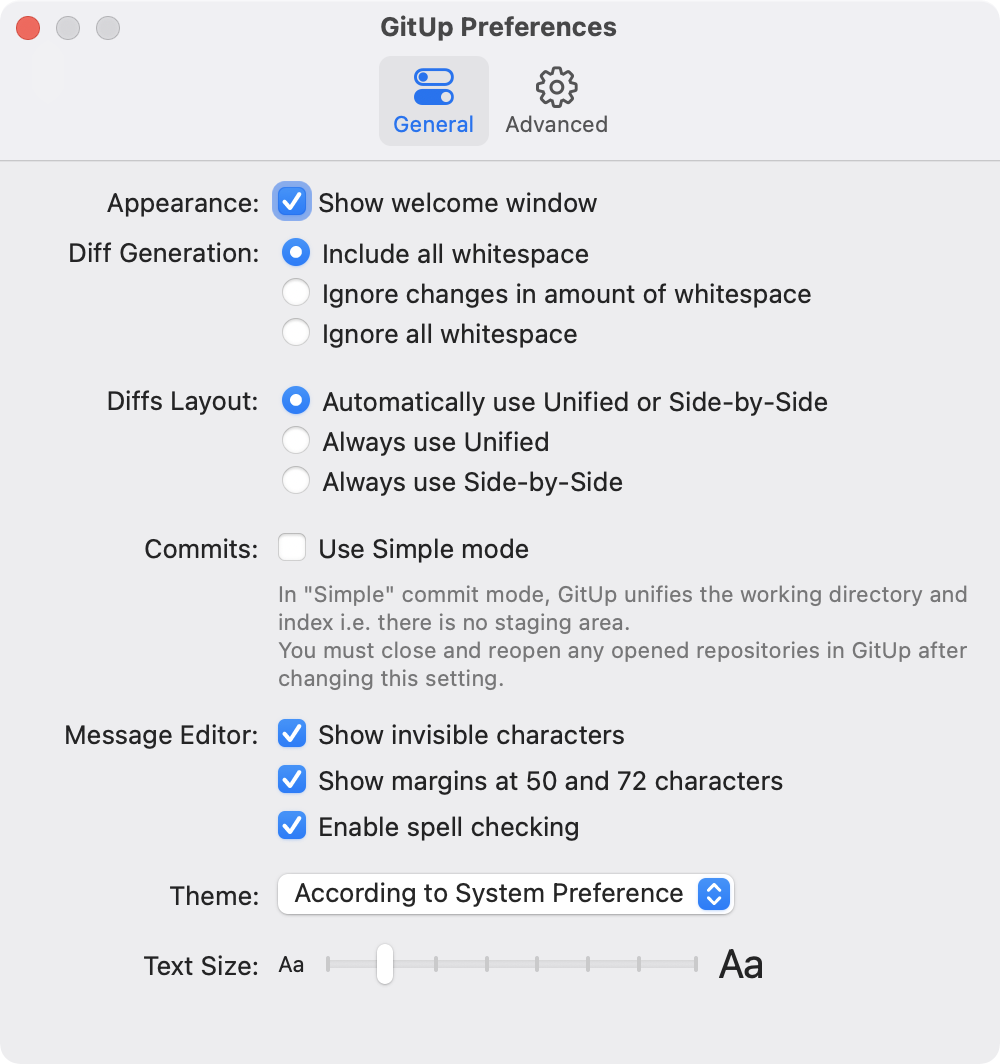

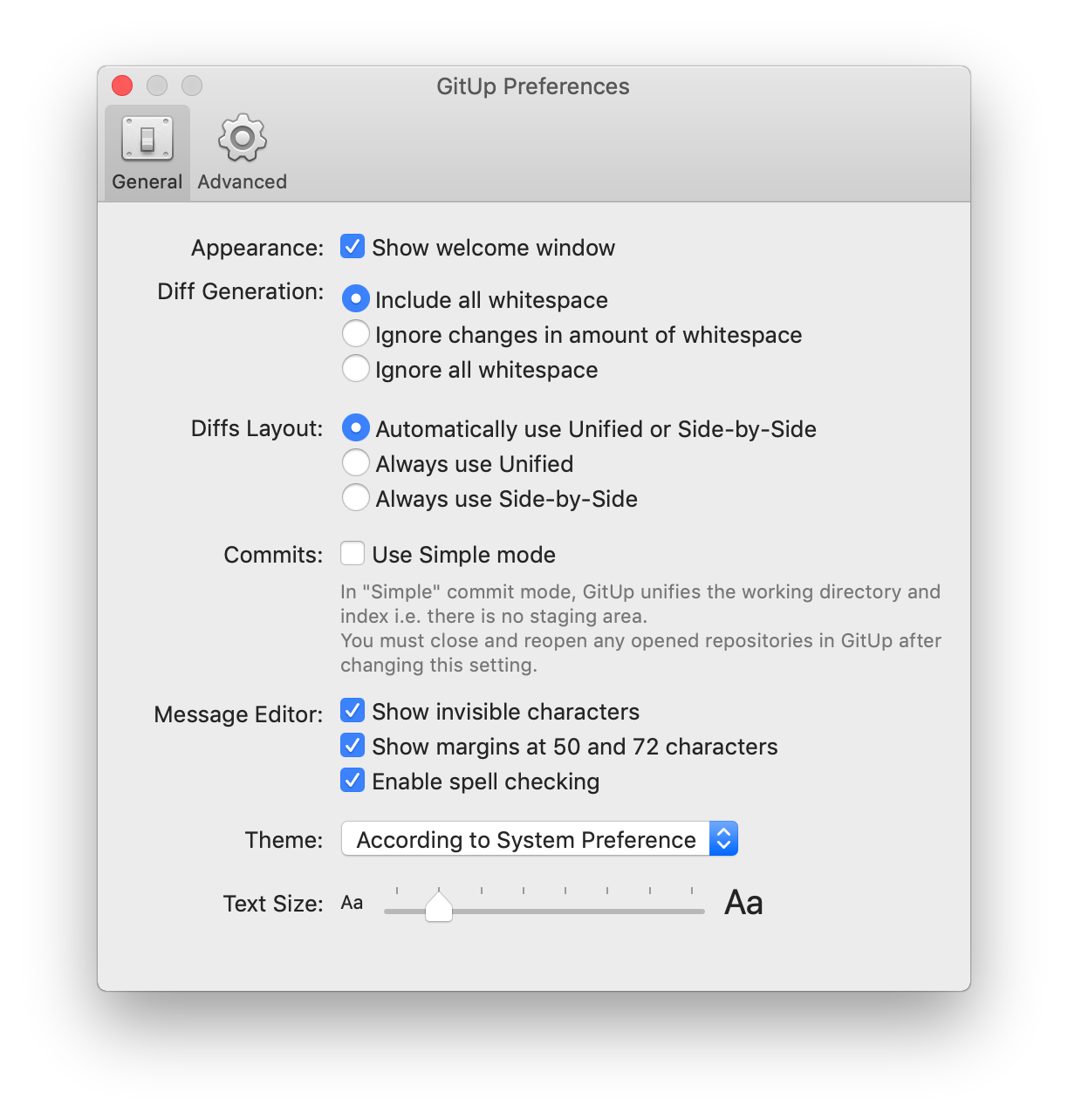

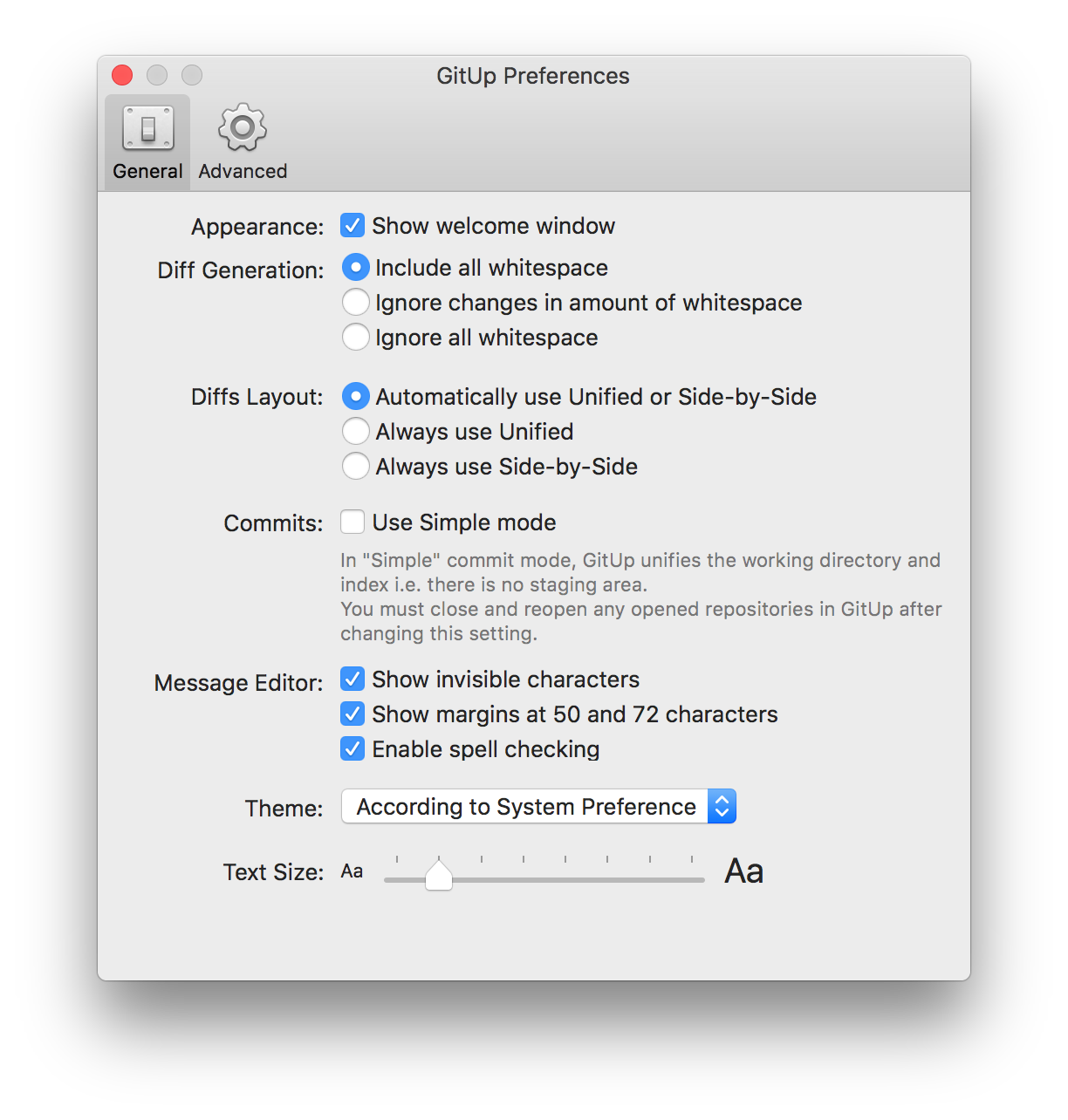

Uses a preference toolbar style with appropriate symbols for the preferences window.
Uses a more fitting button style for the stage/unstage button in the diff editor.

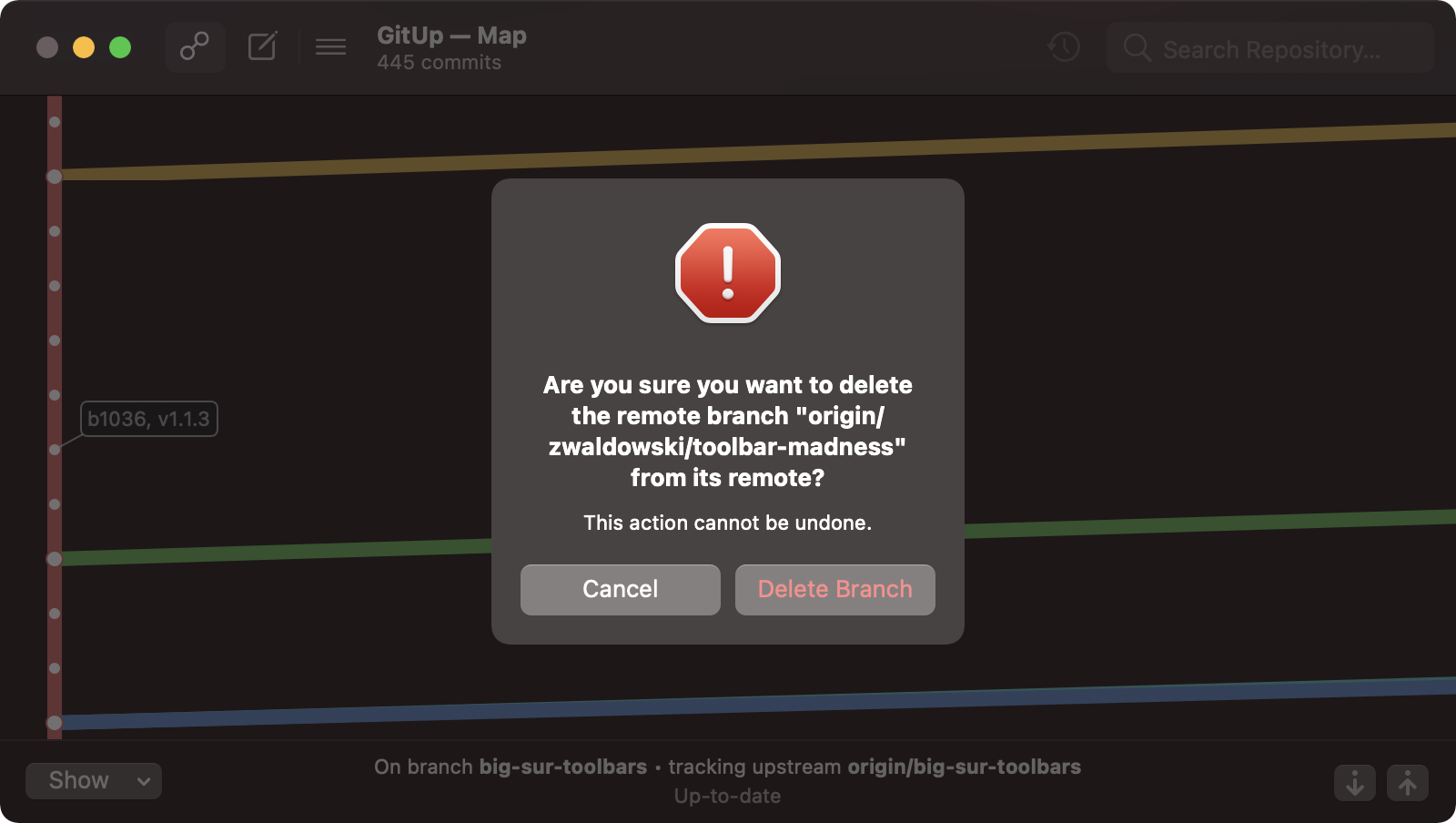

Configures destructive actions in alerts where applicable.
Updates some of the plumbing around validating the main window toolbar to better accomodate the fixed layout.

Aside: Titlebar Texture

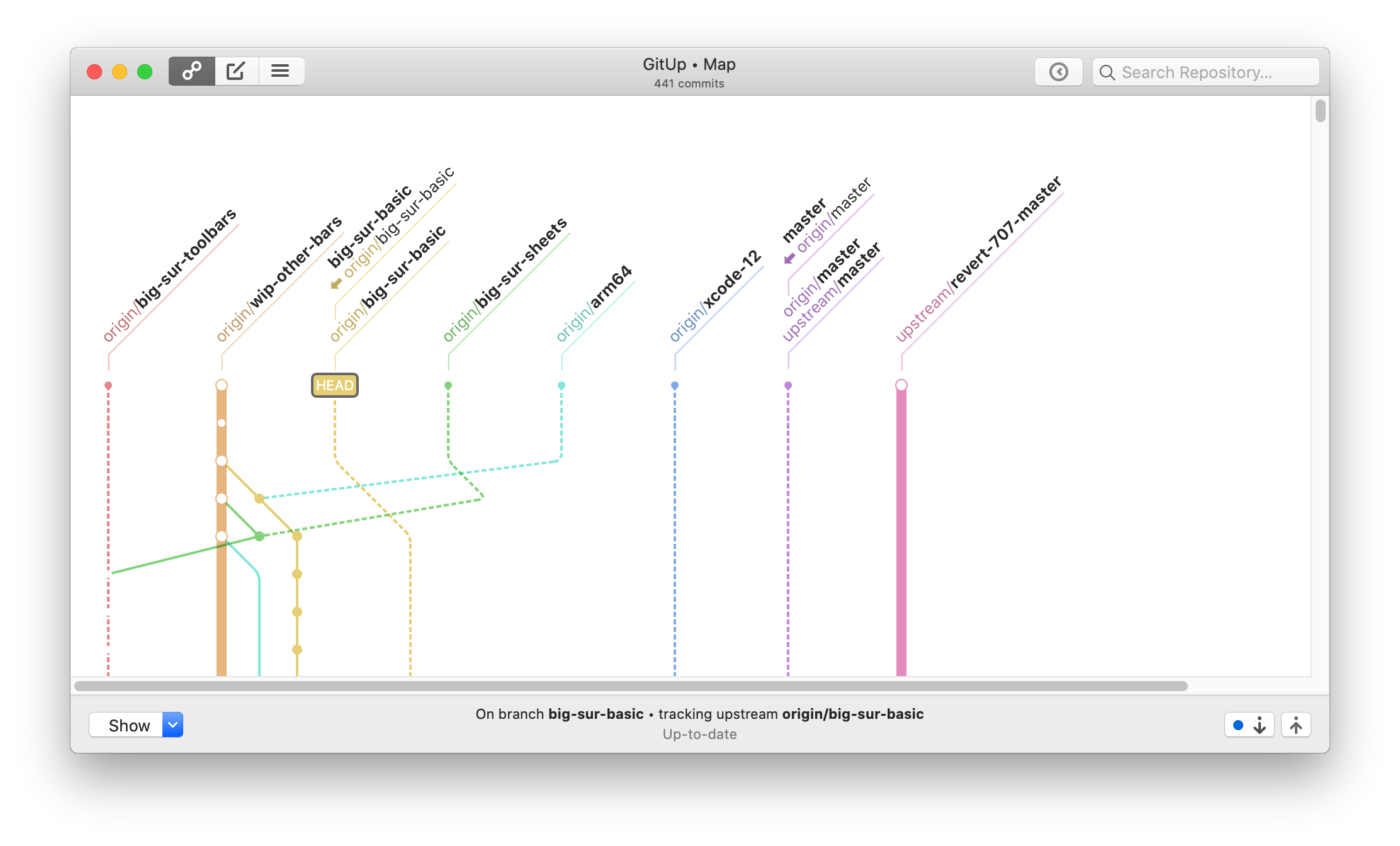

When the content of a window scrolls and has no accessories, the titlebar background will disappear like navigation bars do on iOS. You can see this when the Finder is in View > As Icons; it’s a really nice effect. The map view is eligible for this by default, but other modes are not. Due to #94 creating the possibility for a weird appearance, this PR explicitly deactivates that so the titlebar background is the same in all modes. It’s not clear it would look good if #94 was fixed, anyway.
