VHDL_CodeCoverageReportSample

• Tutorials how to coverage data from verilog file into the report web-based.
• This is an example how to coverage data from verilog testbench file into html-based, which will be used later to indicate its content on the web-based.
• This tutorial is based on the instructions by Tomin Abraham Verilog Code Coverage.
• What we have to do 1st is to choose the right directory of the verilog file and testbench file to work on these 2 files.

Step 1: Map the library

vmap (library name) (library name)

Step 2: Compile the design and testbench

vlog -coveropt 3 +cover +acc (file name(design)).v (file name(testbench)).v

Step 3: Run the simulation for code coverage

vsim -coverage -vopt (library name).(module name(testbench)) -c -do "coverage save -onexit -directive -codeAll (report name).ucdb; run -all"

Step 4: Export the code into html file

vcover report -html (report name).ucdb

Step 5 (Optional): If the index.html file doesn't appear in the file covhtml report then you have to follow these step

vcover report -html (report name)

vsim -coverage -vopt (library name).(module name(testbench)) -c -do "coverage save -onexit -directive -codeAll (report name).ucdb; run -all"

vcover report -html (report name).ucdb

Step 6: Open the covhtml file and click the index.html, the final report will be opened on the website based.

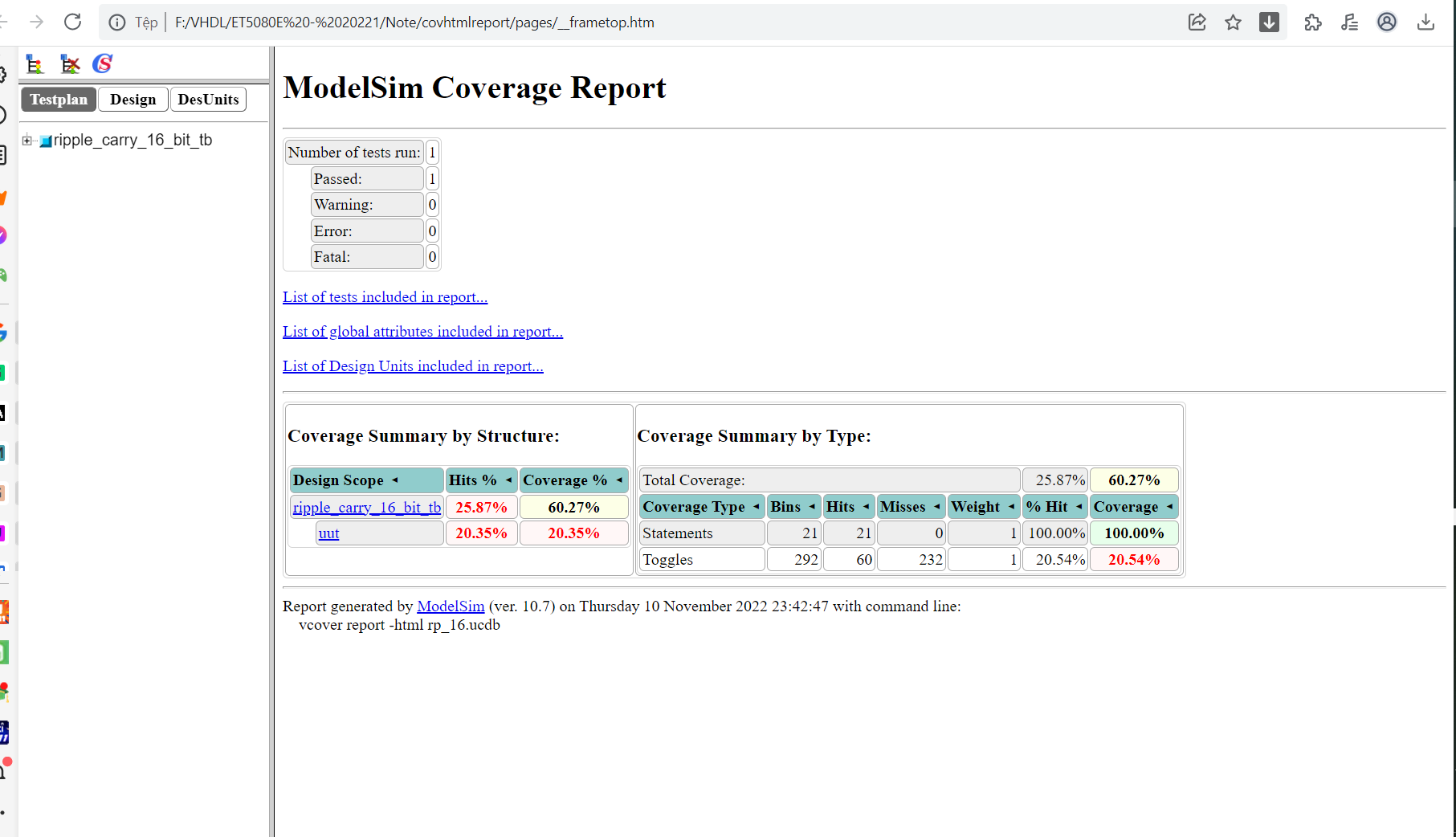

The final result should be looked as the below :
