This guide assumes that you already have a MacBook running at least OSX (Mountain Lion) and have Xcode 5 installed.
iOS is a mobile platform developed by Apple and is one of the most robust mobile platforms. iOS development is mostly done on Xcode (IDE) and the programming language is Objective-C. Objective-C is an object-oriented programming language based on C.
Methods (or messages) have quite a different structure from what you have in C.
obj->method(color,size);[obj methodWithColor:color withSize:size];The iOS Framework brings a whole lot more than just the Objective-C language, new Frameworks for controlling the mobile capabilities of your device, but also very popular and powerful OSX frameworks such as CoreData.
Most of iOS development is done with the MVC design pattern (Model-View Controller) in mind, therefore an application will be divided into Model which contains the classes that contain the data your app will manipulate; View which refers to the visual part of iOS, where you create views to display your data; and Controller which is the middle ground between your data and your views, the controller manipulate the data and display it properly on the views, but will also receive input from the views and convert/manipulate into data.
For this workshop we are creating a network-based Todo list app with authentication.
Open up Xcode, click Create a new Project and select iOS and then Single View Application. Set your product name to Todo and fill the Organization Name and Company Identifier whichever way pleases you.
Set the Devices to iPhone and leave the Use Core Data unchecked as we will not be using CoreData today. That would be a workshop on its own.
Select the folder to which you would like to save the project and press Create.
You will then land on the Target's General Settings, and under Identity you can define the app version, build number and your development team (for code-signing purposes). The Deployment Info is the section where you can define the iOS version of your application, which devices it will deploy to (iPhone,iPad or both), which orientations the app will support, and the color of the status bar upon launch.
For this app we will only want to use the Portrait orientation, please uncheck any other Device Orientations.
Under the next two sections you can define which resource shall be used for the App Icon and which should be used for the Splash Screen.
Last but not least, we have the Frameworks section, where you can import which iOS (and external) frameworks your application will use. (If you do not have cocoapods installed please click the + sign and add CoreGraphics, MobileCoreServices, Security and SystemConfiguration frameworks, otherwise the app will not compile when we use the AFNetworking framework).

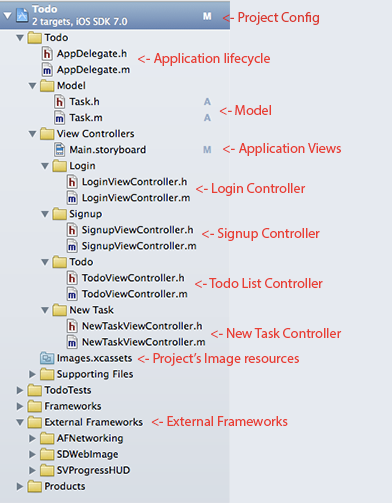

Even though this kind of project structure does not come as default, I find that it is a better alternative to organize and structure your code project-wise. (You will have to create the folder structure in Xcode if you want it to look like that).
In the Project Root you can configure most of the application's settings, such as, permitted device orientations, app icon, splash images, etc.
The AppDelegate focuses on allowing the developer to control his application through lifecycle callbacks for when the application is launched or when it goes into foreground/background. This class is mostly used to initialize what you might need globally throughout the application.
The Model is where classes should be created for containing the data which should be handle by the application. In this case the model will only contain Tasks.
A Model Class might contain custom initializers, public and private properties and public and private methods.

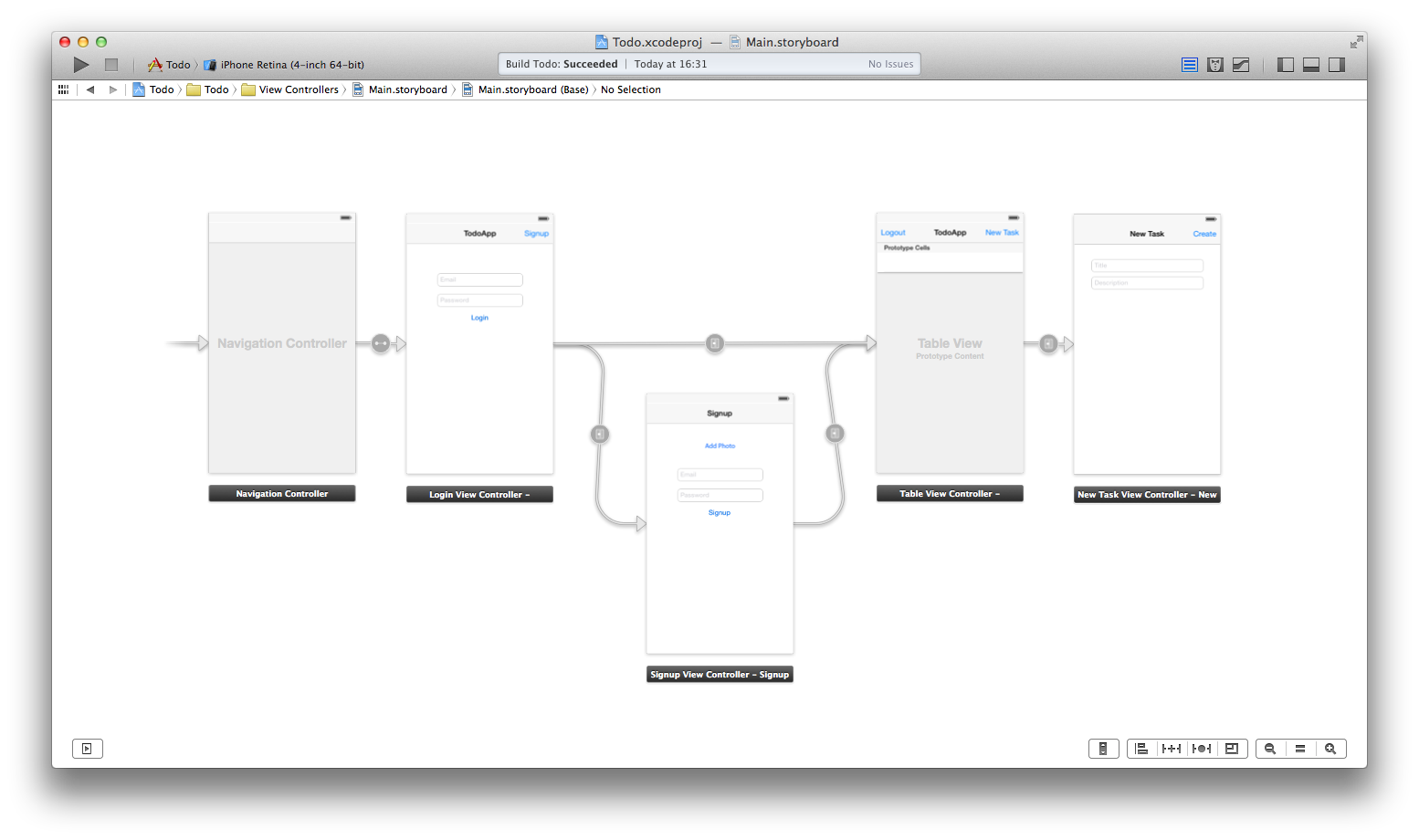

The storyboard is the equivalent of the View in the Model View Controller design pattern.
In the storyboard you can design the application's workflow by creating a chain of View Controllers that can interact with each other through segues. In each view controller on the storyboard you will be able to design the view hierarchy by dragging and dropping views from the bottom right corner of the storyboard screen. These views should later be connected to the Controller through the use of IBActions and IBOutlets.
The View controllers are the equivalent of the controller in the Model View Controller design pattern.
In each view controller you will be able to control its own lifecycle, interface interaction and delegate callbacks.
Interface interaction should be controlled through the IBActions defined and the IBOutlets. IBActions are what happens normally when you click something. IBOutlets are variables assigned to views, in order to manipulate the UI according to the controller.
The controller might also have access to the Model, in order to display information accordingly.
In the .xcassets file you will have your image resources for the application's UI. These images must always include two versions, a normal and a retina one. (e.g. image.png and image@2x.png).
Since this app focuses on tasks, let's model a Task class for the app to use. Right click your Todo folder and click New File..., under iOS select Objective-C class and click next. Set the name of the class as Task and be sure to subclass NSObject, click next and then Create.
You will now have 2 new files on your project, Task.h and Task.m. Let's go over to Task.h and start adding properties to our tasks.
A Task object will need 3 things, an identifier (to identify the task on the server side), a title and a status isDone (to let us know if we've done the task or not). Let's add those 3 properties to the Task.h file.
// Public model properties
@property(nonatomic, strong) NSNumber* identifier;
@property(nonatomic, strong) NSString* title;
@property(nonatomic, readwrite) BOOL isDone;@property creates a new property on the class, automatically creating the setter and getter for said property.
nonatomic means you do not want to guarantee thread-safety (which is faster in terms of get/set performance and we do not required thread safety).
strong means an object created from the class will keep the property value until it is set to something else or the actual task object is destroyed. (an alternative would be weak where the property might lose value when no other strong pointers are set to the same NSString/NSNumber object).
readwrite differs from strong/weak in the sense that it can only be used to primary types such as BOOL, int, CGFloat, etc. (you can possibly set as readonly as well).
NSNumber is a number "super-class", which can handle any kind of numeric or boolean value.
NSString is the equivalent of a String object in many other languages.
Bear in mind that in Objective-C there is a difference between mutable and unmutable objects, e.g. NSArray and NSMutableArray, where you can add objects to an NSMutableArray object but you cannot add them to an NSArray (Objects must be added on the NSArray initWithObjects: method)
Since we have 3 properties that will need to be set when a Task object is created, let's define the initializer.
// Custom Initializer
-(id)initWithIdentifier:(NSNumber*)identifier
withTitle:(NSString*)title
isDone:(BOOL)isDone;As I said before, methods (or messages) are defined and used differently from other languages, it provides a more verbose way to look at code. This method reads as "Task, initialize with an identifier, a title, and a done status".
Now that we have defined the header file, let's go over to the implementation file, Task.m.
The only function defined manually on our model shall be the custom initializer, where you create and assign the self (equivalent of this in JAVA) to the default initializer of NSObject, and then we set the self properties to the values passed on the message.
-(id)initWithIdentifier:(NSNumber *)identifier
withTitle:(NSString *)title
isDone:(BOOL)isDone{
if ((self = [super init]))
{
self.identifier = identifier;
self.title = title;
self.isDone = isDone;
}
return self;
}So, the Model is set, let's change our focus for a bit.
Since this is a highly visual and drag-and-drop experience, I will not go through it in this tutorial (although it will be included in the workshop itself).
The best way for you to work with Storyboards is trial and error, so feel free to drag and drop views and view controllers around.
To create a new view controller right click the Todo folder and press New File... , select Objective-C class, set the Subclass of to UIViewController and the Class name to LoginViewController. Leave both boxes unchecked as we will not need them.
On this controller we want to have a basic login interaction, with an email and password fields, a login button and a signup bar button.
Let's create the IBOutlets for this controller (LoginViewController.h):
@property(nonatomic, weak) IBOutlet UITextField* emailTextField;
@property(nonatomic, weak) IBOutlet UITextField* passwordTextField;emailTextField and passwordTextField after being connected to the Storyboard ViewController are object representations of the views themselves.
Since we'll have a login click event, we will need a IBAction to run code upon button press.
-(IBAction)loginClick:(UIButton *)sender;You now want to go over to the Storyboard and link the textfields and the loginClick: event.
On to the LoginViewController.m. The main interaction in this controller will be the actual login, so let's implement the loginClick: method.
To login we'll need to get the email and password strings from the input textfields.
NSString* email = [self.emailTextField text];
NSString* password = [self.passwordTextField text];Since our server communicates with a JSON protocol (JSON is a lightweight format to transmit data from a server to an application - web, mobile,etc), we will want to send the user information (and any other information) in a previously defined JSON hierarchy.
Yesterday we developed a server in Ruby on Rails where an API was defined. One of the created endpoints was for the login interaction, where it receives a JSON object such as:
{
"user":{
"email": "email@exemplo.com",
"password": "password"
}
}And returns user information and token in case of success, or a error message in case the login was unsucessful.
In Objective-C, the closest representation of a JSON is a chain of both NSDictionary and NSArray with NSString and NSNumber as values.
NSDictionary* userDictionary = @{@"email": email,
@"password": password};
NSDictionary* jsonDictionary = @{@"user":userDictionary};We have now reached a stage where we actually need to communicate with the server. So let's make an interlude.
To install cocoapods run sudo gem install cocoapods (might take a while).
If you have cocoapods installed on your Mac you can easily import any kind of framework. Open up your Terminal.app, go to the project's folder and run vi Podfile.
Let's add a few popular frameworks to try it out:
platform :ios, '7.0'
pod "AFNetworking"
pod "SDWebImage"
pod "SVProgressHUD"
Press Ctrl-c (or Esc) and write :wq to Write-Quit the file.
Next step is to actually download and install the libraries onto our project, so lets run pod install (this might take a few minutes depending on the network).
After it is finished you should close your Xcode window (Cmd-W), and open the new Workspace by running open Todo.xcworkspace on the console.
You will now have access to the downloaded libraries by using the #import macro in your code (e.g. #import <AFNetworking/AFNetworking.h>).
Go to the github pages of each framework, download as zip or clone, and drag the folder into your project.
To import the libraries on your .h/.m files you will have to import with #import "AFNetworking.h" since it is code on your actual project.
This framework allows very easy intergration with any RESTful service API, whilst having a performance boost versus the Apple networking framework. This framework also has a much easier callback interface (through blocks).
This framework is the holy grail of image downloading. It allows with close to no effort the downloading and displaying of images in UIImageViews. Automatically managing cache and memory consumption, allowing easy to use animation upon image visualization, etc. (Might not have enough time to go through SDWebImage on this workshop).
This framework provides an easy way to display a loader on the screen, and also error and success messages to the user. With a very easy to use interface as well.
The easiest way to communicate with any web-server at the moment is by taking advantage of the AFNetworking library (see AFNetworking on the external libraries chapter).
AFNetworking Framework automatically translates this structure into a JSON string to send to the server.
So lets perform a request to the actual server.
[[AFHTTPRequestOperationManager manager] POST:@"http://ios-todo.herokuapp.com/v1/users/sign_in.json"
parameters:jsonDictionary
success:^(AFHTTPRequestOperation *operation, id responseObject) {
[self loginSuccessfulWithUserToken:[responseObject objectForKey:@"authentication_token"]];
}failure:^(AFHTTPRequestOperation *operation, NSError *error) {
[self loginFailed];
}];This will pass the jsonDictionary as parameter of the POST to the server. It will also perform the loginSuccessfulWithUserToken: method with the authentication_token from the response JSON sent by the server. It might also call loginFailed in case the server did not accept our input for email/password.
The ^(AFHTTPRequestOperation *operation, id responseObject) { code } nomenculature represent Blocks which are basically functions that can be passed as arguments to other functions (methods), and executed when the receiver choses to.
To provide a better experience to the user, we should also send notice that we're performing a background task between the app and the server. Let's take advantage of SVProgressHUD to display a simple loader with a message.
[SVProgressHUD showProgress:-1 status:@"Logging in..."];Easy peazy.
We now have to define the methods used above for handling success and failed responses from the server.
-(void)loginSuccessfulWithUserToken:(NSString*)userToken{
// Set the token
self.userToken = userToken;
// Hide the loader
[SVProgressHUD dismiss];
// Go to the Todo View Controller
[self performSegueWithIdentifier:@"todoSegue" sender:self];
}
-(void)loginFailed{
self.userToken = nil;
// Show Error message
[SVProgressHUD showErrorWithStatus:@"Could not login. Please re-check your credentials."];
}In case of a failed login we reset the userToken and show an error message to the user using the SVProgressHUD.
As the code commentary suggest, in case of success, we're saving the user token onto the LoginViewController itself, dismissing the SVProgressHUD loader and performing a segue to go to the TodoViewController.
In order to save the userToken we'll need to create a new Private property to the LoginViewController.m above the @implementation LoginViewController.
@interface LoginViewController ()
@property(nonatomic,strong) NSString* userToken;
@endThis is the way you can add private properties to your classes in Objective-c. As you can see, this is an interface that is declared in your implementation file with a similar syntax, making it your private interface.
As for what a Segue is, it is a way to interact between different UIViewControllers, by reusing certain flow between them. A segue has an identifier to be able to perform it by code.
Since we need to pass the obtained user token to the new TodoViewController, we'll also need to intercept the Segue call to set the variable on the next screen (avoiding the use of a global variable throughout the app).
#import "TodoViewController"
-(void)prepareForSegue:(UIStoryboardSegue *)segue sender:(id)sender{
if([[segue identifier]isEqualToString:@"todoSegue"]){
// Set the user token on the next screen
TodoViewController* todoViewController = [segue destinationViewController];
todoViewController.userToken = self.userToken;
}
}Finally, if we want to add a touch of proper User Experience we should also set the chain of firstResponders for the textfields, so that you jump between the textfields as if it was a form. (and also performing the form action when there is no next field).
// Go to next textfield upon clicking the return key (perform action if no other textfield)
-(BOOL)textFieldShouldReturn:(UITextField *)textField{
if(textField == self.emailTextField)
[self.passwordTextField becomeFirstResponder];
if(textField == self.passwordTextField)
[self loginClick:nil];
return YES;
}The LoginViewController is now complete, let's go on.
The process on the SignupViewController is very similar to the LoginViewController, so I will skip that particular view controller and focus on the TodoViewController
On the TodoViewController.m we want to have a private property to keep the Model (Tasks) array. So let's add the next few lines of code above @implementation TodoViewController
@interface TodoViewController ()
@property(nonatomic,strong) NSArray* tasksArray;
@endNext, since the TodoViewController is a UITableViewController and the data comes from the network, we want to add a UIRefreshControl to have a pull to refresh functionality. We also want to initialize the property declared above to avoid nil pointers. Let's add the folllowing code to the viewDidLoad: method.
// Initialize tasks array
self.tasksArray = [NSArray new];
// Create a pull to refresh
UIRefreshControl* pullToRefresh = [[UIRefreshControl alloc]init];
self.refreshControl = pullToRefresh;
[pullToRefresh addTarget:self action:@selector(tasksFromServer) forControlEvents:UIControlEventValueChanged];Since we want to be able to add tasks later on, let's also refresh the data everytime the TodoViewController is shown, by adding the following code to the viewWillAppear: method
// Load the tasks from the server every time the controller is shown
[self tasksFromServer];
On the storyboard we have a Logout button for the user to logout of the application. Since we're using a UINavigationController we are able to jump back to the first screen (LoginViewController) by adding the following code to the logoutClick: method, therefor logging out of the application.
// Go to the login screen upon logout
[self.navigationController popToRootViewControllerAnimated:YES];The UINavigationController allow a 'push-pop' navigation style in your app, keeping the user allways in context: If you pushed a view controller, the user will see a back arrow and automatically know that he will be able to pop that view controller, getting back to the previous state. iOS allows multiple types of navigation and since iOS7 you can also do any type of navigation have your custom transitions.
Now that the TodoViewController basic setup is done, we'll need the data from the server. We'll create a method named tasksFromServer where we'll perform a network request using AFNetworking.
// Show the loader
[SVProgressHUD showProgress:-1 status:@"Loading tasks..."];
// Create JSON
NSDictionary* jsonDictionary = @{@"authentication_token": self.userToken};
// GET Tasks from Server
[[AFHTTPRequestOperationManager manager] GET:@"http://ios-todo.herokuapp.com/v1/tasks.json"
parameters:jsonDictionary
success:^(AFHTTPRequestOperation *operation, id responseObject) {
[self tasksSuccessfulWithJSON:responseObject];
} failure:^(AFHTTPRequestOperation *operation, NSError *error) {
[self tasksFailed];
}];This will then show a loader, create a JSON and send that JSON to the endpoint /v1/tasks.json. Performing the tasksSuccessfulWithJSON: in case of success or tasksFailed in case something went wrong.
To implement the behavior for the server's response we need to:
-(void)tasksSuccessfulWithJSON:(NSArray*)jsonArray{
// Dismiss the loader
[SVProgressHUD dismiss];
[self.refreshControl endRefreshing];
// Create a mutable array to add the tasks
NSMutableArray* tasksMutableArray = [NSMutableArray new];
// Iterate every task in the task array
for(NSDictionary* taskDictionary in jsonArray){
// Create the task from the json
Task* task = [[Task alloc]initWithIdentifier:[taskDictionary objectForKey:@"id"]
withTitle:[taskDictionary objectForKey:@"title"]
isDone:[[taskDictionary objectForKey:@"completed"]boolValue]];
// Add the task to the array
[tasksMutableArray addObject:task];
}
// Assign the mutable array to the controller model array
self.tasksArray = tasksMutableArray;
// Reload the tableview for the new data
[self.tableView reloadData];
}
-(void)tasksFailed{
// Show error message
[SVProgressHUD showErrorWithStatus:@"Could not load tasks."];
[self.refreshControl endRefreshing];
// reset the tasks model array
self.tasksArray = [NSArray new];
// reload the tableview
[self.tableView reloadData];
}So now we have the Task data stored on the self.tasksArray object. Let's present such data in our UITableView.
-(NSInteger)tableView:(UITableView *)tableView numberOfRowsInSection:(NSInteger)section{
// Return the number of tasks in the model array
return self.tasksArray.count;
}
-(UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath{
// Resuse cell from tableview whenever possible
UITableViewCell* cell = [tableView dequeueReusableCellWithIdentifier:@"cellId"];
// If it does not exist, create a new uitableviewcell
if(cell == nil){
cell = [[UITableViewCell alloc]initWithStyle:UITableViewCellStyleDefault reuseIdentifier:@"cellId"];
}
// Get the task from the model array
Task* task = [self.tasksArray objectAtIndex:indexPath.row];
// Set the text on the textlabel
cell.textLabel.text = task.title;
// If it is done set the icon accordingly (using SDWebImage to get image from the web)
if([task isDone])
[cell.imageView setImage:[UIImage imageNamed:@"check"]];
else
[cell.imageView setImage:[UIImage imageNamed:@"clock"]];
// Return the cell
return cell;
}These methods have specific names and these names are conventions given by the UITableViewDelegate and by the UITableViewDataSource. Each of these methods will be called in the table view 'lifecycle' expecting you to handle the logic that responds to actions on the table view (delegate) and that populate that table view (datasource). This relies on the protocol feature of Objective-C. In this case, since we are inheriting from UITableViewController, both protocols came already implemented by the superclass, but if we wanted to implement these protocols in a UIViewController the syntax would look a lot like C++ templates:
@interface LoginViewController : UIViewController <UITableViewDelegate, UITableViewDataSource>The numberOfRowsInSection: needs to return the number of elements to be shown on the UITableView, it may be sectioned but this is not the case as we only need 1 actual section.
For the cellForRowAtIndexPath: we must return a UITableViewCell representing the data we want, in this case a Task object. To avoid performance issues all cells should be reused as much as possible, therefore we only create a cell in case we cannot get any reusable cells from the UITableView. We then assign the title to the cell's text label and set the cell's imageview to an image representing the task's state. As you could see, indexPath is a structure/class that gives us the actual row, but you could also find the section indexPath.section.
Since we're using the two images check and clock we need to add them to the application. Go to the GitHub and download the four .png files and drag them to your Image.xcassets, they will add 2 images containing a normal and a @2x version.
These images may be used by calling the [UIImage imageNamed:] method by passing the image name as a string. The UIImage class is an object representation of an actual image file/data.
A UITableViewCell by default contains a UILabel (object representation of a label) named textLabel and a UIImageView named imageView, these properties may be accessed by calling cell.imageView or cell.textLabel.
To add a little bit more complexity to the application we need to be able to switch between task state, so lets add that logic to the didSelectRowAtIndexPath: method of the UITableViewController.
-(void)tableView:(UITableView *)tableView didSelectRowAtIndexPath:(NSIndexPath *)indexPath{
// Task for selected cell
Task* task = [self.tasksArray objectAtIndex:indexPath.row];
// Switch task status
[self task:task markAsDone:![task isDone]];
}This will run the task:markAsDone: method for the selected task. Let's implement such method now:
-(void)task:(Task*)task markAsDone:(BOOL)done{
// Show the loader
[SVProgressHUD showProgress:-1];
// Create JSON
NSDictionary* taskDictionary = @{@"completed": [NSNumber numberWithBool:done]};
NSDictionary* jsonDictionary = @{@"authentication_token": self.userToken,
@"task":taskDictionary};
// GET Tasks from Server
[[AFHTTPRequestOperationManager manager] PUT:[NSString stringWithFormat:@"http://ios-todo.herokuapp.com/v1/tasks/%d.json",task.identifier.intValue]
parameters:jsonDictionary
success:^(AFHTTPRequestOperation *operation, id responseObject) {
[self taskMarkSuccesfulWithTask:task isDone:done];
} failure:^(AFHTTPRequestOperation *operation, NSError *error) {
[self taskMarkFailed];
}];
}This method will, again, create a JSON and send it to the endpoint with a PUT method, where it will update the status of the task on the server side. In case of success it will run the taskMarkSucessfulWithTask: method, otherwise it will fall back to the taskMarkFailed method.
These two methods are implemented this way:
-(void)taskMarkSuccesfulWithTask:(Task*)task isDone:(BOOL)done{
task.isDone = done;
// dismiss the loader
[SVProgressHUD dismiss];
// Deselect cell
[self.tableView deselectRowAtIndexPath:self.tableView.indexPathForSelectedRow animated:YES];
// Reload the tableview
[self.tableView reloadData];
}
-(void)taskMarkFailed{
// show error message
[SVProgressHUD showErrorWithStatus:@"Could not change the task's status."];
// Deselect cell
[self.tableView deselectRowAtIndexPath:self.tableView.indexPathForSelectedRow animated:YES];
}In the first method, -(void)taskMarkSuccesfulWithTask:(Task*)task isDone:(BOOL)done we mark the task as done, which can be false.
We dismiss the SVProgressHUD again and deselect the selected cell, as it is not needed anymore, and then call reloadData, which will force the table view to check for updates in its data (and it will probably call all the dataSource methods implemented above.)
In the second method, we simply dismiss the SVProgressHUD and deselect the row, cause in failure, the app model won't change its state.
The process on the NewTaskViewController is very similar to the LoginViewController and the SignupViewController, so I will skip that particular view controller as well.
Hopefully if this workshop went according to plan you've learned a bit of everything in regards to Objective-C, iOS, MVC, Storyboards, View Controllers, External Frameworks, etc.
If you want to learn a bit more about Objective-C and iOS development I suggest you look into:
- Beginners:
- Experienced:
- Plug-and-Play free-to-use views:
- Good-to-Perfect UI/UX examples
Hot tecnologies to work with:
- CoreData
- AFNetworking
- UIView animations
- CALayers
- UIGestureRecognizers
- SDWebImage
Feel free to contact me in case you need help, advice or guidance, my contacts are:
- Email: ibruel@faber-ventures.com
- Twitter: @ivanbruel
- Github: /ivanbruel
