Calculate the total line height of a text#1068

Merged
pspeed42 merged 2 commits into
jMonkeyEngine:masterfrom
rvandoosselaer:fix-letters-totalheight-calculation
Apr 14, 2019
Merged

Calculate the total line height of a text#1068
pspeed42 merged 2 commits into
jMonkeyEngine:masterfrom
rvandoosselaer:fix-letters-totalheight-calculation

Conversation

@rvandoosselaer
Copy link
Copy Markdown
Contributor

@rvandoosselaer rvandoosselaer commented Apr 10, 2019

This PR fixes: #363

The totalHeight was calculated using this line:

totalHeight = Math.max(totalHeight, -l.getY1());

This always resulted in totalHeight = 0. I changed the calculation to using the lineHeight of the font and multiplying it by the line count.

totalHeight = font.getLineHeight(block) * block.getLineCount();

Since the new height calculation needs the proper line count, I inversed the order of calling the methods in the update() method. First the line count is set, then the alignment is calculated.

I also added a test case with some different alignment settings: TestBitmapFontAlignment.

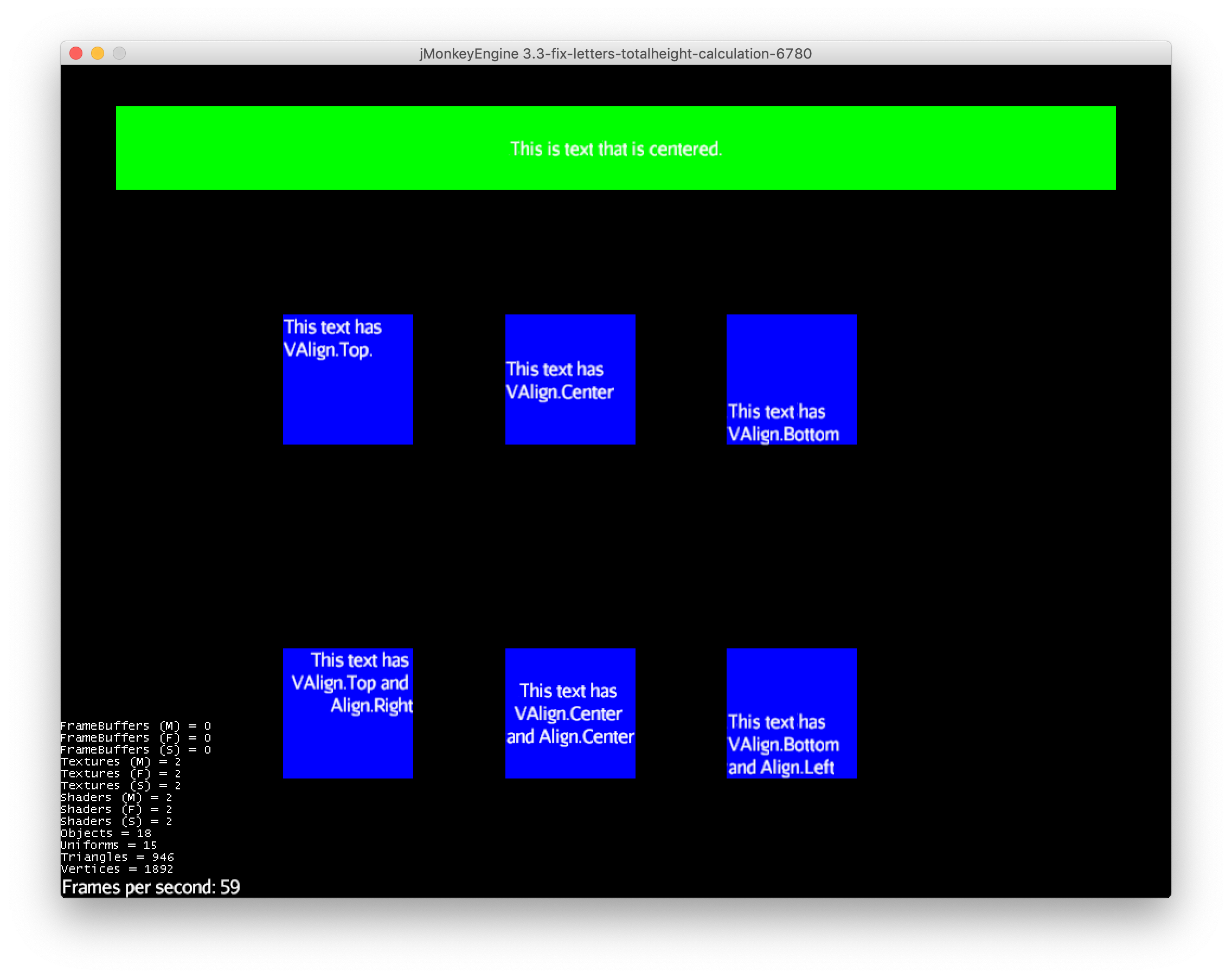

Screenshot-20190411-102416

…e the total line height from the font line height and total line count. Include a test case with alignment examples. fixes: #363
@tlf30
Copy link
Copy Markdown
Contributor

tlf30 commented Apr 11, 2019

Thank you for the fix!
The code looks good to me but I did not test it, thoughts anyone?

@pspeed42 pspeed42 merged commit 0ccf3b9 into jMonkeyEngine:master Apr 14, 2019
@pspeed42
Copy link
Copy Markdown
Contributor

It looks like you might be only the second person in the world that has made a change to BitmapText classes without breaking something else. I mean, time will tell, I guess. :) Looks good to me, though (and I'm the only other person whose done it... and I did it by failing 5-10 times before that.)

@stephengold stephengold mentioned this pull request Apr 15, 2019
4 tasks
@rvandoosselaer rvandoosselaer deleted the fix-letters-totalheight-calculation branch April 23, 2019 09:21
@stephengold stephengold added this to the v3.2.4 milestone Jul 8, 2019
@stephengold
Copy link
Copy Markdown
Member

Re-target to v3.3.0 due to the risk of breaking existing applications.

@stephengold stephengold modified the milestones: v3.2.4, v3.3.0 Jul 9, 2019
