shadowstep🥷

a minimal and fairly quick edge CDN written in Rust.

features

implemented

• local asset serving (./assets/)
• etag-based in-memory cache (hashmap, no TTL/LRU)
• gzip compression via actix-web compress middleware
• health endpoint with cache statistics
• optional TLS termination (HTTPS)
• reverse proxy to upstream origin

planned

• cache TTL and LRU eviction
• metrics endpoint (prometheus)
• cache purge API (invalidation fun🫣)

getting started

prerequisites

• rust: install from rustup.rs
• git

clone & build

git clone git@github.com:jamiehdev/shadowstep.git
cd shadowstep
cargo build --release

running

shadowstep can be configured via command-line arguments or environment variables.

# example: run shadowstep, proxying to shadowstep.example.com, listening on port 8080
./target/release/shadowstep --origin http://shadowstep.example.com --listen 0.0.0.0:8080

HTTPS example (origin over HTTP is normal)

# run with TLS termination enabled (origin can be HTTP)
./target/release/shadowstep \
  --origin http://shadowstep.example.com \
  --listen 0.0.0.0:8080 \
  --tls-cert ./certs/cert.pem \
  --tls-key ./certs/key.pem

or using environment variables:

ORIGIN_URL="http://shadowstep.example.com" LISTEN_ADDR="0.0.0.0:8080" ./target/release/shadowstep

deployment

Docker

a Dockerfile is provided for building a Docker image. make sure you have your certs/ directory (with cert.pem and key.pem) in your project root before building.

docker build -t shadowstep:local .

docker run -d \
  --name shadowstep_cdn \
  -e RUST_LOG=info \
  -p 8080:8080 \
  -p 8443:8443 \
  -v $(pwd)/assets:/app/assets \
  shadowstep:local \
  --origin-url http://example.com \
  --tls-cert /app/certs/cert.pem \
  --tls-key /app/certs/key.pem

The options explained:

• -d: Run container in detached mode (background)
• --name shadowstep_cdn: Name the container for easy reference
• -e RUST_LOG=info: Set logging level (use debug for more verbose output)
• -p 8080:8080 -p 8443:8443: Map container ports to host ports
• -v $(pwd)/assets:/app/assets: Mount local assets directory to container
• --origin-url: Set the upstream origin server (use a real server or example.com for testing)
• --tls-cert and --tls-key: Paths to TLS certificate and key files inside the container

other operating systems (Windows, macOS)

1. install rust: follow instructions at rustup.rs.
2. build from source:

   git clone git@github.com:jamiehdev/shadowstep.git
   cd shadowstep
   cargo build --release

3. run:
   • Windows (PowerShell):

     $env:ORIGIN_URL="http://shadowstep.example.com"; $env:LISTEN_ADDR="0.0.0.0:8080"; .\target\release\shadowstep.exe

   • macOS/Linux (bash/zsh):

     ORIGIN_URL="http://shadowstep.example.com" LISTEN_ADDR="0.0.0.0:8080" ./target/release/shadowstep

kubernetes

basic Kubernetes manifests are provided in the k8s/ directory for local testing with tools like Minikube or Kind.

kubectl apply -f k8s/deployment.yaml
kubectl apply -f k8s/service.yaml

project structure

shadowstep/
├── assets/          # non-code assets (images, configs)
│   └── images/      # image assets
├── src/             # source code
├── k8s/             # Kubernetes configs
├── Cargo.toml       # rust package config
└── README.md        # project documentation

configuration

CLI argument	environment variable	default	description
--origin	ORIGIN_URL	(required)	upstream origin server URL
--listen	LISTEN_ADDR	0.0.0.0:8080	address and port to listen on
--cache-ttl	CACHE_TTL_SECONDS	300	cache time-to-live in seconds
--cache-size	CACHE_SIZE_MB	100	max cache size in megabytes
--tls-cert	TLS_CERT_PATH	(none)	path to TLS certificate (pem)
--tls-key	TLS_KEY_PATH	(none)	path to TLS private key (pem)

testing

below are the tests run to verify both HTTP and HTTPS endpoints:

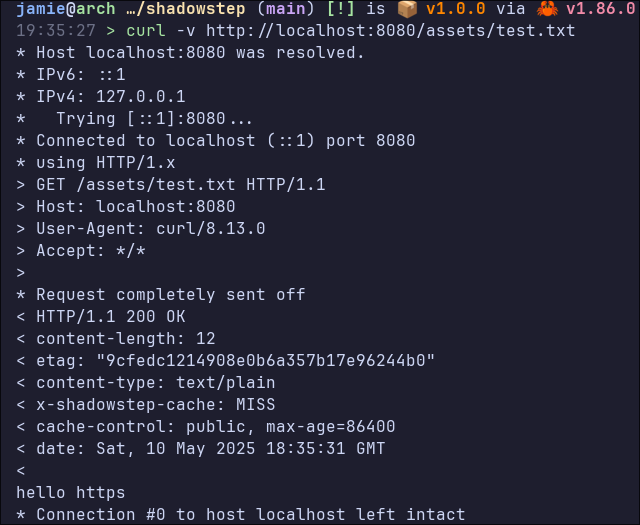

HTTP test - first request (cache miss)

# HTTP test - first request (cache miss)
curl -v http://localhost:8080/assets/test.txt

in this first request, you can see the x-shadowstep-cache: MISS header in the response, indicating the content was fetched from the origin.

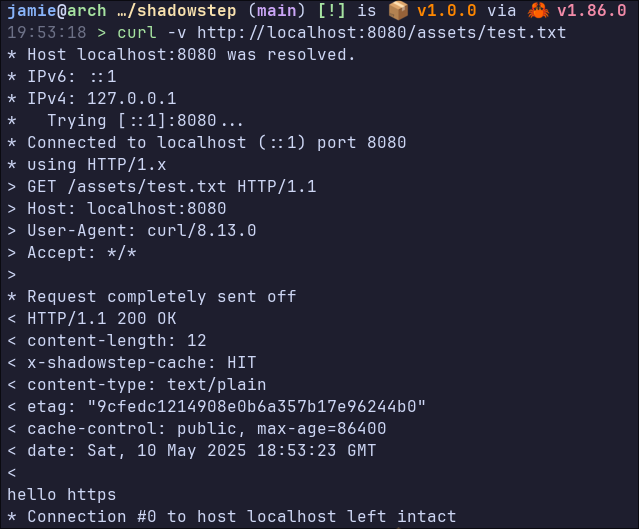

HTTP test - second request (cache hit)

# HTTP test - second request (cache hit)
curl -v http://localhost:8080/assets/test.txt

the second request shows x-shadowstep-cache: HIT in the response headers, confirming the file is now being served from cache.

HTTPS test

# HTTPS test (insecure for self-signed cert)
curl -kv https://localhost:8443/assets/test.txt

for HTTPS tests, the output is similar but shows HTTP/2 protocol being used:

* SSL connection using TLSv1.3 / TLS_AES_256_GCM_SHA384
* ALPN: server accepted h2
* Connected to localhost (::1) port 8443
* using HTTP/2
< HTTP/2 200
< content-length: 12
< cache-control: public, max-age=86400
< etag: "9cfedc1214908e0b6a357b17e96244b0"
< x-shadowstep-cache: HIT
< content-type: text/plain
< date: Sat, 10 May 2025 18:53:37 GMT
<
hello HTTPS

proxy test

curl -i http://localhost:8080/proxy_test.txt

expected response:

HTTP/1.1 200 OK
Upstream proxy test content

example `shadowstep` server logs for this proxied request:
```log
[2025-05-10T23:24:05Z DEBUG shadowstep::proxy] Incoming proxy request: GET /proxy_test.txt from 127.0.0.1
[2025-05-10T23:24:05Z DEBUG shadowstep::proxy] Forwarding request to: http://localhost:3000//proxy_test.txt
[2025-05-10T23:24:05Z DEBUG shadowstep::proxy] Received response from upstream: 200
[2025-05-10T23:24:05Z INFO  actix_web::middleware::logger] GET /proxy_test.txt HTTP/1.1 200 28 3.550893 ms
```

end-to-end reverse proxy test with python origin

1. create a test file in a new upstream_test directory:

   mkdir upstream_test
   echo "hello from upstream" > upstream_test/example.html

2. start a python http server in that directory on port 3000:

   python3 -m http.server 3000 --directory upstream_test

3. in another terminal, run shadowstep, configured to proxy to http://localhost:3000:

   export ORIGIN_URL=http://localhost:3000
   ./target/release/shadowstep --listen-addr 0.0.0.0:8081
   # (or however you prefer to run it, ensuring ORIGIN_URL points to localhost:3000)

4. test the proxy:

   curl -i http://localhost:8081/example.html

   expected output:

   HTTP/1.1 200 OK
   Content-Type: text/html; charset=utf-8
   Content-Length: 20 # or similar
   Server: SimpleHTTP/0.6 Python/3.x.x # or similar
   Date: ...

   hello from upstream


   example shadowstep server logs for this proxied request:

   [2025-05-10T23:24:05Z DEBUG shadowstep::proxy] Incoming proxy request: GET /example.html from 127.0.0.1
   [2025-05-10T23:24:05Z DEBUG shadowstep::proxy] Forwarding request to: http://localhost:3000/example.html
   [2025-05-10T23:24:05Z DEBUG shadowstep::proxy] Received response from upstream: 200
   [2025-05-10T23:24:05Z INFO  actix_web::middleware::logger] GET /example.html HTTP/1.1 200 20 3.550893 ms


health endpoint test

# check cache statistics
curl http://localhost:8080/health

{"cache":{"hit_ratio":0.75,"hits":3,"items":1,"misses":1},"status":"ok"}

the health endpoint displays cache statistics, showing the ratio of hits to total requests, confirming the cache is working as expected.

license

MIT.
