robodraw is an ergonomic and programmatic drawing library for python. It is a wrapper around matplotlib that provides a more intuitive way to specifically create drawings and diagrams, including in pseudo-3d. It provides the backend for the drawing functionality in quimb and cotengra.

Some useful features include:

• no boilerplate to get a simple drawing.
• plot limits automatically expand to fit all drawn elements.
• style presets: reuse style across elements.
• diagram primitives like zigzag, curve (draw a smooth line through an arbitrary set of points exactly), and patch_around (draw a smooth shape highlighting an arbitrary set of points).
• pseudo-3d drawing, with automatic perspective and occlusion handling.
• squared paper grid to help you with placement.
• output or use existing matplotlib figure and axis.
• basic colors tools
• ... and more!

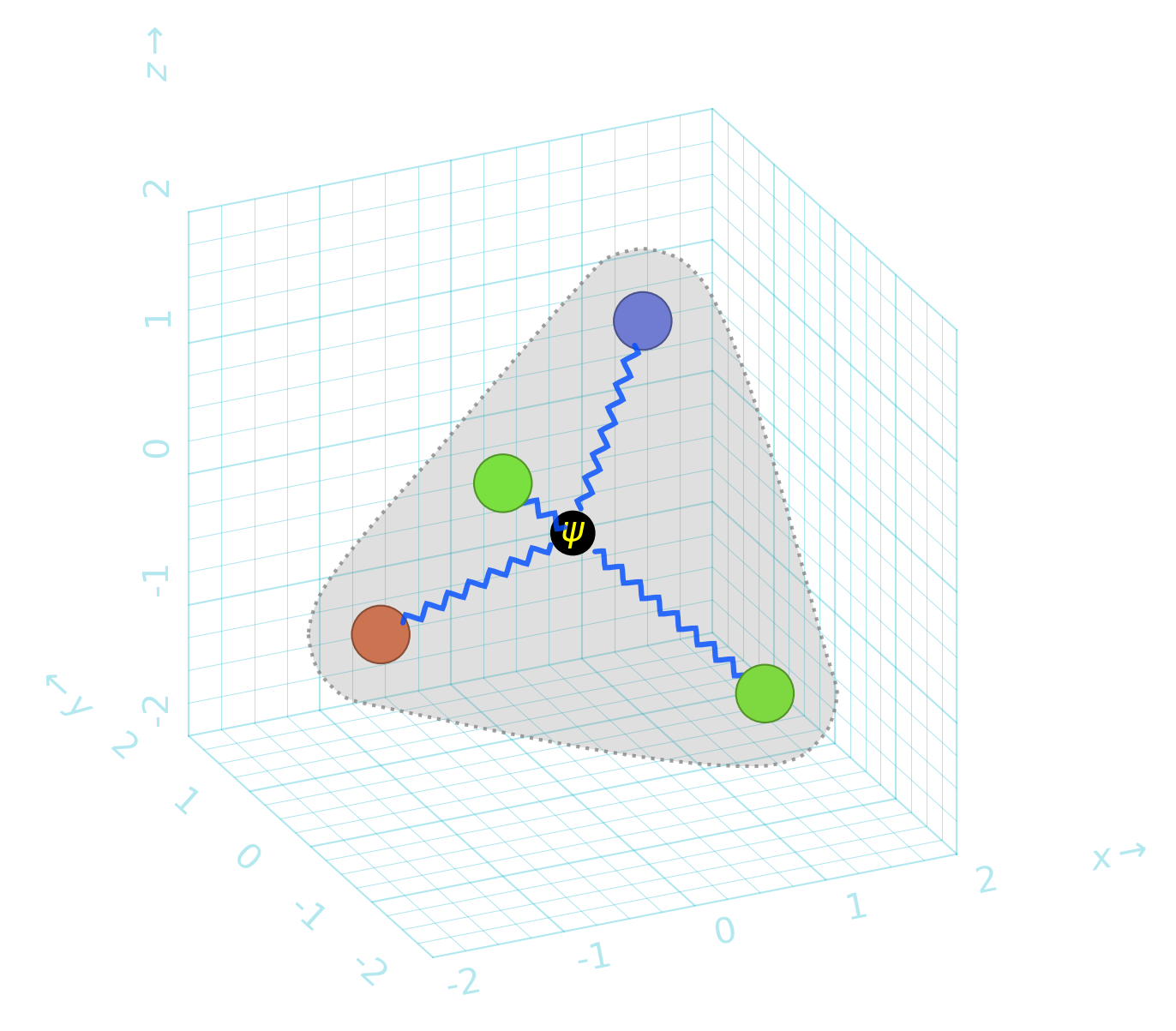

A quick example:

import robodraw

d = robodraw.Drawing(
    presets={
        "node": {"radius": 0.2, "linewidth": 0.5},
        "edge": {"color": (0, 0.3, 1, .8), "width": 0.04, "shorten": 0.2}
    },
    projection=(25, 25),
)

center = (0, 0, 0)
corners = [(1, 1, 1), (1, -1, -1), (-1, 1, -1), (-1, -1, 1)]

# nodes
for c in corners:
    color = robodraw.hash_to_color(str(c))
    d.circle(c, preset='node', color=color)

# center
d.circle(center, preset='node', radius=0.15, color="black")
d.text(center, "$\\psi$", color="yellow")

# edges to center
for c in corners:
    d.zigzag(c, center, preset="edge")

d.patch_around(corners, radius=0.5)
d.grid3d()

The full documentation can be found at: robodraw.readthedocs.io. Contributions of any sort are very welcome - please see the contributing guide. Issues and pull requests are hosted on github. For other questions and suggestions, please use the discussions page.
