Challenge data analysis

• Duration: 3 days
• Deadline: 7/12/2020 13:30
• Team challenge : 3

Team members

• Jérôme Coumont
• Ousmane Diop
• Guillaume Gémis

Summary

Our goal is to clean and do a complete analysis and interpretation of the dataset.

The Mission

The real estate company "ImmoEliza" wants to establish itself as the biggest one in all of Belglium. To pursue this goal, it needs to create a machine learning model to predict prices on Belgium's sales. That way, they can pick out the properties that are the most valuable to them.

But for this, it needs to do a preliminary analysis to gather some information. Having no in-house data scientist, they are looking for talented people to do it for them.

Since your last encounter with them went great, they reached out to you to do this job. Everything is in your hands now!

Take the dataset previously scraped to do the analysis. (If you were in different groups, decide together which dataset you are going to use.)

Objectives

• Be able to use pandas.
• Be able to use Data visualisation libraries.(matplotlib or seaborn)
• Be able to clean a dataset for analysis
• Be able to establish conclusions about a dataset.
• Be able to find and answer creative questions about data
• Be able to think outside the box

The dataset

The initial dataset scraped during the previous challenge contains 10.006 entries.

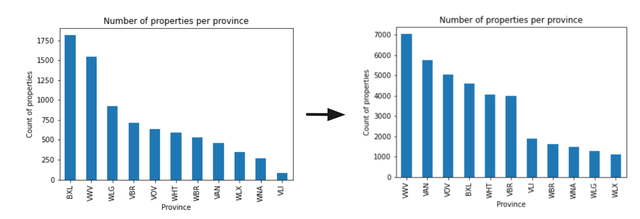

After a first cleaning we identified a serious problem : Some province have less than 10 entries So we decided to increase the initial dataset with a new version of the scraping tool. Rather than use the "whole belgian result pages" we splitted the scaping by "whole province result pages".

This small change allows us to bypass the result page limitation sets by default to 333 pages of 30 results (+/- 10 .000 different entries). After a new scraping run the dataset contains not less than 53.730 real estates entries.

The initial shape is (53.730, 18) After the data cleaning, the final shape is (37.813, 28)

Initial structure

View detail

View file

#	Column	Type	value
0	locality	int	zip code
1	type_of_property	str	type of property (house/appartment)
2	subtype_of_property	str	subtype of property (villa/studio/mansion/loft/...)
3	price	int	price
4	type_of_sale	str	type of sale
5	nr_of_rooms	int	number of room
6	area	int	area in m2
7	equiped_kitchen	str	type of kitchen
8	furnished	bool	is furnished?
9	open_fire	bool	has an open fire?
10	terrace	bool	has a terrace?
11	terrace_area	int	terrace area in m2 if existing
12	garden	bool	has garden?
13	garden_area	int	garden area in m2 if existing
14	total_land_area	int	total land area in m2
15	nr_of_facades	int	number of facades
16	swimming_pool	bool	has a swimming pool?
17	building_condition	str	state of the building (new/good/to be renovated/ ...)

Cleaned structure

View detail

View file

#	Column	Type	value
0	locality	int	zip code
1	type_of_property	str	type of property (house/appartment)
2	subtype_of_property	str	subtype of property (villa/studio/mansion/loft/...)
3	price	int	price
4	nr_of_rooms	int	number of room
5	area	int	area in m2
6	equiped_kitchen	str	type of kitchen
7	open_fire	bool	has an open fire?
8	terrace	bool	has a terrace?
9	terrace_area	int	terrace area in m2 if existing
10	garden	bool	has garden?
11	garden_area	int	garden area in m2 if existing
12	total_land_area	int	total land area in m2
13	nr_of_facades	int	number of facades
14	swimming_pool	bool	has a swimming pool?
15	building_condition	str	state of the building (new/good/to be renovated/ ...)
16	kitchen	bool	has kitchen ?
17	region	str	region name (Wal./Bxl/Vland.)
18	province	str	province name
19	sq_m_price	float	price / m2 (based on area)
20	sq_m_land_price	float	price / m2 (based on total_land_area)
21	city	str	city name
22	type_of_property_num	int	type of property in int value
23	subtype_of_property_num	int	subtype of property in int value
24	equiped_kitchen_num	int	type of equiped kitchen in int value
25	building_condition_num	int	building condition in int value
26	region_num	int	region in int value
27	province_num	int	province in int value

Data cleaning

This phase is very important to process the analysis phase. So we identified our goals and the data's needed to reach them.

We need to be able to give the price by cities/provinces/regions. This price can be expressed in term of global price or price/m2. And we have also to identify which parameters can influence it.

Data quality

#	Column	Non-null	%
0	locality	53730	100%
1	type_of_property	53730	100%
2	subtype_of_property	53730	100%
3	price	50400	94%
4	type_of_sale	53730	100%
5	nr_of_rooms	50569	94%
6	area	42463	79%
7	equiped_kitchen	33156	62%
8	furnished	26978	50%
9	open_fire	53730	100%
10	terrace	28758	54%
11	terrace_area	17376	32%
12	garden	14340	27%
13	garden_area	8129	15%
14	total_land_area	28377	53%
15	nr_of_facades	35474	66%
16	swimming_pool	21580	40%
17	building_condition	35860	67%

On the global dataset, we only have 904 rows with all informations filled. So we have to process some correction and cleaning to achieve our goals.

Raw data cleaning

In this first step, we have removed :

• duplicated entries (no data found :-))
• blank space at the start and the end of string values
• price error (1€)
• area error (1m2)

Empty value cleaning

Due the important missing information in the whole dataset, we decided to refine these missing values by:

• Removing rows that have one of these conditions :
  • empty price
  • empty number of rooms
  • empty area
• Filling some missing values :
  • equiped_kitchen : UKN
  • furnished : False
  • terrace : False
  • terrace_area : -1
  • garden : True if total_land_area > area + terrace_area
  • garden_area : total_land_area - area - terrace_area
  • total land area : area + terrace_area + garden_area
  • swimming_pool : False
  • nr_of_facades : -1
  • building_condition : UKN

Adding useful information

To allow us to explore more efficiently the raw data, we added some columns:

• kitchen - bool : True if equiped_kitchen != 'UNK','NOT_INSTALLED', 'USA_UNINSTALLED'
• region - str : based on zip code
• province - str : based on zip code
• city - str : based on zip code
• sq_m_price - float : price / area
• sq_m_land_price - float : price / total_land_area

Data conversion

To be able to have a good correlation map, we converted all non numeric data to numeric data.

• bool : int (0 or 1)
• str : int (based on dictionnary of string)
• float : float rounded at 2 decimals

Removing non relevant rows

After a first analysis we identified few rows with suspect values and removed them from the dataset :

• subtype_of_property = APARTMENT_BLOCK
• sq_m_price <= 0
• sq_m_land_price > sq_m_price
• nr_of_rooms must be present at least 5 times
• area < nr_of_rooms * 9

Removing non relevant columns

After a first analysis we identified few columns without any added value and removed them from the dataset :

• type_of_sale : Only 'FOR_SALE'
• furnished : less than 50% of filled value and most of them are False

Data Analysis

Which variable is the target ?

The goal of this project is to be able to predict the price of a new given property based on its features. Therefore, the target variable is the price.

How many rows and columns ?

Counting our new dataset and columns added or remove during the cleaning:

• 37.813 rows
• 28 columns

What is the correlation between the variables, the variables and the target ?

One can find below the correlation matrices for Belgium, Wallonia, Flandern and Brussels. For Belgium, the correlation of all variables will be displayed. Then, only the target correlation will be exposed. Moreover, one can also notice differentiations between houses and flats.

Belgium

Full dataset

Only Houses

Only Flats

Wallonia

Full dataset

Only Houses

Only Flats

Flandern

Full dataset

Only Houses

Only Flats

Brussels

Full dataset

Only Houses

Only Flats

Which variables have the greatest influence on the target ?

As one can see, the regions and types of properties influence the correlation scores. However, we can extract a few parameters that have mostly higher correlation scores:

• nr_of_rooms
• area
• swimming_pool (for houses)
• Garden_area (for houses)
• terrace (for flats)
• sq_m_price
• sq_m_land_price
• region/province

Which variables have the least influence on the target ?

• terrace_area
• garden
• kitchen
• equiped_kitchen_num
• building_condition_num

What are the differences between regions?

As for the correlation matrices, we have divided our graphs between Belgium, Wallonia, Flandern and Brussels. We also seperated houses from flats

Belgium

Full dataset

Only Houses

Only Flats

Wallonia

Only Houses

Only Flats

Flandern

Only Houses

Only Flats

Brussels

Only Houses

Only Flats

Data Interpretation

In your opinion, which 5 variables are the most important and why?

As we have seen, the variables differ a lot if it is a house or a flat. However, through the different regions, some variables are deeply significant:

• Number of rooms
• Its total area
• Locality

If it is a flat, some criteria are much more correlated with the price:

• If there is a terrace
• The living area

If it a house:

• The presence of a garden
• A swimming pool

What are the most expensive municipalities in Belgium, Wallonia, Flandern and Brussels?

#	Mean	Median	Price per m²
Belgium	9772 Wannegem-Lede	9772 Wannegem-Lede	8300 Knokke-Heist
Wallonia	1380 Lasne	4880 Aubel	1348 Louvain-la-Neuve
Flandern	9772 Wannegem-Lede	9772 Wannegem-Lede	8300 Knokke-Heist
Brussels	1150 Woluwe-Saint-Pierre	1150 Woluwe-Saint-Pierre	1050 Ixelles

What are the less expensive municipalities in Belgium, Wallonia, Flandern and Brussels?

#	Mean	Median	Price per m²
Belgium	6836 Dohan	6836 Dohan	5362 Achet
Wallonia	6836 Dohan	6836 Dohan	5362 Achet
Flandern	3742 Martenslinde	3742 Martenslinde	9572 Sint-Martens-Lierde
Brussels	1081 Koekelberg	1020 Laeken	1080 Molenbeek-Saint-Jean

Bonus : In your opinion, which model of machine learning could solve the task of predicting the sales?

• Neural network
• Regression Models (Linear and logistic)
• Random forest

Usage

This project was made in different Jupyter Notebooks. You can run them separately

• Data Cleaning : see data_clening.ipynb
• Data Profiling : see data_profiling.ipynb
• Data Analysis : see Graphs_data-analysis.ipynb
• Data Interpretation : see this README.md

Installation

To run these different Jupyter Notebooks, you need these python module:

• matplotlib.pyplot
• numpy
• pandas
• pandas_profiling
• seaborn
