Pathfinding Visualization API

This API is meant to let a user sign in/up/out, change their password, and CRUD grids with a name and array of boolean values. The boolean values should be used to map to a 2d grid og 50x50 on a front end client.

Important Links

• Deployed Client
• Client Repo
• API Repo
• Deployed Heroku Link

Planning Story

This API was relatively straightforwad, it uses a basic single resource owned by a user. There were a few challenges along the way, such as how to store an array of booleans correctly, how to know if a user has visited a client, and how to add an 'editable' field to a resource. In the end I ended up creating a module in lib that takes an item and a user, and returns that object with a new field 'editable' with a boolean value.

Installation

• Download this repo as a zip or fork and clone it
• Unzip if necessary
• Run NPM Install
• Ensure that you have nodemon installed by running npm install -g nodemon.

Technologies Used

• Javascript
• Express
• Mongoose
• MongoDB

Authentication

Verb	URI Pattern	Controller#Action
POST	/sign-up	users#signup
POST	/sign-in	users#signin
PATCH	/change-password/	users#changepw
DELETE	/sign-out/	users#signout
PATCH	/userVisit'	users#changeVisited

POST /sign-up

Request:

curl --include --request POST http://localhost:4741/sign-up \
  --header "Content-Type: application/json" \
  --data '{
    "credentials": {
      "email": "an@example.email",
      "password": "an example password",
      "password_confirmation": "an example password"
    }
  }'

curl-scripts/sign-up.sh

Response:

HTTP/1.1 201 Created
Content-Type: application/json; charset=utf-8

{
  "user": {
    "id": 1,
    "email": "an@example.email"
  }
}

POST /sign-in

Request:

curl --include --request POST http://localhost:4741/sign-in \
  --header "Content-Type: application/json" \
  --data '{
    "credentials": {
      "email": "an@example.email",
      "password": "an example password"
    }
  }'

curl-scripts/sign-in.sh

Response:

HTTP/1.1 200 OK
Content-Type: application/json; charset=utf-8

{
  "user": {
    "id": 1,
    "email": "an@example.email",
    "token": "33ad6372f795694b333ec5f329ebeaaa"
  }
}

PATCH /change-password/

Request:

curl --include --request PATCH http://localhost:4741/change-password/ \
  --header "Authorization: Token token=$TOKEN" \
  --header "Content-Type: application/json" \
  --data '{
    "passwords": {
      "old": "an example password",
      "new": "super sekrit"
    }
  }'

TOKEN=33ad6372f795694b333ec5f329ebeaaa curl-scripts/change-password.sh

Response:

HTTP/1.1 204 No Content

DELETE /sign-out/

Request:

curl --include --request DELETE http://localhost:4741/sign-out/ \
  --header "Authorization: Token token=$TOKEN"

TOKEN=33ad6372f795694b333ec5f329ebeaaa curl-scripts/sign-out.sh

Response:

HTTP/1.1 204 No Content

PATCH /userVisit/

Request:

curl --include --request PATCH http://localhost:4741/userVisit/ \
  --header "Authorization: Token token=$TOKEN"

TOKEN=33ad6372f795694b333ec5f329ebeaaa curl-scripts/sign-out.sh

Response:

HTTP/1.1 204 No Content

Grids

Verb	URI Pattern	Controller#Action
GET	/grids	grids#index
GET	/grids/:id	grids#show
GET	/my/grids	show#ownedGrids
DELETE	/grids/:id	grids#destory
POST	grids	grids#create
PATCH	/grids/:id	grids#update

User Stories

• As a unauthenticated user I want to be able to sign up and sign in
• As an authenticated user I want to be able to change my password and sign out

• As an authenticated user:

  • I want to be able to click on a grid to add walls to it
  • I want to be able to click a button to reset the walls
  • I want to be able to save a grid with a title
  • I want to be able to see all of my grids as thumbnails
  • I want to be able to select a grid to see it animated with various pathfinding algorithms
  • I want to be able to see a feed of all user's saved grids
  • STRETCH: Let users favorite grids , sort by most favorited

• As an unauthenticated user I would like to be able to see the public feed of grids

• As a user I would like to be able to click a button to start the visualization process of various pathfinding algorithms
• As a user i would like to be able to click a restart button to visualize the algorithm again

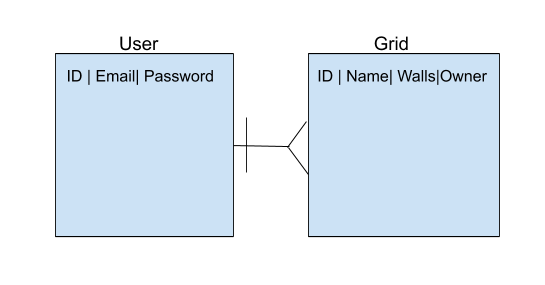

ERD

Unsolved Issues

• Need to add much more validation
