OmniGuard — Technical Documentation

Comprehensive Technical Reference

By: Ritvik Induopuri Date: February 25, 2026

Table of Contents

  1. Executive Summary
  2. System Architecture Deep Dive
  3. Database Schema
  4. Edge Functions (Backend)
  5. Firecrawl Web Scraping Process
  6. AI Integration
  7. Frontend Components
  8. Authentication System
  9. Risk Scoring Algorithm
  10. PDF Export Engine
  11. Design System & Styling
  12. Security Architecture
  13. API Layer
  14. Elasticsearch Integration
  15. Safe-Scanning Policy & Abuse Prevention
  16. Continuous Benchmarking
  17. Conclusion

1. Executive Summary

OmniGuard is a full-stack cybersecurity platform that automates the process of domain reconnaissance, vulnerability detection, and threat intelligence reporting. The system ingests a target domain, crawls it using the Firecrawl API, parses the results for security-relevant data (endpoints, scripts, forms, headers, technologies), generates findings with severity ratings, calculates a composite risk score, and provides AI-powered analysis through both automated reports and an interactive chatbot.

The platform is designed with three core principles:

  1. Automation — Minimize manual effort in security assessment
  2. Intelligence — Leverage AI models for context-aware analysis
  3. Responsibility — Prevent misuse via an AI domain policy gatekeeper

To understand how these principles translate into a working system, the next section dissects the architecture that ties the frontend, backend, and external services together into a unified pipeline.

2. System Architecture Deep Dive

The architecture of OmniGuard follows a three-tier model: a React single-page application on the client, serverless edge functions for compute, and PostgreSQL for persistence — all orchestrated through Lovable Cloud. This section walks through the data flow, component organization, and routing structure that make the platform work.

2.1 High-Level Data Flow

flowchart TD
    A["User enters domain"] --> B["evaluate-domain\nAI Policy Check\n(Gemini 3 Flash Preview)"]
    B --> C{"Allowed?"}
    C -- "NO" --> D["Block / Review\nShow reason to user"]
    C -- "YES" --> E["firecrawl-scan\nOrchestration Edge Function"]

    E --> F["Firecrawl API\n/v1/scrape\nHTML + links + metadata"]
    E --> G["Firecrawl API\n/v1/map\nSite map (200 URLs)"]

    F --> H["Parse Results"]
    G --> H

    H --> H1["Extract endpoints,\nJS files, forms, deps"]
    H --> H2["Detect technologies\n(20 regex patterns)"]
    H --> H3["Analyze security headers\nfrom metadata"]
    H --> H4["Generate enrichment\n(WHOIS, hosting, risk)"]

    H1 --> I["Generate Findings"]
    H2 --> I
    H3 --> I
    H4 --> I

    I --> I1["Security header gaps"]
    I --> I2["Sensitive path detection"]
    I --> I3["Suspicious query params"]
    I --> I4["XSS input points"]
    I --> I5["Technology risk"]
    I --> I6["Supply chain analysis"]

    I1 --> J["Calculate Risk Score\n(0-100, capped)"]
    I2 --> J
    I3 --> J
    I4 --> J
    I5 --> J
    I6 --> J

    J --> K["Store in PostgreSQL\nscans + findings tables"]
    K --> K2["elasticsearch-sync\nSync to Elastic Cloud"]
    K2 --> L["Display in Scan Detail UI\nauto-polls every 3s"]

    L --> M["analyze-threats\nAI Report\n(Gemini 3 Flash Preview)"]
    L --> N["analyze-surface\nAI Chat\n(Gemini 3 Flash Preview)"]
    L --> O["PDF Export\n(jsPDF)"]
    L --> P["Global Search\n(Cmd+K via Elasticsearch)"]
Loading

Figure 1 — End-to-End Data Flow: From Domain Input to Intelligence Output

Step-by-step flow breakdown:

  1. Domain Input — The user enters a target domain into the ScanForm component on the dashboard.
  2. AI Policy Gate — Before any crawling begins, the domain is sent to the evaluate-domain edge function, which uses Gemini Flash Lite to classify it as allow, block, or review.
  3. Block / Review Path — If the domain is blocked or flagged for review, the scan is halted immediately. The user sees a toast notification explaining why the domain was rejected, with a "Go to Policies" button for manual override.
  4. Firecrawl Scrape — For allowed domains, the firecrawl-scan edge function calls the Firecrawl /v1/scrape endpoint, requesting full HTML content, all hyperlinks, HTTP response metadata (headers), and a markdown representation of the page.
  5. Firecrawl Map — A second call to /v1/map discovers up to 200 additional URLs across the site by following sitemaps and internal links. This call is non-blocking — if it fails, the pipeline continues with scrape data alone.
  6. Parsing Pipeline — The raw data enters four parallel extraction paths:
    • Endpoint extraction: URLs are deduplicated, capped at 500, and filtered for JavaScript files, external dependencies (different hostname), and API-like endpoint patterns.
    • Technology detection: 20 regex patterns are matched against the raw HTML to identify frameworks, CDNs, CMSs, and analytics tools.

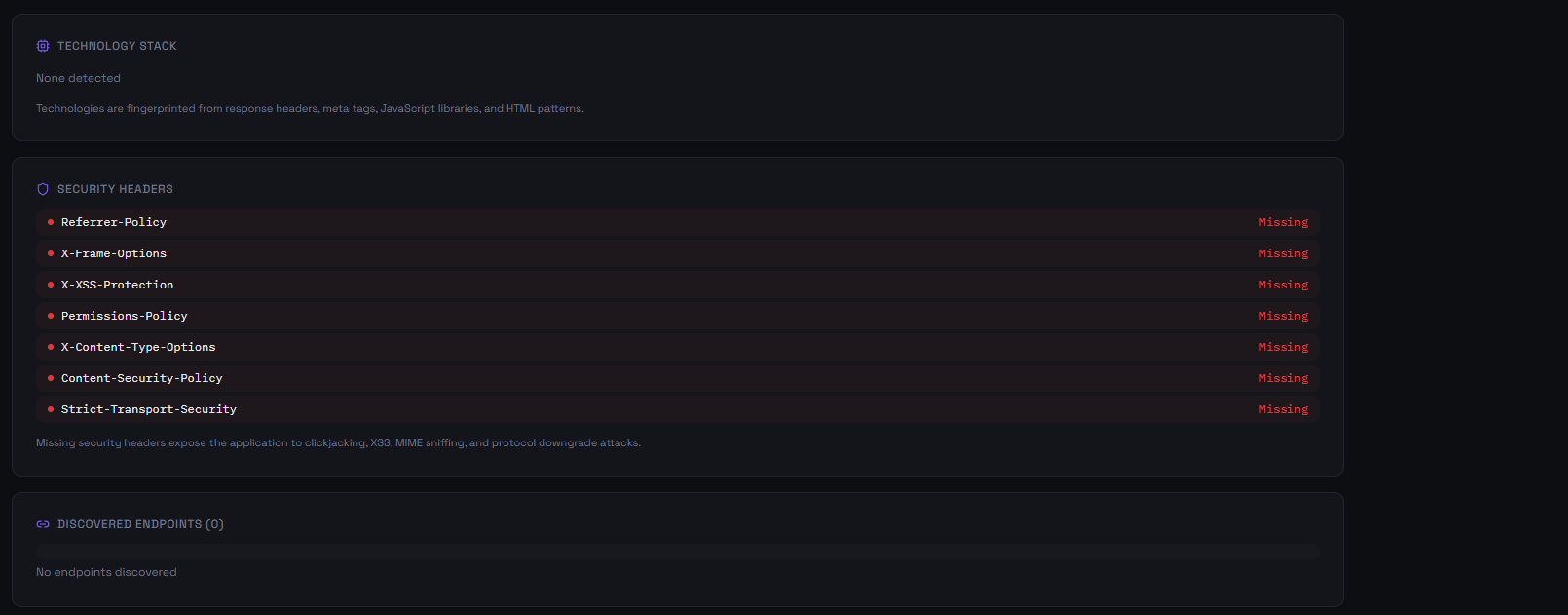

    • Security header analysis: 7 critical headers (CSP, HSTS, X-Frame-Options, X-Content-Type-Options, X-XSS-Protection, Referrer-Policy, Permissions-Policy) are checked from response metadata.
    • Enrichment generation: Real WHOIS data is fetched via RDAP (Registration Data Access Protocol) and IP geolocation via ip-api.com. Risk factors are computed from detected technologies and URL count.
  7. Finding Generation — The parsed data feeds into six finding categories: security header gaps, sensitive exposed paths (e.g., /admin, /.env, /.git), suspicious query parameters (e.g., redirect, cmd, exec), XSS input points (e.g., search/comment forms), technology risks (e.g., jQuery, WordPress), and supply chain vulnerabilities (excessive external dependencies).
  8. Risk Scoring — Each finding is assigned a severity (critical/high/medium/low/info), and a composite risk score is calculated from the weighted sum: Critical = 25pts, High = 15pts, Medium = 8pts, Low = 3pts, Info = 1pt. The total is capped at 100.
  9. Database Persistence — The scan record (with parsed data, technologies, enrichment) and all findings are written to the scans and findings PostgreSQL tables.

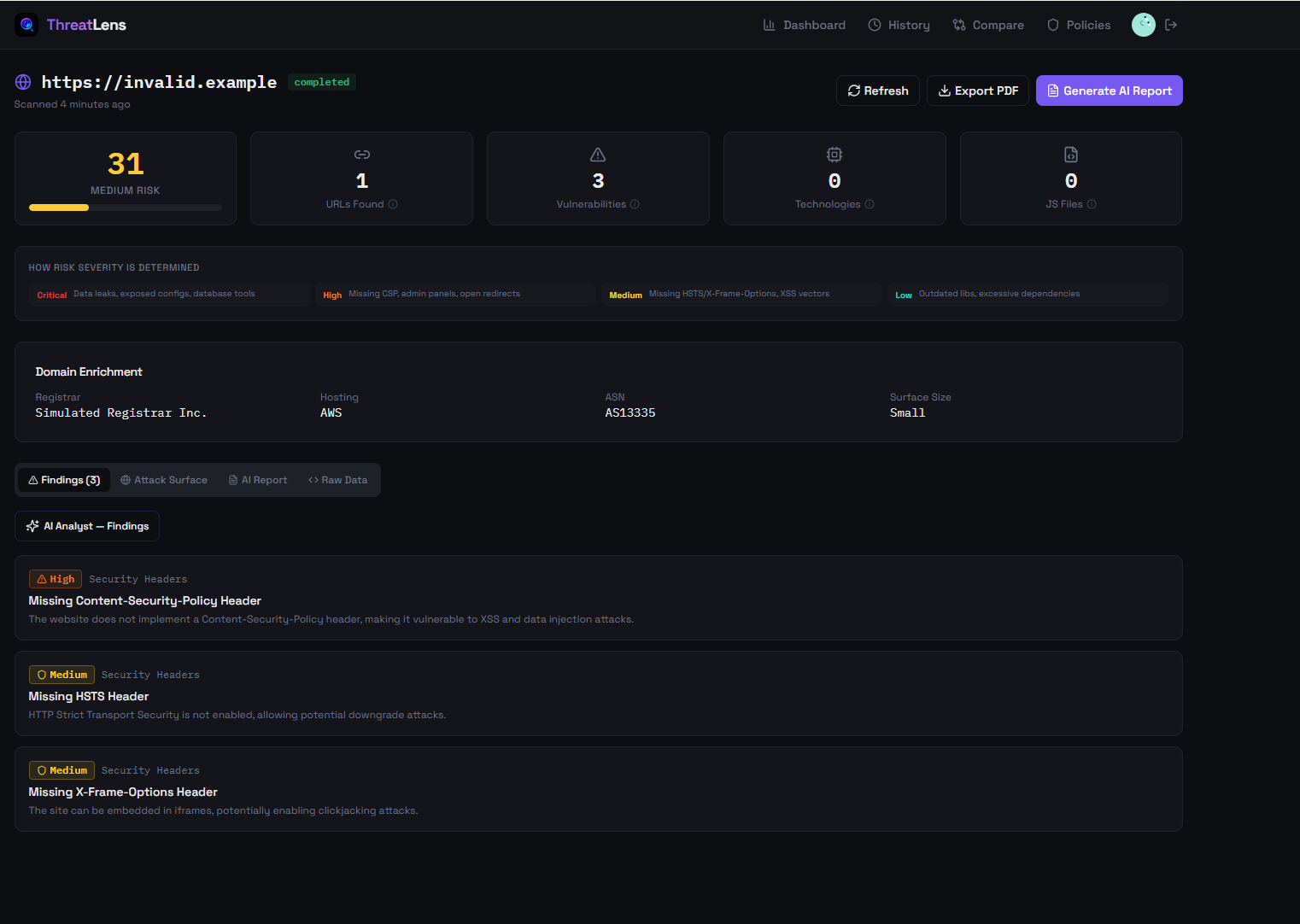

  10. Frontend Polling — The Scan Detail page polls the database every 3 seconds until the scan status changes from crawling/analyzing to completed or failed.
  11. Output Paths — From a completed scan, users can trigger three additional outputs:
    • AI Threat Report (analyze-threats) — A comprehensive, structured markdown report generated by Gemini Pro.

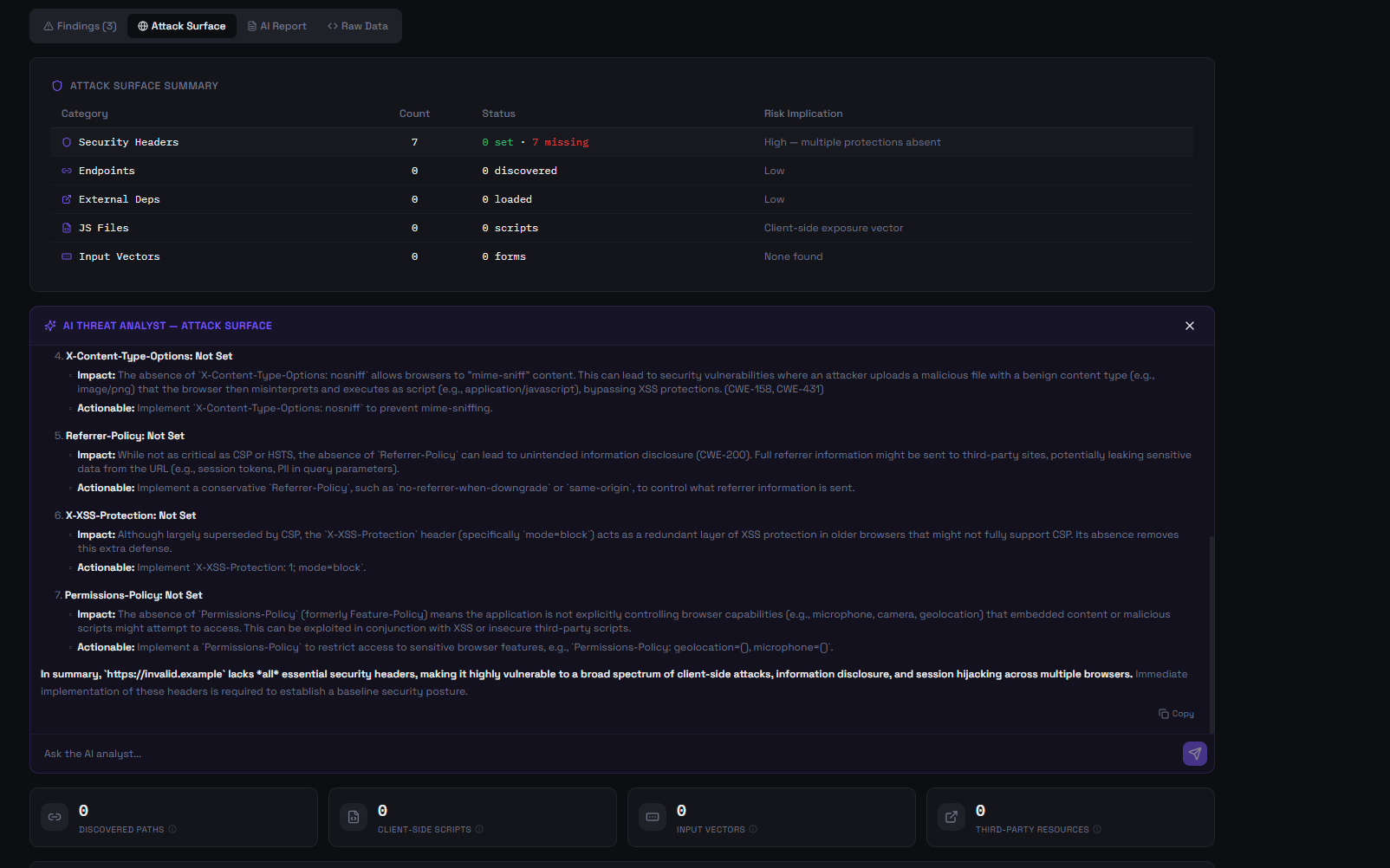

    • Interactive AI Chat (analyze-surface) — A conversational analyst chatbot powered by Gemini Flash.
    • PDF Export — A branded, paginated PDF document generated client-side with jsPDF.

With the data flow established, the next question is how routing and access control determine which parts of the UI a user can reach.

2.2 Routing & Protected Routes

flowchart LR
    subgraph Public
        AuthPage["/auth -- Auth.tsx"]
        NotFound["/* -- NotFound.tsx"]
    end

    subgraph Protected["Protected (requires session)"]
        Index["/ -- Index.tsx\nDashboard"]
        Scan["/scan/:id -- ScanDetail.tsx"]
        HistoryPage["/history -- History.tsx"]
        Compare["/compare -- Compare.tsx"]
        PoliciesPage["/policies -- Policies.tsx"]
    end

    AuthPage -- "session exists" --> Index
    NoSession["No session"] -- "redirect" --> AuthPage

    Index --> AppLayout["Wrapped in\nAppLayout + PageTransition"]
    Scan --> AppLayout
    HistoryPage --> AppLayout
    Compare --> AppLayout
    PoliciesPage --> AppLayout
Loading

Figure 2 — Application Routing Map with Protected Route Guards

Step-by-step routing breakdown:

  1. Route Registration — React Router v6 defines all routes in App.tsx. Routes are split into two groups: public (no session required) and protected (session required).
  2. Public Routes — /auth (the login/signup page) and /* (the 404 catch-all) are accessible without authentication.
  3. Protected Route Guard — Every other route is wrapped in a ProtectedRoute component. If no session exists, it redirects the user to /auth.
  4. Auth Page Redirect — The /auth route itself checks for an existing session on mount. If the user is already authenticated, they are redirected to / (the dashboard) to prevent accessing the login page when already signed in.
  5. Layout Wrapping — Every protected route is wrapped with two higher-order components:
    • AppLayout — Renders the sticky glassmorphism header with navigation links (Dashboard, History, Compare, Policies), the OmniGuard logo, and the user avatar popover with sign-out functionality.
    • PageTransition — Applies Framer Motion fade + slide animations (0.25s duration, custom easing) for smooth visual transitions between pages.
  6. Route Parameters — The /scan/:id route uses a dynamic URL parameter to load a specific scan by its UUID.

Now that we've seen how data flows through the system and how the client is organized, the next layer to examine is where all of this data lives — the PostgreSQL database schema that underpins every scan, finding, policy, and user profile.

3. Database Schema

The database is the backbone of OmniGuard, storing everything from raw crawl data to AI-generated reports. Five tables work together to support the scan lifecycle, vulnerability tracking, user management, domain policy enforcement, and audit logging. Each table is designed with specific JSONB columns to accommodate the flexible, deeply nested data structures that web scraping and AI analysis produce.

3.1 scans Table

The primary table storing all scan results. Every scan begins as a crawling record and progresses through analyzing to completed (or failed). The JSONB columns (raw_crawl_data, parsed_data, enrichment, technologies) store the full depth of scraping and analysis results without requiring rigid column definitions.

Column Type Description
id UUID (PK) Auto-generated scan identifier
domain TEXT Target domain that was scanned
status TEXT crawling, analyzing, completed, failed
risk_score INTEGER Composite risk score (0–100)
urls_found INTEGER Total number of URLs discovered
vulnerabilities_found INTEGER Total number of findings generated
technologies JSONB Array of detected technology names
raw_crawl_data JSONB Full Firecrawl response ({ scrape, map })
parsed_data JSONB Structured data: { urls, jsFiles, forms, endpoints, externalDependencies, metadata, securityHeaders }
enrichment JSONB { whois, hosting, riskFactors }
ai_report TEXT AI-generated threat intelligence report (markdown)
error_message TEXT Error details if scan failed
created_at TIMESTAMPTZ Scan creation timestamp
updated_at TIMESTAMPTZ Last update timestamp

3.2 findings Table

Each scan produces zero or more findings — individual vulnerability detections linked back to the parent scan via scan_id. Findings are the atomic units that feed into risk scoring, severity breakdowns, and AI analysis.

Column Type Description
id UUID (PK) Finding identifier
scan_id UUID (FK → scans) Parent scan reference
title TEXT Finding title
description TEXT Detailed description
severity TEXT critical, high, medium, low, info
category TEXT Security Headers, Exposed Paths, Injection Points, XSS, Outdated Libraries, CMS Risk, Supply Chain
details JSONB Additional structured details (header name, URL, recommendation, etc.)
created_at TIMESTAMPTZ Creation timestamp

3.3 profiles Table

While scans and findings are shared across all users, the profiles table is the only user-specific table — it stores registration data from Google OAuth and serves as the registration gate that distinguishes signed-up users from anonymous Google account holders.

Column Type Description
id UUID (PK) Profile identifier
user_id UUID (UNIQUE) Auth user ID reference
email TEXT User's email address
display_name TEXT User's display name (from Google)
avatar_url TEXT Google avatar URL
created_at TIMESTAMPTZ Registration timestamp

3.4 domain_policies Table

Before any scan executes, the domain must pass through a policy check. This table caches the results of AI evaluations and manual overrides so that repeat scans against the same domain don't require redundant AI calls.

Column Type Description
id UUID (PK) Policy identifier
domain TEXT (UNIQUE) Target domain (cleaned, lowercase)
policy_type TEXT allow, block, or review
reason TEXT Explanation for the policy decision
ai_evaluated BOOLEAN Whether AI made this decision (vs manual)
created_at TIMESTAMPTZ Creation timestamp
updated_at TIMESTAMPTZ Last update timestamp

3.5 scan_audit_log Table

Every domain evaluation — whether served from the policy cache or freshly evaluated by AI — generates an immutable audit log entry. This table provides the accountability trail visible on the Policies page and is append-only by design.

Column Type Description
id UUID (PK) Log entry identifier
domain TEXT Domain that was evaluated
action TEXT approved, blocked, or flagged
reason TEXT Evaluation reason (prefixed with "Existing policy:" or "AI evaluation:")
created_at TIMESTAMPTZ Timestamp

3.6 Entity Relationship Diagram

The following diagram shows how these five tables relate to each other. The only true foreign key relationship is between scans and findings — the other tables are logically connected through shared domain values and the scan lifecycle but remain structurally independent for flexibility and performance.

erDiagram
    scans ||--o{ findings : "has many"
    scans {
        uuid id PK
        text domain
        text status
        int risk_score
        int urls_found
        int vulnerabilities_found
        jsonb technologies
        jsonb raw_crawl_data
        jsonb parsed_data
        jsonb enrichment
        text ai_report
        text error_message
        timestamptz created_at
        timestamptz updated_at
    }
    findings {
        uuid id PK
        uuid scan_id FK
        text title
        text description
        text severity
        text category
        jsonb details
        timestamptz created_at
    }
    profiles {
        uuid id PK
        uuid user_id UK
        text email
        text display_name
        text avatar_url
        timestamptz created_at
    }
    domain_policies {
        uuid id PK
        text domain UK
        text policy_type
        text reason
        boolean ai_evaluated
        timestamptz created_at
        timestamptz updated_at
    }
    scan_audit_log {
        uuid id PK
        text domain
        text action
        text reason
        timestamptz created_at
    }
    domain_policies ||--o{ scan_audit_log : "generates"
Loading

Figure 1 — Database Entity Relationship Diagram

Step-by-step schema relationship breakdown:

  1. scans → findings (one-to-many) — Each scan record produces zero or more findings, linked by the scan_id foreign key on the findings table. When a scan is deleted, its findings must be deleted first (cascading delete handled in application code, not a DB cascade constraint).
  2. profiles (standalone) — Stores user registration data keyed by user_id. This is the only table with Row Level Security restricted to the owning user — users can only read, insert, and update their own profile row. It has no foreign key to any other table.
  3. domain_policies → scan_audit_log (logical relationship) — Every time a domain is evaluated (whether from the policy cache or via a fresh AI call), an entry is written to scan_audit_log. The relationship is logical (shared domain value), not enforced by a foreign key, because audit logs are append-only and must persist even if a policy is deleted.
  4. scans and findings (open access) — These tables have open RLS policies, meaning all authenticated users can see all scan data. This is intentional — scan results are shared knowledge, not per-user private data.
  5. domain_policies (open access) — Also open to all users, allowing anyone to view and manage the domain allowlist/blocklist. Manual overrides on this table directly affect which domains can be scanned.
  6. scan_audit_log (append-only) — Open for SELECT and INSERT, but no UPDATE or DELETE policies. This ensures the audit trail is immutable — once a domain evaluation is logged, it cannot be modified or removed.

With the data model defined, the next question is: what code actually reads from and writes to these tables? That's the job of the four serverless edge functions that form OmniGuard's backend compute layer.

4. Edge Functions (Backend)

The backend logic lives entirely in four Deno-based edge functions deployed to Lovable Cloud. Each function serves a distinct role in the scan lifecycle: firecrawl-scan orchestrates the crawling and analysis pipeline, analyze-threats generates AI reports, analyze-surface powers the interactive chatbot, and evaluate-domain gates every scan request through the AI policy agent. Together, they transform a raw domain name into structured intelligence — reading from and writing to the database tables described above.

4.1 Firecrawl Scan Pipeline

File: supabase/functions/firecrawl-scan/index.ts

This is the core orchestration function that manages the entire scan lifecycle. It requires the FIRECRAWL_API_KEY secret and is the most complex of the four edge functions — handling everything from API calls to data parsing to finding generation in a single invocation.

Process Flow

flowchart TD
    Input["INPUT: domain, scanId?"] --> A["Create scan record\nstatus: crawling"]
    A --> B["Format target URL\nadd https:// if missing"]
    B --> C["Firecrawl /v1/scrape\nformats: markdown, html, links\nonlyMainContent: false"]
    C --> D{"Scrape\nsucceeded?"}
    D -- "NO" --> E["Mark scan as FAILED\nreturn error"]
    D -- "YES" --> F["Firecrawl /v1/map\nlimit: 200 URLs\n(non-blocking)"]
    F --> G["Parse Results"]

    G --> G1["Merge + deduplicate URLs\n(scrape.links + map.links)"]
    G --> G2["detectTechnologies()\n20 regex patterns vs HTML"]
    G --> G3["Extract JS files\n.js .mjs .jsx .ts .tsx"]
    G --> G4["extractForms()\nparse form tags (max 20)"]
    G --> G5["Filter external deps\ndifferent hostname"]
    G --> G6["Filter endpoints\nquery params + API patterns"]
    G --> G7["analyzeSecurityFromMeta()\n7 security headers"]

    G1 --> H["Generate Enrichment\nWHOIS, hosting, risk factors"]
    G2 --> H
    G3 --> H
    G4 --> H
    G5 --> H
    G6 --> H
    G7 --> H

    H --> I["Update scan\nstatus: analyzing\nstore parsed_data"]
    I --> J["generateFindings()"]

    J --> J1["Security headers\nCSP, HSTS, X-Frame"]
    J --> J2["Sensitive paths\nadmin, .env, .git"]
    J --> J3["Suspicious params\nredirect, cmd, exec"]
    J --> J4["XSS inputs\nsearch, query, comment"]
    J --> J5["Tech risks\njQuery, WordPress"]
    J --> J6["Supply chain\nexternal dep count"]

    J1 --> K["Insert findings\ninto database"]
    J2 --> K
    J3 --> K
    J4 --> K
    J5 --> K
    J6 --> K

    K --> L["calculateRiskScore()\ncritical:25 high:15\nmedium:8 low:3 info:1\ncapped at 100"]
    L --> M["Update scan\nstatus: completed\nrisk_score, vuln count"]
    M --> Output["OUTPUT:\nscanId, urlsFound\nfindingsCount, riskScore"]
Loading

Figure 1 — Firecrawl Scan Pipeline: Complete Orchestration Flow

Step-by-step pipeline breakdown:

  1. Scan Record Creation — The function receives a domain (and optionally an existing scanId). If no scanId is provided, it creates a new scan record in the scans table with status: crawling. If a scanId is provided, it updates the existing record.
  2. URL Formatting — The domain is normalized: if it doesn't start with http:// or https://, https:// is prepended to form a valid target URL.
  3. Firecrawl Scrape Call — A POST request is sent to https://api.firecrawl.dev/v1/scrape with formats: ['markdown', 'html', 'links'] and onlyMainContent: false (to capture the entire page, not just the main body content). The response contains raw HTML, discovered URLs, HTTP response metadata, and a markdown representation.
  4. Failure Check — If the scrape call fails (network error, invalid domain, Firecrawl service down), the scan is immediately marked as failed with the error message stored in error_message, and the function returns early.
  5. Firecrawl Map Call — On successful scrape, a second call is made to https://api.firecrawl.dev/v1/map with limit: 200 to discover additional URLs across the site via sitemaps and internal link following. This call is wrapped in a try-catch — if it fails, the pipeline continues using only the scrape data (non-blocking).
  6. URL Merging & Deduplication — Links from both the scrape response and the map response are combined into a single array, deduplicated using a Set, and capped at 500 URLs maximum.
  7. Seven-Step Parsing Phase — The merged data is processed through seven parallel extraction functions:
    • detectTechnologies() — Matches 20 regex patterns against the raw HTML to identify frameworks, CDNs, CMSs, and analytics tools (see Technology Detection table below).
    • JS File Extraction — Filters URLs by file extension (.js, .mjs, .jsx, .ts, .tsx) to identify client-side scripts.
    • extractForms() — Uses regex to parse <form> tags from the HTML, extracting action URLs, HTTP methods, and input field names (capped at 20 forms).
    • External Dependency Filtering — Compares each URL's hostname against the target domain; different hostnames are classified as external dependencies (capped at 100).
    • Endpoint Filtering — Identifies URLs containing query parameters (?) or matching API-like patterns (/api/, /graphql/, /v1/, /admin/, etc.).
    • analyzeSecurityFromMeta() — Checks the Firecrawl metadata object for 7 security headers: CSP, HSTS, X-Frame-Options, X-Content-Type-Options, X-XSS-Protection, Referrer-Policy, and Permissions-Policy. Present values are stored; missing values are marked as "Not Set".
    • Real Enrichment Generation — Fetches live WHOIS data via RDAP (https://rdap.org/domain/) and IP geolocation via ip-api.com (http://ip-api.com/json/). Returns registrar, registration/expiry dates, nameservers, status flags, ISP, ASN, country, city, and organization. Risk factors (hasLogin, isEcommerce, usesCDN, surfaceSize) are computed from detected technologies and URL count.
  8. Status Update — The scan record is updated to status: analyzing with all parsed data stored in the parsed_data, technologies, and enrichment JSONB columns.
  9. Finding Generation — The generateFindings() function runs six categories of security checks against the parsed data (see Finding Generation Categories table below). Each check produces zero or more findings with a title, description, severity, category, and details object.
  10. Database Insertion — All generated findings are batch-inserted into the findings table with the scan's scan_id as the foreign key.
  11. Risk Score Calculation — The calculateRiskScore() function sums findings by weighted severity: Critical = 25pts, High = 15pts, Medium = 8pts, Low = 3pts, Info = 1pt. The raw total is capped at 100 using Math.min(total, 100).
  12. Final Update — The scan record is updated to status: completed with the final risk_score, vulnerabilities_found count, and urls_found count. The function returns the scan ID and summary metrics.

Technology Detection

The detectTechnologies() function uses regex pattern matching against the raw HTML to identify 20 technologies:

Technology Detection Pattern
React react.production, reactDOM, __NEXT_DATA__
Next.js __NEXT_DATA__, _next/
Vue.js vue.js, __vue__
Angular ng-version, angular.js
jQuery jquery.js, jquery.min.js
WordPress wp-content, wp-includes
Bootstrap bootstrap.css, bootstrap.js
Tailwind CSS tailwindcss, tailwind.css
Google Analytics google-analytics, googletagmanager, gtag
Google Tag Manager googletagmanager.com/gtm
Cloudflare cloudflare, cf-ray, __cf_bm
Nginx nginx
PHP .php
ASP.NET asp.net, __VIEWSTATE, __EVENTVALIDATION
Shopify shopify.com, cdn.shopify
Wix wix.com, parastorage.com
Squarespace squarespace.com, sqsp.net
Drupal drupal.js, drupal.settings
HubSpot hubspot.com, hs-scripts
Stripe stripe.com, stripe.js

Finding Generation Categories

Category Checks Severity
Security Headers Missing CSP High
Security Headers Missing HSTS Medium
Security Headers Missing X-Frame-Options Medium
Exposed Paths Admin panels (/admin, /wp-admin, /panel, /dashboard) High
Exposed Paths Sensitive files (/config, /.env, /.git, /backup, /dump, /sql) Critical
Exposed Paths Database tools (/phpmyadmin, /adminer, /phpinfo) Critical
Injection Points Suspicious query params (redirect, url, file, cmd, exec, etc.) High / Medium
XSS Form inputs with text fields (search, query, q, comment, message) Medium
Outdated Libraries jQuery presence Low
CMS Risk WordPress detection Medium
Supply Chain >10 external dependencies Low

Scan Consistency Mechanisms

To ensure that repeated scans of the same domain produce consistent, reproducible results — a critical requirement for enterprise audit and compliance workflows — OmniGuard employs three mechanisms:

1. Deterministic AI Analysis (Temperature = 0)

All AI model calls across the platform (analyze-threats, analyze-surface) use temperature: 0 in their API requests. This forces the model to select the highest-probability token at each step, eliminating the randomness that causes different outputs from the same input. Without this, the same scan data could produce different severity ratings, CVSS estimates, or remediation priorities on each run — unacceptable for compliance reporting.

{
  "model": "google/gemini-3-flash-preview",
  "temperature": 0,
  "messages": [...]
}

2. Finding Deduplication

The generateFindings() function can produce duplicate findings when multiple URLs match the same pattern (e.g., three /admin-like paths would previously create three separate "Exposed Admin Panel" findings). A deduplication step now runs before database insertion:

const seen = new Set<string>();
const findings = rawFindings.filter(f => {
  const key = `${f.title}::${f.category}`;
  if (seen.has(key)) return false;
  seen.add(key);
  return true;
});

Deduplication uses a composite key of title + category. This means two findings with the same title in different categories are preserved (intentional — they represent different security concerns), but identical findings within the same category are collapsed to a single entry. This directly stabilizes the risk score, since fewer duplicate findings means less score inflation.

3. Crawl Normalization

URLs discovered from both the Firecrawl scrape and map endpoints are sorted alphabetically after deduplication:

const links = [...new Set([...scrapeLinks, ...mapLinks])].sort();

This ensures that even if Firecrawl returns URLs in a different order between runs (due to internal concurrency, CDN routing, or server-side randomization), the downstream slicing (urls.slice(0, 500), endpoints.slice(0, 100), etc.) always selects the same subset of URLs. Without sorting, two scans of the same domain could process different URL subsets, leading to different findings simply because the array order changed.

Combined Effect: These three mechanisms work together to minimize variance between scans of the same domain. The remaining sources of variance (dynamic site content, A/B testing, CDN geo-routing, bot detection) are inherent to web scraping and cannot be eliminated from the client side.

Per-User Rate Limiting

Every scan request is subject to a per-user daily quota to prevent Firecrawl credit exhaustion. The system uses a scan_quotas table to track usage:

Column Type Description
user_id UUID (UNIQUE) The authenticated user
scans_today INTEGER Number of scans performed today
daily_limit INTEGER Configurable daily cap (default: 10)
last_scan_date DATE Date of last scan (for daily reset)

Rate limiting flow:

  1. Extract user identity — The edge function extracts the user ID from the Authorization header using the anon key to verify the JWT token.
  2. Check or create quota — If no quota record exists, one is created with scans_today: 1. If the record exists but last_scan_date is not today, the counter resets to 1.
  3. Enforce limit — If scans_today >= daily_limit, the function returns HTTP 429 with a descriptive error message including the limit and reset time.
  4. Increment counter — On successful quota check, scans_today is incremented before the scan proceeds.
  5. Frontend display — The ScanForm component displays a quota indicator (X/10 scans used today) and shows a "Limit reached" warning when exhausted.

Administrators can adjust per-user limits by updating the daily_limit column in the scan_quotas table directly.

Real Enrichment Data

All domain enrichment data is sourced from live external APIs — no simulated or mocked data exists in the application.

RDAP (Registration Data Access Protocol) — Modern replacement for WHOIS:

  • Endpoint: https://rdap.org/domain/{domain}
  • Returns: Registrar name, registration date, expiry date, last-changed date, nameservers, domain status flags
  • Extracted from the RDAP JSON response structure (entities with registrar role, event actions for dates)

IP Geolocation (ip-api.com) — Free IP intelligence:

  • Endpoint: http://ip-api.com/json/{domain}
  • Returns: Resolved IP address, ISP, organization, ASN (number + name), country, region, city
  • Accepts domain names directly (handles DNS resolution server-side)

Risk Factors — Computed locally from scan data:

  • hasLogin: Detected if WordPress, Shopify, or Drupal are present
  • isEcommerce: Detected if Shopify, Stripe, or Wix are present
  • usesCDN: Detected if Cloudflare is present
  • surfaceSize: Classified as small (<30 URLs), medium (30-100), or large (>100)

Both external API calls are wrapped in try-catch blocks with graceful fallback — if RDAP or ip-api.com is unreachable, the enrichment object still returns with an error field and source identifier, preventing scan pipeline failures.

Once the scan pipeline completes and findings are stored, users can request deeper analysis. The next two edge functions handle that — generating comprehensive AI reports and powering the interactive chatbot.

4.2 AI Threat Report Generator

File: supabase/functions/analyze-threats/index.ts

Generates comprehensive enterprise-grade AI threat intelligence reports. While the scan pipeline handles automated detection, this function adds the layer of AI reasoning — interpreting findings in context, estimating CVSS scores, mapping to OWASP categories, and building a prioritized remediation roadmap.

Input: { scanId } → Fetches scan + findings from database using service role key

AI Model: google/gemini-3-flash-preview via Lovable AI Gateway (https://ai.gateway.lovable.dev)

AI Prompt Structure:

  • System role: Principal Cybersecurity Analyst at a Fortune 500 firm
  • Data provided: Full scan metadata, severity counts, category breakdown, technologies, enrichment (WHOIS, hosting, risk factors), security headers, all findings with details, attack surface metrics
  • Output format: 11-section structured markdown report:
    1. Executive Summary
    2. Scope & Methodology
    3. Critical & High-Severity Findings (with CVSS estimates, CWE/OWASP refs)
    4. Medium & Low-Severity Findings (table format)
    5. Attack Surface Analysis (endpoints, tech stack, dependencies, forms)
    6. Security Headers Assessment
    7. Infrastructure & Hosting Analysis
    8. Remediation Roadmap (immediate → long-term)
    9. Compliance Considerations (GDPR, PCI-DSS, SOC 2)
    10. Risk Assessment Overview (with risk matrix)
    11. Conclusion

Post-generation: Report is stored in the scans.ai_report column.

Error handling: Returns specific error codes for rate limiting (429) and credit exhaustion (402).

The threat report provides a one-shot comprehensive analysis, but users often need to ask follow-up questions or drill into specific areas. That's where the interactive AI analyst comes in.

4.3 AI Surface Analyst (Chatbot & Insights)

File: supabase/functions/analyze-surface/index.ts

Powers both the interactive AI chatbot (AiChatPanel) and the one-click AI analysis buttons (AiSurfaceInsight). Unlike the threat report generator which produces a single monolithic report, this function is designed for targeted, conversational analysis — handling 7 different section types with tailored prompts that focus on specific aspects of the scan data:

Section Source Component Context Data Analysis Focus
security_headers AiSurfaceInsight Header config object Per-header risk assessment, exact remediation values
endpoints AiSurfaceInsight Discovered URLs (max 40) Endpoint classification, high-risk paths, recon insights
dependencies AiSurfaceInsight External deps (max 30) Supply chain risk, privacy concerns, Magecart scenarios
raw_data AiSurfaceInsight Raw crawl JSON (truncated 12KB) Infrastructure overview, app fingerprint, data exposure
surface_chat AiChatPanel (surface tab) Full surface data + question Free-form attack surface Q&A
findings_chat AiChatPanel (findings tab) All findings + question Severity prioritization, remediation guidance
raw_data_chat AiChatPanel (raw data tab) Raw crawl data + question Data interpretation and contextualization

AI Model: google/gemini-3-flash-preview via Lovable AI Gateway

System prompt: Principal Cybersecurity Analyst specializing in web app security, pen testing, and threat intelligence. References OWASP, CWE, MITRE ATT&CK.

Before any of these analysis functions can run, though, the domain must first be approved. The fourth and final edge function acts as the gatekeeper that decides whether a scan should proceed at all.

4.4 AI Domain Policy Agent

File: supabase/functions/evaluate-domain/index.ts

The gatekeeper function that evaluates every scan request before execution. This is the first edge function called in any scan workflow — if it blocks the domain, none of the other functions ever fire.

flowchart TD
    Input["INPUT: domain"] --> A["Clean domain\nlowercase, strip protocol/path"]
    A --> B["Check domain_policies table\nfor existing policy"]
    B --> C{"Policy\nexists?"}
    C -- "YES" --> D["Return stored policy\n+ log to audit_log"]
    C -- "NO" --> E["AI Evaluation\nGemini 3 Flash Preview\nvia Lovable AI Gateway"]

    E --> F{"AI response\nparseable?"}
    F -- "YES" --> G{"Policy\ntype?"}
    F -- "NO" --> H["Fallback: review\nwith descriptive error reason"]

    G --> G1["ALLOW\nPublic sites, businesses,\nSaaS, education, open-source"]
    G --> G2["BLOCK\nMilitary .mil, intelligence,\ncritical infrastructure,\nhoneypots"]
    G --> G3["REVIEW\nAmbiguous, small gov,\nsuspicious TLDs"]

    G1 --> I["Store policy in\ndomain_policies table\nai_evaluated: true"]
    G2 --> I
    G3 --> I
    H --> I

    I --> J["Log to scan_audit_log\napproved / blocked / flagged"]
    J --> Output["OUTPUT:\nallowed, policy,\nreason, ai_evaluated"]
Loading

Figure 2 — AI Domain Policy Agent: Evaluation Decision Flow

Step-by-step policy evaluation breakdown:

  1. Domain Cleaning — The input domain is normalized: converted to lowercase, and any protocol prefix (https://, http://) or trailing path (/page/about) is stripped, leaving only the bare hostname (e.g., example.com).
  2. Cache Check — The function queries the domain_policies table for an existing policy matching the cleaned domain.
  3. Cache Hit Path — If a policy already exists (either from a previous AI evaluation or a manual override), it is returned immediately without making any AI call. An audit log entry is written to scan_audit_log with the prefix "Existing policy:" followed by the cached reason.
  4. AI Evaluation (Cache Miss) — For unknown domains, the function sends a classification request to Gemini 3 Flash Preview via the Lovable AI Gateway. The prompt defines three categories:
    • ALLOW — Public websites, businesses, SaaS products, educational institutions (.edu), open-source projects, news sites, and personal sites.
    • BLOCK — Military domains (.mil), intelligence agencies, critical infrastructure (power grids, water systems), healthcare patient portals, core banking systems, and law enforcement honeypots.
    • REVIEW — Ambiguous or sensitive targets, small government agencies, suspicious TLDs (.onion, .tk), and private-looking internal domains.
  5. AI Response Parsing — The AI response is expected to be a JSON object with policy ("allow", "block", or "review") and reason (a human-readable explanation). The function attempts to parse this from the response text.
  6. Parse Failure Fallback — If the AI response cannot be parsed as valid JSON (malformed output, unexpected format), the function defaults to review with a descriptive error reason explaining what went wrong — e.g., "AI evaluation returned an unparseable response. Please review this domain manually.".
  7. HTTP Error Handling — Specific HTTP error codes produce specific fallback reasons:
    • 429 (Rate Limited) — "The AI evaluation service is temporarily rate-limited. Please try again shortly or approve this domain manually."
    • 402 (Credits Exhausted) — "AI evaluation credits have been exhausted. Please approve this domain manually."
    • Other errors — Include the HTTP status code in the reason for debugging.
  8. Policy Storage — The resulting policy (whether from AI or fallback) is inserted into the domain_policies table with ai_evaluated: true (or false for manual overrides done through the Policies page).
  9. Audit Logging — An entry is written to scan_audit_log with the action (approved, blocked, or flagged) and the full reason text, prefixed with "AI evaluation:".
  10. Output — The function returns a JSON response with allowed (boolean), policy (the policy type string), reason (the explanation), and ai_evaluated (whether AI made the decision).

The edge functions above reference Firecrawl API calls extensively but only at a high level. The next section zooms into the scraping process itself — the specific API endpoints, request parameters, response structures, and data extraction logic that turn a domain name into structured security data.

4.5 CVE Lookup Engine

File: supabase/functions/cve-lookup/index.ts

Performs real-time vulnerability lookups against the NIST National Vulnerability Database (NVD) 2.0 API for each technology detected during the scan. This replaces passive-only analysis with active CVE correlation.

Input: { technologies: string[] } — Array of detected technology names from the scan pipeline

Process:

  1. CPE Mapping — Each technology is mapped to its Common Platform Enumeration (CPE) vendor/product pair via a built-in lookup table (e.g., jQuery → jquery/jquery, WordPress → wordpress/wordpress, Nginx → f5/nginx). Technologies without CPE mappings are skipped.
  2. NVD API Query — For each mapped technology, a keyword search is performed against https://services.nvd.nist.gov/rest/json/cves/2.0?keywordSearch={vendor}+{product}&resultsPerPage=10. The NVD rate limit (5 requests per 30 seconds without an API key) is respected via a 6.5-second delay between requests.
  3. CVSS Extraction — Each CVE result has its CVSS v3.1 (or v3.0 fallback) base score and severity extracted. If no CVSS data exists, severity is estimated from the score range (≥9 = critical, ≥7 = high, ≥4 = medium, <4 = low).
  4. Finding Generation — CVE results are converted to OmniGuard findings with the category Known CVEs, including the CVE ID, description (truncated to 500 chars), CVSS score, published date, and up to 3 reference URLs.
  5. Integration — The firecrawl-scan pipeline calls cve-lookup after generating passive findings and merges the CVE findings into the same deduplication + risk scoring pipeline.

Output: Up to 50 CVEs sorted by CVSS score (descending), plus metadata about which technologies were checked vs skipped.

Supported Technologies (CPE-mapped): jQuery, WordPress, React, Angular, Vue.js, Next.js, Bootstrap, Drupal, PHP, Nginx, ASP.NET, Shopify, HubSpot, Stripe

4.6 Scheduled Scan Runner

File: supabase/functions/scheduled-scan-runner/index.ts

Executes automated recurring scans on a configurable schedule. Triggered every hour by a pg_cron job that calls the function via pg_net.

Process:

  1. Fetch Due Schedules — Queries the scan_schedules table for all enabled schedules where next_run_at <= now().
  2. Execute Scans — For each due schedule, internally calls the firecrawl-scan edge function with the scheduled domain.
  3. Update Schedule — After each scan (success or failure), updates last_run_at, last_scan_id, and calculates next_run_at based on the frequency (daily = +24h, weekly = +7d, biweekly = +14d, monthly = +30d).
  4. Error Resilience — If a scan fails, the schedule still advances its next_run_at to prevent infinite retry loops. Errors are logged but don't block other scheduled scans.

Cron Configuration: 0 * * * * (every hour at minute 0) via pg_cron + pg_net HTTP POST to the function endpoint.

scan_schedules Table:

Column Type Description
id UUID (PK) Schedule identifier
user_id UUID Owner of this schedule
domain TEXT Target domain
frequency TEXT daily, weekly, biweekly, monthly
enabled BOOLEAN Whether this schedule is active
last_scan_id UUID (FK → scans) Most recent scan produced
last_run_at TIMESTAMPTZ When last executed
next_run_at TIMESTAMPTZ When next execution is due

4.7 Public REST API Gateway

File: supabase/functions/api-gateway/index.ts

Provides programmatic access to OmniGuard functionality via API keys, enabling CI/CD integration, SIEM workflows, and third-party automation.

Authentication: API key passed via x-api-key header. Keys are SHA-256 hashed before storage — only the prefix (tl_XXXX...) is stored in plaintext for identification. The full key is shown once at creation time and never stored.

Endpoints:

Method Path Permission Description
POST /scan scan:create Start a new scan. Body: { "domain": "example.com" }
GET /scan/:id scan:read Get scan details (status, risk score, technologies, enrichment)
GET /scan/:id/findings scan:read Get all findings for a scan
GET /scans scan:read List recent scans (query: ?limit=20, max 100)

Permission Model: Each API key has an array of permissions (scan:create, scan:read, findings:read). The gateway checks permissions before executing each request and returns HTTP 403 if insufficient.

api_keys Table:

Column Type Description
id UUID (PK) Key identifier
user_id UUID Owner
key_hash TEXT (UNIQUE) SHA-256 hash of the full API key
key_prefix TEXT Display prefix (tl_XXXX...)
name TEXT User-assigned label
permissions TEXT[] Array of permission strings
last_used_at TIMESTAMPTZ Last API call timestamp
expires_at TIMESTAMPTZ Optional expiry date

Example Usage:

# Start a scan
curl -X POST https://project.supabase.co/functions/v1/api-gateway/scan \
  -H "x-api-key: tl_YourKeyHere" \
  -H "Content-Type: application/json" \
  -d '{"domain": "example.com"}'

# Get scan results
curl https://project.supabase.co/functions/v1/api-gateway/scan/{scanId} \
  -H "x-api-key: tl_YourKeyHere"

# Get findings
curl https://project.supabase.co/functions/v1/api-gateway/scan/{scanId}/findings \
  -H "x-api-key: tl_YourKeyHere"

5. Firecrawl Web Scraping Process

Firecrawl is the data acquisition engine at the heart of OmniGuard. The firecrawl-scan edge function uses two Firecrawl API endpoints — /v1/scrape for deep single-page extraction and /v1/map for broad site-wide URL discovery. This section details exactly what data is requested, what comes back, and how it's parsed into the structured format stored in the database.

5.1 Scraping Flow Diagram

flowchart TD
    Target["TARGET: https://example.com"] --> Scrape

    subgraph Scrape["FIRECRAWL /v1/scrape"]
        S1["Request:\nurl, formats: markdown + html + links\nonlyMainContent: false"]
        S2["Response:\ndata.html -- Raw HTML\ndata.links -- Discovered URLs\ndata.metadata -- HTTP headers\ndata.markdown -- Page content"]
        S1 --> S2
    end

    Scrape --> Map

    subgraph Map["FIRECRAWL /v1/map"]
        M1["Request:\nurl, limit: 200"]
        M2["Response:\nlinks -- Full site map URLs\n(non-blocking: continues if fails)"]
        M1 --> M2
    end

    Map --> Merge

    subgraph Merge["DATA MERGING AND PARSING"]
        P1["1. Deduplicate URLs\nfrom scrape.links + map.links\n2. Cap at 500 URLs"]
        P2["From merged URLs:\n- JS files (.js, .mjs, .jsx, .ts, .tsx)\n- External deps (diff hostname)\n- Endpoints (API patterns + query params)"]
        P3["From raw HTML:\n- Forms (action, method, inputs) -- max 20\n- Technologies (20 regex patterns)"]
        P4["From metadata:\n7 security headers:\nCSP, HSTS, X-Frame-Options,\nX-Content-Type-Options, X-XSS,\nReferrer-Policy, Permissions-Policy"]
        P1 --> P2
        P1 --> P3
        P1 --> P4
    end
Loading

Figure 1 — Firecrawl Web Scraping Pipeline: Two-Phase Data Acquisition and Parsing

Step-by-step scraping breakdown:

  1. Phase 1: Scrape Request — The target URL is sent to Firecrawl's /v1/scrape endpoint with three requested formats: markdown (for readable page content), html (for raw DOM parsing), and links (for discovered hyperlinks). The onlyMainContent: false flag ensures the entire page is captured — including navigation bars, footers, sidebars, and hidden elements that may reveal security-relevant information.
  2. Scrape Response — Firecrawl returns a data object containing:
    • data.html — The complete raw HTML of the page
    • data.links — An array of all discovered URLs (internal and external links found on the page)
    • data.metadata — HTTP response headers including security headers, content type, and server information
    • data.markdown — A markdown representation of the page content
  3. Phase 2: Map Request — A second request is sent to /v1/map with limit: 200 to discover additional URLs beyond the initial page. This endpoint follows sitemaps, internal links, and crawl paths to build a broader picture of the site's URL structure.
  4. Map Response (Non-Blocking) — The map endpoint returns an array of discovered URLs. This call is wrapped in a try-catch — if it fails (timeout, rate limit, unsupported site), the pipeline continues with scrape data alone. No data is lost; the map simply provides additional URL coverage.
  5. URL Deduplication — URLs from both sources (scrape.links + map.links) are merged into a single array and deduplicated using a Set to remove exact duplicates. The final list is capped at 500 URLs to prevent excessive data in the database.
  6. URL-Based Extraction — From the merged URL list, three categories are filtered:
    • JavaScript files — URLs ending in .js, .mjs, .jsx, .ts, or .tsx are classified as client-side scripts that may expose API keys, internal routes, or business logic.
    • External dependencies — URLs whose hostname differs from the target domain are classified as third-party resources representing supply chain risk.
    • Endpoints — URLs containing query parameters (?) or matching API-like patterns (/api/, /graphql/, /v1/, /admin/, /login/, etc.) are classified as interactive endpoints.
  7. HTML-Based Extraction — From the raw HTML, two categories are extracted:
    • Forms — Regex parsing identifies <form> tags, extracting action URLs, HTTP methods, and input field names. Capped at 20 forms to prevent data bloat.
    • Technologies — 20 regex patterns are matched against the HTML source to detect frameworks (React, Vue, Angular), CMSs (WordPress, Drupal), CDNs (Cloudflare), analytics (Google Analytics, GTM), and more.
  8. Metadata-Based Extraction — From the Firecrawl response metadata, 7 critical security headers are checked. For each header, the present value is stored; missing headers are marked as "Not Set" — these missing headers become findings in the next pipeline stage.

5.2 Data Extraction Details

Endpoint Filtering: URLs containing ? (query params) or matching API patterns:

/(api|graphql|rest|v\d|admin|login|dashboard|wp-|config)/i

Form Extraction: Regex-based HTML parsing:

/<form[^>]*action=["']?([^"'\s>]*)["']?[^>]*method=["']?([^"'\s>]*)["']?[^>]*>([\s\S]*?)<\/form>/gi

Extracts: action URL, HTTP method, input field names (capped at 20 forms).

External Dependency Detection: Compares each URL's hostname against the target domain — different host = external dependency (capped at 100).

Security Header Analysis: Reads from Firecrawl metadata object. Each of 7 headers is checked — present values stored, missing values marked as "Not Set".

Firecrawl provides the raw data, but it takes AI to turn that data into actionable intelligence. The next section covers how OmniGuard integrates with multiple AI models through a unified gateway, and why different functions use different models.

6. AI Integration

All three AI-powered edge functions use the Lovable AI Gateway (https://ai.gateway.lovable.dev/v1/chat/completions) for inference. No user API keys are required — the LOVABLE_API_KEY environment variable is auto-provisioned by Lovable Cloud. This unified gateway approach means all AI calls follow the same OpenAI-compatible API pattern, differing only in the model selected and the prompt constructed.

6.1 Models Used

As of February 2026, OmniGuard has been upgraded to use a single unified model across all three AI-powered edge functions: google/gemini-3-flash-preview. This is Google's next-generation Flash model, offering a strong balance of speed and capability that eliminates the need for a multi-model strategy. All functions — from simple domain classification to comprehensive threat reports — now use the same model, simplifying the codebase and ensuring consistent quality across all AI outputs.

Function Model Use Case
Domain Policy Evaluation google/gemini-3-flash-preview JSON classification (allow/block/review)
Threat Report Generation google/gemini-3-flash-preview Long-form structured markdown report with CVE/OWASP references
Interactive Chat & Surface Analysis google/gemini-3-flash-preview Multi-turn context-aware security analysis
flowchart LR
    subgraph EdgeFunctions["Edge Functions"]
        EvalDomain["evaluate-domain"]
        AnalyzeThreats["analyze-threats"]
        AnalyzeSurface["analyze-surface"]
    end

    subgraph Gateway["Lovable AI Gateway\nhttps://ai.gateway.lovable.dev"]
        Model["Gemini 3\nFlash Preview"]
    end

    EvalDomain -- "classification\njson output" --> Model
    AnalyzeThreats -- "long-form\nthreat report" --> Model
    AnalyzeSurface -- "interactive\nchat + insights" --> Model
Loading

Figure 1 — Unified AI Model Strategy: All Functions Use Gemini 3 Flash Preview

Step-by-step model strategy breakdown:

  1. Unified Model Choice — All three edge functions now use google/gemini-3-flash-preview, Google's next-generation Flash model. This simplifies the codebase by eliminating the need to select different models for different tasks — a single model string is used across the entire backend.
  2. evaluate-domain — Performs domain classification (allow/block/review) by sending a structured prompt and expecting a JSON response. Gemini 3 Flash Preview handles this lightweight task with sub-second latency while maintaining high classification accuracy.
  3. analyze-threats — Generates comprehensive, multi-section markdown reports requiring deep reasoning: CVSS score estimation, CWE/OWASP mapping, compliance assessment (GDPR, PCI-DSS, SOC 2), and prioritized remediation roadmaps. Gemini 3 Flash Preview delivers sufficient depth and accuracy for these complex outputs.
  4. analyze-surface — Powers the interactive chatbot and one-click surface analysis. Users expect conversational response times when asking follow-up questions, and the model delivers substantive security analysis referencing OWASP, CWE, and MITRE ATT&CK frameworks with low latency.
  5. Unified Gateway — All three functions access the model through the same Lovable AI Gateway endpoint (https://ai.gateway.lovable.dev/v1/chat/completions) using the same OpenAI-compatible request format. The only variable is the prompt — the model field is identical across all calls.

6.2 AI Gateway Integration

All edge functions use the same integration pattern:

Edge Function
  → POST https://ai.gateway.lovable.dev/v1/chat/completions
  → Headers: Authorization: Bearer ${LOVABLE_API_KEY}
  → Body: {
      model: "google/gemini-3-flash-preview",
      messages: [
        { role: "system", content: "..." },
        { role: "user", content: "..." }
      ]
    }
  → Response: { choices: [{ message: { content: string } }] }

Authentication: Uses LOVABLE_API_KEY environment variable (auto-provided by Lovable Cloud). This key is managed automatically — users never need to configure it.

Error Handling: All functions handle three error states:

  • 429 Too Many Requests — Rate limited; returns descriptive message to user
  • 402 Payment Required — Credits exhausted; surfaces billing guidance
  • Network/Parse errors — Falls back gracefully with explanatory messages

The backend is only half the story — all of this data and AI analysis needs to be presented to the user through an intuitive interface. The next section covers the frontend components that render scans, findings, reports, and interactive analysis into a cohesive user experience.

7. Frontend Components

The React frontend is organized into seven page components and eight core components, all rendered within a shared layout that provides navigation, authentication state, and page transition animations. Each page maps to a specific step in the user workflow — from authentication to scanning to analysis to comparison — and leverages the API layer (covered in Section 13) to communicate with the backend.

7.1 Pages

Auth.tsx — Authentication

The entry point for all new and returning users. This page handles the full Google OAuth lifecycle:

  • Tab-based Sign In / Sign Up UI with custom tab switcher (not shadcn tabs)
  • Google OAuth via lovable.auth.signInWithOAuth("google")
  • auth_intent stored in localStorage to distinguish signup vs signin after OAuth redirect
  • Profile-based registration gate:
    • Sign Up: Creates a profiles row with user_id, email, display_name, avatar_url from Google metadata
    • Sign In: Checks for existing profile → rejects with "No account found" if missing
  • Unauthorized users signed out with error toast
  • Animated background with radial gradient

Index.tsx — Dashboard

Once authenticated, users land on the dashboard — the operational hub that provides an at-a-glance overview of scanning activity and serves as the primary entry point for new scans:

  • Animated hero section with 3 concentric pulsing radar rings (Framer Motion)
  • OmniGuard logo with pulse ring animation
  • ScanForm component for domain input
  • Stats grid (4 cards): Total Scans, Unique Domains, Vulnerabilities, Avg Risk
    • Avg Risk calculated only from completed scans (excludes failed/in-progress)
  • Recent scans list (last 5) with staggered entry animations
  • Risk distribution sidebar — scans bucketed by risk score ranges (≥75 critical, ≥50 high, ≥25 medium, >0 low, 0 info)
  • Technology fingerprint cloud — top 8 technologies across all scans with occurrence counts

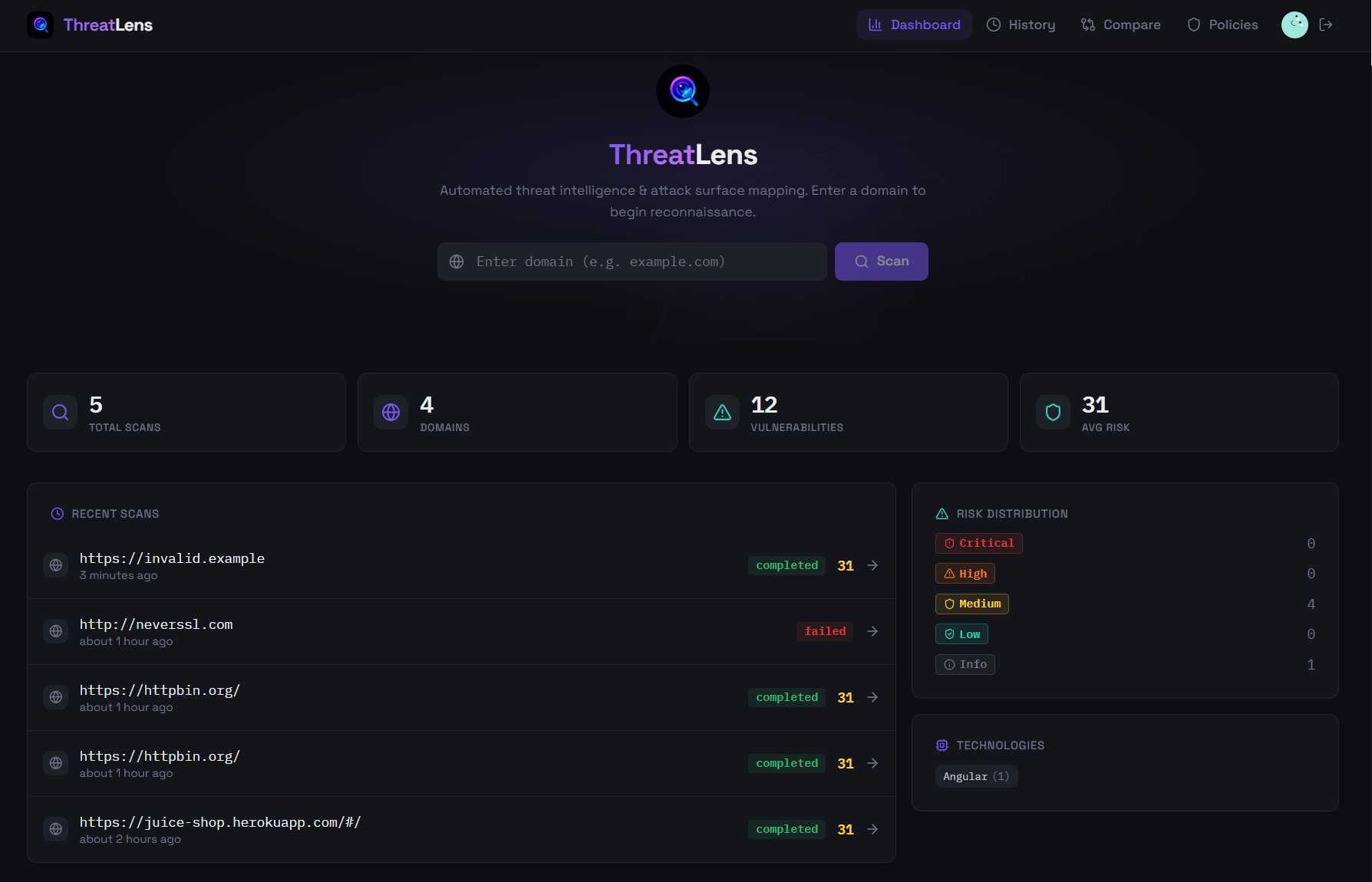

OmniGuard Dashboard

Figure 1 — Dashboard — Hero section with scan form, stats grid, recent scans, risk distribution, and technology cloud

The most complex page in the application — where the bulk of scan intelligence is consumed. Users navigate here after initiating a scan or clicking a scan from the dashboard/history. It's organized into four tabs that separate concerns:

Header area (always visible):

  • Domain name, status badge, scan timestamp
  • Refresh, Export PDF, Generate AI Report buttons
  • Progress card for in-progress scans (crawling/analyzing) with 3-second auto-poll interval
  • Error card for failed scans with error message

Stats row (completed scans):

  • 5 stat cards with tooltips: Risk Score (with scoring formula tooltip), URLs Found, Vulnerabilities, Technologies, JS Files
  • Severity determination guide (Critical/High/Medium/Low definitions)
  • Domain enrichment panel (WHOIS registrar, hosting provider, ASN, surface size)

Tab 1: Findings

  • AI Chat Panel (findings context)
  • Finding cards with severity badge, category label, title, description
  • Staggered entry animations
  • Shield icon when no findings detected

Scan Detail - Findings Tab

Figure 2 — Scan Detail — Header stats, severity guide, domain enrichment, and Findings tab with severity-coded finding cards

Tab 2: Attack Surface

  • Attack Surface Summary table (5 rows: Security Headers, Endpoints, External Deps, JS Files, Input Vectors) with count, status, and risk implication
  • AI Chat Panel (surface context)
  • 4 clickable stat cards that scroll to detail sections (with tooltips explaining security implications)
  • Technology Stack display (chips with primary styling)
  • Security Headers table (green dot = set, red dot = missing, truncated values)
  • Discovered Endpoints scrollable list
  • JS Files and Forms side-by-side grid
  • External Dependencies scrollable list

Attack Surface - Summary and AI Chat

Figure 3 — Attack Surface tab — Summary table, AI Threat Analyst chat with per-header analysis, and stat cards

Attack Surface - Security Headers and Endpoints

Figure 4 — Attack Surface tab — Technology stack, security headers table (red = missing), and discovered endpoints

Tab 3: AI Report

  • Generate button (if no report exists)
  • Rendered markdown report with renderMarkdown() parser
  • Copy Report and Download PDF buttons

Tab 4: Raw Data

  • AI Chat Panel (raw_data context)
  • Full raw crawl data displayed as formatted JSON in a scrollable <pre> block

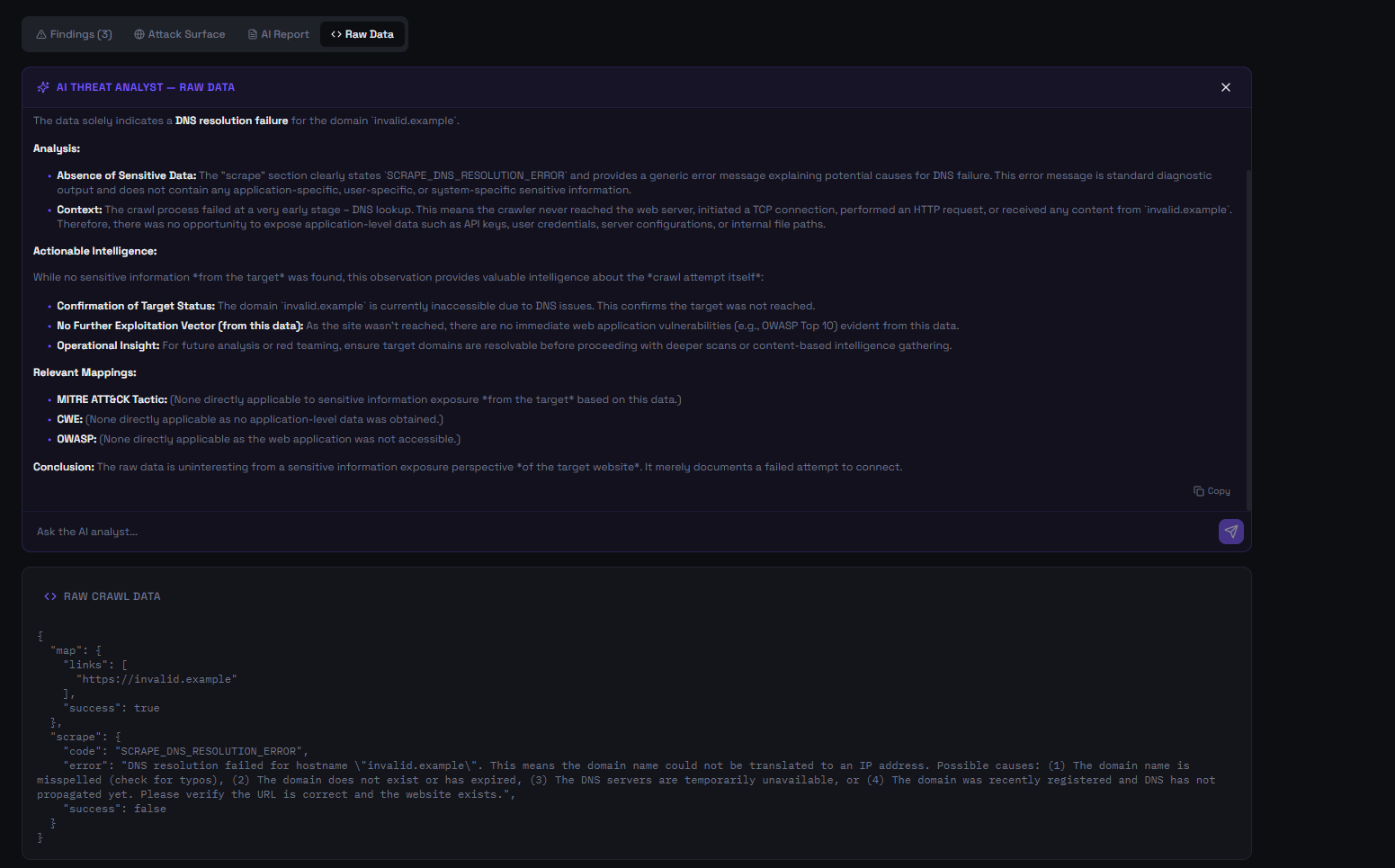

Raw Data tab with AI Analyst

Figure 5 — Raw Data tab — AI Threat Analyst providing intelligence briefing on raw crawl data, with JSON viewer below

History.tsx — Scan History

While the dashboard shows the 5 most recent scans, the History page provides a complete chronological view with management capabilities:

  • Chronological list of all scans
  • Each scan shows: domain, timestamp, URL count, findings count, status badge, risk score
  • Delete button with AlertDialog confirmation
  • Cascading delete: findings first, then scan record
  • Staggered entry animations

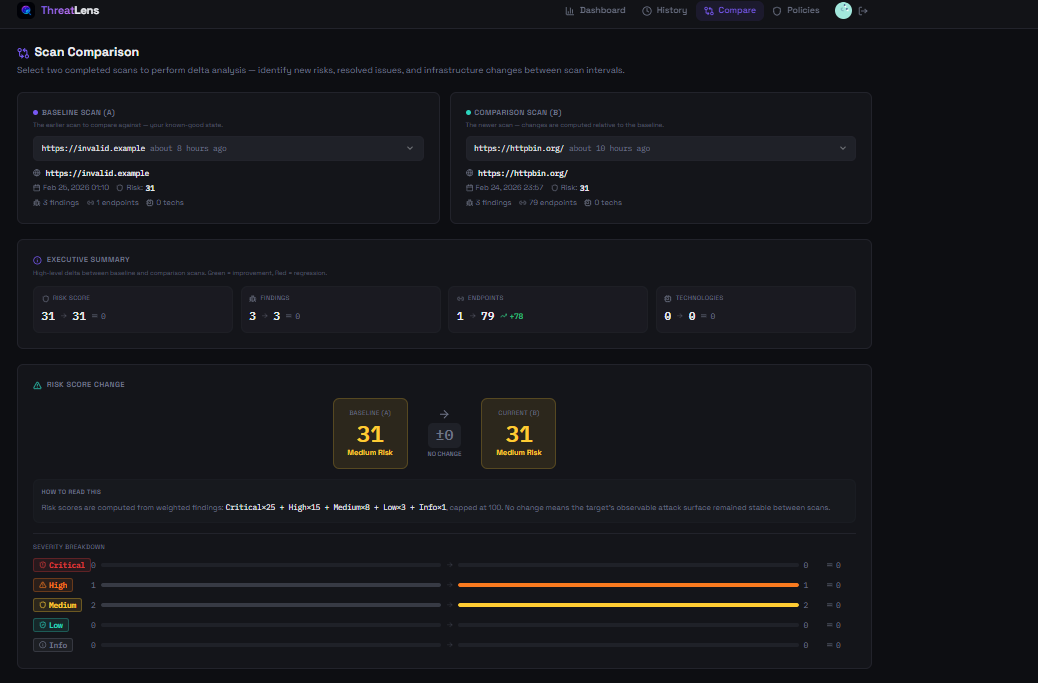

Compare.tsx — Scan Comparison

For organizations scanning the same domain periodically, the Compare page enables structured delta analysis between any two completed scans. It is designed to give analysts an immediate, actionable view of what changed between scan intervals.

Scan Selection:

  • Two Select dropdowns filter to completed scans only, with mutual exclusion (can't compare a scan with itself)
  • Each selector card displays rich metadata once chosen: domain, exact scan timestamp, risk score, finding count, endpoint count, and technology count — so analysts can confirm they've selected the right pair before reviewing the diff
  • Parallel data loading with Promise.all fetches both scan records and their findings simultaneously

Executive Summary (4-card grid):

  • Risk Score — A → B with delta indicator (green = improvement, red = regression)
  • Findings — Total vulnerability count with directional delta
  • Endpoints — Discovered URL count with inverted delta logic (more = larger attack surface)
  • Technologies — Stack size with inverted delta logic
  • Each card includes an info tooltip explaining what the metric means for the analyst

Risk Score Change (detailed):

  • Color-coded risk level cards for both scans (Critical ≥75, High ≥50, Medium ≥25, Low <25) with large numeric display
  • Prominent delta indicator with contextual label: "RISK INCREASED" (red), "RISK DECREASED" (green), or "NO CHANGE"
  • What Drove This Change — Auto-generated plain-language explanation listing severity-level shifts (e.g., "2 new critical findings detected", "1 high finding no longer detected")
  • How to Read This — Inline explainer showing the scoring formula (Critical×25 + High×15 + Medium×8 + Low×3 + Info×1, capped at 100) with a contextual interpretation of the delta direction
  • Severity Breakdown — Per-severity bar chart comparison (critical → info), showing A and B counts side-by-side with progress bars and delta indicators. Allows analysts to see whether the risk shift is driven by new critical findings or just informational noise

Finding Delta (3-column card):

  • Newly Detected — Findings present in the current scan but absent from the baseline, shown with severity badge, title, and category, highlighted with an "Investigate" tag. Contextual note explains these represent new attack vectors or previously hidden surfaces
  • No Longer Detected — Findings present in the baseline but absent from the current scan. Explicitly noted as not confirmed remediation — the target may have patched, reconfigured, added authentication, or the finding may be intermittent
  • Still Present — Findings detected in both scans, indicating the target's attack surface still exposes these weaknesses
  • Matching logic: findings are diffed by title (exact string match)
  • Each finding card shows both severity badge and category label for faster triage
  • This terminology deliberately avoids "resolved" or "unresolved" since the app performs passive reconnaissance, not vulnerability management

Technology Stack Changes:

  • Grouped into three labeled sections: Added (green + border), Removed (red − border), Unchanged (neutral chips)
  • Contextual description explains that added technologies expand the attack surface while removed ones may indicate decommissioning

Endpoint Changes (2-column grid):

  • New Endpoints — URLs in B but not A, described as "potential new attack vectors", capped at 30 with "+N more" overflow
  • Removed Endpoints — URLs in A but not B, described as "possibly decommissioned services"
  • Unchanged summary — Footer line showing how many endpoints are stable between scans

AI Analyst Chatbot (compare context):

  • An AiChatPanel instance is rendered at the bottom of the comparison view, scoped to the compare context
  • Context data passed includes both scan summaries, the full finding delta (newly detected, no longer detected, still present), technology diff, and endpoint counts
  • Suggested questions: "Explain the risk score change in plain language", "What are the most concerning newly detected findings?", "Has the attack surface expanded or contracted?", "What infrastructure changes should the analyst investigate?"
  • The compare_chat handler in the analyze-surface edge function is instructed to respect passive recon semantics — it will never claim a finding is "fixed" just because it's no longer detected
  • Uses google/gemini-3-flash-preview via the Lovable AI Gateway

Scan Comparison — Executive Summary & Risk Score

Figure 6 — Scan Comparison — Executive summary, risk score change with scoring formula explainer, and per-severity breakdown

Scan Comparison — Finding Delta Triage

Figure 7 — Scan Comparison — Finding Delta triage view with three-column layout: Newly Detected findings (new attack surface observed in latest scan), No Longer Detected findings (previously observed issues not found in latest scan — may indicate remediation or scan variance), and Still Present findings (persistent vulnerabilities across both scans requiring continued attention)

Scan Comparison — Technology Changes & AI Analyst

Figure 8 — Scan Comparison — Technology stack changes, new/removed endpoint lists, and AI Threat Analyst chatbot demonstrating domain mismatch detection, MITRE ATT&CK / CWE references, and principal remediation recommendations

Policies.tsx — Domain Policy Management

This page is the human override layer on top of the AI policy agent — allowing administrators to manually approve, block, or flag domains, and review the full audit trail:

  • Stats row (4 cards): Allowed, Blocked, Under Review, AI Evaluated counts
  • Manual policy addition form: domain input, policy type selector, optional reason, Add button
  • Domain cleaning on add: lowercase, strip protocol/path
  • Duplicate detection with user-friendly error message
  • Policy list with hover-reveal controls:
    • Policy type badge (color-coded: green/red/amber)
    • Inline type changer (Select dropdown, opacity-0 until hover)
    • Delete button (opacity-0 until hover)
    • AI-evaluated bot icon indicator
  • Audit log (last 50 entries): color-coded action dots, domain, reason, action badge, timestamp

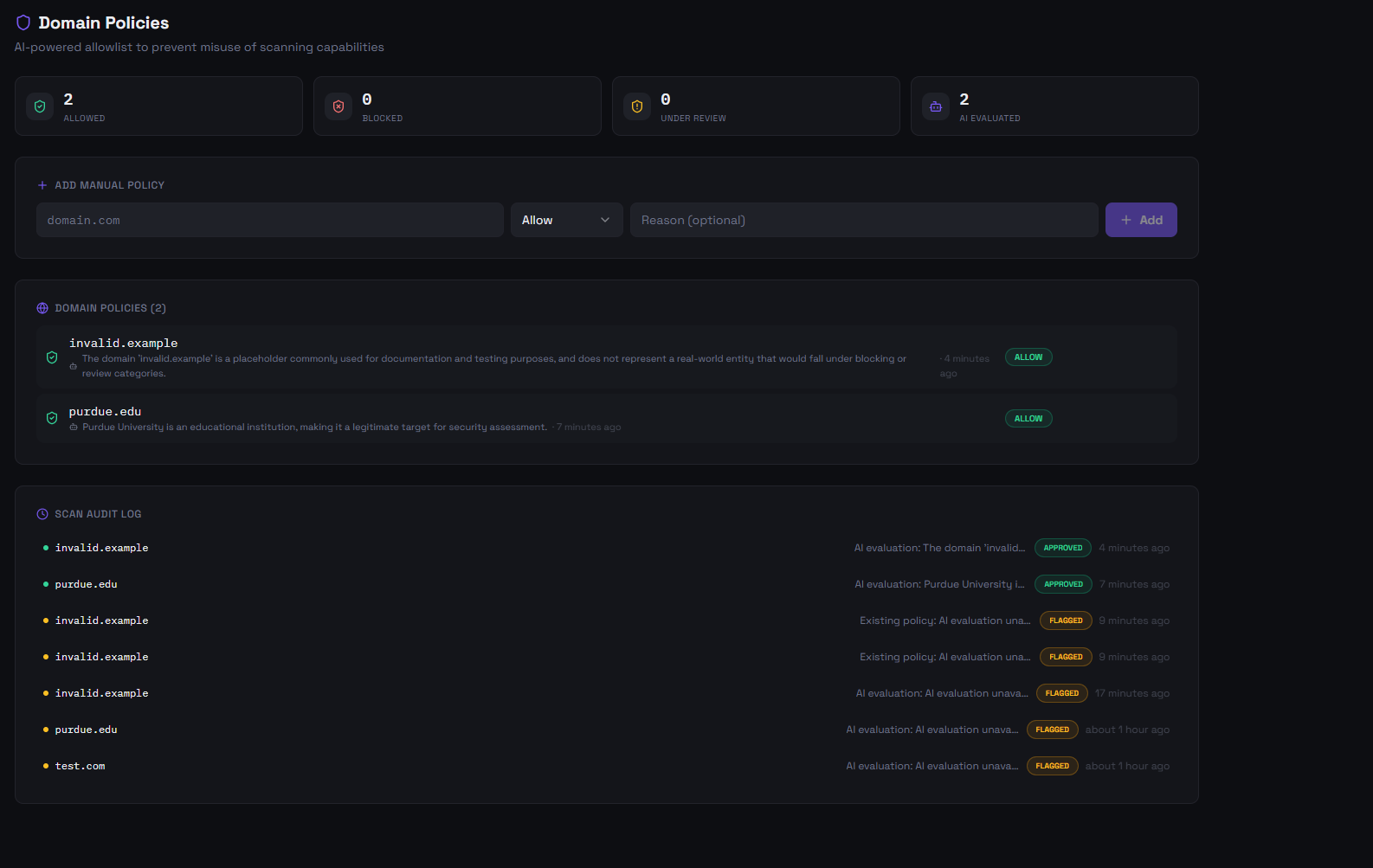

Domain Policies Page

Figure 9 — Domain Policies — Stats cards, manual policy form, policy list with AI-evaluated indicators, and immutable audit log

NotFound.tsx — 404 Page

  • Centered layout with "404" heading, "Page not found" message, and link back to home
  • Logs 404 errors to console with the attempted pathname

7.2 Core Components

Beyond the page components, several reusable components provide shared functionality across multiple pages. These handle everything from domain input to AI interaction to data visualization.

AiChatPanel.tsx

The interactive AI analyst interface that appears on the ScanDetail page — providing conversational access to the analyze-surface edge function:

  • Collapsible chat interface — starts as a button, expands to full card panel
  • Three context modes: surface, findings, raw_data with distinct labels
  • Suggested question chips (4 per context) for quick one-click analysis
  • Message history with user (right-aligned) / assistant (left-aligned) styling
  • Markdown renderer (renderMarkdown() — exported function) supporting:
    • Bold text (**text**) via inline parser
    • Headers (##, ###, ####) with styled borders
    • Bullet lists (-, *) with primary-colored dots
    • Nested bullet lists (indented -, *) with secondary dots
    • Numbered lists
    • Tables — full parser that detects header + separator + data rows, renders styled <table> with hover rows
    • Code blocks (``` delimited) with monospace styling
    • Blockquotes (>) with left border accent
    • Horizontal rules (---)
  • Copy-to-clipboard button on every AI response
  • Send button + Enter key submission
  • Loading state with "Analyzing..." spinner

AiSurfaceInsight.tsx

Complements the chatbot with one-click AI analysis for specific attack surface sections:

  • Supports 4 section types: security_headers, endpoints, dependencies, raw_data
  • Renders analysis results inline with basic markdown parsing (headers, bold, bullets, numbered lists)
  • Calls onAnalysis callback to pass results up to ScanDetail for PDF inclusion

ScanForm.tsx

The domain input component used on both the Dashboard and (implicitly) in the scan workflow:

  • Domain input with Globe icon prefix
  • Two-phase submit flow:
    1. evaluateDomain() — checks AI policy agent
    2. startScan() — only if domain is allowed
  • Policy status badge (green = allow, red = block, amber = review) with AI reasoning text
  • Blocks scan if domain is blocked or under review (shows destructive toast with "Go to Policies" action button)
  • Navigates to /scan/{scanId} on success

AuthProvider.tsx

The authentication context that wraps the entire application:

  • React context providing session, loading, and signOut
  • Sets up onAuthStateChange listener before calling getSession() (proper Supabase pattern to avoid race conditions)
  • Provides context to entire app via useAuth() hook

RiskScoreBreakdown.tsx

A detailed visualization of how a scan's risk score was calculated:

  • Large score display with color-coded text (Critical/High/Medium/Low)
  • Progress bar visualization with animated width
  • Bar chart: Severity contributions as proportional vertical bars with raw point labels
  • Contribution breakdown: Each active severity level showing count × weight = points
  • "Raw total capped at 100" note when score exceeds cap
  • Severity definitions grid (4 categories with descriptions)
  • Collapsible scoring formula details (<details> element)

SeverityBadge.tsx — Three exports:

  1. SeverityBadge: Icon + label badge (ShieldAlert/AlertTriangle/Shield/ShieldCheck/Info) with severity-specific colors and border
  2. RiskScoreGauge: Large score number + risk label + animated progress bar
  3. StatusBadge: Scan status label (pending/crawling/analyzing/completed/failed) with animate-pulse-glow for active states

PageTransition.tsx

Provides smooth visual transitions between pages using Framer Motion:

  • PageTransition component: AnimatePresence wrapper with fade + slide animations (0.25s, custom easing)
  • Exported animation variants:
    • staggerContainer: Staggers children by 0.06s
    • fadeInUp: Opacity 0→1, y 16→0 (0.35s)
    • scaleIn: Opacity 0→1, scale 0.95→1 (0.3s)

NavLink.tsx

  • Wrapper around React Router's NavLink with className/activeClassName/pendingClassName support via the cn() utility
  • Forwarded ref support

7.3 UI Component Library

Built on shadcn/ui with Radix primitives. Key components actively used:

  • Card, CardContent, CardHeader, CardTitle — primary layout containers
  • Tabs, TabsList, TabsTrigger, TabsContent — ScanDetail tab navigation
  • Badge — policy type labels in Policies page
  • Button — actions throughout (multiple variants: default, outline, ghost)
  • Input — domain entry, policy forms
  • Select, SelectTrigger, SelectContent, SelectItem — scan comparison selectors, policy type pickers
  • AlertDialog — scan delete confirmation with destructive action styling
  • Tooltip, TooltipProvider, TooltipTrigger, TooltipContent — stat card explanations, metric tooltips
  • Popover, PopoverContent, PopoverTrigger — user avatar menu in header
  • Avatar, AvatarImage, AvatarFallback — user profile display with initial fallback
  • Progress — risk score bars (used in RiskScoreBreakdown)

The frontend components above rely on an authenticated session to function — the AuthProvider context, the ProtectedRoute wrapper, and the profile-based registration gate all work together to ensure only registered users can access the platform. The next section dives deeper into exactly how that authentication system works end-to-end.

8. Authentication System

Authentication is the first thing a user encounters and the last line of defense against unauthorized access. OmniGuard uses Google OAuth through Lovable Cloud, but adds a custom profile-based registration gate on top — meaning that having a Google account alone isn't enough to access the platform. Users must explicitly sign up, which creates a profiles row, before they can sign in on subsequent visits.

8.1 Auth Flow Diagram

flowchart TD
    A["User visits app"] --> B["AuthProvider:\nonAuthStateChange + getSession"]
    B --> C{"Session\nexists?"}
    C -- "YES" --> D["Render protected routes"]
    C -- "NO" --> E["ProtectedRoute:\nRedirect to /auth"]
    E --> F["User sees\nSign In / Sign Up tabs"]
    F --> G["User clicks Google button"]
    G --> H["localStorage.setItem\nauth_intent = signin or signup"]
    H --> I["lovable.auth.signInWithOAuth\ngoogle, redirect_uri"]
    I --> J["Google OAuth consent\nredirect back to app"]
    J --> K["onAuthStateChange fires\nwith new session"]
    K --> L["handlePostAuth()"]
    L --> M["Check profiles table\nfor user_id"]
    M --> N{"Profile\nexists?"}
    N -- "YES" --> O["Navigate to /"]
    N -- "NO" --> P{"auth_intent\n=== signup?"}
    P -- "YES" --> Q["Insert profile\nemail, display_name, avatar_url"]
    Q --> R["localStorage.removeItem\nauth_intent"]
    R --> O
    P -- "NO" --> S["signOut()\ntoast: No account found"]
Loading

Figure 1 — Authentication Flow: Google OAuth with Profile-Based Registration Gate

Step-by-step authentication breakdown:

  1. App Load — When the user visits any page, the AuthProvider component (which wraps the entire app) initializes by setting up an onAuthStateChange listener and then calling getSession(). The listener is registered before getSession() to avoid race conditions where a session change event fires before the listener is ready.
  2. Session Check — If a valid session exists (the user is already logged in), all protected routes render normally. The user sees the dashboard, scan detail, history, etc.
  3. No Session → Redirect — If no session exists, the ProtectedRoute wrapper intercepts the route render and redirects the user to /auth.
  4. Auth Page Display — The user sees a tab-based UI with "Sign In" and "Sign Up" tabs. Both tabs display a "Continue with Google" button, but the tab choice determines what happens after the OAuth flow.
  5. Intent Storage — Before initiating the OAuth redirect, the app stores auth_intent ("signin" or "signup") in localStorage. This is critical because the Google OAuth redirect causes a full page reload, losing all React state — localStorage persists across the redirect.
  6. OAuth Redirect — The app calls lovable.auth.signInWithOAuth("google") with a redirect_uri pointing back to the app. The user is redirected to Google's consent screen.
  7. Google Consent — The user authenticates with Google and grants permissions. Google redirects back to the app with auth tokens in the URL hash.
  8. Session Established — The onAuthStateChange listener fires with the new session containing the user's Google metadata (email, display name, avatar URL, user ID).
  9. Post-Auth Handler — The handlePostAuth() function runs, checking the profiles table for a row matching the user's user_id.
  10. Profile Exists (Returning User) — If a profile row exists, the user is navigated to the dashboard (/) regardless of whether they clicked "Sign In" or "Sign Up". The auth_intent is cleared from localStorage.
  11. No Profile + Signup Intent (New User) — If no profile exists and auth_intent === "signup", a new row is inserted into the profiles table with the user's user_id, email, display_name, and avatar_url extracted from session.user.user_metadata. After successful insertion, the user is navigated to the dashboard.
  12. No Profile + Signin Intent (Rejected) — If no profile exists and auth_intent === "signin" (or is missing), the user is immediately signed out via supabase.auth.signOut(), and a destructive toast displays "No account found. Please sign up first." This prevents unregistered users from accessing the platform even if they have a valid Google account.

8.2 Session Management

  • AuthProvider creates a React context with session, loading, signOut
  • onAuthStateChange is registered before getSession() per Supabase best practices
  • signOut() calls supabase.auth.signOut() and clears session state to null
  • Session is checked on every protected route via ProtectedRoute wrapper
  • User avatar + email shown in header Popover (from session.user.user_metadata)
  • Loading spinner shown while auth state is being determined

Once authenticated, users interact with scan results — and the most prominent metric they encounter is the risk score. The next section explains exactly how that score is calculated from individual findings.

9. Risk Scoring Algorithm

Every completed scan produces a single composite risk score between 0 and 100. This score serves as the primary metric across the platform — it's displayed on the dashboard, in scan history, on the detail page, in comparisons, and in PDF reports. The algorithm is intentionally simple and transparent, so users can understand exactly why a domain received its score.

Scoring Formula

flowchart LR
    Findings["All Findings"] --> Critical["Critical\n25 pts each"]
    Findings --> High["High\n15 pts each"]
    Findings --> Medium["Medium\n8 pts each"]
    Findings --> Low["Low\n3 pts each"]
    Findings --> Info["Info\n1 pt each"]

    Critical --> Sum["Sum all\npoints"]
    High --> Sum
    Medium --> Sum
    Low --> Sum
    Info --> Sum

    Sum --> Cap["min(total, 100)"]
    Cap --> Score["Risk Score\n0 - 100"]
Loading

Figure 1 — Risk Score Calculation: Weighted Severity Sum Capped at 100

Step-by-step scoring breakdown:

  1. Collect All Findings — After the finding generation phase completes, all findings for the scan are retrieved from the findings table.
  2. Group by Severity — Findings are grouped into five severity buckets: critical, high, medium, low, and info.
  3. Apply Weights — Each severity level has a fixed point value reflecting its potential impact:
    • Critical = 25 points per finding (e.g., exposed .env files, database admin panels)
    • High = 15 points per finding (e.g., missing CSP header, admin panel detected)
    • Medium = 8 points per finding (e.g., missing HSTS, WordPress detected, XSS input points)
    • Low = 3 points per finding (e.g., jQuery detected, excessive external dependencies)
    • Info = 1 point per finding (informational observations)
  4. Calculate Raw Total — Multiply each severity count by its weight and sum: (critical × 25) + (high × 15) + (medium × 8) + (low × 3) + (info × 1).
  5. Cap at 100 — The raw total is capped using Math.min(total, 100). This ensures the score remains on a normalized 0–100 scale regardless of how many findings exist.
  6. Example Calculation — A scan with 2 critical findings (50pts), 1 high (15pts), and 3 medium (24pts) produces a raw total of 89, resulting in a risk score of 89. A scan with 5 critical findings (125pts raw) would be capped at 100.

Score Interpretation

Range Label Color Token
75–100 Critical Risk --severity-critical (red)
50–74 High Risk --severity-high (orange)
25–49 Medium Risk --severity-medium (yellow)
1–24 Low Risk --severity-low (teal)
0 No Risk --severity-low (teal)

Dashboard Average

Average risk is calculated only from completed scans with non-null risk_score, excluding failed or in-progress scans that would skew the metric downward.

Risk scores, findings, and AI analysis are all valuable in the browser — but security professionals often need to share results with stakeholders who don't have platform access. That's where the PDF export engine comes in.

10. PDF Export Engine

File: src/lib/pdf-export.ts

The PDF export engine transforms a scan's complete intelligence — findings, risk scores, AI reports, and surface analysis — into a professional, branded document suitable for executive briefings, compliance audits, and client deliverables. It runs entirely client-side using jsPDF, requiring no backend involvement.

The generated report follows this structure:

  1. Cover Page — Dark background (rgb(15,17,23)), "THREAT INTELLIGENCE ASSESSMENT REPORT" title, purple accent line, domain, date, report ID (TL-{scanId.slice(0,8)}), risk score, finding count, URL count, "CLASSIFICATION: CONFIDENTIAL" label
  2. Findings Summary — Severity table (count × weight = points per severity), total risk score, detailed finding cards with colored severity badges (roundedRect), category labels, descriptions with text wrapping
  3. AI Threat Report (if generated) — Full markdown-to-PDF rendering with headers (##, ###), bullets, bold text, separators, code blocks
  4. AI Surface Insights (if generated) — Section-specific analysis with purple accent headers (Security Headers Analysis, Endpoints Analysis, Dependencies Analysis, Raw Data Intelligence)

Technical features:

  • checkPageBreak(needed) — Automatic page breaks when content would exceed available space
  • doc.splitTextToSize(text, width) — Text wrapping within content margins
  • Color-coded severity badges rendered as filled rounded rectangles with white text
  • Two-pass footer rendering: Content pages get footer with "Page X of Y" and report ID
  • Page numbering excludes cover page (Page 1 of N starts on findings page)
  • Dynamic file naming: OmniGuard_Report_{sanitized_domain}_{date}.pdf

The PDF report mirrors the visual language of the application itself — the same dark background, purple accents, and severity color coding. That visual consistency is powered by a comprehensive design system, which the next section documents in full.

11. Design System & Styling

OmniGuard's visual identity is built on a dark-mode-only design system with cybersecurity-themed aesthetics — deep navy backgrounds, purple primary accents, teal secondary accents, and severity-coded colors that carry consistent meaning across every component. All styling is implemented through CSS custom properties (design tokens) consumed by Tailwind utility classes, ensuring that visual changes propagate globally from a single source of truth.

11.1 CSS Token Architecture

All colors use HSL values defined in src/index.css. The app is dark-mode only (no light mode toggle).

Token HSL Value Usage
--background 230 15% 6% Page background
--foreground 220 15% 93% Primary text
--card 230 14% 9% Card backgrounds
--primary 252 87% 65% Purple accent (buttons, links, highlights)
--secondary 230 12% 14% Secondary backgrounds, input fields
--muted-foreground 225 10% 48% Subdued text, labels
--accent 172 66% 50% Teal accent (complementary)
--destructive 0 72% 55% Error/delete states
--border 230 12% 15% Border color
--severity-critical 0 72% 55% Red severity
--severity-high 25 95% 55% Orange severity
--severity-medium 45 100% 60% Yellow severity
--severity-low 172 66% 50% Teal severity
--severity-info 225 10% 48% Gray severity
--success 152 60% 45% Green (resolved, allowed)

11.2 Custom Utilities

Beyond the standard Tailwind utilities, several custom CSS classes provide the platform's signature visual effects:

Utility Class Effect
.glass Glassmorphism: background: hsl(card / 0.7) + backdrop-filter: blur(20px) — used on sticky header
.glow-primary Purple box-shadow glow (0 0 30px hsl(primary / 0.2))
.glow-accent Teal box-shadow glow
.text-gradient-primary Purple-to-violet gradient text (135deg)
.text-gradient-accent Teal-to-cyan gradient text (135deg)
.border-glow Primary border with inset glow + outer glow — used on in-progress scan cards
.card-hover Hover state: primary border tint + subtle shadow elevation
.scan-line Animated scanning line effect (3s vertical sweep, ease-in-out, infinite)

11.3 Typography

  • Display font: Space Grotesk (300–700 weights) — headings, UI text, body
  • Monospace font: IBM Plex Mono (400–600 weights) — domains, scores, code, technical data, finding categories
  • Font feature settings: ss01, ss02 enabled for enhanced character shapes
  • Custom scrollbar: 5px width, --border-colored thumb, transparent track, rounded corners

A beautiful interface is meaningless without proper security controls. The design system ensures visual consistency, but the security architecture ensures data integrity and access control — which is what the next section covers.

12. Security Architecture

Security in OmniGuard operates at two levels: data-level security through Row Level Security policies on the database, and application-level security through the AI domain policy agent and edge function access controls. Together, they ensure that users can only access their own profile data, that scan data is shared transparently, and that the scanning capabilities themselves cannot be weaponized against sensitive targets.

Row Level Security (RLS)

Table Policy Rule
profiles SELECT auth.uid() = user_id
profiles INSERT auth.uid() = user_id
profiles UPDATE auth.uid() = user_id
scans ALL Open (shared scan data)
findings ALL Open (linked to scans)
domain_policies ALL Open (policy management)
scan_audit_log SELECT Open (transparency)
scan_audit_log INSERT Open (logging from edge functions)

Domain Policy Agent Security

The AI policy agent enforces responsible use at the application level:

  • Blocked categories: Military (.mil), intelligence agencies, critical infrastructure, healthcare patient portals, core banking systems, law enforcement honeypots
  • Auto-allowed: Public websites, businesses, SaaS products, educational institutions, open-source projects, news sites, personal sites
  • Flagged for review: Ambiguous or potentially sensitive targets, small government agencies, suspicious TLDs, private-looking internal domains
  • All decisions logged immutably in scan_audit_log with timestamped action and reason
  • Manual override available via Policies page (inline type changer or delete + re-add)

Edge Function Security

  • firecrawl-scan, analyze-threats, analyze-surface: JWT verification disabled (verify_jwt = false in config.toml) — accessible without auth token
  • evaluate-domain: Not listed in config.toml — uses default settings
  • All functions use CORS headers allowing all origins
  • firecrawl-scan uses SUPABASE_SERVICE_ROLE_KEY for database writes
  • evaluate-domain uses SUPABASE_SERVICE_ROLE_KEY for database writes + LOVABLE_API_KEY for AI
  • analyze-threats and analyze-surface use LOVABLE_API_KEY for AI gateway access

The security architecture protects the backend, but the frontend also needs a clean abstraction to interact with it. The API layer provides that bridge — translating user actions into database queries and edge function invocations.

13. API Layer

File: src/lib/api.ts

The API layer is the single point of contact between the React frontend and the Lovable Cloud backend. Rather than scattering Supabase calls throughout page components, all data operations are centralized in this module — making it easy to trace data flow, modify query logic, and maintain type safety across the application.

Function Purpose Backend
evaluateDomain(domain) Check domain policy before scanning evaluate-domain edge function
startScan(domain) Initiate a new scan firecrawl-scan edge function
generateReport(scanId) Generate AI threat report analyze-threats edge function
analyzeSurface(section, data, domain) AI analysis for surface/chat analyze-surface edge function
getScans() Fetch all scans (newest first) Direct DB query
getScan(id) Fetch single scan by ID Direct DB query
getFindings(scanId) Fetch findings for a scan (newest first) Direct DB query
deleteScan(id) Delete scan + cascading findings Direct DB (2 deletes: findings then scan)

TypeScript interfaces: Scan and Finding types defined locally in api.ts (not using auto-generated Supabase types) to allow flexible typing of JSONB fields (raw_crawl_data, parsed_data, enrichment, details typed as any).

This API layer completes the full-stack picture — from the database schema (Section 3) through edge functions (Section 4) to the frontend components (Section 7) and now the client-side abstraction that ties them together.

Beyond the frontend API layer, OmniGuard also exposes a public REST API for programmatic access — documented in the next section.

13.1 REST API (Programmatic Access)

File: supabase/functions/api-gateway/index.ts

The REST API gateway enables external tools, scripts, and CI/CD pipelines to interact with OmniGuard without the web UI. Authentication uses SHA-256 hashed API keys passed via the x-api-key header. Keys are generated from the Settings → API Keys tab in the dashboard.

Use Cases

  • A DevOps pipeline that automatically scans your production domain after every deployment
  • A Python script that pulls scan findings into a Slack channel or SIEM
  • A third-party tool that triggers scans and reads results via HTTP
  • A monitoring dashboard that polls scan status and aggregates risk scores across domains

Authentication

All requests require the x-api-key header. The gateway hashes the provided key with SHA-256 and looks it up in the api_keys table. If the key is missing, invalid, or expired, the request is rejected with 401 Unauthorized.

x-api-key: tl_xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

Key properties stored in the database:

Field Description
key_hash SHA-256 hash of the raw key (raw key is never stored)
key_prefix First 7 characters (e.g., tl_abc1) for identification in the UI
permissions Array of permission strings: scan:create, scan:read, findings:read
expires_at Optional expiry timestamp (null = never expires)
last_used_at Updated on every successful request

Endpoints

POST /scan — Start a New Scan

Triggers the full scan pipeline (domain evaluation → Firecrawl scrape → analysis → findings generation).

Permission required: scan:create

Request body:

{
  "domain": "example.com"
}

Response (200):

{
  "success": true,
  "scanId": "79a2def6-f88b-4cf8-b95b-f82c03769b00",
  "urlsFound": 47,
  "findingsCount": 12,
  "riskScore": 62
}

Response (400 — missing domain):

{
  "error": "domain is required in request body"
}

Example:

curl -X POST https://your-url/functions/v1/api-gateway/scan \
  -H "Content-Type: application/json" \
  -H "x-api-key: tl_your_key_here" \
  -d '{"domain": "example.com"}'

GET /scan/:id — Get Scan Details

Returns the full scan record including status, risk score, technologies, and enrichment data.

Permission required: scan:read

Response (200):

{
  "id": "79a2def6-f88b-4cf8-b95b-f82c03769b00",
  "domain": "example.com",
  "status": "completed",
  "risk_score": 62,
  "urls_found": 47,
  "vulnerabilities_found": 12,
  "technologies": ["React", "Nginx", "Google Analytics"],
  "enrichment": {
    "whois": { "registrar": "...", "created": "..." },
    "hosting": { "ip": "...", "country": "US", "isp": "..." },
    "riskFactors": ["High URL count", "Multiple external dependencies"]
  },
  "error_message": null,
  "created_at": "2026-02-25T10:30:00Z",
  "updated_at": "2026-02-25T10:31:45Z"
}

Response (404):

{
  "error": "Scan not found"
}

Example:

curl -H "x-api-key: tl_your_key_here" \
  https://your-url/functions/v1/api-gateway/scan/79a2def6-f88b-4cf8-b95b-f82c03769b00

GET /scan/:id/findings — Get Findings for a Scan

Returns all vulnerability findings for a specific scan, ordered by newest first.

Permission required: findings:read

Response (200):

{
  "scanId": "79a2def6-f88b-4cf8-b95b-f82c03769b00",
  "findings": [
    {
      "id": "a1b2c3d4-...",
      "title": "Missing Content-Security-Policy Header",
      "description": "The server does not set a CSP header, allowing potential XSS attacks.",
      "severity": "high",
      "category": "Security Headers",
      "details": {
        "header": "Content-Security-Policy",
        "recommendation": "Add a strict CSP header to prevent inline script execution."
      },
      "created_at": "2026-02-25T10:31:00Z"
    }
  ],
  "count": 12
}

Example:

curl -H "x-api-key: tl_your_key_here" \
  https://your-url/functions/v1/api-gateway/scan/SCAN_ID/findings

GET /scans — List Recent Scans

Returns a paginated list of recent scans (default 20, max 100).

Permission required: scan:read

Query parameters:

Param Type Default Description
limit integer 20 Max results (capped at 100)

Response (200):

{
  "scans": [
    {
      "id": "79a2def6-...",
      "domain": "example.com",
      "status": "completed",
      "risk_score": 62,
      "urls_found": 47,
      "vulnerabilities_found": 12,
      "created_at": "2026-02-25T10:30:00Z"
    }
  ],
  "count": 1
}

Example:

curl -H "x-api-key: tl_your_key_here" \
  "https://your-url/functions/v1/api-gateway/scans?limit=50"

Error Responses

All error responses follow a consistent format:

{
  "error": "Human-readable error message"
}
Status Cause
400 Missing required field (e.g., domain)
401 Missing, invalid, or expired API key
403 Key lacks required permission
404 Scan not found or unknown endpoint
500 Internal server error or upstream failure

Security Model

  • Key hashing: Raw keys are never stored. Only the SHA-256 hash is persisted in the api_keys table.
  • Permission scoping: Each key carries an array of permissions (scan:create, scan:read, findings:read). The gateway checks the required permission for each endpoint before executing.
  • Expiry enforcement: Keys with an expires_at timestamp are rejected after expiry.
  • Usage tracking: last_used_at is updated on every successful authentication, visible in the Settings UI.
  • Service role isolation: The gateway uses SUPABASE_SERVICE_ROLE_KEY internally to bypass RLS, but external callers never see this key — they only interact via their scoped API key.

14. Elasticsearch Integration

OmniGuard integrates with Elastic Cloud to provide enterprise-grade full-text search, log aggregation, and analytics capabilities beyond what PostgreSQL offers natively. Every completed scan is automatically synchronized to three Elasticsearch indices, enabling sub-second fuzzy search across all historical findings, Kibana-powered dashboards for threat trend analysis, and an in-app global search command palette (⌘K) for instant cross-scan discovery.

14.1 Architecture Overview

flowchart TD
    subgraph ScanPipeline["Scan Pipeline"]
        Scan["firecrawl-scan\nCompletes scan"] --> DB["PostgreSQL\nscans + findings"]
    end

    DB --> Sync["elasticsearch-sync\nEdge Function"]

    Sync --> I1["omniguard-scans\nDomain metadata"]
    Sync --> I2["omniguard-findings\nVulnerability records"]
    Sync --> I3["omniguard-audit\nEvent log"]

    subgraph Elastic["ELASTIC CLOUD"]
        I1
        I2
        I3
    end

    subgraph Consumers["CONSUMERS"]
        SearchFn["elasticsearch-search\nEdge Function"]
        Kibana["Kibana\nDashboards + Discover"]
    end

    Elastic --> SearchFn
    Elastic --> Kibana

    SearchFn --> GlobalSearch["Global Search UI\n(Cmd+K)"]
Loading

Figure 1 — Elasticsearch Integration Architecture: Sync, Search, and Analytics

Step-by-step architecture breakdown:

  1. Trigger — When the firecrawl-scan edge function completes a scan and writes results to PostgreSQL, it calls the elasticsearch-sync edge function with the scanId.
  2. Sync — The sync function fetches the scan record and all associated findings from PostgreSQL, then indexes them into three Elasticsearch indices with typed mappings.
  3. Consumers — Two systems consume the indexed data: the elasticsearch-search edge function (powering the in-app Global Search) and Kibana (for dashboards, Discover, and alerting).

14.2 Index Schema

Three custom indices store different aspects of scan intelligence. Each index is created with explicit mappings on first sync via the ensureIndex() helper — if the index already exists, the mapping step is skipped.

omniguard-scans — Domain Scan Metadata

Field ES Type Source
domain keyword scans.domain
status keyword scans.status
risk_score integer scans.risk_score
urls_found integer scans.urls_found
vulnerabilities_found integer scans.vulnerabilities_found
technologies keyword scans.technologies (array)
created_at date scans.created_at
updated_at date scans.updated_at
user_id keyword scans.user_id
ai_report text (standard analyzer) scans.ai_report

Documents are indexed using the scan UUID as the document ID (PUT omniguard-scans/_doc/{scanId}), ensuring upsert behavior on re-sync.

omniguard-findings — Vulnerability Records

Field ES Type Source
scan_id keyword findings.scan_id
domain keyword Denormalized from parent scan
title text + keyword sub-field findings.title
description text (standard analyzer) findings.description
severity keyword findings.severity
category keyword findings.category
details object (disabled indexing) findings.details JSONB
created_at date findings.created_at

Findings are bulk-indexed using the Elasticsearch _bulk API with NDJSON format for efficiency. Each finding uses its UUID as the document ID.

The title field has a dual mapping: a text type for full-text search (tokenized, analyzed) and a keyword sub-field for exact match aggregations and sorting.

omniguard-audit — Event Log

Field ES Type Source
event_type keyword Always "scan_completed"
domain keyword scans.domain
scan_id keyword scans.id
user_id keyword scans.user_id
risk_score integer scans.risk_score
findings_count integer Count of findings
technologies keyword scans.technologies (array)
timestamp date new Date().toISOString() (sync time)

Audit documents use auto-generated IDs (POST omniguard-audit/_doc) since they are append-only event records — each sync creates a new audit entry even if the same scan is re-synced.

14.3 Data Sync Pipeline

File: supabase/functions/elasticsearch-sync/index.ts

The sync edge function is the bridge between PostgreSQL and Elasticsearch. It reads from the database, ensures indices exist with correct mappings, and writes documents to Elastic Cloud using Basic Auth over HTTPS.

flowchart TD
    A["INPUT: scanId"] --> B["Fetch scan + findings\nfrom PostgreSQL\n(parallel queries)"]
    B --> C["ensureIndex()\nomniguard-scans\n(HEAD check, create if 404)"]
    C --> D["ensureIndex()\nomniguard-findings"]
    D --> E["ensureIndex()\nomniguard-audit"]
    E --> F["PUT scan document\nomniguard-scans/_doc/scanId"]
    F --> G{"Findings\nexist?"}
    G -- "YES" --> H["Bulk index findings\n_bulk API (NDJSON format)"]
    G -- "NO" --> I["Skip findings"]
    H --> J["POST audit entry\nomniguard-audit/_doc"]
    I --> J
    J --> K["OUTPUT:\nscan: 1, findings: N, audit: 1"]
Loading

Figure 2 — Elasticsearch Sync Pipeline: Database to Index

Step-by-step sync breakdown:

  1. Input — The function receives a scanId in the request body.
  2. Database Fetch — Two parallel queries fetch the scan record and its findings from PostgreSQL using the service role key (bypasses RLS).
  3. Index Provisioning — Three ensureIndex() calls check for index existence via HEAD /{index}. If a 404 is returned, the index is created with explicit field mappings via PUT /{index}. If the index already exists, the step is a no-op.
  4. Scan Indexing — The scan document is indexed with PUT omniguard-scans/_doc/{scanId}, using the scan ID as the document ID for idempotent upserts.
  5. Findings Bulk Index — If findings exist, they are formatted as NDJSON (alternating action/document lines) and submitted via POST _bulk with Content-Type: application/x-ndjson. Each finding includes a denormalized domain field copied from the parent scan.
  6. Audit Entry — A scan_completed audit event is appended to omniguard-audit with the current timestamp, scan metadata, and finding count.
  7. Output — The function returns counts of indexed documents: { scan: 1, findings: N, audit: 1 }.

Required secrets:

Secret Purpose
ELASTICSEARCH_URL Elastic Cloud endpoint (e.g., https://xxx.es.us-central1.gcp.cloud.es.io:443)
ELASTICSEARCH_USERNAME Elastic user (typically elastic)
ELASTICSEARCH_PASSWORD Elastic user password
SUPABASE_SERVICE_ROLE_KEY Database access (bypass RLS)

14.4 Search Engine

File: supabase/functions/elasticsearch-search/index.ts

The search edge function provides a flexible query API over the indexed data. It supports full-text search with fuzzy matching, field boosting, term filters, date ranges, result highlighting, and aggregations — all exposed through a single endpoint.

Query construction:

flowchart LR
    Input["INPUT:\nquery, filters,\nsize, from, aggs"] --> MultiMatch["multi_match\ntitle x3, description x2,\ndomain x2, category,\nai_report, technologies\nfuzziness: AUTO"]

    MultiMatch --> Bool["bool query\nmust + filter"]

    Filters["Term Filters:\nseverity, category,\ndomain, date range"] --> Bool

    Bool --> Highlight["Highlight:\ntitle, description\nmark tags"]

    Bool --> Aggs["Aggregations:\nseverity_counts,\ncategory_counts,\ndomain_counts,\ntimeline"]

    Highlight --> Output["OUTPUT:\ntotal, hits,\naggregations"]
    Aggs --> Output
Loading

Figure 3 — Elasticsearch Search Query Construction

Step-by-step search breakdown:

  1. Multi-match query — The search query is matched against six fields with field boosting: title (3x), description (2x), domain (2x), category (1x), ai_report (1x), and technologies (1x). Fuzziness is set to AUTO for typo tolerance.
  2. Bool filter — Optional term filters for severity, category, and domain are applied as bool.filter clauses (non-scoring). Date range filters use the range query on created_at.
  3. Sorting — Results are sorted by _score (relevance) descending, then created_at descending as a tiebreaker.
  4. Highlighting — Matching text in title and description fields is wrapped in <mark> tags for visual emphasis in the UI.
  5. Aggregations — When requested, the function returns bucket aggregations: severity_counts (term agg on severity), category_counts (term agg on category, top 20), domain_counts (term agg on domain, top 20), and timeline (date histogram on created_at, daily buckets).
  6. Target index — Defaults to omniguard-findings but can be overridden via the index parameter to search omniguard-scans or omniguard-audit.

Client-side API function (in src/lib/api.ts):

export async function searchElastic(
  query: string,
  options?: {
    index?: string;
    filters?: {
      severity?: string;
      category?: string;
      domain?: string;
      dateFrom?: string;
      dateTo?: string;
    };
    size?: number;
    from?: number;
    aggs?: string[];
  }
): Promise<ElasticSearchResponse>

14.5 Global Search UI (⌘K)

File: src/components/GlobalSearch.tsx

The Global Search is a command-palette-style search interface embedded in the application header, providing instant cross-scan search powered by Elasticsearch. It is always accessible via the ⌘K (Cmd+K / Ctrl+K) keyboard shortcut or by clicking the search trigger button in the navigation bar.

Global Search trigger button in the navigation header showing the ⌘K shortcut badge

Figure 5 — Global Search Trigger: The compact search button in the application header with ⌘K keyboard shortcut badge

Global Search overlay showing search results with severity badges, highlighted matches, and aggregation pills

Figure 6 — Global Search Results Panel: Fuzzy-matched findings with severity badges, highlighted text, category filters, and aggregation summary pills

flowchart TD
    A["User presses Cmd+K\nor clicks search trigger"] --> B["Search overlay opens\n(AnimatePresence animation)"]
    B --> C["User types query"]
    C --> D["300ms debounce"]
    D --> E["searchElastic()\nvia elasticsearch-search\nedge function"]
    E --> F["Display results\nwith mark highlights"]
    F --> G["Show aggregation\nseverity + category pills"]

    G --> H{"User clicks\nresult?"}
    H -- "YES" --> I["Navigate to\n/scan/scanId"]
    H -- "NO" --> J{"User applies\nfilter?"}
    J -- "YES" --> E
    J -- "NO" --> K{"Escape or\nclick outside?"}
    K -- "YES" --> L["Close overlay"]
Loading

Figure 4 — Global Search UI: Interaction Flow

Step-by-step UI breakdown:

  1. Trigger — A compact search button in the header displays "Search findings..." with a ⌘K keyboard badge. Clicking it or pressing ⌘K/Ctrl+K opens the search overlay.
  2. Overlay — A 420–520px wide floating panel renders with a Framer Motion fade + scale animation (0.15s). It positions absolutely over the header, anchored to the right.
  3. Input — A borderless input field with a search icon auto-focuses on open. The user types their query.
  4. Debounce — Input changes are debounced by 300ms to avoid excessive API calls during typing.
  5. Search Execution — After the debounce, searchElastic() is called with the query, any active filters, size: 15, and aggregation requests for severity and category.
  6. Results Rendering — Each result displays:
    • A SeverityBadge component with the finding's severity level
    • The domain name in monospace font
    • The finding title with <mark> highlighted matches (rendered via dangerouslySetInnerHTML)
    • The description with highlighted matches (truncated to 2 lines via line-clamp-2)
    • A category badge (Badge component with outline variant)
  7. Aggregation Summary — Below the results, clickable severity pills show bucket counts (e.g., "critical: 3", "high: 7"). Clicking a pill toggles that severity as a filter and re-executes the search.
  8. Category Filter — A dropdown populated dynamically from the category_counts aggregation allows filtering by finding category. Each option shows the category name and document count.
  9. Result Navigation — Clicking a result navigates to /scan/{scanId} using the scan_id from the finding's source document, then closes and resets the search overlay.
  10. Dismissal — Pressing Escape or clicking outside the overlay closes it. Click-outside detection uses a mousedown event listener on the document.

14.6 Kibana Dashboards

With scan data indexed in Elasticsearch, Kibana provides powerful visualization and analytics capabilities without any custom frontend code. The following dashboard configurations are recommended for security operations:

Visualization Type Index Configuration
Threat Timeline Line chart omniguard-findings X-axis: created_at (date histogram, daily), Split series by severity
Severity Breakdown Donut chart omniguard-findings Slice by severity (terms agg)
Domain Heatmap Heatmap omniguard-findings X-axis: domain (terms), Y-axis: severity (terms), Value: count
Top Categories Horizontal bar omniguard-findings Y-axis: category (terms), X-axis: count
Risk Score Trend Line chart omniguard-scans X-axis: created_at, Y-axis: risk_score (average), Split by domain
Scan Activity Area chart omniguard-audit X-axis: timestamp (date histogram), Y-axis: count
Technology Distribution Tag cloud omniguard-scans Field: technologies (terms agg)

Data View setup: Create a Kibana Data View with index pattern omniguard-* and timestamp field created_at to query across all three indices simultaneously. For focused analysis, create separate data views for each index (omniguard-findings, omniguard-scans, omniguard-audit).

Kibana Discover view showing the omniguard-findings index with 26 documents, field list, and JSON document detail including CVE data

Figure 7 — Kibana Discover: Browsing the omniguard-findings index with 26 indexed vulnerability documents. The JSON panel shows a CVE-2000-0967 finding for wordpress.org with severity, category, and reference links.

15. Safe-Scanning Policy & Abuse Prevention

OmniGuard enforces a multi-layered safe-scanning policy to prevent misuse of its reconnaissance capabilities. This section documents each control mechanism.

15.1 AI Domain Gatekeeper

Before any crawling begins, the evaluate-domain edge function classifies the target domain using Gemini 3 Flash Preview:

  • ALLOW — Public websites, businesses, SaaS products, educational institutions.
  • BLOCK — Government military/intelligence domains (.mil), critical infrastructure, healthcare patient portals, financial core banking systems.
  • REVIEW — Ambiguous domains flagged for manual analyst verification.

Decisions are cached in the domain_policies table so repeat scans skip the AI call. Analysts can override any AI decision on the Policies page.

15.2 Rate Limiting

Per-user rate limiting is enforced via the scan_quotas table:

Control Value
Default daily limit 10 scans/user/day
Enforcement point firecrawl-scan edge function
Reset mechanism Automatic daily reset (date comparison)
Visibility Quota counter shown in ScanForm UI

When the limit is reached, the scan button remains functional but the backend returns HTTP 429 with a descriptive error message.

15.3 Consent Requirement

A mandatory consent checkbox is displayed in the ScanForm component. Users must explicitly acknowledge:

  1. They have authorization to scan the target domain
  2. Results will be used only for legitimate security assessment
  3. Scans are subject to rate limits and AI domain policy review

The scan cannot be initiated without checking this box. The consent text links directly to the Policies page for transparency.

15.4 Immutable Audit Trail

Every domain evaluation generates an append-only entry in the scan_audit_log table:

  • INSERT policy exists (for logging)
  • SELECT policy exists (for viewing)
  • No UPDATE or DELETE policies — once logged, entries cannot be modified

This provides a complete accountability trail for compliance and forensic review.

16. Continuous Benchmarking

OmniGuard includes a built-in benchmarking system to continuously measure the accuracy of the AI domain policy gatekeeper. This ensures that the AI's allow/block/review decisions remain reliable over time.

16.1 Architecture

flowchart TD
    A["User scans domain"] --> B["evaluate-domain\nAI classifies: allow/block/review"]
    B --> C["Auto-insert into\npolicy_benchmarks table"]
    C --> D["Analyst reviews\non Benchmarking tab"]
    D --> E{"Set ground truth\nallow/block/review"}
    E --> F["Compute metrics\nPrecision, Recall, Accuracy"]
    F --> G["Confusion Matrix\nPer-class breakdown"]
Loading

16.2 Ground Truth Collection

Every AI domain evaluation automatically creates a row in the policy_benchmarks table:

Column Type Description
domain TEXT The evaluated domain
ai_policy TEXT What the AI decided (allow/block/review)
ground_truth TEXT Analyst-verified correct decision (NULL until verified)
verified_by UUID Which analyst verified this entry
verified_at TIMESTAMPTZ When verification occurred
notes TEXT Optional analyst notes

Analysts verify entries on the Benchmarking tab of the Policies page by clicking the correct label (allow/block/review) for each AI decision.

16.3 Metrics Computed

The system computes the following metrics from verified entries:

Overall Accuracy — Percentage of AI decisions matching ground truth across all classes.

Per-Class Precision — For each policy type (allow/block/review): of all domains the AI labeled as X, what fraction were actually X?

$$\text{Precision}(X) = \frac{\text{True Positives for } X}{\text{Total AI predicted } X}$$

Per-Class Recall — For each policy type: of all domains that should have been X, what fraction did the AI correctly identify?

$$\text{Recall}(X) = \frac{\text{True Positives for } X}{\text{Total Ground Truth } X}$$

Confusion Matrix — A 3×3 matrix showing AI predictions (rows) vs ground truth (columns), enabling analysts to identify systematic misclassifications (e.g., AI consistently labeling "review" domains as "allow").

16.4 Re-Validation Workflow

For periodic re-validation against ground truth:

  1. Batch Review — The Benchmarking tab shows all unverified AI evaluations sorted by recency. Analysts can rapidly verify entries by clicking allow/block/review buttons.
  2. Drift Detection — If overall accuracy drops below acceptable thresholds, the team can:
    • Adjust the AI prompt in evaluate-domain to improve classification
    • Add manual policies for commonly misclassified domain patterns
    • Review the confusion matrix to identify specific failure modes
  3. Historical Re-Evaluation — Ground truth labels persist even if domain policies change, creating a permanent record of AI performance over time.

16.5 Benchmarking UI

The Policies page includes a Benchmarking tab with three sections:

  1. Accuracy Metrics Card — Shows overall accuracy percentage, verified/pending counts, and per-class precision and recall.
  2. Confusion Matrix — Visual 3×3 grid with correct predictions highlighted in green and misclassifications in red.
  3. Verification Queue — List of unverified AI evaluations with one-click ground truth labeling.

Global Search UI showing Elasticsearch-powered search with example queries for analysts

Figure 5 — Global Search (⌘K): Elasticsearch-powered search interface with analyst-oriented example queries

17. Conclusion

OmniGuard represents a modern approach to automated threat intelligence that bridges the gap between manual penetration testing and fully automated security scanning. The architecture separates concerns cleanly — Firecrawl handles data acquisition, PostgreSQL provides persistence, Elasticsearch delivers enterprise search and analytics, and AI models deliver contextual analysis — while the React frontend presents everything through an intuitive, professional interface.

The AI domain policy agent is a differentiating feature that addresses the ethical dimension of security scanning tools. By evaluating targets before scanning, OmniGuard ensures its capabilities are used responsibly while maintaining the speed and convenience that security professionals need. Continuous benchmarking of AI decisions with precision/recall tracking ensures this gate remains accurate over time.

Key architectural decisions:

  • Serverless edge functions for zero-infrastructure backend scaling
  • Unified AI model: All functions use google/gemini-3-flash-preview via the Lovable AI Gateway for consistent, high-quality inference
  • Unified AI Gateway integration: All functions route through the Lovable AI Gateway with auto-provisioned API keys
  • Elasticsearch integration: Automatic sync to Elastic Cloud for full-text search, Kibana dashboards, and enterprise analytics
  • Global Search (⌘K): Command-palette search powered by Elasticsearch with fuzzy matching, filtering, and aggregations
  • Safe-scanning policy: AI gatekeeper + rate limiting + consent controls + immutable audit logging
  • Continuous benchmarking: Precision/recall tracking with analyst-verified ground truth and confusion matrices
  • Profile-based access control ensuring only registered users can operate the platform
  • Immutable audit logging for accountability and compliance
  • Dark-mode cybersecurity aesthetic with custom CSS design tokens, glass morphism, gradient text, and Framer Motion animations
  • Four-tab scan detail view separating Findings, Attack Surface, AI Report, and Raw Data for focused analysis

The platform is designed to be extended with additional scanning modules, AI models, and integration points as the threat landscape evolves.

OmniGuard Technical Documentation — Confidential

Menu

Clone this wiki locally
