field in head - link resolving problem

[PiotrPanasiuk]

When I export link from the org-mode text [[http://test.com][test link]] link is exported correctly. However when I wish to export this in filed variable located in head or foot, filed is inserted as plain text.
Do one have Idea/workaround how to purse org-mode to compile and add a href also in document variables i.e. #+DOC-ID: [[http://test.com][test link]] which would bee seen in document as a link?

[kjambunathan]

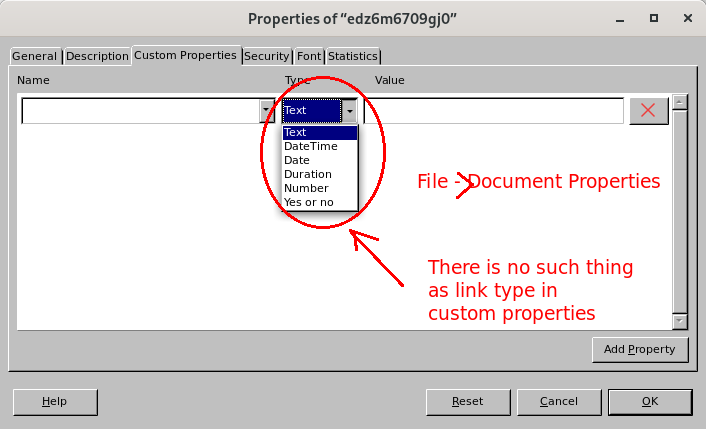

AFAIK, I don't think you can have link + description in Document Properties.

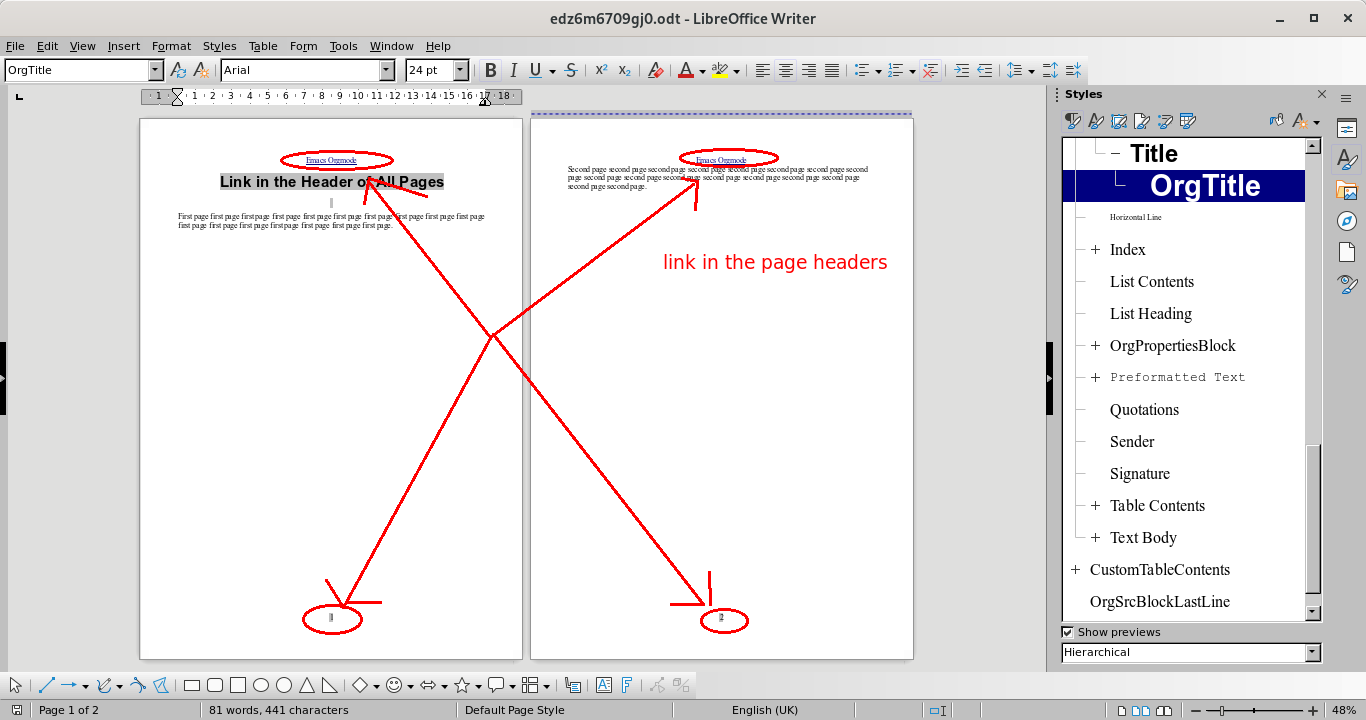

This is what I see

What you need to do is modify the header ....

If you need this

do this

#+odt_master_styles: <style:master-page style:name="Standard"
#+odt_master_styles:                    style:page-layout-name="Mpm1"
#+odt_master_styles:                    draw:style-name="Mdp1">
#+odt_master_styles:   <style:header>
#+odt_master_styles:     <text:p text:style-name="OrgCenter">
#+odt_master_styles:       <text:a text:style-name="Internet_20_link"
#+odt_master_styles:               text:visited-style-name="Visited_20_Internet_20_Link"
#+odt_master_styles:               xlink:href="http://orgmode.org/"
#+odt_master_styles:               xlink:type="simple">Emacs Orgmode</text:a>
#+odt_master_styles:     </text:p>
#+odt_master_styles:   </style:header>
#+odt_master_styles:   <style:footer>
#+odt_master_styles:     <text:p text:style-name="MP1">
#+odt_master_styles:       <text:page-number text:select-page="current">2</text:page-number>
#+odt_master_styles:     </text:p>
#+odt_master_styles:   </style:footer>
#+odt_master_styles: </style:master-page>

First page first page first page first page first page first page
first page first page first page first page first page first page
first page first page first page first page first page.

#+ATTR_ODT: :page-break t
Second page second page second page second page second page second
page second page second page second page second page second page
second page second page second page second page second page second
page.

[kjambunathan]

You will find it convenient to use nxml-mode blocks and noweb expansion for defining page headers. See Provide convenient a way to add / view / edit all "in-buffer " custom styles.

When I export link from the org-mode text [[http://test.com][test link]] link is exported correctly. However when I wish to export this in filed variable located in head or foot,

This--implementing a function to convet Org string to an XML string--is in my TODO list. Once that is done, it will be easier to specify header as an Org content rather than as an XML content. I have added you in Cc field of Implement org-export-string-as-odt function (a parallel to ox.el-'s org-export-string-as function)

[kjambunathan]

When I export link from the org-mode text [[http://test.com][test link]] link is exported correctly. However when I wish to export this in filed variable located in head or foot, filed is inserted as plain text.

I have added support for this ... See #182 (comment) for sample snippet and generated output.

[kjambunathan]

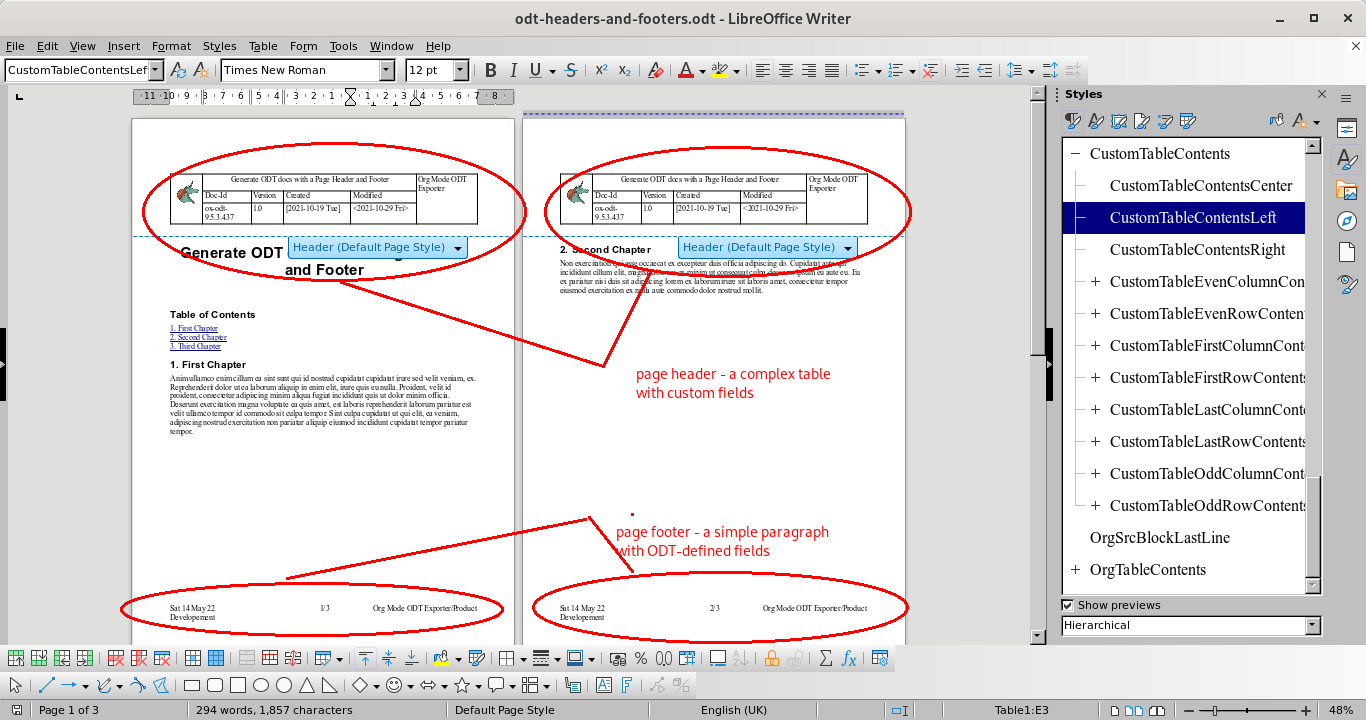

The attached document does fairly complex Org Babel processing to get the job done ...

pages-with-a-header-and-a-footer.zip

Unlike the earlier examples, this one is fairly complex.

1. It uses transcluded tables.
2. LibreOffice macro "Update All and Break Links" provided by OrgModeUtilities.oxt

See the custom-set-variables inined in the snippet below for more information.

This is how the page header is generated

1. An org snippet is created
2. It is converted in to a ODT file---call this file myheader.odt
3. A link to the myheader.odt file is inseted in to page header of the exported file
4. The contents of the myheader.odt gets transcluded in to the actual file by the Update All and Break Links

Unlike the page header, generating page footer doesn't go through an intermediate ODT file.

CAVEAT: Note that each export of the odt-headers-and-footers.org file create a temporary file like so myheader-TPHZSv.odt. This file doesn't get deleted on export. Deleting this temporary file after export is left as an exercise to the reader. If you use a fixed page header--rather than generate "on-the-go" page header--then you will find it convenient to have permanent page header and page footer odt files, and use these header/odt files together with content files as part of org/odt publish setup.

Example snippet

#+TITLE: Generate ODT docs with a Page Header and Footer

#+odt_preferred_output_format: pdf

#+ODT_DOCUMENT_PROPERTIES: DOC-TITLE DOC-ID DOC-VERSION DOC-CREATED-DATE DOC-MODIFIED-DATE
#+ODT_DOCUMENT_PROPERTIES: DOC-COMPANY-NAME DOC-COMPANY-DEPARTMENT

#+DOC-TITLE:            Generate ODT docs with a Page Header and Footer
#+DOC-COMPANY-NAME:     Org Mode ODT Exporter
#+DOC-COMPANY-DEPARTMENT:     Product Developement
#+DOC-ID:               ox-odt-9.5.3.437
#+DOC-VERSION:          1.0
#+DOC-CREATED-DATE:     [2021-10-19 Tue]
#+DOC-MODIFIED-DATE:    <2021-10-29 Fri>

#+MACRO: DocTitle {{{keyword-to-documentproperty(DOC-TITLE)}}}
#+MACRO: CompanyName {{{keyword-to-documentproperty(DOC-COMPANY-NAME)}}}
#+MACRO: CompanyDept {{{keyword-to-documentproperty(DOC-COMPANY-DEPARTMENT)}}}
#+MACRO: DocID {{{keyword-to-documentproperty(DOC-ID)}}}
#+MACRO: DocVersion {{{keyword-to-documentproperty(DOC-VERSION)}}}
#+MACRO: CreatedDate {{{keyword-to-documentproperty(DOC-CREATED-DATE)}}}
#+MACRO: ModifiedDate {{{keyword-to-documentproperty(DOC-MODIFIED-DATE)}}}

#+ATTR_ODT: :target "extra_automatic_styles"
#+begin_src nxml
<number:date-style style:name="N42"
                   number:automatic-order="true">
  <number:day-of-week />
  <number:text></number:text>
  <number:day />
  <number:text></number:text>
  <number:month number:textual="true" />
  <number:text></number:text>
  <number:year />
</number:date-style>
#+end_src

#+begin_src emacs-lisp :exports results :results silent
(add-to-list 'org-odt-experimental-features 'transclude-sole-footnote-references-in-a-table)
#+end_src

#+begin_src emacs-lisp :exports results :results silent
(custom-set-variables
  '(org-odt-transform-processes
   '(("Update All and Break Links" "soffice" "--norestore" "--invisible" "--headless" "macro:///OrgMode.Utilities.UpdateAll(%I, 1)"))))
#+end_src

#+name: headertext/org
#+begin_src org :exports none :noweb yes
,#+ODT_DOCUMENT_PROPERTIES: DOC-TITLE DOC-COMPANY-NAME DOC-ID DOC-VERSION DOC-CREATED-DATE DOC-MODIFIED-DATE

,#+DOC-TITLE:            Generate ODT docs with a Page Header and Footer
,#+DOC-COMPANY-NAME:     Org Mode ODT Exporter
,#+DOC-ID:               ox-odt-8d6d991d-df0c-4aec-a548-ada78dd554ee
,#+DOC-VERSION:          1.0
,#+DOC-CREATED-DATE:     [2021-10-19 Tue]
,#+DOC-MODIFIED-DATE:    <2021-10-29 Fri>

,#+MACRO: DocTitle {{{keyword-to-documentproperty(DOC-TITLE)}}}
,#+MACRO: CompanyName {{{keyword-to-documentproperty(DOC-COMPANY-NAME)}}}
,#+MACRO: CompanyURL {{{keyword-to-documentproperty(DOC-COMPANY-URL)}}}
,#+MACRO: DocID {{{keyword-to-documentproperty(DOC-ID)}}}
,#+MACRO: DocVersion {{{keyword-to-documentproperty(DOC-VERSION)}}}
,#+MACRO: CreatedDate {{{keyword-to-documentproperty(DOC-CREATED-DATE)}}}
,#+MACRO: ModifiedDate {{{keyword-to-documentproperty(DOC-MODIFIED-DATE)}}}

,#+ATTR_ODT: :style "GriddedTable"
,#+ATTR_ODT: :rel-width 100
,#+ATTR_ODT: :span "@1$1{3:1} @1$2{1:4} @1$6{3:1}"
,#+ATTR_ODT: :col-cookies "|l18| l27 | l18 | l37 | l36 | l34|"
| [fn:1] | [fn:2]      |                  |                   |                    | {{{CompanyName}}} |
|        | Doc-Id      | Version          | Created           | Modified           |                   |
|        | {{{DocID}}} | {{{DocVersion}}} | {{{CreatedDate}}} | {{{ModifiedDate}}} |                   |
[fn:1]

,#+ATTR_ODT: :inner-frame (anchor "as-char")
,#+ATTR_ODT: :height 1.5
[[./org-mode-unicorn.png]]

[fn:2]

,#+begin_center
{{{DocTitle}}}
,#+end_center
#+end_src

#+name: headertext/odt
#+begin_src emacs-lisp :exports none :var name="headertext/org"
(let* ((tmpfile (let ((temporary-file-directory default-directory))
                  (make-temp-file "myheader-" nil ".org"
                                  (org-babel-expand-noweb-references
                                   (org-babel-goto-named-src-block name))))))
  (with-current-buffer
      (find-file-noselect tmpfile)
    (file-relative-name (org-odt-export-to-odt))))
#+end_src

#+name: headertext/odt/transcluded
#+begin_src org :noweb yes :exports none
,#+ATTR_ODT: :transclude t
[[./<<headertext/odt()>>]]
#+end_src

#+name: headertext/odt/transcluded/nxml
#+begin_src emacs-lisp :exports none :var name="headertext/odt/transcluded"
(org-odt-export-string-as-odt-string
 (org-babel-expand-noweb-references
  (org-babel-goto-named-src-block name)))
#+end_src

# ---------------- FOOTER STARTS ----------------

#+ATTR_ODT: :target "extra_styles"
#+begin_src nxml
<style:style style:name="MyPageFooter"
             style:parent-style-name="Standard"
             style:family="paragraph"
             style:class="chapter">
  <style:paragraph-properties fo:text-align="start"
                              style:justify-single-word="false">
    <style:tab-stops>
      <style:tab-stop style:position="8.5cm"
                      style:type="center" />
      <style:tab-stop style:position="19.001cm"
                      style:type="right" />
    </style:tab-stops>
  </style:paragraph-properties>
</style:style>
#+end_src

#+name: footertext/org
#+begin_src org :exports none
,#+MACRO: ChapterNumberAndName @@odt:<text:chapter text:display="number-and-name" text:outline-level="1" />@@
,#+MACRO: PageNumber @@odt:<text:page-number text:select-page="current">4</text:page-number>@@
,#+MACRO: PageCount @@odt:<text:page-count>1</text:page-count>@@
,#+MACRO: Tab @@odt:<text:tab/>@@

,#+MACRO: OdtDate @@odt:<text:date style:data-style-name="N42" text:date-value="2022-05-13T19:36:21.906000338">Fri 13 May 22</text:date>@@

,#+ODT_DOCUMENT_PROPERTIES: COMPANY-NAME DOC-COMPANY-DEPARTMENT
,#+DOC-COMPANY-NAME:     Org Mode ODT Exporter
,#+DOC-COMPANY-DEPARTMENT:     Product Developement

,#+MACRO: CompanyDept {{{keyword-to-documentproperty(DOC-COMPANY-DEPARTMENT)}}}
,#+MACRO: CompanyName {{{keyword-to-documentproperty(DOC-COMPANY-NAME)}}}

,#+ATTR_ODT: :target "extra_automatic_styles"
,#+begin_src nxml
<number:date-style style:name="N42"
                   number:automatic-order="true">
  <number:day-of-week />
  <number:text></number:text>
  <number:day />
  <number:text></number:text>
  <number:month number:textual="true" />
  <number:text></number:text>
  <number:year />
</number:date-style>
,#+end_src

,#+begin_footer
,#+ATTR_ODT: :style "MyPageFooter"
{{{OdtDate}}}{{{Tab}}}{{{PageNumber}}}/{{{PageCount}}}{{{Tab}}}{{{CompanyName}}}/{{{CompanyDept}}}
,#+end_footer
#+end_src

#+name: footertext/nxml
#+begin_src emacs-lisp :exports none :var name="footertext/org"
(org-odt-export-string-as-odt-string
 (org-babel-expand-noweb-references
  (org-babel-goto-named-src-block name)))
#+end_src

# ---------------- FOOTER ENDS ----------------

#+attr_odt: :target "master_styles"
#+begin_src nxml  :noweb yes
<style:master-page style:name="Standard"
                   style:page-layout-name="Mpm1">
  <style:header>
    <<headertext/odt/transcluded/nxml()>>
  </style:header>
  <style:footer>
    <<footertext/nxml()>>
  </style:footer>
</style:master-page>
#+end_src

* First Chapter

Anim ullamco enim cillum ea sint sunt qui id nostrud cupidatat
cupidatat irure sed velit veniam, ex.  Reprehenderit dolor ut ea
laborum aliquip in enim elit, irure quis eu nulla.  Proident, velit id
proident, consectetur adipiscing minim aliqua fugiat incididunt quis
ut dolor minim officia.  Deserunt exercitation magna voluptate ea quis
amet, est laboris reprehenderit laborum pariatur est velit ullamco
tempor id commodo sit culpa tempor.  Sint culpa cupidatat ut qui elit,
ea veniam, adipiscing nostrud exercitation non pariatur aliquip
eiusmod incididunt cupidatat tempor pariatur tempor.

* Second Chapter
:PROPERTIES:
:ATTR_ODT: :page-break t
:END:

Non exercitation qui esse occaecat ex excepteur duis officia
adipiscing do.  Cupidatat aute qui incididunt cillum elit, magna
laborum ex minim ut consequat culpa deserunt ipsum eu aute eu.  Eu ex
pariatur nisi duis sit adipiscing lorem ex laborum irure sit laboris
amet, consectetur tempor eiusmod exercitation ex nulla aute commodo
dolor nostrud mollit.

* Third Chapter
:PROPERTIES:
:ATTR_ODT: :page-break t
:END:

Minim est tempor nulla dolore magna anim amet, nostrud.  Sed tempor ad
sunt ad fugiat voluptate qui nisi ea ullamco.  Nulla incididunt enim
excepteur reprehenderit consequat duis excepteur voluptate enim fugiat
irure.  Cupidatat pariatur ut tempor commodo non sit ex adipiscing
anim qui magna incididunt mollit ea ut ut eu laboris commodo do sint.
In magna quis veniam, sunt magna dolor esse do eu ad velit est mollit
anim eiusmod fugiat.  Labore non anim nisi cupidatat officia eiusmod
enim qui ad do laborum dolor cupidatat laborum nostrud minim.
