The distance between Y axis and chart randomly changes.

[ejabarov]

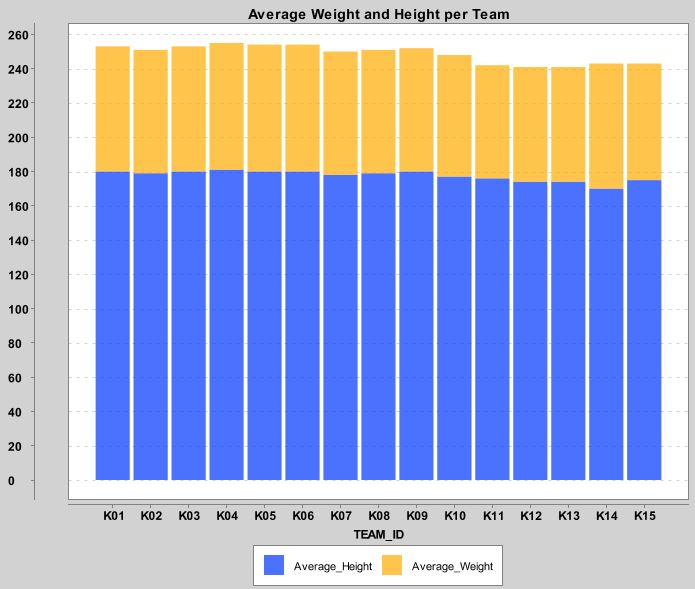

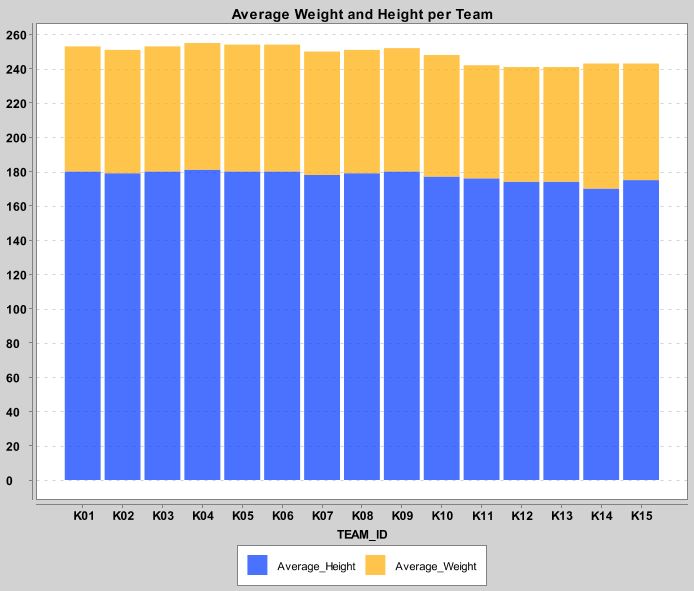

I am creating chart and writing them to pdf file. However when I create chart the distance between chart and Y axis not always appears the same (in most cases that distance is quite big). 1 time out of 10 times the distance works fine as you see from the pics

However if I display the chart using new SwingWrapper(chart).displayChart() and if the distance between Yaxis and chart is large and I resize the window it automatically adjust the distance between chart and Y axis. Any idea why it happens so? Thank you in advance

[timmolter]

Seems like a bug. If you can give me source code for a sample chart demonstrating the bug, I'll investigate and fix it.

[ejabarov]

public class VerBarChartCreate {


	public static ProcessingPipeline create() throws SQLException, NumberFormatException, IOException, AWTException {

		CategoryChart chart =
		        new CategoryChartBuilder()
		            .width(500)
		            .height(500)
		            .title("Average Weight and Height per Team")
		            .xAxisTitle("Team_ID")
		            .build();
		    // Customize Chart

		    chart.getStyler().setPlotGridVerticalLinesVisible(false);
		    chart.getStyler().setStacked(true);
		    chart.getStyler().setPlotGridHorizontalLinesVisible(true);
		    chart.getStyler().setLegendPosition(LegendPosition.OutsideS);
		    chart.getStyler().setLegendLayout(LegendLayout.Horizontal);
		    List<String> category_values = new ArrayList<String>();


		    for(int i = 1; i<=15; i++) {
		    	category_values.add("K0" + i);
		    }

		    List<Double> height = new ArrayList<Double>();

		    List<Double> weight = new ArrayList<Double>();

		    for(int i = 1; i<=15; i++) {
		    	weight.add((double) (i+45));
		    	height.add((double) (i+30));
		    }

		   chart.addSeries("Average_Height",category_values,height);
		   chart.addSeries("Average_Weight",category_values,weight);

		    new SwingWrapper<CategoryChart>(chart).displayChart();
	        ProcessingPipeline g = null;
			g = new PDFGraphics2D(0, 0, chart.getWidth(), chart.getHeight());
			chart.paint(g, chart.getWidth(), chart.getHeight());



			return g;
	}

}

Here is the source. Try to run it few times. Thank you

[ejabarov90]

any idea why it happens so?

[timmolter]

I made a test class with your code (8932ccc), but I cannot reproduce your issue.

[ejabarov]

I see. It appears that writing chart do pdf without displaying chart does not cause that problem. Thank you

[timmolter]

It takes a few seconds for the PDF to be generated so it you also have a Swing window showing the same chart and it's being resized, unexpected results for the PDF chart can probably be expected.
