update battery voltages to match readout of inkplate library#25
update battery voltages to match readout of inkplate library#25lanrat merged 1 commit intolanrat:mainfrom
Conversation
|
The values I used in this library were taken from testing to see exactly where the cutoffs were for when the bettery reached a level preventing the inkplate from no longer booting. Have you tested that these new values still reflect that? Aka, the inkplate should still be able to boot and work on 5%, but not 0%, etc... |
|

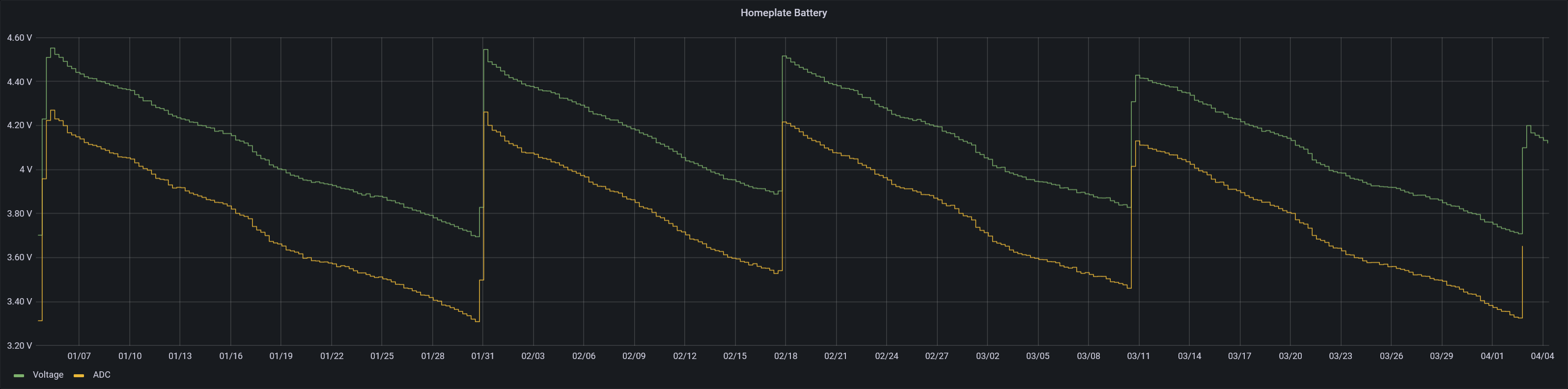

I based those values on the related measurement of the ADC (with the new code from my PR at SolderedElectronics/Inkplate-Arduino-library/pull/171) compared to your BATTERY_ values. See attached graph. I am sure, the _LOW could be even at 3.1V and the _WARNING_SLEEP at 3.05V, but from what I read about LiPo: The deeper you discharge, the less cycles you get. I think we're better off here with a little less overall runtime but better battery live.
|
update battery voltages to match readout of inkplate library
2 participants
The inkplate library v6.0.0 has updated the battery voltage readout, now giving correct readouts using the calibrated adc. This patch reflects the recommended voltages for a 3.7V battery.
