MSSQL: TDS protocol issue with user-defined data type #1655

@akaahn

Description

@akaahn

Issue reading rows containing nvarchar(max) wrapped UDT.
Handles it properly if the column value is NULL, but if it contains a value it messes up the protocol parsing.

The type is defined like this:

CREATE TYPE [dbo].[UDT_ObjDescription] FROM [nvarchar](max) NULL

The type is detected as nvarchar.

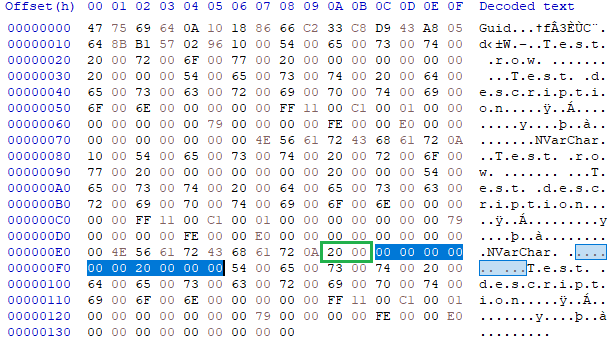

I've tried dumping some data for debug, marked in green is the correct size for the string.
But the following marked bytes I can't figure out what is, as I understand it 5 bytes might be collation info, but that still leaves another 5 bytes.
odd bytes

Table definition:

CREATE TABLE [dbo].[TestTable] (
	[Id] [uniqueidentifier] NOT NULL,
	[Name] [nvarchar](255) NOT NULL,
	[Description] [dbo].[UDT_ObjDescription] NULL
)

Sorry if this is a bad description of the issue, but don't hesitate to ask if there is more info I can help with.
