README

This test app implements a NodeJS REST API for running in Lambda that can also be tested locally. It uses the express and serverless-http node packaged modules. This is based on the excellent tutorial.

Create App Locally

• Create a folder (e.g. lambda-express-rest-api) and cd inside

• Create a package.json file:

  {
      "name": "lambda-express-rest-api",
      "version": "1.0.0",
      "type": "module",
      "dependencies": {
          "express": "^4.18.2",
          "serverless-http": "^3.2.0"
      }
  }

• Install the dependencies. npm install

• Create an app.mjs file that defines some simple routes/methods:

  import express from 'express';
  const app = express();

  app.use(express.json());

  app.get('/hello', (req, res) => {
      res.json({ message: 'Hello from Express on Lambda!' });
  });

  app.post("/echo", (req, res) => {
      res.setHeader('content-type', 'application/json');
      res.json({ youSent: req.body });
  });

  app.get('/async', async (req, res) => {
      await new Promise(resolve => setTimeout(resolve, 1000));
      res.json({ message: 'Async operation completed' });
  });

  export default app;

Test Locally

• Create a local.mjs file

  import app from './app.mjs';
  const port = process.env.PORT || 3000;

  app.listen(port, () => {
  console.log(`Local server running on http://localhost:${port}`);
  });

• Run using node local.mjs

• Test Using Curl or Postman

  curl 'http://localhost:3000/hello'

  with response:

  {
      "message": "Hello from Express on Lambda!"
  }

  curl --location 'http://localhost:3000/echo' \
  --header 'Content-Type: application/json' \
  --data-raw '{
  "id": 1,
  "first_name": "Kellen",
  "last_name": "Tunder",
  "email": "ktunder0@nifty.com",
  "gender": "Female",
  "ip_address": "74.254.10.244"
  }'

  with response:

  {
      "youSent": {
          "id": 1,
          "first_name": "Kellen",
          "last_name": "Tunder",
          "email": "ktunder0@nifty.com",
          "gender": "Female",
          "ip_address": "74.254.10.244"
      }
  }

  curl 'http://localhost:3000/async' --header 'Content-Type: application/json'

  with response:

  {
      "message": "Async operation completed"
  }

Deploy to Lambda

• Create an index.mjs Lambda Handler file:

  import serverless from 'serverless-http';
  import app from './app.mjs';

  export const handler = serverless(app);

• Create a zip archive of your files: zip -r deployment.zip node_modules app.mjs index.mjs package.json

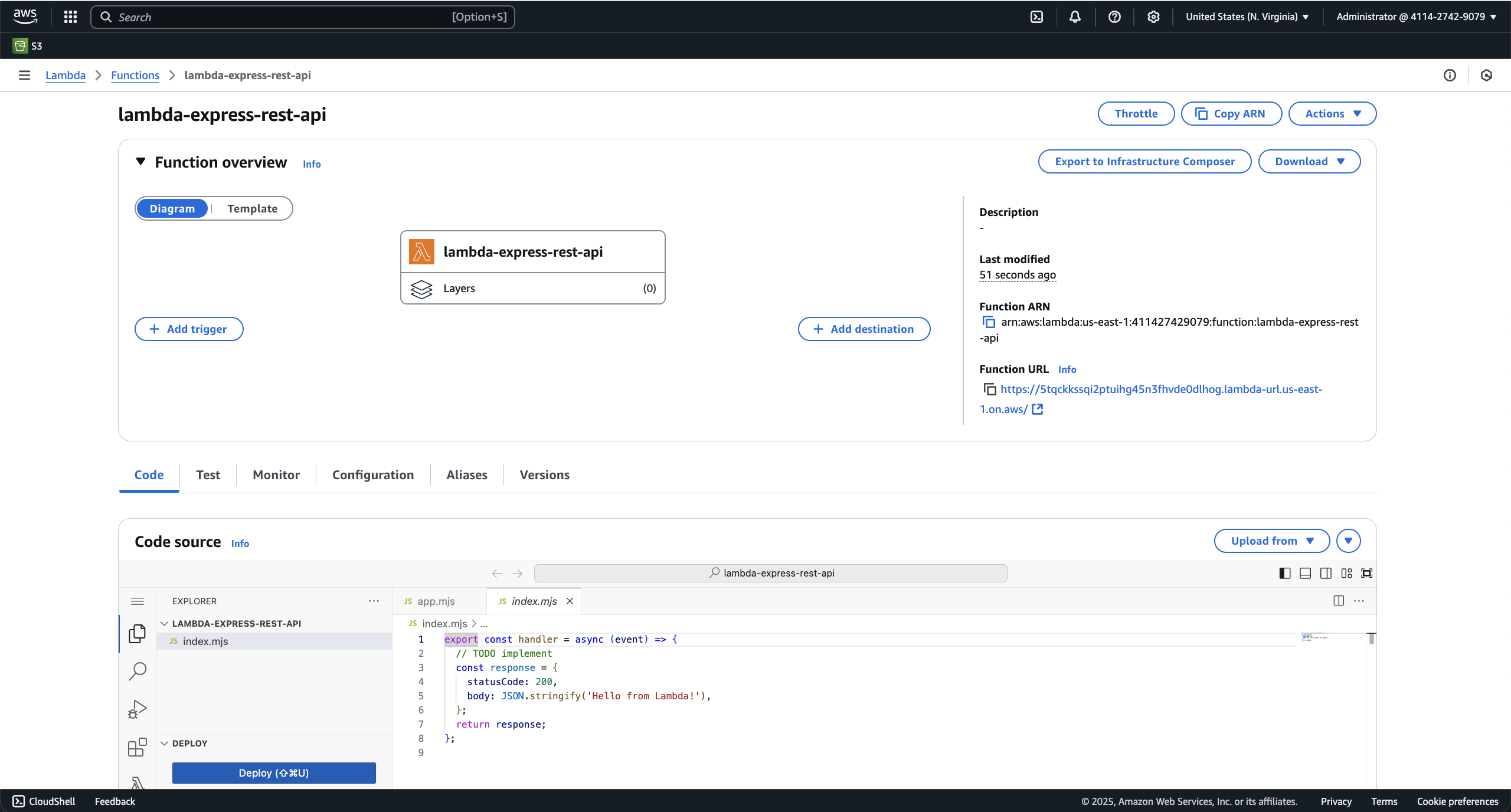

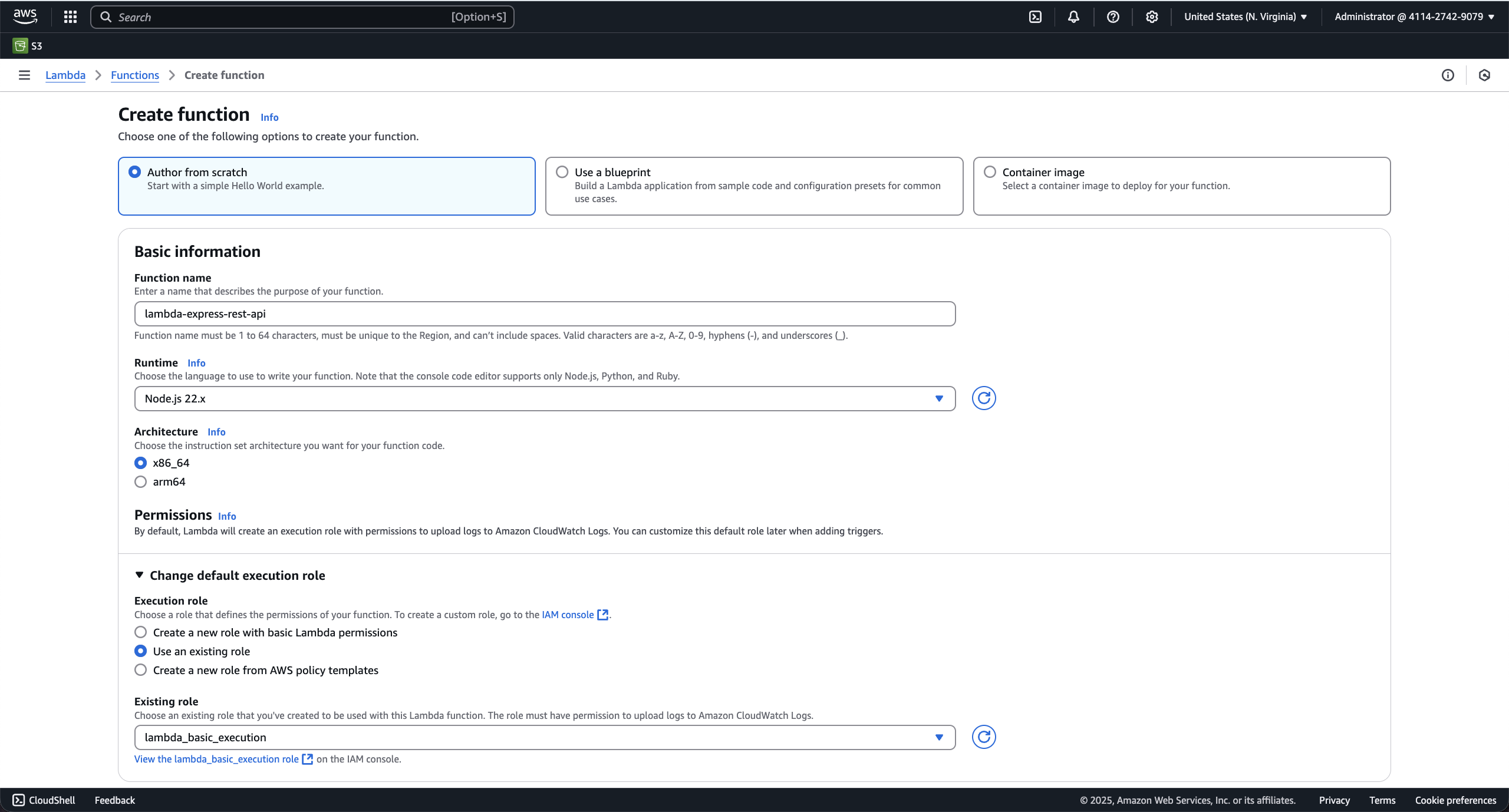

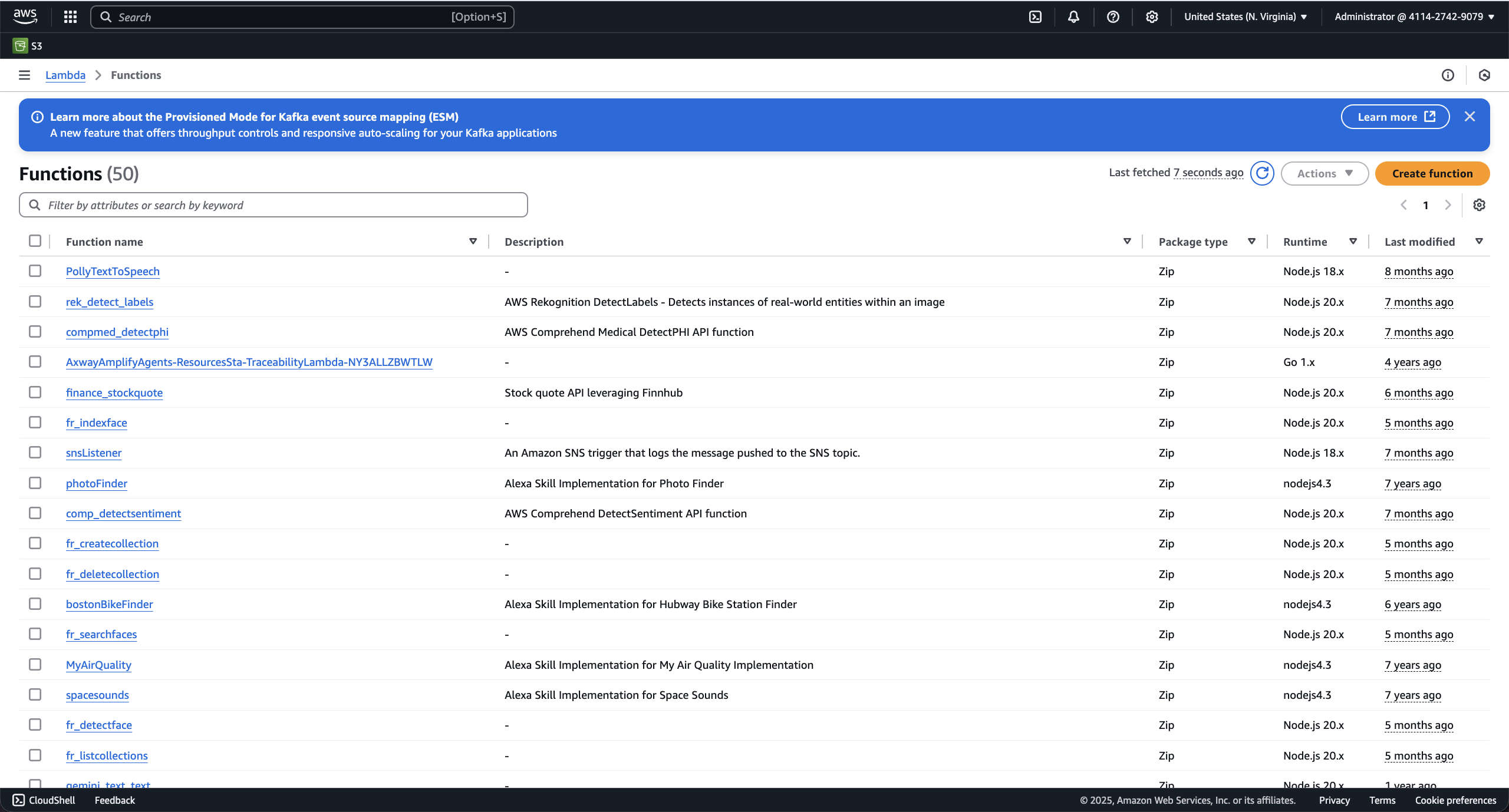

• Create a Lambda function (e.g. lambda-express-rest-api) with Node.js 22 or later and upload the deployment.zip file

Test using Function URL

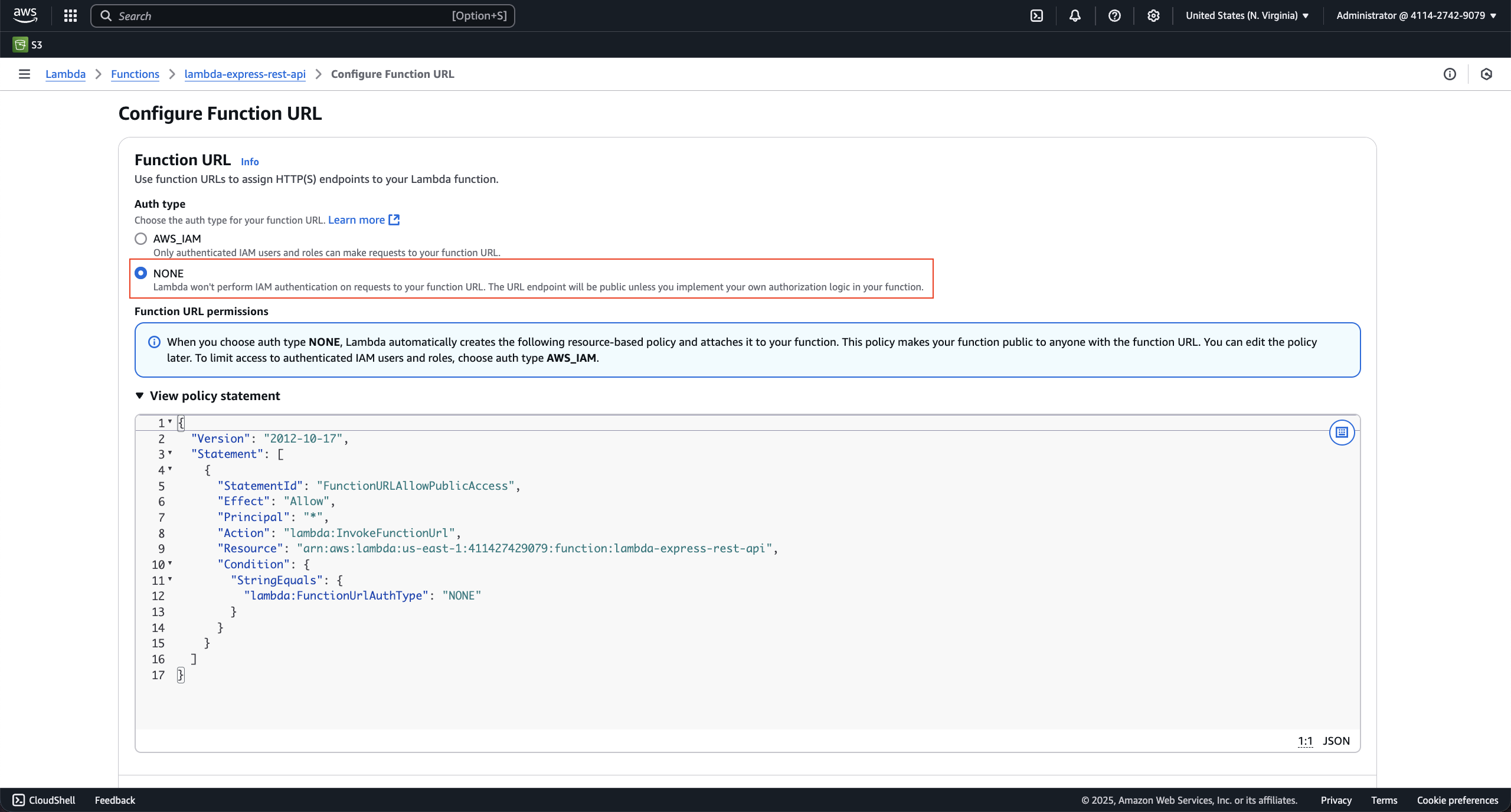

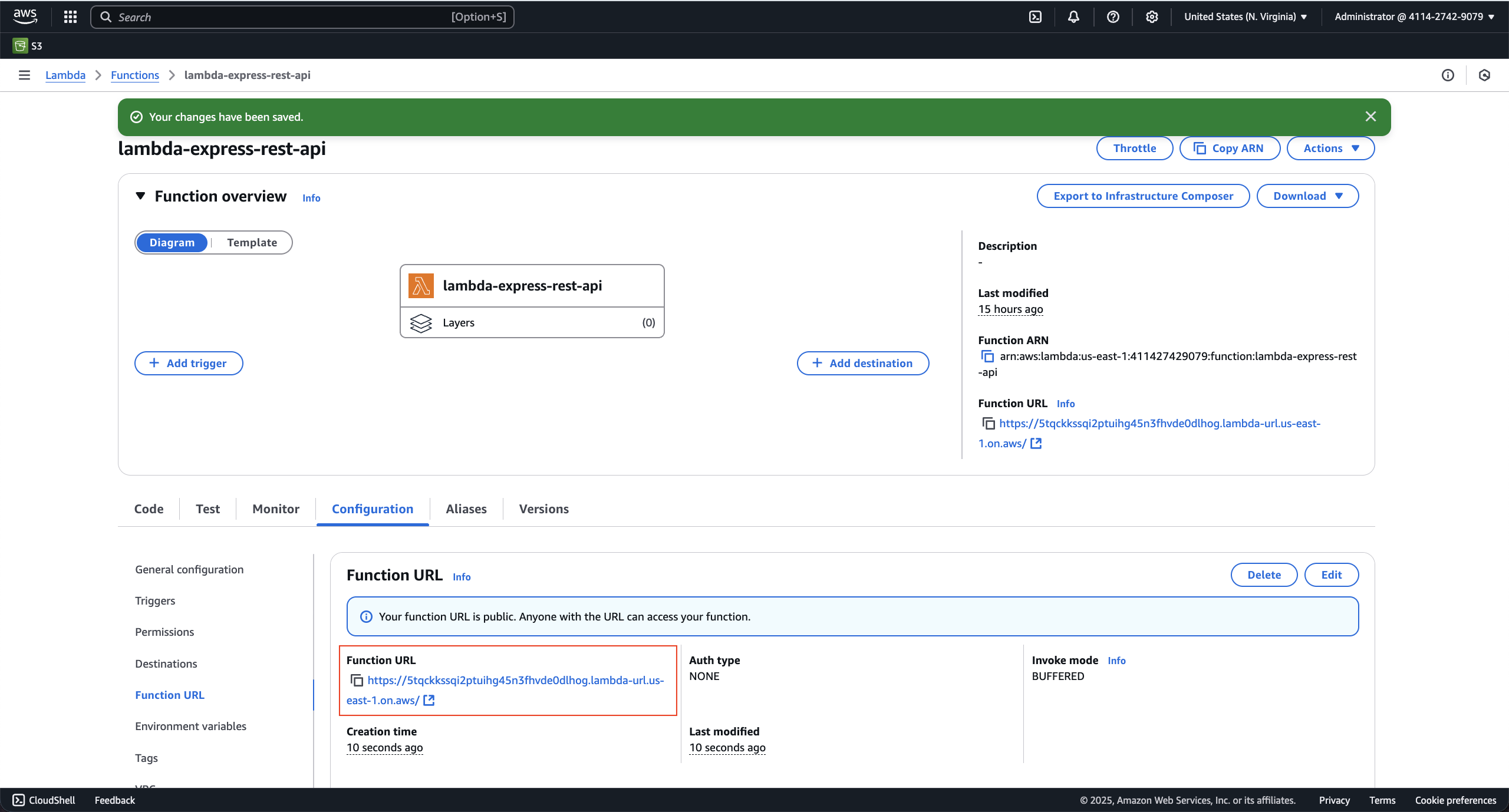

• Enable Function URL with Auth type NONE temporarily to test your APIs



• Use CURL to test your API's

  curl --location 'https://hrgxowogjitvuh4rxp24jouweu0svrhz.lambda-url.us-east-1.on.aws/hello'

  curl 'https://hrgxowogjitvuh4rxp24jouweu0svrhz.lambda-url.us-east-1.on.aws/echo' \
  --header 'Content-Type: application/json' \
  --data-raw '{
  "id": 1,
  "first_name": "Kellen",
  "last_name": "Tunder",
  "email": "ktunder0@nifty.com",
  "gender": "Female",
  "ip_address": "74.254.10.244"
  }'

  curl 'https://hrgxowogjitvuh4rxp24jouweu0svrhz.lambda-url.us-east-1.on.aws/async' --header 'Content-Type: application/json'

  with same responses as before

Configure AWS API Gateway

• Create a REST API in the AWS API Gateway

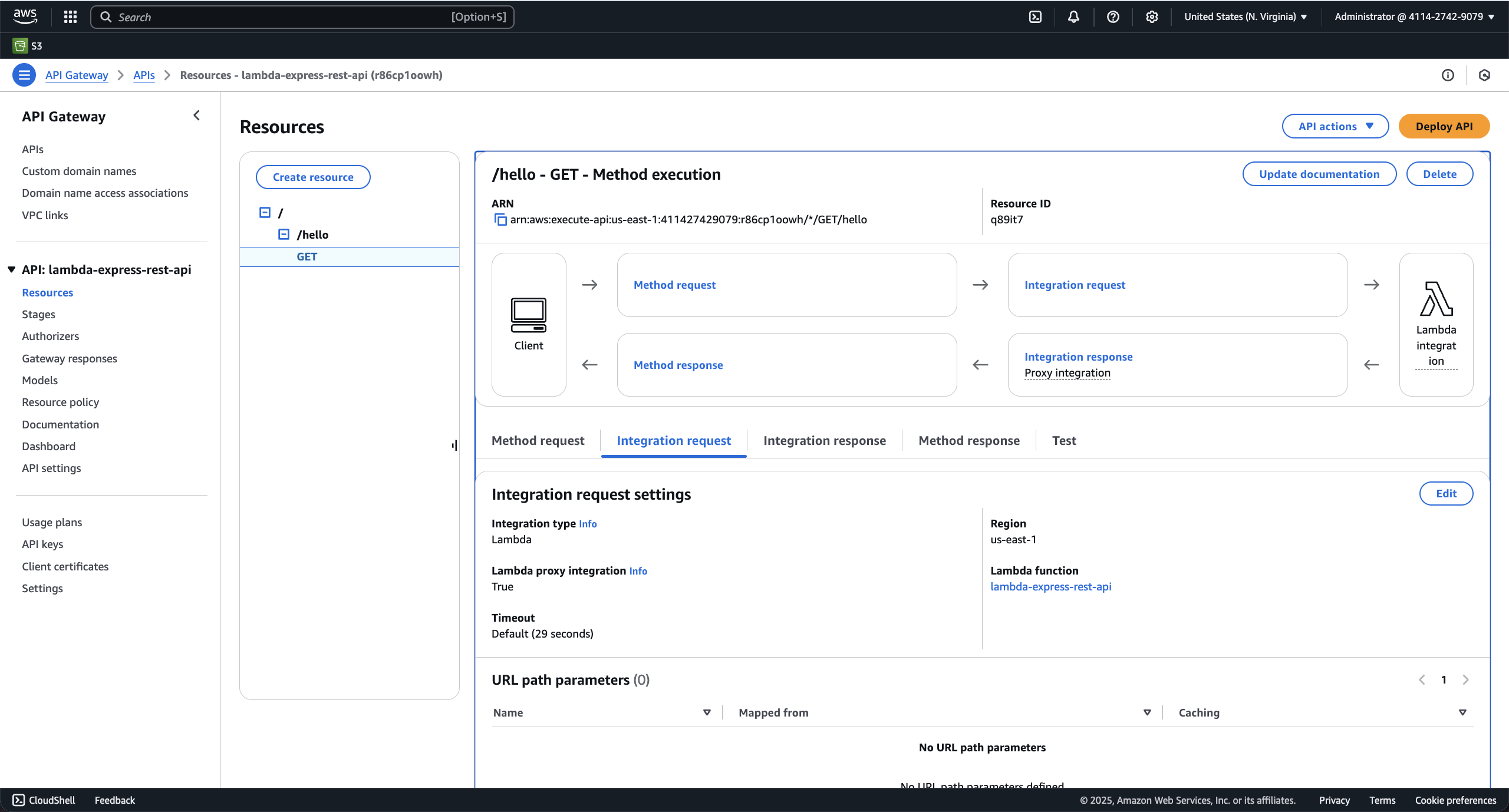

• Create a resource (hello) and a method (GET) and link to your lambda function

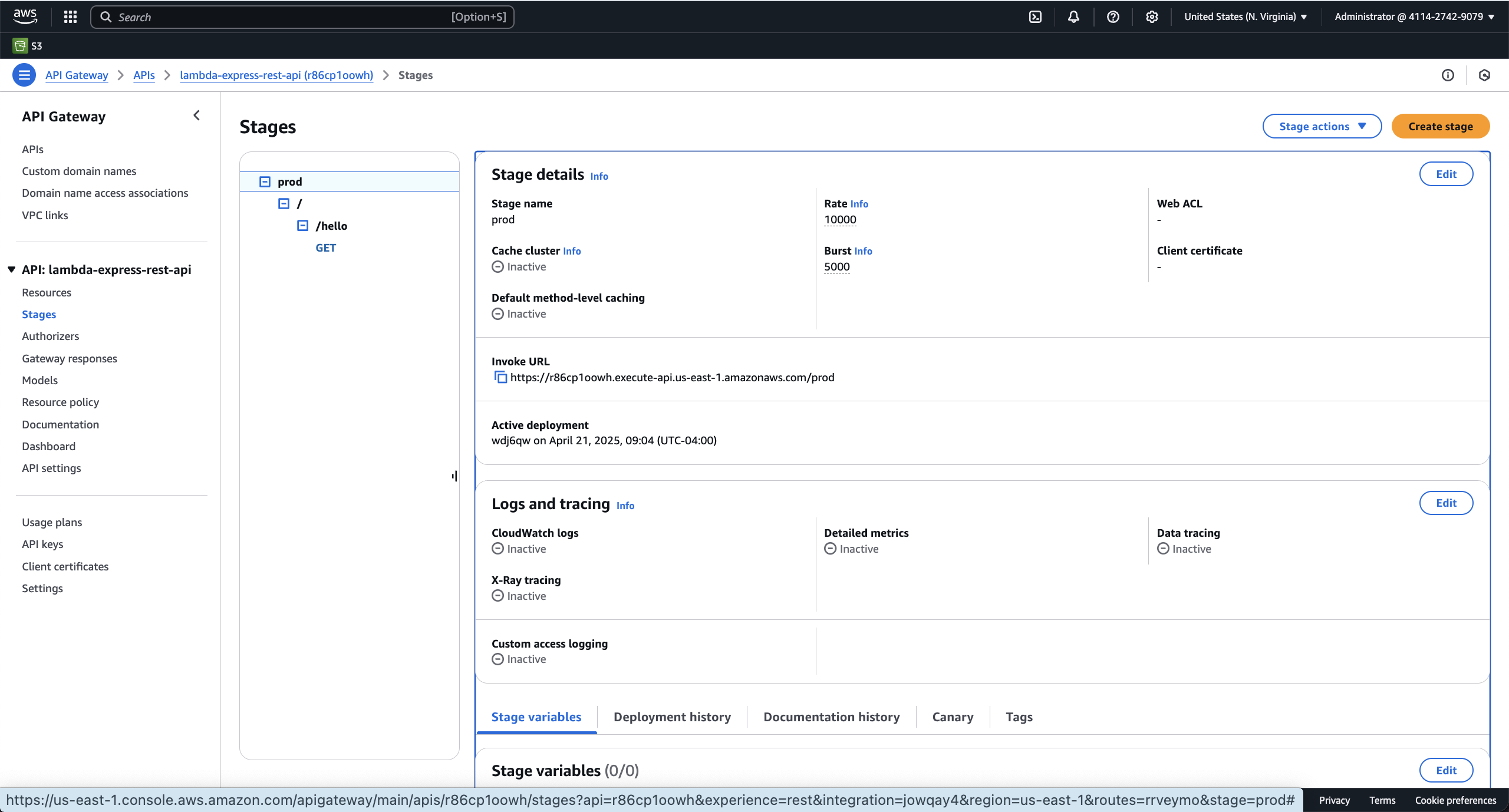

• Deploy to a stage
• Now, you can access your Express.js application through the API Gateway endpoint

  curl --location 'https://r86cp1oowh.execute-api.us-east-1.amazonaws.com/prod/hello'

• Add API Key authentication to secure your API
• You can delete the Function URL created above

Use Docker and ECR

Instead of zipping the project and uploading to Lambda, you can create a docker image and upload it to AWS ECR and use the image when creating a lambda function.

You need the aws and docker cli's installed and working.

• Create a Dockerfile

  FROM public.ecr.aws/lambda/nodejs:20

  # Set working directory
  WORKDIR /var/task

  # Copy package files and install dependencies
  COPY package*.json ./
  RUN npm install

  # Copy app code
  COPY . .

  # Specify the Lambda function handler
  CMD ["index.handler"]

• Use the Dockerfile to build a Docker image

  aws ecr-public get-login-password --region us-east-1 | docker login --username AWS --password-stdin public.ecr.aws
  docker buildx build --platform linux/amd64 -t lambda-express-rest-api-docker .

• Tag the image

Create a local environment variable as follows:

ECR_URL=<aws_account_id>.dkr.ecr.<region>.amazonaws.com/<repository_name>

and tag your image:

```bash
ECR_URL=411427429079.dkr.ecr.us-east-1.amazonaws.com/lambda-express-rest-api-docker
docker tag lambda-express-rest-api-docker:latest $ECR_URL:latest
```

• Create ECR Repo

  aws ecr create-repository --repository-name lambda-express-rest-api-docker --region us-east-1

• Push to ECR

  aws ecr get-login-password --region us-east-1 | docker login --username AWS --password-stdin $ECR_URL
  docker push $ECR_URL:latest

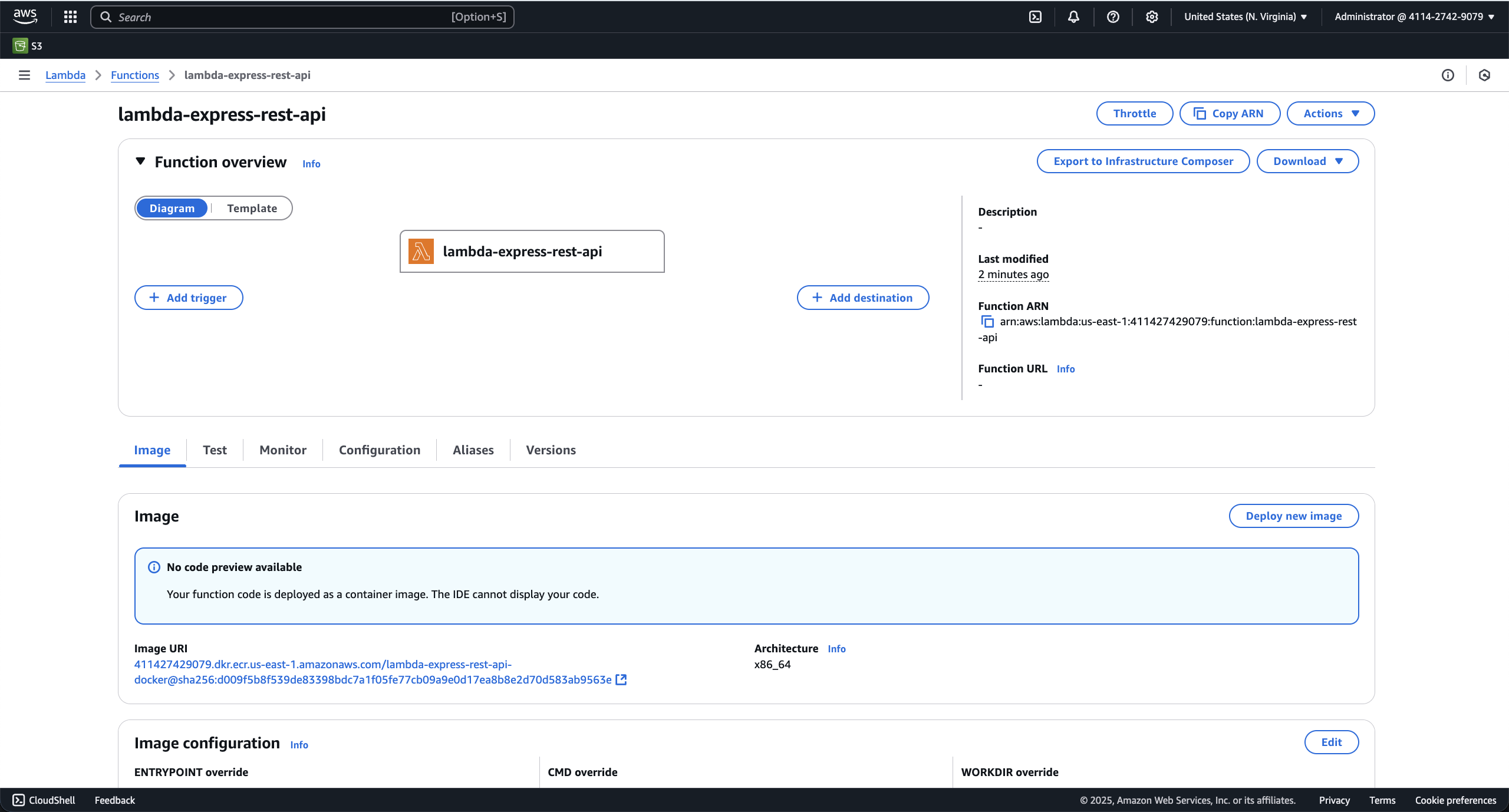

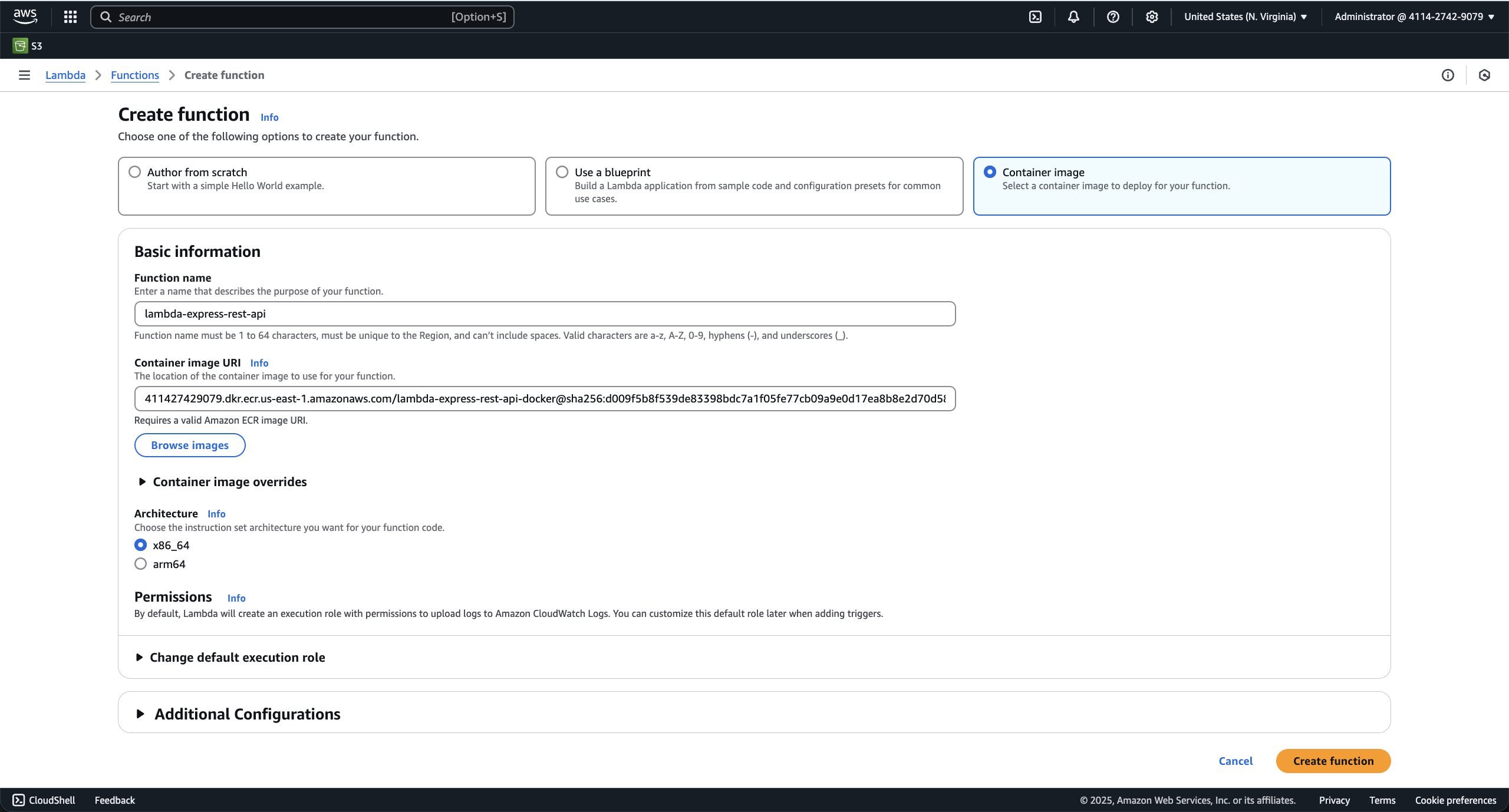

• Create a lambda function and select Container image and select the image you just uploaded



• Enable Function URL as above and test your API's

• Configure AWS API Gateway as above and test your API's

Add Axios Support

Add Axios support to make external API calls to REST API's. In this example, we'll call the NASA Astronomy Picture of the Day API.

• Add axios npm

  npm i axios

• Add an Axios import to app.mjs

  import express from 'express';

• Add a new route to app.mjs

  app.get('/apod', async (req, res) => {
      const response = await axios.get('https://api.nasa.gov/planetary/apod?api_key=DEMO_KEY');
      res.json(response.data);
  });

• Run and test locally

  curl --location 'http://localhost:3000/apod' --header 'Content-Type: application/json'

  with response:

    ```json
    {
        "date": "2025-04-21",
        "explanation": "Is this one galaxy or two? Although it looks like one, the answer is two. One path to this happening is when a small galaxy collides with a larger galaxy and ends up in the center. But in the featured image, something more rare is going on. Here, the central light-colored elliptical galaxy is much closer than the blue and red-colored spiral galaxy that surrounds it. This can happen when near and far galaxies are exactly aligned, causing the gravity of the near galaxy to pull the light from the far galaxy around it in an effect called gravitational lensing. The featured galaxy double was taken by the Webb Space Telescope and shows a complete Einstein ring, with great detail visible for both galaxies.  Galaxy lenses like this can reveal new information about the mass distribution of the foreground lens and the light distribution of the background source.",
        "hdurl": "https://apod.nasa.gov/apod/image/2504/GalaxiesLens_Webb_1146.jpg",
        "media_type": "image",
        "service_version": "v1",
        "title": "Galaxy Lenses Galaxy from Webb",
        "url": "https://apod.nasa.gov/apod/image/2504/GalaxiesLens_Webb_960.jpg"
    }
    ```


Add AWS Support

In this example, we'll add an AWS Translate method.

• Add @aws-sdk/client-translate npm

  npm i @aws-sdk/client-translate

• Add an @aws-sdk/client-translate import to app.mjs and declare a client

  import { TranslateClient, TranslateTextCommand } from "@aws-sdk/client-translate";
  const client = new TranslateClient({ region: "us-east-1" });

• Add a new route to app.mjs

  app.get('/translate', async (req, res) => {
      const input = {
          Text: req.query.text,
          SourceLanguageCode: req.query.sourcelanguage,
          TargetLanguageCode: req.query.targetlanguage,
          Settings: {
              Formality: "INFORMAL",
              Profanity: "MASK",
              Brevity: "ON",
          }
      };
      const command = new TranslateTextCommand(input);
      const ttResponse = await client.send(command);

      const response = {
          "SourceText": input.Text,
          "SourceLanguageCode": ttResponse.SourceLanguageCode,
          "TargetLanguageCode": ttResponse.TargetLanguageCode,
          "TranslatedText": ttResponse.TranslatedText
      }
      res.json(response);
  });

• Test locally

  curl --location 'http://localhost:3000/translate?text=Hello&sourcelanguage=en&targetlanguage=ja' --header 'Content-Type: application/json'

  with response:

  {
      "SourceText": "Hello",
      "SourceLanguageCode": "en",
      "TargetLanguageCode": "ja",
      "TranslatedText": "こんにちは"
  }

• When you deploy to Lambda make sure your Service Role supports Translate: TranslateText
