📷 cameraDisplay

A portable USB camera display solution developed under Arduino IDE 2.3.7. This project allows you to plug a UVC camera into an ESP32-S2 and display the live feed on a small TFT screen.

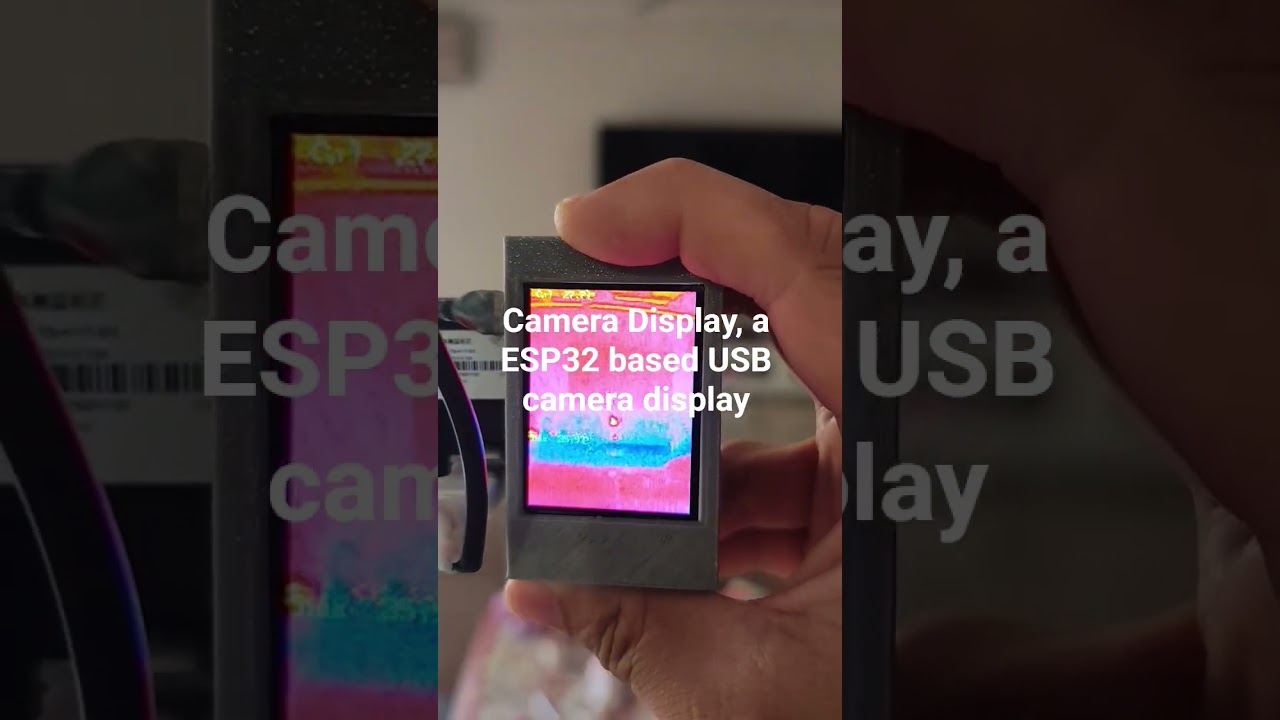

📺 Demo & Preview

Check out the 3D models on my Thingiverse page. The current design can continually run on battery for over 1 hour. Ideal for USB cameras with low resolutions. i.e.,a thermal camera like Haikang 4117 as per demo

🛠 Hardware Requirement

Component	Specification
Microcontroller	Wemos S2 Mini (ESP32-S2)
Display	GMT020 (TFT LCD)
Power	Power bank module + 102540 Li-ion Battery
Switch	SS12F15VG5 5MM/3MM

Pin Mapping

Function	GPIO Pin
TFT_MOSI	35
TFT_SCLK	36
TFT_CS	34
TFT_DC	39
TFT_RST	40
LED_FRAME_IND	15

---

📚 Libraries Used

• esp-arduino-libs/ESP32_USB_STREAM @ ^0.1.0
• bitbank2/bb_spi_lcd @ ^2.9.7
• bitbank2/JPEGDEC @ ^1.8.4

---

⚠️ Important Installation Steps

Important

You MUST replace the original configuration file to enable the USB stream:

Replace: ~\Arduino\libraries\ESP32_USB_STREAM\src\original\include\arduino_config.h With: The arduino_config.h provided in this repository.

Current Limitations:

• Currently only supports UVC MJPEG 320x240 format.

---

🎯 Project Goals

• Battery-powered portable screen.
• Plug-and-play USB camera image display.

📝 TODO List

• OTA: Support Over-the-Air updates.
• Wireless: Stream in/out via Wi-Fi or ESP-NOW.
• Storage: Add TF card support for recording and playback.
