Port forwarding test between apps connected to different network instances #576

gkodali-zededa · 2021-04-02T06:52:32Z

Make both Qemu and VBox connect to same network from two different ports.
Enhance port forwarding test to try connecting across network instances.

Needs to be seen how parallels can be made to do the same.

giggsoff

Unfortunately, it does not work for me, probably due to hardcoded overlapping subnets on interfaces.

        > exec -t 1m bash test_connectivity.sh 2234 2223
        [stdout]
        192.168.0.10
        ssh -o ConnectTimeout=10 -o StrictHostKeyChecking=no -i /Users/petrfedchenkov/GolandProjects/eden/dist/tests/eclient/image/cert/id_rsa root@127.0.0.1 -p 2234 sh /root/portmap_test.sh 2223
        ssh -o ConnectTimeout=10 -o StrictHostKeyChecking=no -i /root/.ssh/id_rsa root@192.168.0.10 -p 2223 grep Ubuntu /etc/issue
        [stderr]
        @@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
        @    WARNING: REMOTE HOST IDENTIFICATION HAS CHANGED!     @
        @@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
        IT IS POSSIBLE THAT SOMEONE IS DOING SOMETHING NASTY!
        Someone could be eavesdropping on you right now (man-in-the-middle attack)!
        It is also possible that a host key has just been changed.
        The fingerprint for the ECDSA key sent by the remote host is
        SHA256:hYSnInDfR3z6drvLPzQCcF3Zq3Q1d75Z73ZCCN5SWrs.
        Please contact your system administrator.
        Add correct host key in /Users/petrfedchenkov/.ssh/known_hosts to get rid of this message.
        Offending ECDSA key in /Users/petrfedchenkov/.ssh/known_hosts:4
        Password authentication is disabled to avoid man-in-the-middle attacks.
        Keyboard-interactive authentication is disabled to avoid man-in-the-middle attacks.
        ssh: connect to host 192.168.0.10 port 2223: Connection timed out
        [exit status 255]
        FAIL: ../eclient/testdata/port_forward.txt:87: command failure

I pushed new version of eclient, can you please also try?

giggsoff · 2021-04-02T12:51:29Z

pkg/eden/eden.go

+	offset := 0
+	firstNet := nets[0].Subnet
+	firstAddr := nets[0].FirstAddress
+	secondAddr := net.ParseIP("192.168.0.11")


Do we really need to hardcode it? Why not to re-use existing logic with novel offsets?
In my case I have 192.168.0.10/24 and 192.168.0.11/24 on interfaces.

Existing logic created two different subnets and packets do not get routed between these subnets. Intention is to create a single subnet and keep both interfaces in that subnet. I did not understand the novel offsets part. Can you please elaborate?

I mean, that before your changes we had nics on different subnets provided by utils.GetSubnetsNotUsed function. With your change we have one subnet (firstNet) which depends on environment (192.168.0.1/24 in my case) and another one is hardcoded (net.ParseIP("192.168.0.11")). Are we really expecting this? What is the point of putting a harcode in this line?

I did not understand the novel offsets part. Can you please elaborate?

If I correctly understood, your add port forwarding on the second nic with predefined offset from ports in the config. In this case why not to add this logic into existing code

eden/pkg/eden/eden.go

Line 447 in 125938a

qemuOptions += fmt.Sprintf(",hostfwd=tcp::%s-:%s", k, v)

Intention is to create a single subnet and keep both interfaces in that subnet.

Could you elaborate why this is necessary?

utils.GetSubnetsNotUsed creates subnet and that is 192.169.0.0/24 and it also allocates an IP i.e. 192.168.0.10 for the first NIC. The 192.168.0.11 that is see is not a subnet, but an IP used for the second NIC.
Both NICs have to be in the same subnet, because if they are in different subnets, qemu networking is not routing packets between them. Instead packets are going somewhere out into the internet. Probably that is because of the separate NAT instances created for these subnets. Also port forwarding has the case where port forwarded packets pass between two different interfaces in the same subnet. Basically apps connected to different network instances, but with uplink ports connected to the same network should be able to talk to each other using port forwarding.

giggsoff · 2021-04-02T12:54:14Z

pkg/expect/expectation.go

-			if len(qemuPorts) > 0 { //not empty forwarding rules, need to check for existing
-				for _, qv := range qemuPorts {
-					if qv == strconv.Itoa(extPort) {
-						ni.ports[extPort] = intPort
-						continue exit
-					}
-				}
-				log.Fatalf("Cannot use external port %d. Not in Qemu %s", extPort, qemuPorts)
-			}


Probably you should add check for ports with offset (and add offset to default.go) instead of deleting the check?

giggsoff · 2021-04-02T12:55:14Z

tests/eclient/testdata/port_forward.txt

+echo {{template "ssh"}}$HOST -p $1 sh /root/portmap_test.sh $2
+{{template "ssh"}}$HOST -p $1 sh /root/portmap_test.sh $EVE_IP $2


Please, keep lines in sync.

giggsoff · 2021-04-02T12:58:02Z

pkg/eden/eden.go

+		commandArgsString = fmt.Sprintf("natnetwork add --netname %s --network %s --enable --dhcp on",
+										"natnet1", "10.0.2.0/24")


I see hardcoded subnet here, but not for the second nic. Why do we have different behavior here?

Both NICs use the same subnet. This is the same subnet that vboxmanage is hardcoded to create. We have to provide a subnet to create network.

Will also make this a constant in pkg/defaults package.

gkodali-zededa · 2021-04-05T08:22:37Z

Unfortunately, it does not work for me, probably due to hardcoded overlapping subnets on interfaces.

        > exec -t 1m bash test_connectivity.sh 2234 2223
        [stdout]
        192.168.0.10
        ssh -o ConnectTimeout=10 -o StrictHostKeyChecking=no -i /Users/petrfedchenkov/GolandProjects/eden/dist/tests/eclient/image/cert/id_rsa root@127.0.0.1 -p 2234 sh /root/portmap_test.sh 2223
        ssh -o ConnectTimeout=10 -o StrictHostKeyChecking=no -i /root/.ssh/id_rsa root@192.168.0.10 -p 2223 grep Ubuntu /etc/issue
        [stderr]
        @@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
        @    WARNING: REMOTE HOST IDENTIFICATION HAS CHANGED!     @
        @@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
        IT IS POSSIBLE THAT SOMEONE IS DOING SOMETHING NASTY!
        Someone could be eavesdropping on you right now (man-in-the-middle attack)!
        It is also possible that a host key has just been changed.
        The fingerprint for the ECDSA key sent by the remote host is
        SHA256:hYSnInDfR3z6drvLPzQCcF3Zq3Q1d75Z73ZCCN5SWrs.
        Please contact your system administrator.
        Add correct host key in /Users/petrfedchenkov/.ssh/known_hosts to get rid of this message.
        Offending ECDSA key in /Users/petrfedchenkov/.ssh/known_hosts:4
        Password authentication is disabled to avoid man-in-the-middle attacks.
        Keyboard-interactive authentication is disabled to avoid man-in-the-middle attacks.
        ssh: connect to host 192.168.0.10 port 2223: Connection timed out
        [exit status 255]
        FAIL: ../eclient/testdata/port_forward.txt:87: command failure

I pushed new version of eclient, can you please also try?

It's a bit odd. The same test with qemu passed on Linux and fails on Mac.
The Qemu user network on linux switches packets between hosts connected to the same network. The same does not happen with Qemu on mac. On mac packets are instead getting routed out of the host machine. Hence the test fails. Need to dig more into this.

gkodali-zededa · 2021-04-12T07:08:20Z

Unfortunately, it does not work for me, probably due to hardcoded overlapping subnets on interfaces.

        > exec -t 1m bash test_connectivity.sh 2234 2223
        [stdout]
        192.168.0.10
        ssh -o ConnectTimeout=10 -o StrictHostKeyChecking=no -i /Users/petrfedchenkov/GolandProjects/eden/dist/tests/eclient/image/cert/id_rsa root@127.0.0.1 -p 2234 sh /root/portmap_test.sh 2223
        ssh -o ConnectTimeout=10 -o StrictHostKeyChecking=no -i /root/.ssh/id_rsa root@192.168.0.10 -p 2223 grep Ubuntu /etc/issue
        [stderr]
        @@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
        @    WARNING: REMOTE HOST IDENTIFICATION HAS CHANGED!     @
        @@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
        IT IS POSSIBLE THAT SOMEONE IS DOING SOMETHING NASTY!
        Someone could be eavesdropping on you right now (man-in-the-middle attack)!
        It is also possible that a host key has just been changed.
        The fingerprint for the ECDSA key sent by the remote host is
        SHA256:hYSnInDfR3z6drvLPzQCcF3Zq3Q1d75Z73ZCCN5SWrs.
        Please contact your system administrator.
        Add correct host key in /Users/petrfedchenkov/.ssh/known_hosts to get rid of this message.
        Offending ECDSA key in /Users/petrfedchenkov/.ssh/known_hosts:4
        Password authentication is disabled to avoid man-in-the-middle attacks.
        Keyboard-interactive authentication is disabled to avoid man-in-the-middle attacks.
        ssh: connect to host 192.168.0.10 port 2223: Connection timed out
        [exit status 255]
        FAIL: ../eclient/testdata/port_forward.txt:87: command failure

I pushed new version of eclient, can you please also try?

For some reason networking with Qemu on mac does not work the same as Qemu on Linux. For now, the new test has been restricted to run only if the host OS is LInux.

mydatascience · 2021-04-12T16:25:56Z

cmd/edenStart.go

 	},
 }

+func getUplinkPortIPMap() map[string]net.IP {


Does this function belong here?
It looks it should be wrapped somewhere around set-ports.sh ?

I am lost. Please help me here.
This function makes API call to controller for the lastest info message that the device sent.
We read the IP addresses that the edge-node got from DHCP from this reponse. These IP addresses are used for setting up port map rules during the test.
Should this be done using shell script and pass the information to go program somehow?

mydatascience · 2021-04-12T16:27:27Z

pkg/eden/eden.go

 		return "container doesn't exist", nil
 	}
 	return state, nil
 }


Same large comment - let's separate the functions and implementation-specific things.
I'd like to see
Vbox.go
Parallels.go
Qemu.go

will do that

made separate files

mydatascience · 2021-04-12T16:28:13Z

pkg/expect/expectation.go

+					if err != nil {
+						log.Fatalf("Port map port %s could not be converted to Integer", qv)
+					}
+					if portNum == extPort || (portNum + defaults.DefaultPortMapOffset) == extPort {


is it super clear to do such arithmetic calculations?

I'll see if I can avoid this.

mydatascience · 2021-04-12T16:28:42Z

pkg/utils/networking.go

 	}
-	return IP, nil
+	ips := []net.IP{IP}
+	IP2 := net.ParseIP(fmt.Sprintf("192.168.%d.11", ind))


Magic number?

No. It is an IP address. Needed to allocate another static IP address for a different ethernet interface on the emulated machine. Copied from what is there 4 lines above.

mydatascience · 2021-04-12T16:29:44Z

tests/eclient/image/get_eve_ip.sh

@@ -0,0 +1,4 @@
+#! /bin/sh
+
+EVE_IP=$(curl -s "http://169.254.169.254/eve/v1/network.json" | jq -r '."external-ipv4"')


Looks it's a strange magic number. Maybe even wrong?

https://serverfault.com/questions/427018/what-is-this-ip-address-169-254-169-254

EVE is the meta-data distributor in this case. Please let me know if it still looks wrong.

@mydatascience The eve-specific URL is documented in https://github.com/lf-edge/eve/blob/master/docs/ECO-METADATA.md The generic use of http://169.254.169.254/ is part of cloud-init.

… - Qemu Signed-off-by: gkodali-zededa <gkodali@zededa.com>

…VBox Signed-off-by: GopiKrishna Kodali <gkodali@zededa.com>

Signed-off-by: GopiKrishna Kodali <gkodali@zededa.com>

mydatascience · 2021-04-14T09:13:31Z

Please resolve the conflicts and let's merge. But I am still confused with the calculation for the shifts + ports.

gkodali-zededa · 2021-04-14T09:21:15Z

Please resolve the conflicts and let's merge. But I am still confused with the calculation for the shifts + ports.

I resolved the conflicts and the PR build is currently running.

The port maps list is right now considered global and the same port maps are added on all ethernet interfaces of the emulated machine. With this behavior there will be port map conflicts. For my test I didn't want that to happen and so decided to add an offset for each interface (keeping the port map list unchanged).
At the same time I understand your concern that it is a bit confusing. It needs to be made better, but should be taken as a separate task to make a port map list per emulated (edge-node) interface.

giggsoff

Please take a look onto ipMap for VirtualBox, seems, we will have no port map without restart of EVE after onboard.

giggsoff · 2021-04-14T10:14:25Z

pkg/eden/vbox.go

+			}
+		}
+
+		eth0IP := ipMap["eth0"]


Can we have fallback variant here(with empty ipMap)? In your variant, we expect ipMap filled, but it is true only after EVE onboard.

It's not clear to me. Can you please elaborate?

You add getUplinkPortIPMap() function, which will return non-empty map only in case of onboarded EVE. But in the beginning (not onboarded, just started) it will be empty. So, we should care about it.

Yes, you are right. We'll need reboot for the port maps to take affect. Before device onboard, the rules will have the IP as empty string. This should not adversely affect us because we do not run tests before the device in onboarded. After the device is onboarded and rebooted, the port map rules will have valid IP addresses. We already have a reboot in the beginning of tests/workflow that helps setup the port maps properly in this case.
With virtual box, unfortunately we cannot just tell the destination port for packet while configuring host port map rules. It will require the destination IP address for configuring port maps. It's easier with qemu but a bit of inconvenient with vbox

Sure, but Eden is not only about the workflow. Ok, if you think, it is difficult to workaround empty ipMap here, we can think about it in next PRs.

My point was that it did not make any difference if we handled the empty ip map or not. It would still require a reboot before the port maps can take effect. Do you have something that proves contrary?

giggsoff · 2021-04-14T10:14:43Z

pkg/eden/vbox.go

+				log.Errorf("Parsing %s to Integer value failed", v)
+				break
+			}
+			guestPort += 10


We have default for this. And the same point for another parts.

The discussion above applies to this also.

giggsoff · 2021-04-16T08:51:43Z

tests/eclient/testdata/port_forward.txt

+
+{{$osruntime := EdenOSRuntime "nan"}}
+
+{{if (eq $osruntime "linux")}}


If I correctly understood, we rely here on network environment generated with qemu/VirualBox. But we have tests on GCP for now.
Can you please add here checks similar with checks in the workflow

eden/tests/workflow/eden.workflow.tests.txt

Line 41 in f2c9e5e

{{if or (eq $devmodel "ZedVirtual-4G") (eq $devmodel "VBox") (eq $devmodel "parallels") }}

Done. Pushed the changes.

dautovri · 2021-04-16T09:03:30Z

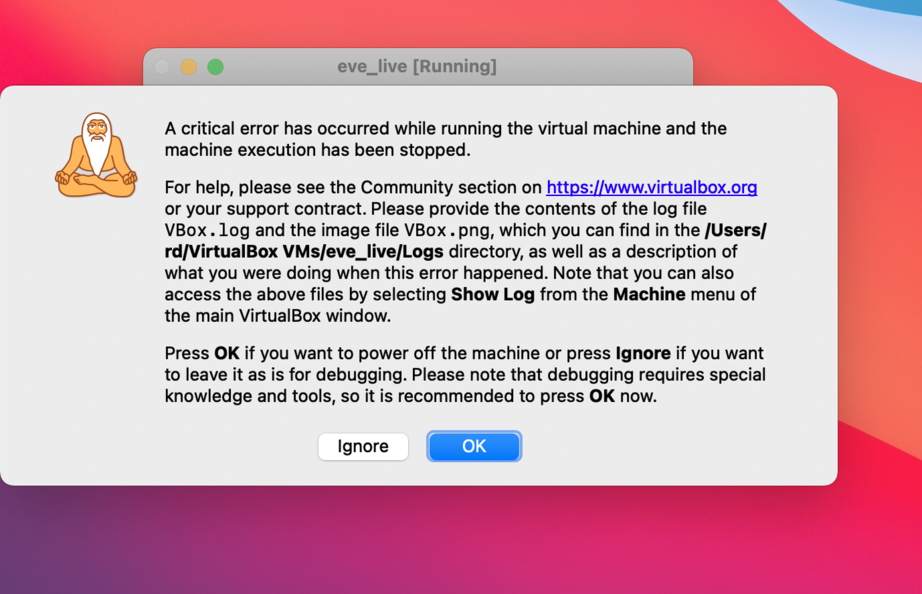

@gkodali-zededa Please consider this ticket https://www.virtualbox.org/ticket/20175. We still have problems running on macOS with VirtualBox. Fix will reach the release version soon, but not there yet.

Signed-off-by: GopiKrishna Kodali <gkodali@zededa.com>

gkodali-zededa · 2021-04-16T11:33:56Z

@gkodali-zededa Please consider this ticket https://www.virtualbox.org/ticket/20175. We still have problems running on macOS with VirtualBox. Fix will reach the release version soon, but not there yet.

Petr gave me the URL for fixed build and I currently use that build on mac. Thanks for letting me know.

giggsoff

Thanks for the edits and your patience!

gkodali-zededa · 2021-04-17T19:37:04Z

Thanks for the edits and your patience!

Can we merge this now?

gkodali-zededa requested review from eriknordmark and mydatascience April 2, 2021 06:52

gkodali-zededa force-pushed the fixes branch from 7c54143 to e6aa6d8 Compare April 2, 2021 07:11

giggsoff requested changes Apr 2, 2021

View reviewed changes

gkodali-zededa force-pushed the fixes branch from e6aa6d8 to 4f4de3e Compare April 2, 2021 14:22

gkodali-zededa force-pushed the fixes branch from 4f4de3e to 3e1c3d9 Compare April 9, 2021 05:55

gkodali-zededa marked this pull request as ready for review April 12, 2021 09:13

mydatascience suggested changes Apr 12, 2021

View reviewed changes

gkodali-zededa force-pushed the fixes branch 2 times, most recently from fd64a24 to c691932 Compare April 13, 2021 08:01

gkodali-zededa added 6 commits April 14, 2021 14:42

Port forwarding between apps connected to different network instances…

3258364

… - Qemu Signed-off-by: gkodali-zededa <gkodali@zededa.com>

Port forwarding with apps connected to different network instnaces - …

98a0cfc

…VBox Signed-off-by: GopiKrishna Kodali <gkodali@zededa.com>

Add runtime OS knob to eden test parsing

4c2780b

Signed-off-by: GopiKrishna Kodali <gkodali@zededa.com>

Clean up some hard coding

08f8707

Signed-off-by: GopiKrishna Kodali <gkodali@zededa.com>

Reintroduce some deleted checks

bb9b427

Signed-off-by: GopiKrishna Kodali <gkodali@zededa.com>

spilt pkg/eden.go into hypervisor specific files

a795fc3

Signed-off-by: GopiKrishna Kodali <gkodali@zededa.com>

gkodali-zededa force-pushed the fixes branch from c691932 to a795fc3 Compare April 14, 2021 09:12

giggsoff requested changes Apr 14, 2021

View reviewed changes

giggsoff reviewed Apr 16, 2021

View reviewed changes

Only allow port map testing with Qemu and Virtual Box

41a1502

Signed-off-by: GopiKrishna Kodali <gkodali@zededa.com>

giggsoff approved these changes Apr 16, 2021

View reviewed changes

mydatascience merged commit a4a2af6 into lf-edge:master Apr 19, 2021

gkodali-zededa deleted the fixes branch May 5, 2021 09:07

		echo {{template "ssh"}}$HOST -p $1 sh /root/portmap_test.sh $2
		{{template "ssh"}}$HOST -p $1 sh /root/portmap_test.sh $EVE_IP $2

		commandArgsString = fmt.Sprintf("natnetwork add --netname %s --network %s --enable --dhcp on",
		"natnet1", "10.0.2.0/24")

		@@ -0,0 +1,4 @@
		#! /bin/sh

		EVE_IP=$(curl -s "http://169.254.169.254/eve/v1/network.json" \| jq -r '."external-ipv4"')


		{{$osruntime := EdenOSRuntime "nan"}}

		{{if (eq $osruntime "linux")}}

Port forwarding test between apps connected to different network instances #576

Port forwarding test between apps connected to different network instances #576

Uh oh!

Conversation

gkodali-zededa commented Apr 2, 2021

Uh oh!

giggsoff left a comment

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

gkodali-zededa commented Apr 5, 2021

Uh oh!

gkodali-zededa commented Apr 12, 2021

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

mydatascience commented Apr 14, 2021

Uh oh!

gkodali-zededa commented Apr 14, 2021

Uh oh!

giggsoff left a comment

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

dautovri commented Apr 16, 2021 •

edited

Loading
