Sensors - Allow changing RRD type in YAML and PHP sensor discovery

[PipoCanaja]

Replaces #13854

A new DB column in sensors stores the RRD type (which defaults to GAUGE as it is currently). This is a draft currently. Will update this desc as it reaches a "runnable" status.

DO NOT DELETE THE UNDERLYING TEXT

Please note

Please read this information carefully. You can run ./lnms dev:check to check your code before submitting.

• Have you followed our code guidelines?
• If my Pull Request does some changes/fixes/enhancements in the WebUI, I have inserted a screenshot of it.
• If my Pull Request makes discovery/polling/yaml changes, I have added/updated test data.

Testers

If you would like to test this pull request then please run: ./scripts/github-apply <pr_id>, i.e ./scripts/github-apply 5926
After you are done testing, you can remove the changes with ./scripts/github-remove. If there are schema changes, you can ask on discord how to revert.

[github-actions]

Please add test data so we can ensure your change is not broken in the future.
Read the docs to find out how: https://docs.librenms.org/Developing/os/Test-Units

[murrant]

Seems reasonable, do any changes need to be made to the graphs?

[PipoCanaja]

Seems reasonable, do any changes need to be made to the graphs?

Not necessarilly. May be some text/graphical changes to add "per second" to the unit, etc. Will see how it goes with tests.

[PipoCanaja]

@murrant Whatever I do, save-test-data cannot provide me 100% of files that would pass correctly the tests. Even on my own server, with same DB and same settings, they do not succeed. Would you have any suggestions ?

[PipoCanaja]

@librenms/reviewers : tried my best with tests but still fighting to get it right : save-test-data runs as good as it can, and provides a result that makes sense.
lnms dev:check -o arista-mos runs well on my VM.
But we have an error here in the PR tests:
https://github.com/librenms/librenms/runs/8259961537?check_suite_focus=true

[murrant]

Sorry this is a nightmare to update :/

[PipoCanaja]

Hi @murrant @Jellyfrog
I am calling for help :)
On the precise test that is currently failing currently, I don't get the issue :
tests/data/arista-mos_metamux48-c-0-16.json

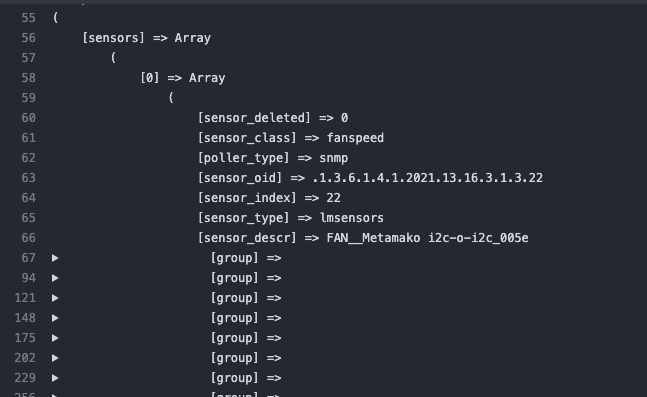

First, this :

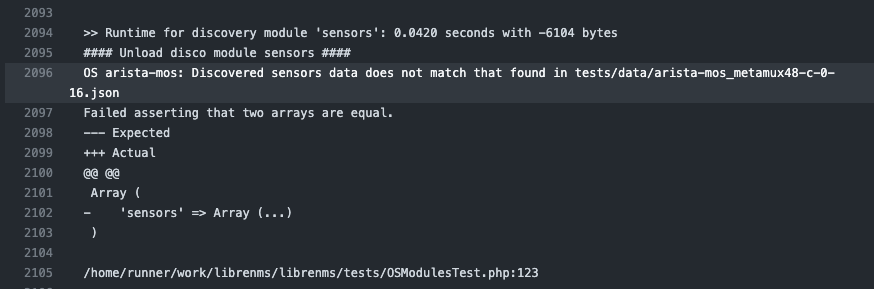

And then this:

Do you have any tips ?

Thx

[Jellyfrog]

It except sensors but doesn't find any for that device.

[PipoCanaja]

It except sensors but doesn't find any for that device.

But looking at the capture, you see that the data is actually found :) That's my problem. It finds it but complains it doesn't ...

[PipoCanaja]

Hi @librenms/reviewers
Looks like it is OK now. Only have to keep up with master each time a JSON file is added or updated.
Let me know your opinion on this.

[Jellyfrog]

Might miss something, but when running ./scripts/save-test-data.php -o apc -v sua750i, it breaks on:

Error polling sensors module for 127.1.6.1. LibreNMS\Exceptions\InvalidRrdTypeException: is not valid, must be: GAUGE | DERIVE | COUNTER | ABSOLUTE | DCOUNTER | DDERIVE in librenms/LibreNMS/RRD/RrdDefinition.php:122

because the $sensor doesnt have a rrd_type set:

array:25 [
  "sensor_id" => 107
  "sensor_deleted" => 0
  "sensor_class" => "state"
  "device_id" => 13
  "poller_type" => "snmp"
  "sensor_oid" => ".1.3.6.1.4.1.318.1.1.1.4.1.1.0"
  "sensor_index" => "0"
  "sensor_type" => "upsBasicOutputStatus"
  "sensor_descr" => "Output Status"
  "group" => null
  "sensor_divisor" => 1
  "sensor_multiplier" => 1
  "sensor_current" => 2.0
  "sensor_limit" => null
  "sensor_limit_warn" => null
  "sensor_limit_low" => null
  "sensor_limit_low_warn" => null
  "sensor_alert" => 1
  "sensor_custom" => "No"
  "entPhysicalIndex" => null
  "entPhysicalIndex_measured" => null
  "lastupdate" => "2022-10-31 18:00:39"
  "sensor_prev" => null
  "user_func" => null
  "new_value" => "2"
]

[PipoCanaja]

Might miss something, but when running ./scripts/save-test-data.php -o apc -v sua750i, it breaks on:

did you run the migrations ? I would be the DB is not in the correct state.

[Jellyfrog]

Oh. No :) it's probably that then. I'll recheck tomorrow

[PipoCanaja]

when I do test generation, I usually run "lnms dev:check -o myOsName" at least up to the "refreshing database ... done". That way I am sure the DB is empty and clean.
