#ELEN E6770 Next Gen. Network - Final Project ###Sun-Yi Lin (sl3833), Chia-Hao Hsu (ch3141)

##Unary - A simple efficient way to host events

Sometimes it's just annoying to host an event: everybody has his own prefer time and it's just an nightmare to find out a slot to fit everyone in.

Unary is a application that radically simplifies the process of scheduling events, meetings, appointments, etc. It lets people mutually agree on a time. It's very convenient, intuitive and interactive. There are some feature of this app:

• Do not need to login to host or join an event.
• An straightforward view to know others availablities.
• Super easy way to invite others.

To achieve this goal, we apply special functions to calculate unique identifier for each created event. People who use our application can easily invite guests by sharing this identifier.

Also, we use a self-explanatory diagram, which we call the "Rainbow Chart", to show others' availablities while a new participant is about to join.

##Environment & Tools Unary is based on Google App Engine, and coded with mouse and keyboard HTML/CSS, JavaScript, Python and LOVE.

###Front-end There are two main part of our front-end design.

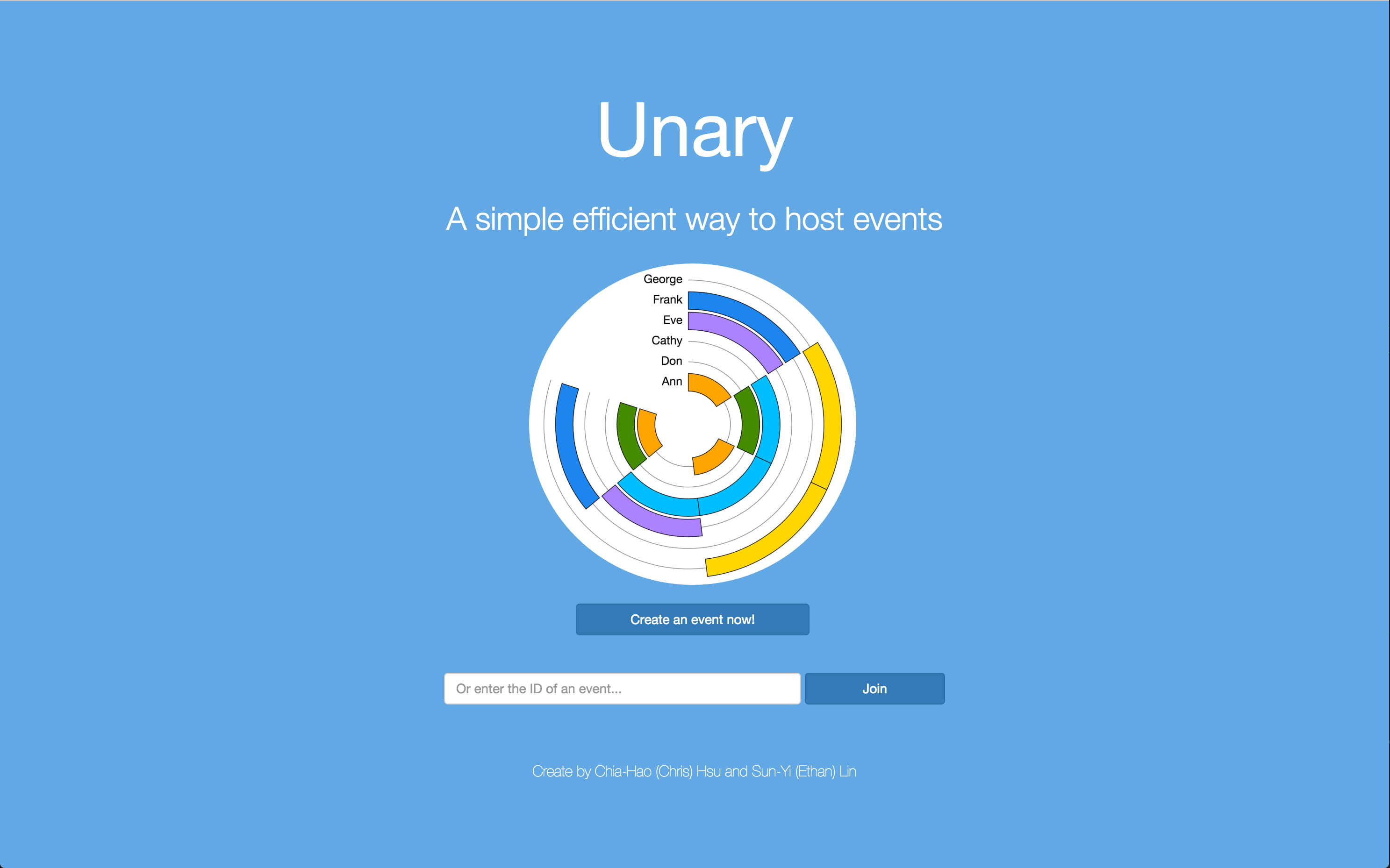

####How to Use It? The welcoming page is called home.html, and our users can choose to create a new event, or join a existed event by the event identifier.

In the host.html page, the user can type in his / her name, the description of the event, and thier disired dates / times. After a simple click on the submit button, the create.html will jump out with you unique link of the event. Share it!

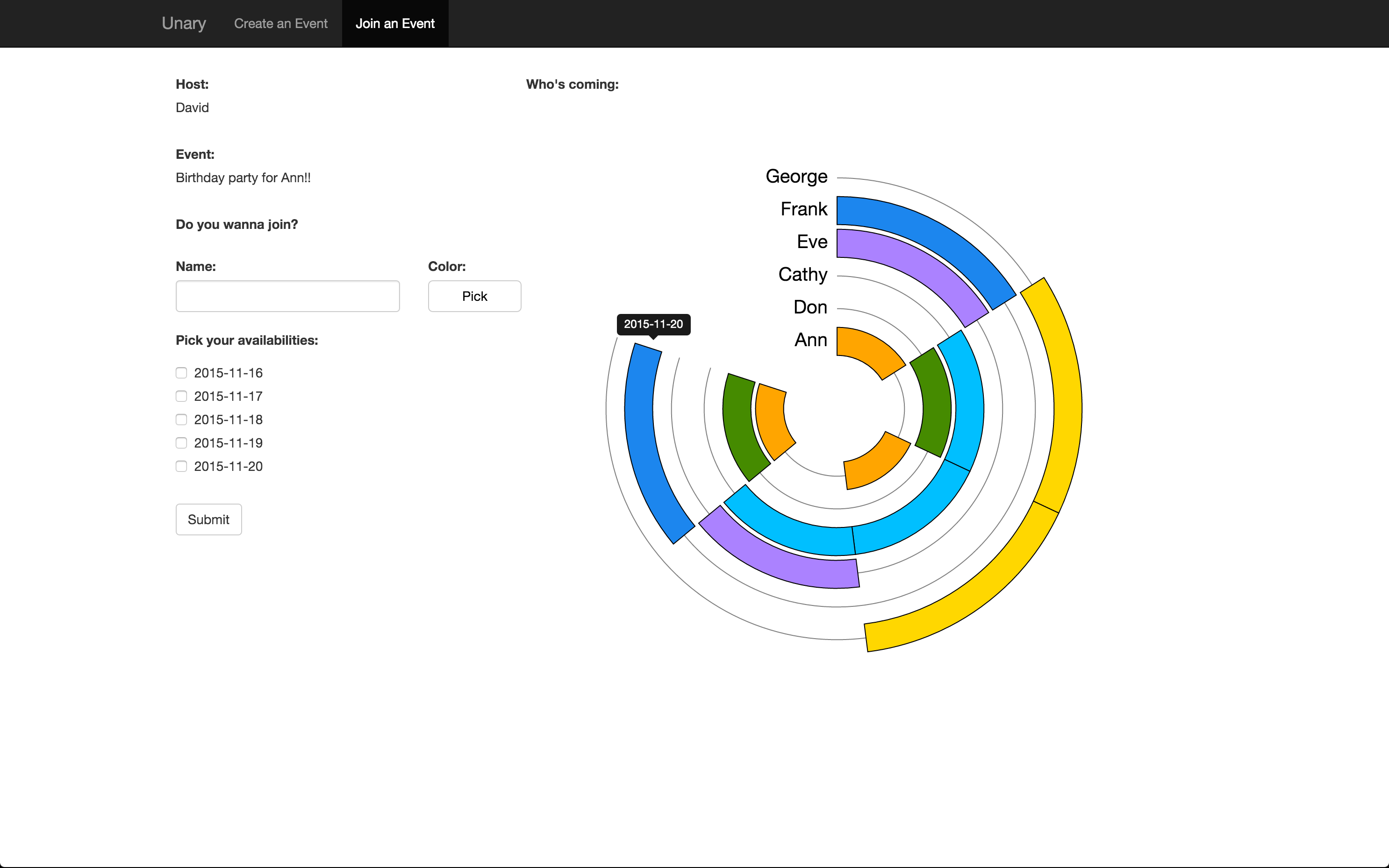

Once other people get this link, they can go to guest.html and see the details of the event, plus other participants availabilities with a super clear "Rainbow Chart". Tooltips will pop up when you move over you mouse on the colored blocks to show the corresponding dates / times.

Enter your name, choose your favorite color, pick your available dates / times, the click submit. You'll be redirected to the join.html, and see your name is already in the "Rainbow Chart". Super easy.

####Open Source Package & Plug-in The design of our front-end is using Bootstrap, it provides a set of elements including the navigation bar, grid patterns and form entities.

The events is stored in JSON format. The rainbow chart is powered by D3.js, which is a JavaScript library for manipulating documents based on data.

Other JavaScript libraries like jQuery, moment.js, jscolor.js and bootstrap-datetimepicker.js is also used in our application.

###Back-end For the back-end, we use Google App Engine with Python SDK to build the platform.

####Platform

Google App Engine for Python is based on WebApp2. It provides the framework for user to build the website. Our website contains four main routes:

• MainPage
  • create
  • host
  • guest
  • join

And all of the routing is defined and handled in the main program - unary.py

####Database

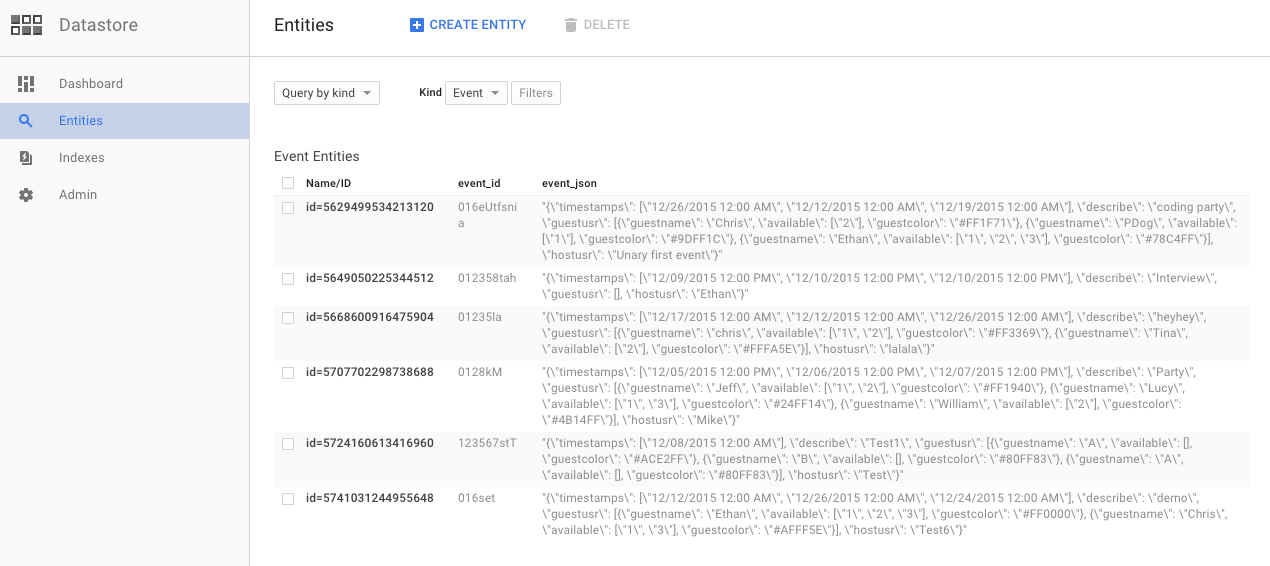

For the database part, we use Google Cloud Datastore to store the entire event message.

To simplify the whole process, our Datastore only get two column: event_id & event_json, you can see that in Models/Models.py. So when a user create an event, we provide an event_id for it, and other one who wants to join the event can use the event_id to get the information.

After the user provide his own information to join the event, we just modify the JSON and update the corresponding event_json with the event_id. Simple!

The only thing needs to take care of is that JSON is not a built-in property for Google Cloud Datastore, so what we do is to use its original TextProperty and modify it as JSONProperty to store our event_json.

##Release Our project is open source, please feel free to take a look of our code at GitHub.

For the deployed application, please visit Unary
