'Coalesce' fails to find fallback image with 'fill-pattern' and 'line-pattern' #11109

@SnailBones

Description

@SnailBones

mapbox-gl-js version: v2.5.0

browser: Chrome & Firefox

Steps to Trigger Behavior

Create a fallback image expression for a line or polygon. Example:

'fill-pattern': [
    "coalesce",
      ["image", ["get", "icon"]],
      ["image", "rocket-15"],
  ]

I think that this will occur with any expression that meets the following:

  • for fill-pattern or line-pattern
  • with coalesce
  • and with at least one image wrapping a get

Link to Demonstration

Expected Behavior

The area with an invalid image name should display as the fallback rocket icon.
Screenshot 2021-10-08 at 17-43-06 fill-pattern bug

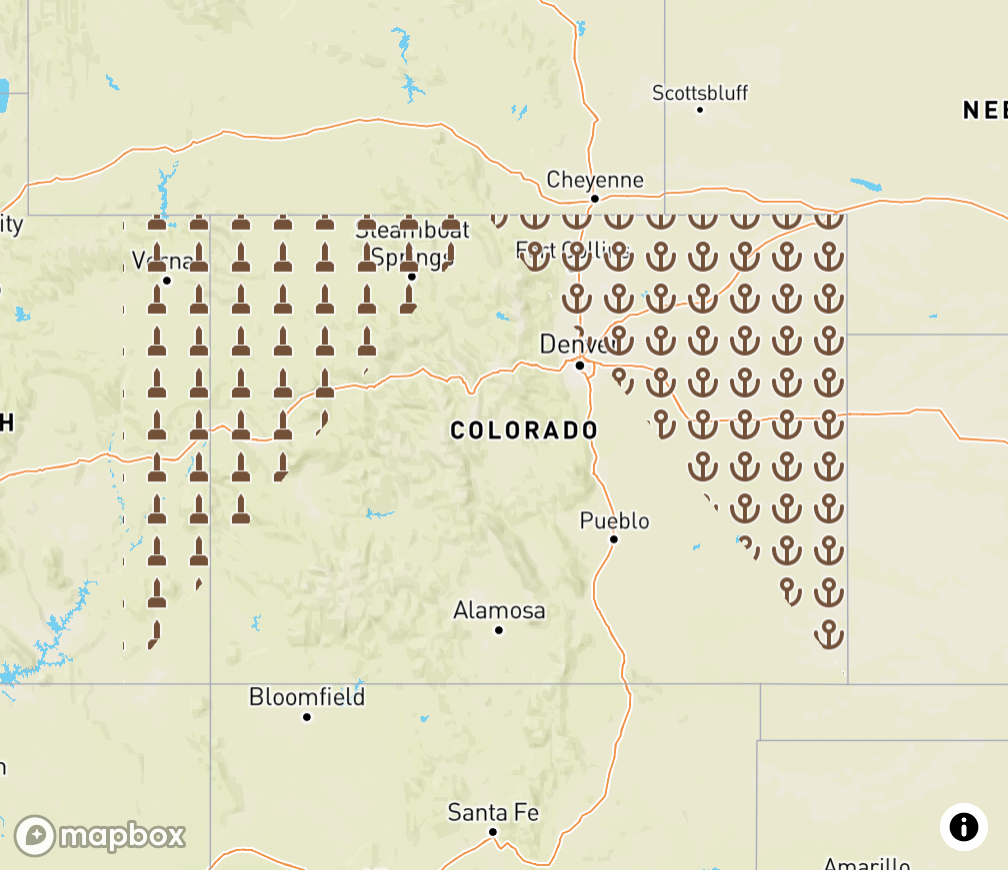

Actual Behavior

The area with an invalid image name doesn't render. The console displays:

"Image 'missing-icon' could not be loaded. Please make sure you have added the image with map.addImage() or a 'sprite' property in your style. You can provide missing images by listening for the 'styleimagemissing' map event."

Screenshot 2021-10-08 at 18-00-24 fill-pattern bug

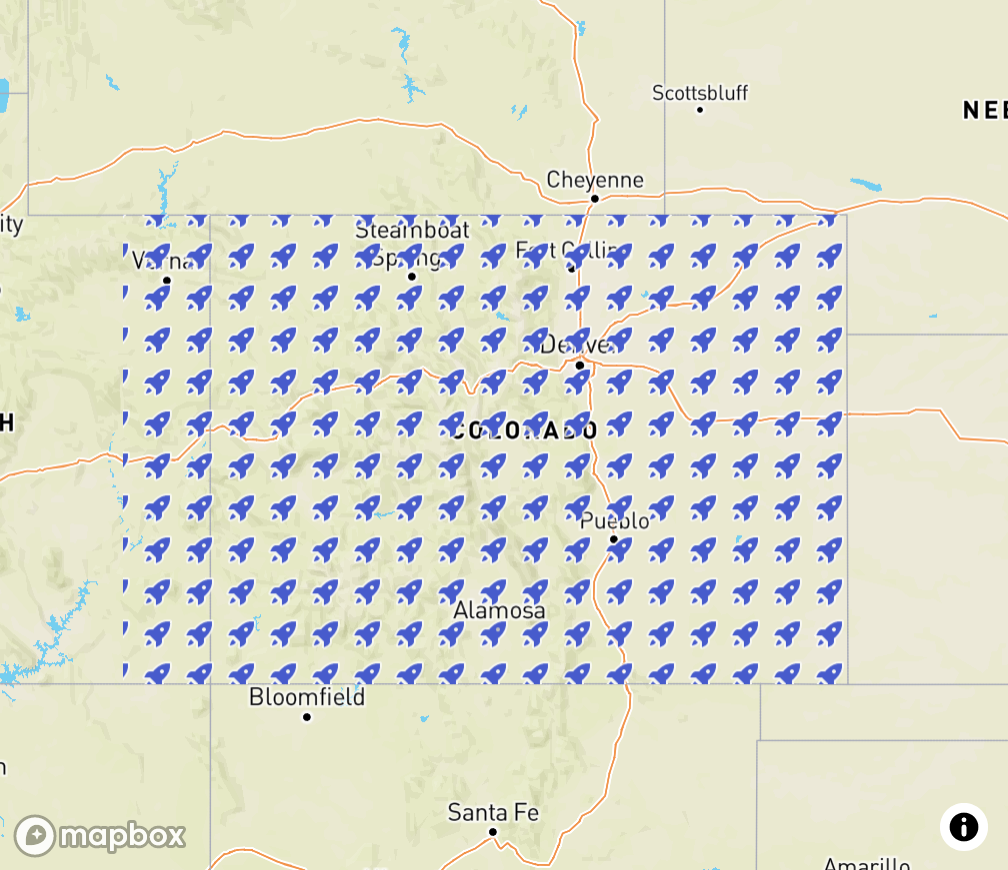

Oddly, changing the second image expression to a string leads to ALL polygons displaying the fallback image:

'fill-pattern': [
    "coalesce",
      ["image", ["get", "icon"]],
      "rocket-15"
  ]

Screenshot 2021-10-08 at 17-43-17 fill-pattern bug

When a get statement is included, ALL 'image' expressions inside of the coalesce seem to evaluate to false.

@arindam1993 thoughts on why this might be happening?
