use built-in widgets in android auto

[Zayankovsky]

Description

Closes #5793.
I decided to go ahead with this ticket, because I noticed that this also fixes an issue in 1TAP.

[Zayankovsky]

For some reason all widgets disappear when you open and close feedback screen.

[codecov]

Codecov Report

Merging #6076 (5b88547) into main (478e656) will not change coverage.
The diff coverage is n/a.

@@            Coverage Diff            @@
##               main    #6076   +/-   ##
=========================================
  Coverage     68.05%   68.05%
  Complexity     4086     4086
=========================================
  Files           617      617
  Lines         24972    24972
  Branches       2951     2951
=========================================
  Hits          16995    16995
  Misses         6852     6852
  Partials       1125     1125

[Zayankovsky]

For some reason all widgets disappear when you open and close feedback screen.

Turned out the problem was caused by keeping and reusing the same SpeedLimitWidget instance, but we have to create a new one.

[kmadsen]

Thinking about cleaning this up a little, considering this will be a more permanent class. What do you think about adding the logo widget to the constructor, and adding the default to a companion object?

We could remove private var logoWidget: LogoWidget? = null and make a default in the constructor.

class CarLogoSurfaceRenderer(
  val logoWidget: LogoWidget = defaultLogoWidget
) : MapboxCarMapObserver {

  companion object {
    val defaultLogoWidget = LogoWidget(...
  }
}

[kmadsen]

Oh, it is constructed when onAttached is called so that idea is not great. Unless it has a Provider wrapper

Smaller change, would be to move the constants to a companion object so the magic numbers are a little more visible. These margin values are going to need to change in order to support different screen resolutions

class CarLogoSurfaceRenderer(
) : MapboxCarMapObserver {

  private companion object {
    private val defaultWidgetPosition = WidgetPosition(...
    private const val defaultMarginX = 26f
    private const val defaultMarginY = 10f
  }
}

[Zayankovsky]

Not sure about the naming, default suggests that these values can be customized, however they aren't. I think we can get back to it, when we add support for more screen resolutions.

[kmadsen]

Is this specific to screen resolutions?

What happens when you run this on a different resolution mapbox/mapbox-navigation-android-examples#81 (comment)

[kmadsen]

If there is an issue there, the issue would be existing. So if you test it please take some screenshots and post them on a new issue

[kmadsen]

Turns out, testing other resolutions still takes a few steps. am posting the steps just because we're talking about it

1. Update to a preview android studio https://developer.android.com/studio/preview/install-preview
2. Update Android Auto Desktop Head Unit Emulator from Android Studio SDK downloads
3. Configure desktop head unit https://developer.android.com/training/cars/testing#configure-dhu
4. cd $(ANDROID_HOME)/extras/google/auto/ && ./desktop-head-unit -c config/default_1080p.ini

[Zayankovsky]

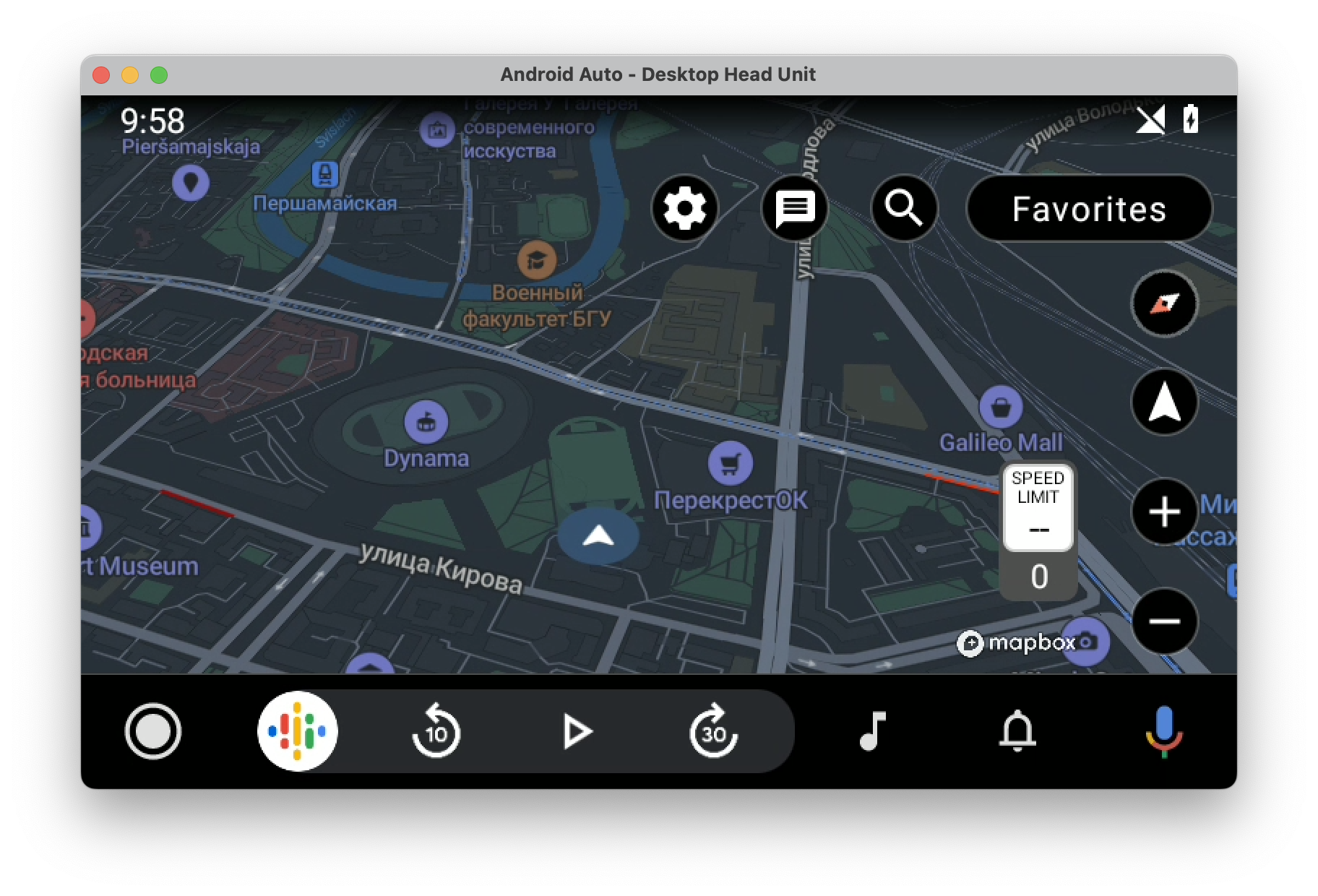

By the way, I changed these margins, so that the widgets are better aligned with the rest of the buttons. Like in the screenshot below you can see that compass widget now has the same margin as the buttons on the right side.

Also Maps examples use the same values: https://github.com/mapbox/mapbox-maps-android/blob/main/android-auto-app/src/main/java/com/mapbox/maps/testapp/auto/car/CarMapWidgets.kt.

[kmadsen]

Awesome! Thanks for doing this 🪂
