sbox-projectiles

🚀 Lag compensated simulated projectiles using game resources for projectile definitions.

Projectile Definitions

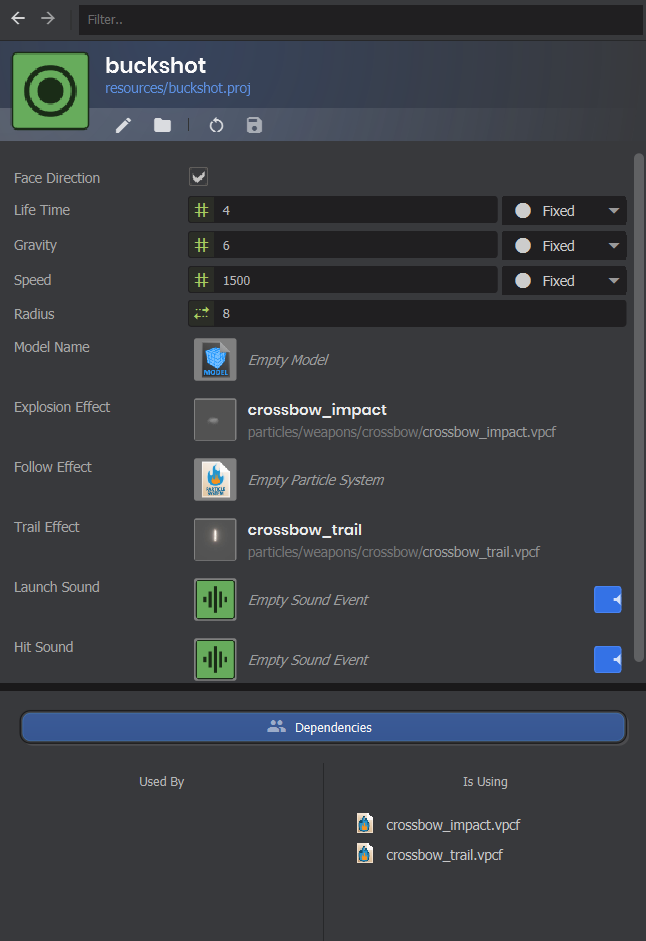

You can define projectile definition assets by right clicking in the asset browser and creating a new Projectile asset.

Life Time

This is the time (in seconds) that a projectile will stay alive.

Gravity

How much gravity will affect the projectile. The higher the number, the faster it will reach the ground. Use 0 for projectiles that aren't affected by gravity.

Speed

The speed of the projectile in units per second.

Radius

The size of the projectile (width of the trace). A larger value will result in wider hits.

Model Name

The model to use for the projectile (not required.)

Explosion Effect

When a projectile hits something this is the particle effect that will be used.

Trail Effect

If defined this particle effect will be attached to the projectile.

Launch Sound

A sound to play when the projectile is launched.

Hit Sound

A sound to play when the projectile hits something.

ProjectileSimulator

If the projectile is to be fired by a player, then each player's pawn needs to have a ProjectileSimulator and its Simulate method needs to be called at some point inside of the pawn's Simulate method.

Example Usage

public ProjectileSimulator Projectiles { get; private set; }

public MyPawnEntity() : base()
{
	Projectiles = new( this );
}

public override void Simulate( IClient client )
{
	base.Simulate( client );
	Projectiles.Simulate();
}

Creating Projectiles

When fired by a player, projectiles should be created in a predicted context and as such should be created both on the firing client and on the server. The best way to do this is simply within the player's Simulate method (for example when they have pressed an attack button.)

You should also call Game.SetRandomSeed( Time.Tick ) before you begin firing any projectiles in this way (predicted.) Here's an example that you could use in a weapon.

public override void AttackPrimary()
{
	// We only want to create projectiles if this is the first time this command is being simulated.
	if ( Prediction.FirstTime )
	{
		// We should do this before firing any projectiles to ensure any random values involved are the same on the client and server.
		Game.SetRandomSeed( Time.Tick );
		FireProjectile();
	}
}

private void FireProjectile()
{
	if ( Owner is not MyPawnEntity player )
		return;

	// Let's find the projectile asset with the name `buckshot.proj`.
	var projectile = Projectile.Create<T>( "buckshot" );

	// Don't hit this weapon entity.
	projectile.IgnoreEntity = this;

	// We need to set the simulator to use (as mentioned earlier.)
	projectile.Simulator = player.Projectiles;

	// The attacker is the player who owns this weapon.
	projectile.Attacker = player;

	// Fire from the muzzle attachment on the weapon (this is just an example.)
	var muzzle = GetAttachment( "muzzle" );
	var position = muzzle.Value.Position.WithZ( MathF.Max( muzzle.Value.Position.z, player.EyePosition.z ) );
	var forward = player.EyeRotation.Forward;
	var endPosition = player.EyePosition + forward * BulletRange;
	var trace = Trace.Ray( player.EyePosition, endPosition )
		.Ignore( player )
		.Ignore( this )
		.Run();

	var direction = (trace.EndPosition - position).Normal;
	direction += (Vector3.Random + Vector3.Random + Vector3.Random + Vector3.Random) * Spread * 0.25f;
	direction = direction.Normal;

	// Let's fetch the speed value from the projectile data, but we could use any value or modify it.
	var speed = projectile.Data.Speed.GetValue();
	var velocity = (direction * speed);
	projectile.Initialize( position, velocity, OnProjectileHit );
}

private void OnProjectileHit( Projectile projectile, Entity target )
{
	if ( Game.IsServer && target.IsValid() )
	{
		// We hit something.
	}
}
