@mathnotes/mobile-ink

Production-grade React Native ink primitives extracted from the MathNotes canvas.

@mathnotes/mobile-ink is an iOS-first native drawing engine for React Native apps. It gives you Apple Pencil input, Skia/Metal rendering, stroke serialization, selection, zoom, momentum scrolling, and a continuous notebook surface backed by a fixed native engine pool.

Why This Exists

There is still no strong open-source answer for the kind of drawing surface a serious mobile notes app needs. A single canvas is not enough. A notes app has to handle long notebooks, fast page crossing, Pencil latency, zoom, selection, shape editing, serialization, previewing, and native memory pressure without making the JS thread fall over.

MathNotes has been building this engine since May 2025. We are open-sourcing the reusable canvas layer because mobile apps should have a high-performance, community-owned drawing engine instead of every team rebuilding the same hard native stack from scratch.

The goal is simple: make this the best community drawing engine for React Native and native mobile note-taking surfaces.

mobile-ink is currently used in production in MathNotes: https://apps.apple.com/us/app/mathnotes-ai-notes-for-stem/id6751956086

Demos

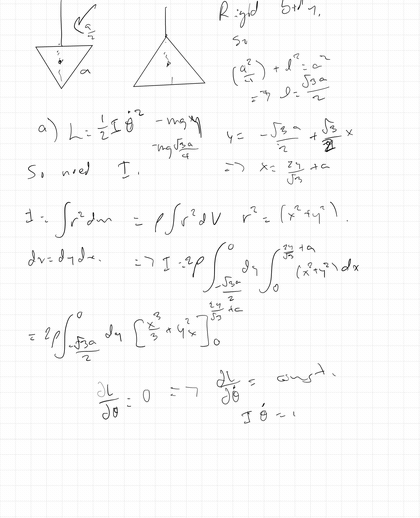

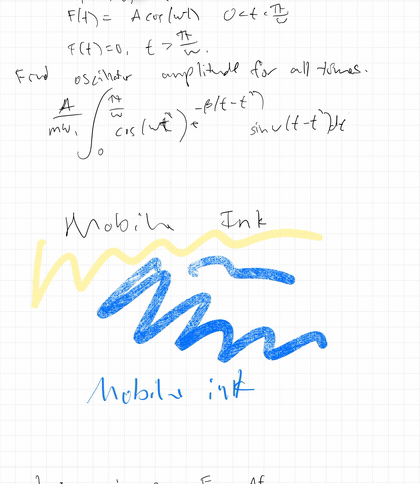

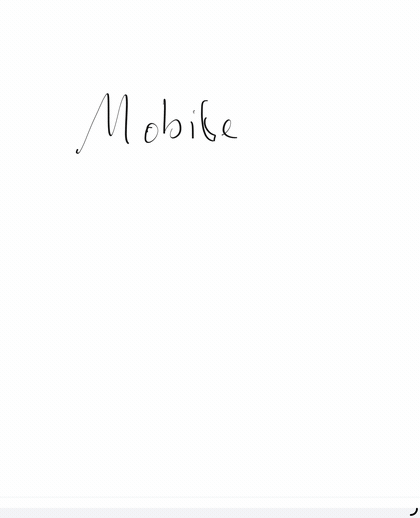

Drawing and tools	Selection	Large notebook interaction

Full clips: drawing, tools, and shapes, selection editing, large notebook performance.

Install

npm install @mathnotes/mobile-ink \
  @shopify/react-native-skia \
  react-native-gesture-handler \
  react-native-reanimated \
  react-native-worklets
cd ios && pod install

For Expo apps, use a dev client or prebuild. Expo Go cannot load this native module.

Your app Babel config must include the Reanimated/Worklets plugin expected by your React Native/Reanimated version. For Expo SDK 54/Reanimated 4:

module.exports = function(api) {
  api.cache(true);
  return {
    presets: ['babel-preset-expo'],
    plugins: ['react-native-worklets/plugin'],
  };
};

Quickstart

import React, { useRef, useState } from 'react';
import { SafeAreaView } from 'react-native';
import {
  InfiniteInkCanvas,
  type ContinuousEnginePoolToolState,
  type InfiniteInkCanvasRef,
} from '@mathnotes/mobile-ink';

export function Notebook() {
  const canvasRef = useRef<InfiniteInkCanvasRef | null>(null);
  const [toolState, setToolState] = useState<ContinuousEnginePoolToolState>({
    toolType: 'pen',
    width: 3,
    color: '#111111',
    eraserMode: 'pixel',
  });

  return (
    <SafeAreaView style={{ flex: 1 }}>
      <InfiniteInkCanvas
        ref={canvasRef}
        style={{ flex: 1 }}
        toolState={toolState}
        backgroundType="plain"
        fingerDrawingEnabled={false}
        onDrawingChange={() => {
          // Trigger your own save/debounce pipeline here.
        }}
      />
    </SafeAreaView>
  );
}

Public Surface

• NativeInkCanvas: low-level native Skia/Metal drawing view.
• ZoomableInkViewport: production pinch, pan, momentum, focal-point zoom, and Apple Pencil/finger gesture routing.
• ContinuousEnginePool: fixed-size native canvas pool for continuous notebooks.
• InfiniteInkCanvas: full vertical continuous notebook shell with pooled native engines, trailing page creation, dirty-page serialization, zoom, momentum scroll, and generic page backgrounds.
• Native bridge helpers for page export, native notebook body parse, and continuous-window compose/decompose.
• Pure utilities for continuous coordinates, engine-pool range calculation, notebook serialization, and page growth.

Example App

The example/ folder is an Expo dev-client app that exercises the reusable canvas stack, not a MathNotes screen. It demos the full continuous canvas path: pencil drawing with finger navigation by default, optional draw-with-finger mode, pinch zoom, momentum scroll, engine-pool page assignment, MathNotes-style one-page trailing blank growth, tools, selection, and local save/reload on a blank page background.

cd example
npm install
npx expo run:ios --device

For a simulator:

npx expo run:ios

Documentation

• Architecture
• API Reference
• Publishing Checklist
• Media Capture Guide

Development

npm ci
npm run typecheck
npm test
npm run test:native:smoke
npm run build
npm pack --dry-run --ignore-scripts
npm ci --prefix example
npm run test:example:typecheck
npm run test:example:export:ios

npm run build creates lib/ for npm packaging. The React Native entry still points at src/index.ts so Metro can transform worklet directives with the consuming app's Babel config.

License

Apache-2.0. Copyright BuilderPro LLC.
