Shape borders and text not displaying properly.

[ACVida]

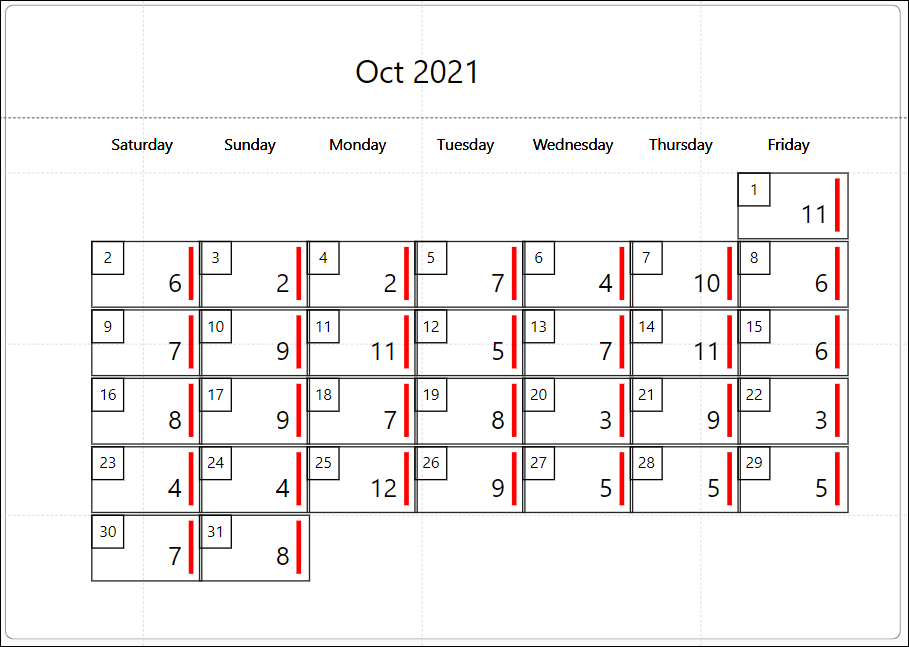

I have created a custom Calendar visual using Charticulator. The idea is to display the days of the month in a calendar format, where dates with same day of the week falls on the same column, ordered horizontally by day of the week and vertically by the week number in the month. This is how it looks like in the Charticulator website after development:

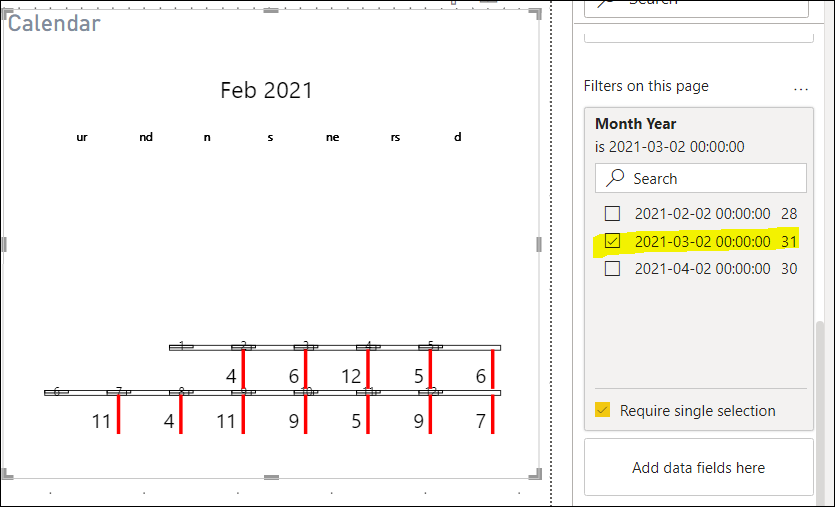

But when it is being used, it does not work properly. If you open the pbix file in the zip file, in the “Calendar” page, this visual is not working properly. This is how it looks like in the PBI desktop:

The issues are:
• The visual does not show borders of the shapes properly.
• It does not display the days of the week at the top properly.
• Although the month selected is Mar 2021, the month is wrong (it is off by 1) on the title (Feb 2021).

Are you able to identify what's wrong with it? there is not much resources in the internet to check what could be the issue.

I have also attached the PBI file, the template file and the pbiviz file.

Thank you.

Calendar.zip

[zBritva]

The bottom of "Shape1" wasn't bound to guide:

The same issue for bottom of "Shape2"

You must bind them to some guide or set width and height for shapes.

You did it correctly for "Shape3"

Without binding objects to other objects or guides sets constraints for those objects otherwise Charticulator solver gives any arbitrary values to object attributes.

[ACVida]

Thanks, I will try that.
Do you have any comment about the month-year on the title, as it is off by one compared with the underlying data? Also, regarding the expressions used inside Charticulator, are these expressions similar to SSRS, VBA, M, DAX, or completely separate /distinct and new?
