As ORTModule should match the behavior of nn.module, we don't need to explicitly introduce a cudaStreamSync at the end of each subgraph execution.

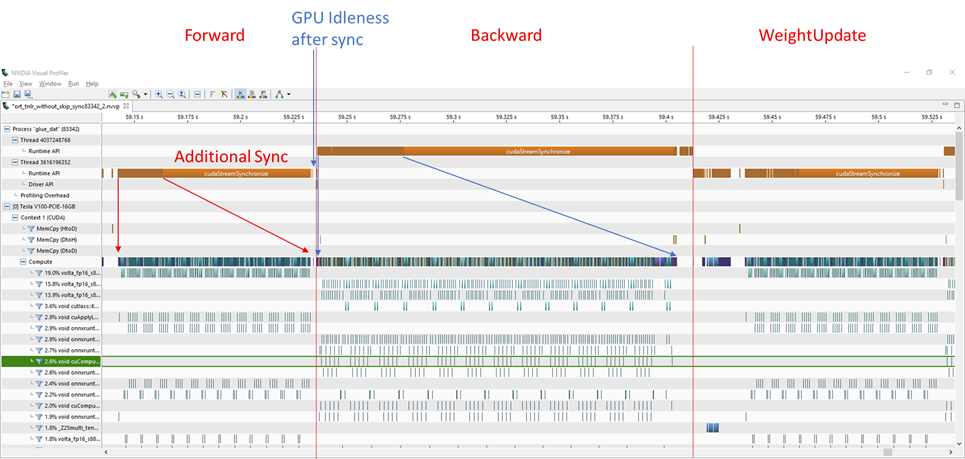

Addition cudaStreamSync at the end of forward
As shown in the profiling result below, ORTModule run has an extra “cudaStreamSync” call at the end of forward section. This was introduced as the finalizing step for InferenceSession::PartialRun(). This behavior is copied from original InferenceSession::Run() code when we implemented PartialRun executor.
However, PyTorch would automatically introduce “cudaStreamSync” if following CPU computation has dependency on a GPU tensor. In another word, ORT doesn’t need to introduce this call explicitly.

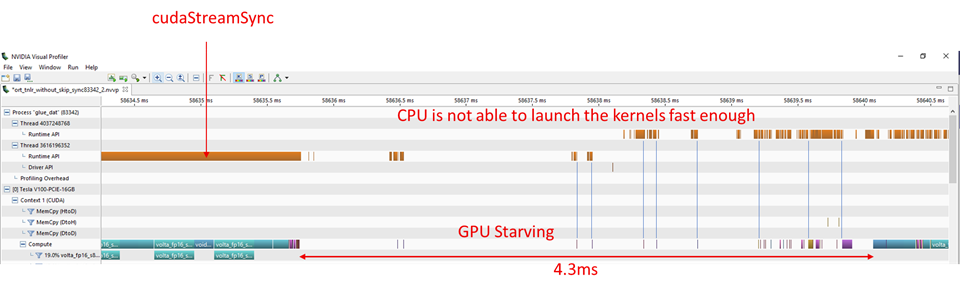

Warmup Patterns after cudaStreamSync
As we zoom in to the time segment following cudaStreamSync call, we can see a time window lasting ~4ms that GPU is barely utilized. As the tasks in compute stream are depleted with cudaStreamSync call, CPU needs to refill the compute stream from scratch. This resulted in the GPU starvation, as CPU is not able to launch the kernels fast enough, worsen by the fact that the scheduled kernels are short to complete (<10us). The starving situation is eventually relieved when a larger kernel kicks in, taking up >100 us, giving time for CPU to catch up with the scheduling work.
