[cairomm][pangomm]The include pathes are wrong

[yonaka]

Describe the bug

Includes below do not work.

#include <cairomm/cairomm.h>
#include <pangomm.h>

Ones below, which are unusual, do work.

#include <cairomm-1.16/cairomm/cairomm.h>
#include <pangomm-2.48/pangomm.h>

Environment

• OS: Windows 10 20H2
• Compiler: Visual Studio 2019 16.10.3

To Reproduce
See the description above.

Expected behavior
The code below should not emit any error.

#include <cairomm/cairomm.h>
#include <pangomm.h>

Additional context
A page below reads the include should be #include <pangomm.h>
https://developer.gnome.org/pangomm/stable/

I suppose some github searches indicate the include of cairomm.h should be #include <cairomm/cairomm.h>.

In addition, please check pango, glibmm and geomm packages.

[yonaka]

Possibly relating to: #18760
At least, the minor version numbers should not be included in the path.

[NancyLi1013]

Hi yonaka

Thanks for posting this issue.
For the include path, please see the comments here #18760 (comment).

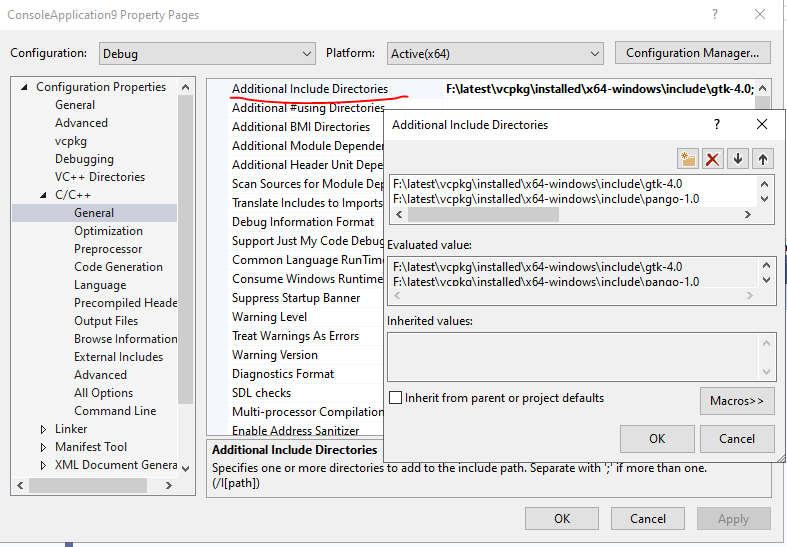

I think this is the same problem with which in #18760. You should add the path to your project manually. For example,

Then you can include the headers without the directory that has the version, such as cairomm-1.16 and pangomm-2.48.

[yonaka]

NancyLi1013
Thank you for the workaround.

It means each time the library is updated we will have to change the include directory project setting, e.g. cairomm-1.62 to cairomm-1.63. This is unreasonable.
These directory names should be cairomm or cairomm-1 rather than cairomm-1.62 and pangomm or pangomm-2 rather than pangomm-2.48, I suppose.
If we were to need to be able to use cairomm version 1.x and 2.x simultaneously (in future), it should be cairomm-1 rather than cairomm.

[Alexander Neumann (Neumann-A)]

yonaka If you would use CMake or Meson you wouldn't have those problems since the pc file contains the info for the include folders. The MSBuild integration is not clever enough to setup "usage" include folders. The folder structure itself is given by upstream.

[yonaka]

I asume this is a correct ExternalIncludePath setting to compile #include <pangomm.h> successfully with MSBuild (Visual Studio):

$(VCPkgRoot)\installed\$(LibrariesArchitecture)-windows\include\cairo\;$(VCPkgRoot)\installed\$(LibrariesArchitecture)-windows\include\harfbuzz\;$(VCPkgRoot)\installed\$(LibrariesArchitecture)-windows\include\pango-1.0\;$(VCPkgRoot)\installed\$(LibrariesArchitecture)-windows\include\sigc++-3.0\;$(VCPkgRoot)\installed\$(LibrariesArchitecture)-windows\include\giomm-2.68\;$(VCPkgRoot)\installed\$(LibrariesArchitecture)-windows\include\glibmm-2.68\;$(VCPkgRoot)\installed\$(LibrariesArchitecture)-windows\include\cairomm-1.16\;$(VCPkgRoot)\installed\$(LibrariesArchitecture)-windows\include\pangomm-2.48\;$(VCPkgRoot)\installed\$(LibrariesArchitecture)-windows\include\glib-2.0\;$(VCPkgRoot)\installed\$(LibrariesArchitecture)-windows\lib\pangomm-2.48\include\;$(VCPkgRoot)\installed\$(LibrariesArchitecture)-windows\lib\giomm-2.68\include\;$(VCPkgRoot)\installed\$(LibrariesArchitecture)-windows\lib\sigc++-3.0\include\;$(VCPkgRoot)\installed\$(LibrariesArchitecture)-windows\lib\cairomm-1.16\include\;$(VCPkgRoot)\installed\$(LibrariesArchitecture)-windows\lib\glib-2.0\include\;$(VCPkgRoot)\installed\$(LibrariesArchitecture)-windows\lib\glibmm-2.68\include\;$(ExternalIncludePath)

This is annoying.

[nakag2020]

Also possibly relating to: #17702 #17537

[Alexander Neumann (Neumann-A)]

yonaka You probably can shorten it by using $(_ZVcpkgCurrentInstalledDir)$(VcpkgConfigSubdir) instead of $(VCPkgRoot)\installed\$(LibrariesArchitecture)-windows. The former also works with custom triplets.

[yonaka]

Alexander Neumann (@Neumann-A) Thank you for the info.

$(_ZVcpkgCurrentInstalledDir)$(VcpkgConfigSubdir)\include\cairo\;$(_ZVcpkgCurrentInstalledDir)$(VcpkgConfigSubdir)\include\harfbuzz\;$(_ZVcpkgCurrentInstalledDir)$(VcpkgConfigSubdir)\include\pango-1.0\;$(_ZVcpkgCurrentInstalledDir)$(VcpkgConfigSubdir)\include\sigc++-3.0\;$(_ZVcpkgCurrentInstalledDir)$(VcpkgConfigSubdir)\include\giomm-2.68\;$(_ZVcpkgCurrentInstalledDir)$(VcpkgConfigSubdir)\include\glibmm-2.68\;$(_ZVcpkgCurrentInstalledDir)$(VcpkgConfigSubdir)\include\cairomm-1.16\;$(_ZVcpkgCurrentInstalledDir)$(VcpkgConfigSubdir)\include\pangomm-2.48\;$(_ZVcpkgCurrentInstalledDir)$(VcpkgConfigSubdir)\include\glib-2.0\;$(_ZVcpkgCurrentInstalledDir)$(VcpkgConfigSubdir)\lib\pangomm-2.48\include\;$(_ZVcpkgCurrentInstalledDir)$(VcpkgConfigSubdir)\lib\giomm-2.68\include\;$(_ZVcpkgCurrentInstalledDir)$(VcpkgConfigSubdir)\lib\sigc++-3.0\include\;$(_ZVcpkgCurrentInstalledDir)$(VcpkgConfigSubdir)\lib\cairomm-1.16\include\;$(_ZVcpkgCurrentInstalledDir)$(VcpkgConfigSubdir)\lib\glib-2.0\include\;$(_ZVcpkgCurrentInstalledDir)$(VcpkgConfigSubdir)\lib\glibmm-2.68\include\;$(ExternalIncludePath)

Aside from the length of the settings, it is tedious to have to figure out by trial and error what paths are needed to make just a #include <pangomm.h> compiled successfully.

[yonaka]

Correction: $(_ZVcpkgCurrentInstalledDir)$(VcpkgConfigSubdir).. does not work somehow. This seems OK on the property window but does not compile.

[Alexander Neumann (Neumann-A)]

use only $(_ZVcpkgCurrentInstalledDir)/include for includes. $(_ZVcpkgCurrentInstalledDir)$(VcpkgConfigSubdir)/include does not exists in for debug configurations. Basically only use $(VcpkgConfigSubdir) for the lib subfolder

[yonaka]

Could you show me the example settings?
