Bad layout when using native title bar on Windows

[Tyriar]

VS Code version: Code - Insiders 1.38.0-insider (c8d44e2, 2019-08-19T12:53:53.607Z)
OS version: Windows_NT x64 10.0.18956
Remote OS version: Linux x64 4.15.0-55-generic

System Info

Item	Value
CPUs	Intel(R) Xeon(R) CPU E5-1620 v4 @ 3.50GHz (8 x 3492)
GPU Status	2d_canvas: enabled flash_3d: enabled flash_stage3d: enabled flash_stage3d_baseline: enabled gpu_compositing: enabled multiple_raster_threads: enabled_on native_gpu_memory_buffers: disabled_software oop_rasterization: unavailable_off protected_video_decode: unavailable_off rasterization: unavailable_off skia_deferred_display_list: disabled_off skia_renderer: disabled_off surface_synchronization: enabled_on video_decode: enabled viz_display_compositor: disabled_off webgl: enabled webgl2: enabled
Load (avg)	undefined
Memory (System)	63.92GB (44.07GB free)
Process Argv
Screen Reader	no
VM	0%

Item	Value
Remote	SSH: ubuntu
OS	Linux x64 4.15.0-55-generic
CPUs	Intel(R) Xeon(R) CPU E5-1620 v4 @ 3.50GHz (4 x 3491)
Memory (System)	10.79GB (0.86GB free)
VM	0%

Extensions (14)

Extension	Author (truncated)	Version
vscode-svgviewer	css	2.0.0
EditorConfig	Edi	0.13.0
vscode-pull-request-github-insiders	Git	2019.8.19623
vscode-docker	ms-	0.7.0
remote-containers	ms-	0.67.4
remote-ssh-edit-nightly	ms-	2019.8.26820
remote-ssh-explorer-nightly	ms-	2019.8.26820
remote-ssh-nightly	ms-	2019.8.26820
remote-wsl	ms-	0.39.3
vscode-typescript-tslint-plugin	ms-	1.2.2
debugger-for-chrome	msj	4.11.7
material-icon-theme	PKi	3.8.1
vscode-terminal-api-example	vsc	0.0.1
vscode-todo-highlight	way	1.0.4

(2 theme extensions excluded)

[Tyriar]

Happened again, this was in a workspace I haven't opened in a while:

Version: 1.38.0-insider (user setup)
Commit: c8d44e2
Date: 2019-08-19T12:53:53.607Z
Electron: 4.2.9
Chrome: 69.0.3497.128
Node.js: 10.11.0
V8: 6.9.427.31-electron.0
OS: Windows_NT x64 10.0.18956

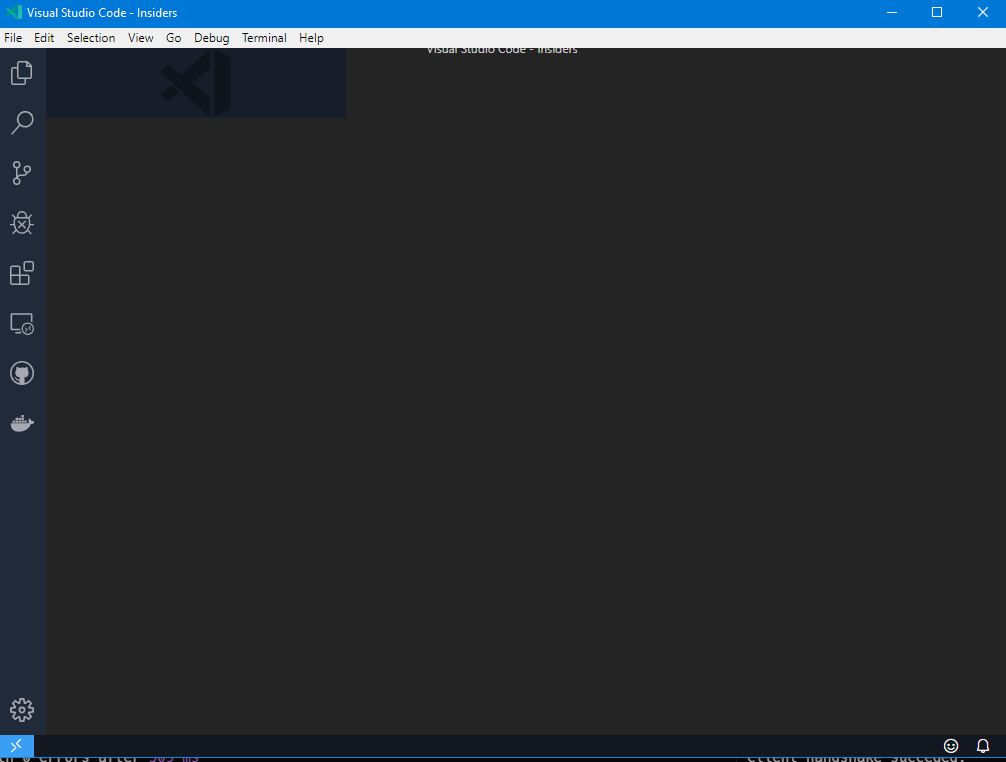

Resizing the window didn't fix it completely, the panel and sidebar are visible but nothing is active:

[sbatten]

I've tried using the native titlebar with a bunch of my old workspaces and haven't been able to repro, yet. I'm hoping someone else can repro this.

[Tyriar]

Just happened again when I opened the first new window of the morning. Successive new windows don't show the problem though.

[sbatten]

/duplicate #79580

[vscodebot]

Thanks for creating this issue! We figured it's covering the same as another one we already have. Thus, we closed this one as a duplicate. You can search for existing issues here. See also our issue reporting guidelines.

Happy Coding!

[Tyriar]

@sbatten while related, it might be a different issue? The status bar was affected for #79580 but not this

[Tyriar]

In console:

ERR Cannot read property 'toString' of undefined: TypeError: Cannot read property 'toString' of undefined
    at Object.t.asCSSUrl (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:266:660)
    at new k (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:5252:198)
    at d._createInstance (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:1476:255)
    at d.createInstance (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:1475:676)
    at e.getCompositeActions (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:5272:96)
    at Object.getActivityAction (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:5267:767)
    at Object.get activityAction [as activityAction] (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:5264:607)
    at e.forEach (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:5262:54)
    at Array.forEach (<anonymous>)
    at S.updateCompositeSwitcher (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:5261:760)
    at S.layout (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:5258:111)
    at e.layout (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:5274:454)
    at v.layout (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:489:535)
    at m.layoutView (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:462:813)
    at m.layout (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:463:66)
    at viewItems.forEach.e (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:474:814)
    at Array.forEach (<anonymous>)
    at b.layoutViews (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:474:801)
    at b.layout (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:468:921)
    at f.layout (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:482:685)
    at p.layoutView (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:462:813)
    at p.layout (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:462:981)
    at viewItems.forEach.e (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:474:814)
    at Array.forEach (<anonymous>)
    at b.layoutViews (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:474:801)
    at b.layout (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:468:921)
    at f.layout (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:482:685)
    at b.layout (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:491:106)
    at b.layout (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:499:88)
    at b.layout (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:504:895)
    at W.layout (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:5393:265)
    at W.<anonymous> (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:5403:437)
    at Generator.next (<anonymous>)
    at file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:35:566
    at new Promise (<anonymous>)
    at n (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:35:343)
    at e.invokeFunction.t (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:5403:79)
    at d.invokeFunction (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:1475:444)
    at W.startup (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:5403:61)
    at Q.<anonymous> (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:5931:430)
    at Generator.next (<anonymous>)
    at r (file:///C:/Users/daimms.REDMOND/AppData/Local/Programs/Microsoft VS Code Insiders/resources/app/out/vs/workbench/workbench.desktop.main.js:35:399)

[Tyriar]

[Tyriar]

asDomUri returning undefined:

vscode/src/vs/base/browser/dom.ts

Lines 1191 to 1199 in 6e43f06

	export function asDomUri(uri: URI): URI {
	if (!uri) {
	return uri;
	}
	if (Schemas.vscodeRemote === uri.scheme) {
	return RemoteAuthorities.rewrite(uri.authority, uri.path);
	}
	return uri;
	}

[sbatten]

@alexandrudima looks like this could be caused by 623855b
