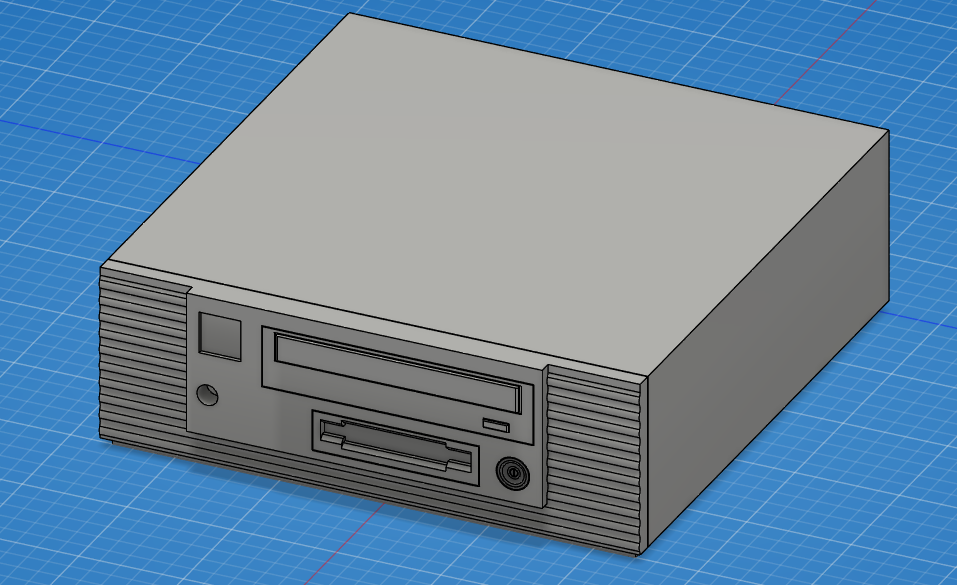

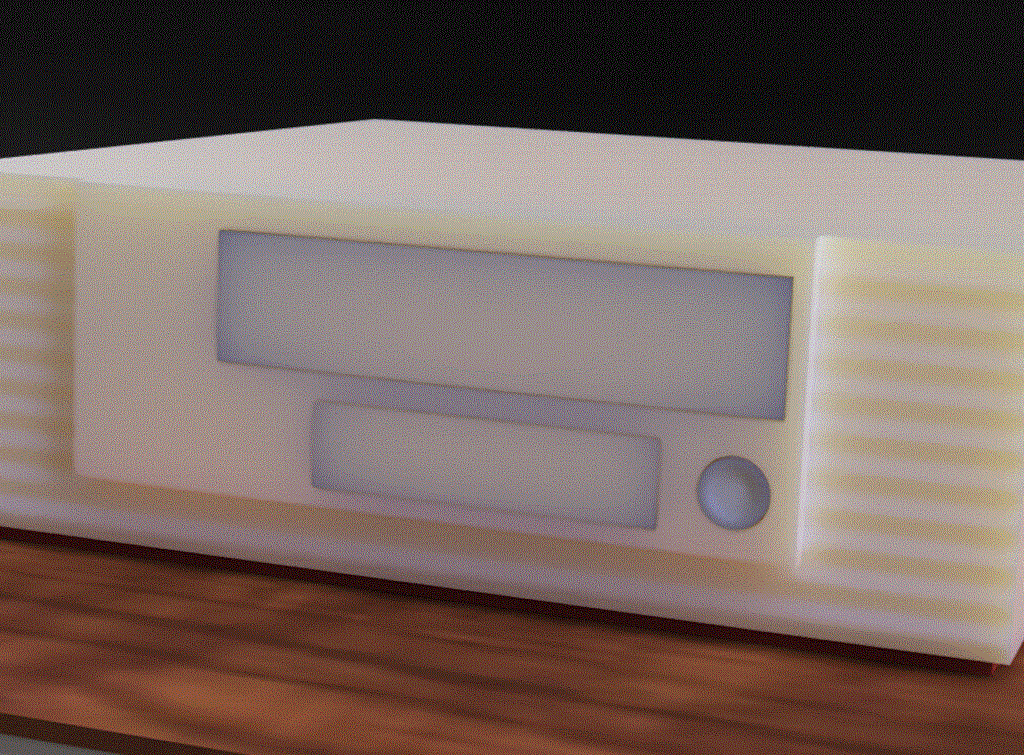

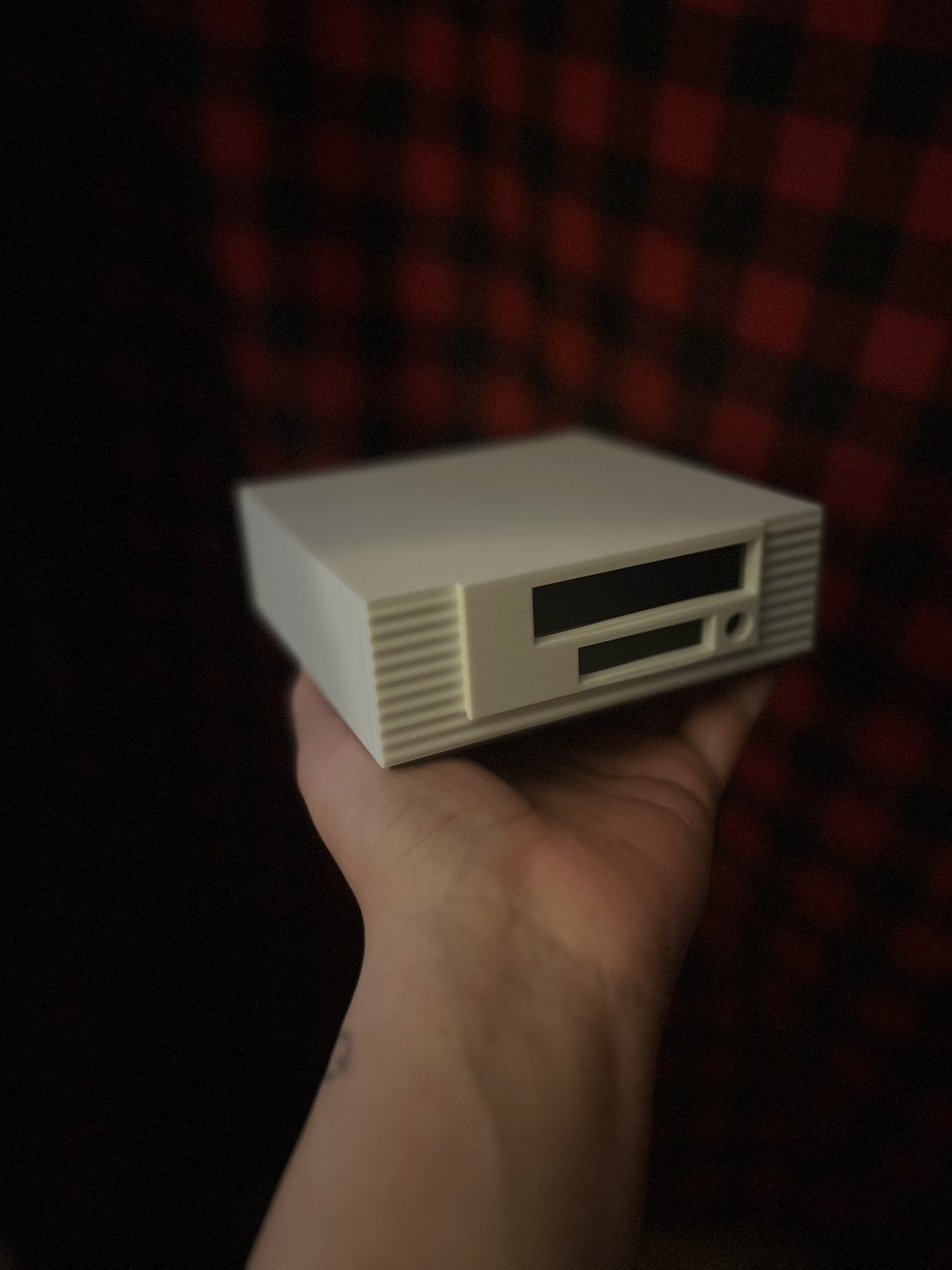

Packard Bell Legend 2CD / 2000 Raspberry Pi Case (or WYSE 3040)
2.22.23 - added STL files for this monitor! Built on the Eyoyo 5" LCD, uses m2 2.5mm screws to hold the front and back together, and the LCD is mounted by removing it's screws and front bezel, and using this model as the new front bezel, and using it's screws or m3 screws to mount from the outside.
12.29.22 - added an All in one version of the top case that has the 5.25 and 3.5 bays filled, instead of seperate prints.
- 8mm hole on right either fits button model or an 8mm panel mount switch.
- 5mm hole on left is for LED.
- 1cm x 1cm indent on left intended for tiny case badge.
- added a WYSE bottom case file, for using a Dell WYSE 3040 motherboard instead of a raspberry Pi.

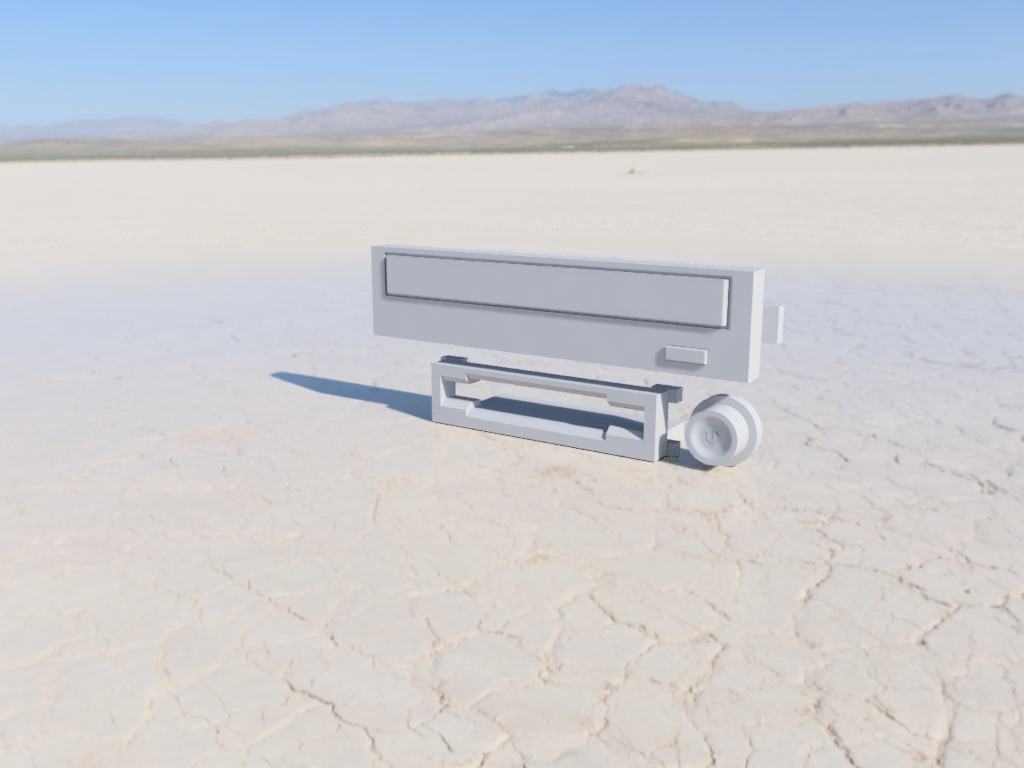

button, cdrom and floppy updated
floppy will hold a full size SD card adapter to the Pi's microSD
