TableCellConfigurator

Library for quick and easy creation of UITableViewCell's in a platform-standard style

Features

The library requires a dependency AppViewUtilits.
Supported cell types:

• ℹ️ Link cell
• ℹ️ Button cell
• ℹ️ Switch cell
• ℹ️ Text content cell
• ℹ️ Select values cell
• ℹ️ Checkmark cell
• ℹ️ Date picker cell
• ℹ️ Input field cell

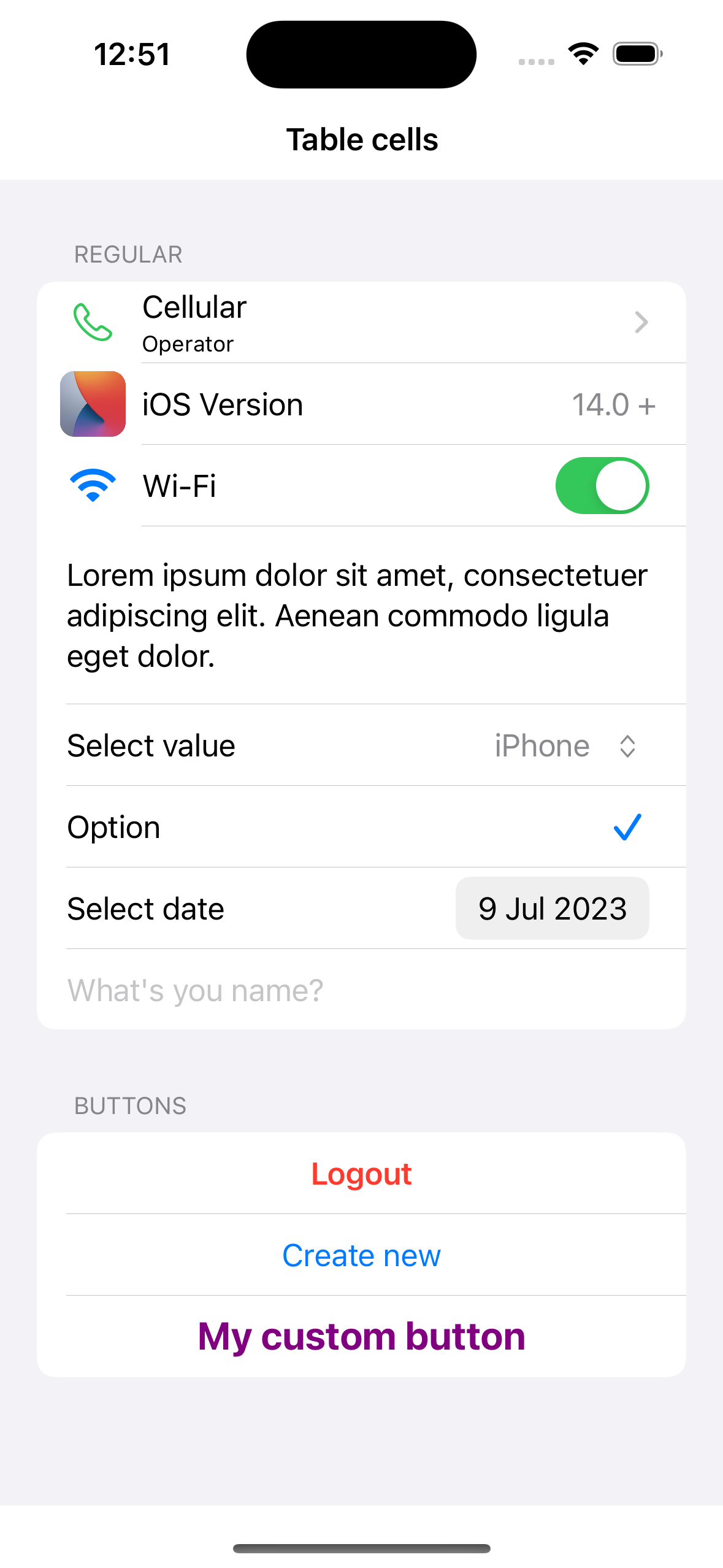

Example

The example application is the best way to see TableCellConfigurator in action. Simply open the TableCellConfigurator.xcodeproj and run the Example scheme.

Installation

Swift Package Manager

To integrate using Apple's Swift Package Manager, add the following as a dependency to your Package.swift:

dependencies: [
    .package(url: "https://github.com/moslienko/TableCellConfigurator.git", from: "1.0.1")
]

Alternatively navigate to your Xcode project, select Swift Packages and click the + icon to search for TableCellConfigurator.

Manually

If you prefer not to use any of the aforementioned dependency managers, you can integrate TableCellConfigurator into your project manually. Simply drag the Sources Folder into your Xcode project.

Usage

Table setup

import AppViewUtilits
import TableCellConfigurator

Connect cells:

self.tableView.registerCellClass(RegularCell.self)
self.tableView.registerCellClass(InputCell.self)

Models:

private var models: [[AppViewCellIdentifiable]] = []

UITableViewDataSource:

func tableView(_ tableView: UITableView, cellForRowAt indexPath: IndexPath) - > UITableViewCell {
   guard let model = models[safe: indexPath.section]?[safe: indexPath.row] else {
		return UITableViewCell()
    }
    if let model = model as ? RegularCellModel {
        let cell = tableView.dequeueReusableCell(with: RegularCell.self,
            for: indexPath)
        cell.cellModel = model
        return cell
    } else if let model = model as ? InputCellModel {
        let cell = tableView.dequeueReusableCell(with: InputCell.self,
            for: indexPath)
        cell.cellModel = model
        return cell
    }

    return UITableViewCell()
}

Actions on tap:

 func tableView(_ tableView: UITableView, didSelectRowAt indexPath: IndexPath) {
    if let cellModel = models[safe: indexPath.section]?[safe: indexPath.row] as ? RegularCellModel,
        cellModel.type.isAllowLink {
            cellModel.action ? ()
            tableView.deselectRow(at: indexPath, animated: true)
        }
}

Link cell

static func createDefault(title: String, subtitle: String?, icon: UIImage?, style: UITableViewCell.CellStyle, accessoryType: UITableViewCell.AccessoryType, action: Callback?) -> RegularCellModel

Example:

 let model = RegularCellModel.createDefault(
    title: "Cellular",
    subtitle: "Operator",
    icon: UIImage(systemName: "phone"),
    style: .default,
    accessoryType: .disclosureIndicator) {

}

Button cell

static func createActionButton(title: String, style: CellActionButtonStyle, isInteractiveEnabled: Bool, action: Callback?) -> RegularCellModel

There are the following styles for the button - two with preset styles and one with customisation:

enum CellActionButtonStyle {
    case accent
    case danger
    case custom(color: UIColor, textAlignment: UIListContentConfiguration.TextProperties.TextAlignment, font: UIFont)
}

Example:

let model = RegularCellModel.createActionButton(
    title: "Create new",
    style: .accent,
    isInteractiveEnabled: true) {}

Switch cell

static func createSwitch(title: String, icon: UIImage? = nil, isOn: Bool, onChange: DataCallback<Bool>?) -> RegularCellModel

Example:

var isActiveWifi = true
 ...
let model = RegularCellModel.createSwitch(
    title: "Wi-Fi",
    icon: UIImage(systemName: "wifi"),
    isOn: isActiveWifi) { val in
        self.isActiveWifi = val
}

Text content cell

Cell with multi-line text.
Example:

let model = RegularCellModel(
    title: "Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Aenean commodo ligula eget dolor.",
    type: .textContent
)

Select values cell

Clicking on a cell opens a menu with a list of values.

func createSelectValues(title: String, selectingValue: String?, icon: UIImage?, contextMenu: UIMenu) -> RegularCellModel

Example:

let values = ["iPhone", "iPad", "Apple Watch", "Apple Vision Pro", "Mac"]
var selectingValue: String?
 ...
let model = RegularCellModel.createSelectValues(
    title: "Select value",
    selectingValue: selectingValue,
    icon: nil,
    contextMenu: createMenuForSelectingValues()
)
...
func createMenuForSelectingValues() - > UIMenu {
    UIMenu(title: "", children: self.values.map({ item in
        UIAction(title: item, handler: { [weak self] _ in
            self?.selectingValue = item
            self?.reloadData()
        })
    }))
}

Checkmark cell

Example:

var isActiveOption = true
...
let model = RegularCellModel(
    title: "Option",
    type: .checkmark,
    style: .default,
    isOn: isActiveOption) {
    self.isActiveOption.toggle()
}

Date picker cell

static func createDatePicker(title: String, date: Date?, onChange: DataCallback<Date>?) -> RegularCellModel

Example:

var selectedDate: Date?
...
let model = RegularCellModel.createDatePicker(
    title: "Select date",
    date: selectedDate,
    onChange: { value in
        self.selectedDate = value
        self.reloadData()
    }
)

RegularCellOptions

Some internal parameters can be changed by accessing RegularCellOptions

public struct RegularCellOptions {
    public var tintColor: UIColor
    public var layoutMargins: UIEdgeInsets
    public var iconSize: CGSize
    public var imageToTextPadding: CGFloat
}

Example:

model.options.tintColor = .red

Input field cell

var nameValue: String?
...
let model = InputCellModel(
	text: nameValue,
	placeholder: "What's you name?",
	isInteractiveEnabled: true,
	maxLimit: 64,
	valueChanged: { value in
		self.nameValue = value
	}, valueFinishChanged: { value in

	}
)

InputCellOptions

Some internal parameters can be changed by accessing InputCellOptions

public struct InputCellOptions {
    public var tintColor: UIColor
    public var activeColor: UIColor
    public var disabledColor: UIColor
    public var layoutMargins: UIEdgeInsets
}

Example:

model.options.tintColor = .red

Make cell untouchable

model.isInteractiveEnabled = false
