Supervised Machine Learning

Among the two pre-eminent supervised and unsupervised machine learning techniques, classification is a popular method of the supervised algorithms -- where labeled examples of prior instances by humans can guide the training of a machine. Below, we introduce classfication with a few hands-on examples.

Agenda

Public Datasets

There are numerous ML datasets for explorations in the public domain: contributed by many commercial and academic organizations. A few examples below.

Models & Notebooks

There are even more contributions of prebuilt/open-source models (some represented as notebooks) in the open domain. Here, a few examples --

Pandas, Scikit, BQML, AutoML

Previously, in BQML model, we developed in-database classification model directly in the big query data warehouse, so continuous training, continuous scoring methods are totally opaque, managed, and seamless to consumers.

-- Jump to https://console.cloud.google.com/bigquery?project=project-dynamic-modeling&p=project-dynamic-modeling
-- and key the model as following
CREATE OR REPLACE MODEL
 `bqml_tutorial.cardio logistic_model` OPTIONS
   (model type='LOGISTIC REG',
    auto_class_weights=TRUE,
    input_label_cols=['cardio']) AS
  SELECT age, gender, height, weight, ap_hi,
    ap_lo, cholesterol, gluc, smoke,
    alco, active, cardio
  FROM `project-dynamic-modeling.cardio_disease.cardio_disease`

There is also a managed service in Google Cloud Platform (GCP) -- called AutoML tables -- which provides a total seamless experience for citizen data science.


Today, we focus on the middle: building the classification model from the start. Specifically, we will be using the Google Colab (a freemium JuPyteR notebook service for Julia, Python and R) to ingest, shape, explore, visualize, and model data.

There is also a managed JupyterHub environment offered by Google (called AI Notebooks) that we will utilize later.

Garfield TVitcharoo Trivia

Garfield lays down in the evening to watch TV. I think his biometrics and activity choices during the day are indicative of his TV propensity at night. Do you see a pattern in this data?

import pandas as pd

garfield_biometrics = pd.read_csv('https://drive.google.com/uc?export=download&id=1_pOxAYnUWZ0FNdVnPMdkBo0WEgfMZLy0').\
 applymap(lambda x: x if x is not None and str(x).lower() != 'nan' else None)
garfield_biometrics.head(25)
Day 8AM 9AM 10AM 11AM Noon Lunch Bill 1PM 2PM 3PM 4PM 5PM Commute DayOfWeek WatchTV
0 1-Jan-21 Coffee 6 6 0 Sandwich 7.35 9 8 5 Tea 2 Long Mon Yes
1 2-Jan-21 Doughnut 2 5 5 Lenthils 3.02 3 4 3 PingPong 0 Short Tue No
2 3-Jan-21 Coffee 7 10 9 Taco 4.50 0 4 3 PingPong 7 Short Wed No
3 4-Jan-21 Coffee 9 7 8 Sandwich 7.35 2 6 2 PingPong 5 Short Thu Yes
4 5-Jan-21 Doughnut 3 10 3 Sandwich 7.35 0 7 6 Tea 7 Long Fri Yes
5 6-Jan-21 Sandwich 9 9 1 Lenthils 2.98 5 7 10 Coffee 10 Short Sat No
6 7-Jan-21 Doughnut 3 10 7 Lenthils 2.80 10 6 1 Coffee 6 Short Mon No
7 8-Jan-21 Coffee 3 0 6 Taco 4.40 8 5 3 Tea 6 Short Tue No
8 9-Jan-21 Sandwich 5 4 7 Lenthils 2.98 2 1 3 PingPong 5 Short Wed No
9 10-Jan-21 Coffee 6 10 1 Taco 5.00 4 3 5 Workout 0 Short Thu Yes
10 11-Jan-21 Doughnut 7 9 8 Sandwich 7.35 1 4 4 Workout 3 Long Fri Yes
11 12-Jan-21 Sandwich 9 6 7 Sandwich 7.39 10 7 3 Workout 5 Long Sat Yes
12 13-Jan-21 Sandwich 8 10 7 Taco 4.50 9 0 3 PingPong 1 Short Mon No
13 14-Jan-21 Doughnut 2 2 2 Sandwich 7.25 9 4 4 Tea 9 Short Tue Yes
14 15-Jan-21 Coffee 5 9 5 Taco 4.60 8 0 3 Coffee 10 Short Wed Yes
15 16-Jan-21 Coffee 6 0 1 Lenthils 3.20 4 10 3 PingPong 6 Short Thu No
16 17-Jan-21 Sandwich 0 9 5 Sandwich 7.45 0 6 3 PingPong 3 Short Fri Yes
17 18-Jan-21 Doughnut 2 0 4 Taco 4.80 8 5 5 Coffee 2 Long Sat Yes
18 19-Jan-21 Coffee 5 7 6 Taco 4.75 9 6 10 Workout 5 Short Mon No
19 20-Jan-21 Coffee 6 0 2 Sandwich 7.35 6 7 4 Workout 6 Short Tue None
20 21-Jan-21 Coffee 9 9 3 Lenthils 2.79 6 9 4 PingPong 9 Long Wed None

Pandas

pandas is an open source, BSD-licensed library providing high-performance, easy-to-use data structures and data analysis tools for the Python programming language. It was developed by Wes McKinney in 2008.

import pandas as pd

# Fetch data from URL
# Of course, pandas can fetch data from many other sources like SQL databases, Files, Cloud etc
garfield_biometrics = pd.read_csv('https://drive.google.com/uc?export=download&id=1_pOxAYnUWZ0FNdVnPMdkBo0WEgfMZLy0').\
 applymap(lambda x: x if x is not None and str(x).lower() != 'nan' else None)
display(garfield_biometrics)
Day 8AM 9AM 10AM 11AM Noon Lunch Bill 1PM 2PM 3PM 4PM 5PM Commute DayOfWeek WatchTV
0 1-Jan-21 Coffee 6 6 0 Sandwich 7.35 9 8 5 Tea 2 Long Mon Yes
1 2-Jan-21 Doughnut 2 5 5 Lenthils 3.02 3 4 3 PingPong 0 Short Tue No
2 3-Jan-21 Coffee 7 10 9 Taco 4.50 0 4 3 PingPong 7 Short Wed No
3 4-Jan-21 Coffee 9 7 8 Sandwich 7.35 2 6 2 PingPong 5 Short Thu Yes
4 5-Jan-21 Doughnut 3 10 3 Sandwich 7.35 0 7 6 Tea 7 Long Fri Yes
5 6-Jan-21 Sandwich 9 9 1 Lenthils 2.98 5 7 10 Coffee 10 Short Sat No
6 7-Jan-21 Doughnut 3 10 7 Lenthils 2.80 10 6 1 Coffee 6 Short Mon No
7 8-Jan-21 Coffee 3 0 6 Taco 4.40 8 5 3 Tea 6 Short Tue No
8 9-Jan-21 Sandwich 5 4 7 Lenthils 2.98 2 1 3 PingPong 5 Short Wed No
9 10-Jan-21 Coffee 6 10 1 Taco 5.00 4 3 5 Workout 0 Short Thu Yes
10 11-Jan-21 Doughnut 7 9 8 Sandwich 7.35 1 4 4 Workout 3 Long Fri Yes
11 12-Jan-21 Sandwich 9 6 7 Sandwich 7.39 10 7 3 Workout 5 Long Sat Yes
12 13-Jan-21 Sandwich 8 10 7 Taco 4.50 9 0 3 PingPong 1 Short Mon No
13 14-Jan-21 Doughnut 2 2 2 Sandwich 7.25 9 4 4 Tea 9 Short Tue Yes
14 15-Jan-21 Coffee 5 9 5 Taco 4.60 8 0 3 Coffee 10 Short Wed Yes
15 16-Jan-21 Coffee 6 0 1 Lenthils 3.20 4 10 3 PingPong 6 Short Thu No
16 17-Jan-21 Sandwich 0 9 5 Sandwich 7.45 0 6 3 PingPong 3 Short Fri Yes
17 18-Jan-21 Doughnut 2 0 4 Taco 4.80 8 5 5 Coffee 2 Long Sat Yes
18 19-Jan-21 Coffee 5 7 6 Taco 4.75 9 6 10 Workout 5 Short Mon No
19 20-Jan-21 Coffee 6 0 2 Sandwich 7.35 6 7 4 Workout 6 Short Tue None
20 21-Jan-21 Coffee 9 9 3 Lenthils 2.79 6 9 4 PingPong 9 Long Wed None
garfield_biometrics.dtypes
Day            object
8AM            object
9AM             int64
10AM            int64
11AM            int64
Noon           object
Lunch Bill    float64
1PM             int64
2PM             int64
3PM             int64
4PM            object
5PM             int64
Commute        object
DayOfWeek      object
WatchTV        object
dtype: object

Pandas can be used to slice, dice, and describe data of course. And traditional sorting, filtering, grouping, transforms work too.

# Columnar Definition of the data
from IPython.display import *
display(HTML("The columns of the dataframe are"))
display(pd.DataFrame(garfield_biometrics.columns, columns=['Column Name']).set_index('Column Name').T)

display(HTML("The rows of the dataframe are"))
display(pd.DataFrame(garfield_biometrics.index, columns=['Row Name']).set_index('Row Name').T)

The columns of the dataframe are

Column Name Day 8AM 9AM 10AM 11AM Noon Lunch Bill 1PM 2PM 3PM 4PM 5PM Commute DayOfWeek WatchTV

The rows of the dataframe are

Row Name 0 1 2 3 4 5 6 7 8 9 ... 11 12 13 14 15 16 17 18 19 20

0 rows × 21 columns

# Shape of the data
HTML(f'The shape of the dataset is {garfield_biometrics.shape[0]} rows and {garfield_biometrics.shape[1]} columns')

The shape of the dataset is 21 rows and 15 columns

# Slice of the data, row wise alternates
display(garfield_biometrics[4:12:2].head(100))
Day 8AM 9AM 10AM 11AM Noon Lunch Bill 1PM 2PM 3PM 4PM 5PM Commute DayOfWeek WatchTV
4 5-Jan-21 Doughnut 3 10 3 Sandwich 7.35 0 7 6 Tea 7 Long Fri Yes
6 7-Jan-21 Doughnut 3 10 7 Lenthils 2.80 10 6 1 Coffee 6 Short Mon No
8 9-Jan-21 Sandwich 5 4 7 Lenthils 2.98 2 1 3 PingPong 5 Short Wed No
10 11-Jan-21 Doughnut 7 9 8 Sandwich 7.35 1 4 4 Workout 3 Long Fri Yes
# Slice of the data, column wise, first five columns
display(garfield_biometrics.iloc[:,:5].head(5))
Day 8AM 9AM 10AM 11AM
0 1-Jan-21 Coffee 6 6 0
1 2-Jan-21 Doughnut 2 5 5
2 3-Jan-21 Coffee 7 10 9
3 4-Jan-21 Coffee 9 7 8
4 5-Jan-21 Doughnut 3 10 3
# Sorted by breakfast at 8AM
display(garfield_biometrics.sort_values('8AM').head(5))
Day 8AM 9AM 10AM 11AM Noon Lunch Bill 1PM 2PM 3PM 4PM 5PM Commute DayOfWeek WatchTV
0 1-Jan-21 Coffee 6 6 0 Sandwich 7.35 9 8 5 Tea 2 Long Mon Yes
18 19-Jan-21 Coffee 5 7 6 Taco 4.75 9 6 10 Workout 5 Short Mon No
15 16-Jan-21 Coffee 6 0 1 Lenthils 3.20 4 10 3 PingPong 6 Short Thu No
14 15-Jan-21 Coffee 5 9 5 Taco 4.60 8 0 3 Coffee 10 Short Wed Yes
19 20-Jan-21 Coffee 6 0 2 Sandwich 7.35 6 7 4 Workout 6 Short Tue None
# Specific Columns
display(garfield_biometrics[['8AM', 'Noon', 'Commute', 'WatchTV']].head(5))
8AM Noon Commute WatchTV
0 Coffee Sandwich Long Yes
1 Doughnut Lenthils Short No
2 Coffee Taco Short No
3 Coffee Sandwich Short Yes
4 Doughnut Sandwich Long Yes
# Group count Lunches
garfield_biometrics.groupby('Noon')['Noon'].agg('count').to_frame()
Noon
Noon
Lenthils 6
Sandwich 8
Taco 7
# Filter: what is the WatchTV when Lunch is Taco
garfield_biometrics[garfield_biometrics.Noon == 'Taco'][['Noon', 'WatchTV']]
Noon WatchTV
2 Taco No
7 Taco No
9 Taco Yes
12 Taco No
14 Taco Yes
17 Taco Yes
18 Taco No
# Data Types of the field
display(garfield_biometrics.dtypes)
display(garfield_biometrics.astype(str).dtypes)
Day            object
8AM            object
9AM             int64
10AM            int64
11AM            int64
Noon           object
Lunch Bill    float64
1PM             int64
2PM             int64
3PM             int64
4PM            object
5PM             int64
Commute        object
DayOfWeek      object
WatchTV        object
dtype: object



Day           object
8AM           object
9AM           object
10AM          object
11AM          object
Noon          object
Lunch Bill    object
1PM           object
2PM           object
3PM           object
4PM           object
5PM           object
Commute       object
DayOfWeek     object
WatchTV       object
dtype: object

# String Type Selection Only
garfield_biometrics.select_dtypes('object').head()
Day 8AM Noon 4PM Commute DayOfWeek WatchTV
0 1-Jan-21 Coffee Sandwich Tea Long Mon Yes
1 2-Jan-21 Doughnut Lenthils PingPong Short Tue No
2 3-Jan-21 Coffee Taco PingPong Short Wed No
3 4-Jan-21 Coffee Sandwich PingPong Short Thu Yes
4 5-Jan-21 Doughnut Sandwich Tea Long Fri Yes
# Capture categorical variables
string_types = garfield_biometrics.select_dtypes('object').columns.tolist()
# Make a in-mem copy of the table
garfield_biometrics_copy = garfield_biometrics.copy()
# For each column that is string, xform to titlecase and remove any trailing space
garfield_biometrics_copy[string_types] = garfield_biometrics_copy[string_types].applymap(lambda x: str(x).strip().title() if x is not None and str(x).lower() != 'none' else None)
# Preview
display(garfield_biometrics_copy.head(200))
Day 8AM 9AM 10AM 11AM Noon Lunch Bill 1PM 2PM 3PM 4PM 5PM Commute DayOfWeek WatchTV
0 1-Jan-21 Coffee 6 6 0 Sandwich 7.35 9 8 5 Tea 2 Long Mon Yes
1 2-Jan-21 Doughnut 2 5 5 Lenthils 3.02 3 4 3 Pingpong 0 Short Tue No
2 3-Jan-21 Coffee 7 10 9 Taco 4.50 0 4 3 Pingpong 7 Short Wed No
3 4-Jan-21 Coffee 9 7 8 Sandwich 7.35 2 6 2 Pingpong 5 Short Thu Yes
4 5-Jan-21 Doughnut 3 10 3 Sandwich 7.35 0 7 6 Tea 7 Long Fri Yes
5 6-Jan-21 Sandwich 9 9 1 Lenthils 2.98 5 7 10 Coffee 10 Short Sat No
6 7-Jan-21 Doughnut 3 10 7 Lenthils 2.80 10 6 1 Coffee 6 Short Mon No
7 8-Jan-21 Coffee 3 0 6 Taco 4.40 8 5 3 Tea 6 Short Tue No
8 9-Jan-21 Sandwich 5 4 7 Lenthils 2.98 2 1 3 Pingpong 5 Short Wed No
9 10-Jan-21 Coffee 6 10 1 Taco 5.00 4 3 5 Workout 0 Short Thu Yes
10 11-Jan-21 Doughnut 7 9 8 Sandwich 7.35 1 4 4 Workout 3 Long Fri Yes
11 12-Jan-21 Sandwich 9 6 7 Sandwich 7.39 10 7 3 Workout 5 Long Sat Yes
12 13-Jan-21 Sandwich 8 10 7 Taco 4.50 9 0 3 Pingpong 1 Short Mon No
13 14-Jan-21 Doughnut 2 2 2 Sandwich 7.25 9 4 4 Tea 9 Short Tue Yes
14 15-Jan-21 Coffee 5 9 5 Taco 4.60 8 0 3 Coffee 10 Short Wed Yes
15 16-Jan-21 Coffee 6 0 1 Lenthils 3.20 4 10 3 Pingpong 6 Short Thu No
16 17-Jan-21 Sandwich 0 9 5 Sandwich 7.45 0 6 3 Pingpong 3 Short Fri Yes
17 18-Jan-21 Doughnut 2 0 4 Taco 4.80 8 5 5 Coffee 2 Long Sat Yes
18 19-Jan-21 Coffee 5 7 6 Taco 4.75 9 6 10 Workout 5 Short Mon No
19 20-Jan-21 Coffee 6 0 2 Sandwich 7.35 6 7 4 Workout 6 Short Tue None
20 21-Jan-21 Coffee 9 9 3 Lenthils 2.79 6 9 4 Pingpong 9 Long Wed None
# Rename '8AM' to 'Breakfast', 'Noon' to 'Lunch', '4PM' to 'Post Siesta'
display(garfield_biometrics_copy.rename({
    '8AM':'Breakfast',
    'Noon':'Lunch',
    '4PM':'Post Siesta'
    }, axis=1).head(5))

# Notice pandas dataframe is immutable: aka it creates a copy when you change something
display(pd.DataFrame(garfield_biometrics_copy.columns, columns=['Column Name']).set_index('Column Name').T)
Day Breakfast 9AM 10AM 11AM Lunch Lunch Bill 1PM 2PM 3PM Post Siesta 5PM Commute DayOfWeek WatchTV
0 1-Jan-21 Coffee 6 6 0 Sandwich 7.35 9 8 5 Tea 2 Long Mon Yes
1 2-Jan-21 Doughnut 2 5 5 Lenthils 3.02 3 4 3 Pingpong 0 Short Tue No
2 3-Jan-21 Coffee 7 10 9 Taco 4.50 0 4 3 Pingpong 7 Short Wed No
3 4-Jan-21 Coffee 9 7 8 Sandwich 7.35 2 6 2 Pingpong 5 Short Thu Yes
4 5-Jan-21 Doughnut 3 10 3 Sandwich 7.35 0 7 6 Tea 7 Long Fri Yes
Column Name Day 8AM 9AM 10AM 11AM Noon Lunch Bill 1PM 2PM 3PM 4PM 5PM Commute DayOfWeek WatchTV
# Make changes inplace
garfield_biometrics_copy.rename({
    '8AM':'Breakfast',
    'Noon':'Lunch',
    '4PM':'Post Siesta'
    }, axis=1, inplace=True)

display(garfield_biometrics_copy.head(5))
Day Breakfast 9AM 10AM 11AM Lunch Lunch Bill 1PM 2PM 3PM Post Siesta 5PM Commute DayOfWeek WatchTV
0 1-Jan-21 Coffee 6 6 0 Sandwich 7.35 9 8 5 Tea 2 Long Mon Yes
1 2-Jan-21 Doughnut 2 5 5 Lenthils 3.02 3 4 3 Pingpong 0 Short Tue No
2 3-Jan-21 Coffee 7 10 9 Taco 4.50 0 4 3 Pingpong 7 Short Wed No
3 4-Jan-21 Coffee 9 7 8 Sandwich 7.35 2 6 2 Pingpong 5 Short Thu Yes
4 5-Jan-21 Doughnut 3 10 3 Sandwich 7.35 0 7 6 Tea 7 Long Fri Yes

Descriptive Statistics

Let us describe (aka skew, mean, mode, min, max) distributions of the data

# Descriptive Stats of the numerical Attributes
display(garfield_biometrics_copy.describe())
9AM 10AM 11AM Lunch Bill 1PM 2PM 3PM 5PM
count 21.000000 21.000000 21.000000 21.000000 21.000000 21.000000 21.000000 21.000000
mean 5.333333 6.285714 4.619048 5.198095 5.380952 5.190476 4.142857 5.095238
std 2.708013 3.809762 2.729033 1.867262 3.570381 2.676174 2.242448 3.048028
min 0.000000 0.000000 0.000000 2.790000 0.000000 0.000000 1.000000 0.000000
25% 3.000000 4.000000 2.000000 3.200000 2.000000 4.000000 3.000000 3.000000
50% 6.000000 7.000000 5.000000 4.750000 6.000000 6.000000 3.000000 5.000000
75% 7.000000 9.000000 7.000000 7.350000 9.000000 7.000000 5.000000 7.000000
max 9.000000 10.000000 9.000000 7.450000 10.000000 10.000000 10.000000 10.000000

Visualizing the data distributions

%matplotlib inline
import seaborn as sns
import numpy as np
# Set figure size
sns.set(rc={'figure.figsize':(9.0, 5.0)}, style="darkgrid")
# Show distribution plots
sns.kdeplot(data=garfield_biometrics_copy.select_dtypes(include=np.number))
<AxesSubplot:ylabel='Density'>

png

# Describe categorical types of data as well
garfield_biometrics_copy.select_dtypes(exclude=np.number).describe(include='all')

#garfield_biometrics_copy.Lunch.value_counts().plot(kind='bar')
Day Breakfast Lunch Post Siesta Commute DayOfWeek WatchTV
count 21 21 21 21 21 21 19
unique 21 3 3 4 2 6 2
top 6-Jan-21 Coffee Sandwich Pingpong Short Mon Yes
freq 1 10 8 8 15 4 10

Training, Testing, Scoring Datasets

UnknownUnknownDogUnknownUnknownCat
  • Training Dataset: The sample of labeled data used to fit the model. The actual dataset that we use to train the model. The model sees and learns from this data.
  • Testing Dataset: The sample of labeled data used to provide an unbiased evaluation of a final model fit on the training dataset. A test dataset is independent of the training dataset, but it follows the same probability distribution as the training dataset.

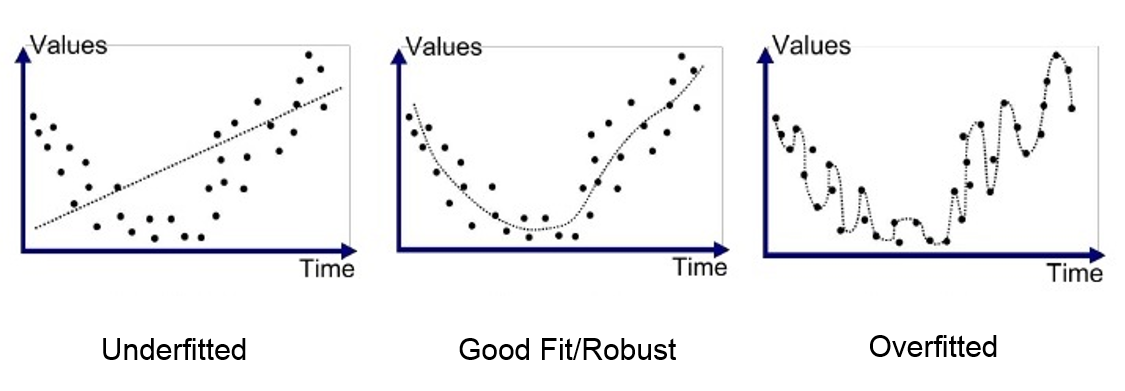

    • If a model learned from the training dataset also fits the test dataset well, the model is NOT overfit.
    • If a model learned from the training dataset does not predict test dataset well, the model is overfit.
  • Scoring Dataset: The unlabeled data -- from real world -- that is used to predict outcomes from the trained model.

Labeled Data

Only consider the "labeled" data: data that has been "supervised" by human intelligence. Notice that our toy data has missing labels in the last two rows. We will use this data as "scoring" data.

labeled_garfield_data = garfield_biometrics_copy[~garfield_biometrics_copy.WatchTV.isna()]
labeled_garfield_data
Day Breakfast 9AM 10AM 11AM Lunch Lunch Bill 1PM 2PM 3PM Post Siesta 5PM Commute DayOfWeek WatchTV
0 1-Jan-21 Coffee 6 6 0 Sandwich 7.35 9 8 5 Tea 2 Long Mon Yes
1 2-Jan-21 Doughnut 2 5 5 Lenthils 3.02 3 4 3 Pingpong 0 Short Tue No
2 3-Jan-21 Coffee 7 10 9 Taco 4.50 0 4 3 Pingpong 7 Short Wed No
3 4-Jan-21 Coffee 9 7 8 Sandwich 7.35 2 6 2 Pingpong 5 Short Thu Yes
4 5-Jan-21 Doughnut 3 10 3 Sandwich 7.35 0 7 6 Tea 7 Long Fri Yes
5 6-Jan-21 Sandwich 9 9 1 Lenthils 2.98 5 7 10 Coffee 10 Short Sat No
6 7-Jan-21 Doughnut 3 10 7 Lenthils 2.80 10 6 1 Coffee 6 Short Mon No
7 8-Jan-21 Coffee 3 0 6 Taco 4.40 8 5 3 Tea 6 Short Tue No
8 9-Jan-21 Sandwich 5 4 7 Lenthils 2.98 2 1 3 Pingpong 5 Short Wed No
9 10-Jan-21 Coffee 6 10 1 Taco 5.00 4 3 5 Workout 0 Short Thu Yes
10 11-Jan-21 Doughnut 7 9 8 Sandwich 7.35 1 4 4 Workout 3 Long Fri Yes
11 12-Jan-21 Sandwich 9 6 7 Sandwich 7.39 10 7 3 Workout 5 Long Sat Yes
12 13-Jan-21 Sandwich 8 10 7 Taco 4.50 9 0 3 Pingpong 1 Short Mon No
13 14-Jan-21 Doughnut 2 2 2 Sandwich 7.25 9 4 4 Tea 9 Short Tue Yes
14 15-Jan-21 Coffee 5 9 5 Taco 4.60 8 0 3 Coffee 10 Short Wed Yes
15 16-Jan-21 Coffee 6 0 1 Lenthils 3.20 4 10 3 Pingpong 6 Short Thu No
16 17-Jan-21 Sandwich 0 9 5 Sandwich 7.45 0 6 3 Pingpong 3 Short Fri Yes
17 18-Jan-21 Doughnut 2 0 4 Taco 4.80 8 5 5 Coffee 2 Long Sat Yes
18 19-Jan-21 Coffee 5 7 6 Taco 4.75 9 6 10 Workout 5 Short Mon No

Factor Plots

Quickly see correlations between numerical and output attributes

# See if any numeric columns have relevance
sns.pairplot(data=labeled_garfield_data, hue='WatchTV', diag_kind="kde")
<seaborn.axisgrid.PairGrid at 0x7fdd04da0d60>

png

Data Types

Attributes -- independent variables (that presumably determine prediction)

  1. Numerical Attributes -- Independent variables in the study usually represented as a real number.
  2. Temporal Attributes -- Time variable: for example, date fields. Span/aging factors can be derived.
  3. Spatial Attributes -- Location variable: for example, latitude and longitude. Distance factors can be derived.
  4. Ordinal Attributes -- Numerical or Text variables: implies ordering. For example, low, medium, high can be encoded as 1, 2, 3 respectively
  5. Categorical Attributes -- String variables: usually do not imply any ordinality (ordering) but have small cardinality. For example, Male-Female, Winter-Spring-Summer-Fall
  6. Text Attributes -- String variables that usually have very hgh cardinality. For example, user reviews with commentary
  7. ID Attributes -- Identity attributes (usually string/long numbers) that have no significance in predicting outcome. For example, social security number, warehouse id. It is best to avoid these ID attributes in the modeling exercise.
  8. Leakage attributes -- redundant attributes that usually are deterministically correlated with the outcome label attribute. For example, say we have two temperature attributes -- one in Fahrenheit and another Celsius -- where Fahrenheit temperature is the predicted attribute, having the Celsius accidentally in the modeling will lead to absolute predictions that fail to capture true stochasticity of the model.

Labels

  1. Categorical Labels -- Usually a string or ordinal variable with small cardinality. For example, asymptomatic recovery, symptomatic recovery, intensive care recovery, fatal. This usually indicates a classification problem.
  2. Numerical Labels -- Usually a numerical output variable. For example, business travel volume. This usually indicates a regression problem.
  3. When labels do not exist in the dataset, it usually indicates a unsupervised learning problem.

Data Imputations

Impute missing values with mean, interpolation, forward-fill, backward-fill, drop altogether.

# Where do we have invalid values
garfield_biometrics_copy.isna()[-4:]
Day Breakfast 9AM 10AM 11AM Lunch Lunch Bill 1PM 2PM 3PM Post Siesta 5PM Commute DayOfWeek WatchTV
17 False False False False False False False False False False False False False False False
18 False False False False False False False False False False False False False False False
19 False False False False False False False False False False False False False False True
20 False False False False False False False False False False False False False False True
# Impute with forward fill
display(garfield_biometrics_copy.fillna(method='ffill')[-3:])
Day Breakfast 9AM 10AM 11AM Lunch Lunch Bill 1PM 2PM 3PM Post Siesta 5PM Commute DayOfWeek WatchTV
18 19-Jan-21 Coffee 5 7 6 Taco 4.75 9 6 10 Workout 5 Short Mon No
19 20-Jan-21 Coffee 6 0 2 Sandwich 7.35 6 7 4 Workout 6 Short Tue No
20 21-Jan-21 Coffee 9 9 3 Lenthils 2.79 6 9 4 Pingpong 9 Long Wed No
# Impute with backfill
display(garfield_biometrics_copy.fillna(method='bfill')[-3:])
Day Breakfast 9AM 10AM 11AM Lunch Lunch Bill 1PM 2PM 3PM Post Siesta 5PM Commute DayOfWeek WatchTV
18 19-Jan-21 Coffee 5 7 6 Taco 4.75 9 6 10 Workout 5 Short Mon No
19 20-Jan-21 Coffee 6 0 2 Sandwich 7.35 6 7 4 Workout 6 Short Tue None
20 21-Jan-21 Coffee 9 9 3 Lenthils 2.79 6 9 4 Pingpong 9 Long Wed None
# Impute with mode
display(garfield_biometrics_copy.fillna(garfield_biometrics_copy.WatchTV.mode()[0])[-3:])
Day Breakfast 9AM 10AM 11AM Lunch Lunch Bill 1PM 2PM 3PM Post Siesta 5PM Commute DayOfWeek WatchTV
18 19-Jan-21 Coffee 5 7 6 Taco 4.75 9 6 10 Workout 5 Short Mon No
19 20-Jan-21 Coffee 6 0 2 Sandwich 7.35 6 7 4 Workout 6 Short Tue Yes
20 21-Jan-21 Coffee 9 9 3 Lenthils 2.79 6 9 4 Pingpong 9 Long Wed Yes
# Impute with median
display(garfield_biometrics_copy.fillna(garfield_biometrics_copy.WatchTV.value_counts().idxmax())[-3:])
Day Breakfast 9AM 10AM 11AM Lunch Lunch Bill 1PM 2PM 3PM Post Siesta 5PM Commute DayOfWeek WatchTV
18 19-Jan-21 Coffee 5 7 6 Taco 4.75 9 6 10 Workout 5 Short Mon No
19 20-Jan-21 Coffee 6 0 2 Sandwich 7.35 6 7 4 Workout 6 Short Tue Yes
20 21-Jan-21 Coffee 9 9 3 Lenthils 2.79 6 9 4 Pingpong 9 Long Wed Yes

Data Shaping

Pivot, transpose, or interpolate data

# Original data preview
display(garfield_biometrics_copy.tail(5))
Day Breakfast 9AM 10AM 11AM Lunch Lunch Bill 1PM 2PM 3PM Post Siesta 5PM Commute DayOfWeek WatchTV
16 17-Jan-21 Sandwich 0 9 5 Sandwich 7.45 0 6 3 Pingpong 3 Short Fri Yes
17 18-Jan-21 Doughnut 2 0 4 Taco 4.80 8 5 5 Coffee 2 Long Sat Yes
18 19-Jan-21 Coffee 5 7 6 Taco 4.75 9 6 10 Workout 5 Short Mon No
19 20-Jan-21 Coffee 6 0 2 Sandwich 7.35 6 7 4 Workout 6 Short Tue None
20 21-Jan-21 Coffee 9 9 3 Lenthils 2.79 6 9 4 Pingpong 9 Long Wed None
# Transposed preview
display(garfield_biometrics_copy[:5].T.head(4))
0 1 2 3 4
Day 1-Jan-21 2-Jan-21 3-Jan-21 4-Jan-21 5-Jan-21
Breakfast Coffee Doughnut Coffee Coffee Doughnut
9AM 6 2 7 9 3
10AM 6 5 10 7 10
# Set daily "index"
display(garfield_biometrics_copy.set_index('Day').head(5))
Breakfast 9AM 10AM 11AM Lunch Lunch Bill 1PM 2PM 3PM Post Siesta 5PM Commute DayOfWeek WatchTV
Day
1-Jan-21 Coffee 6 6 0 Sandwich 7.35 9 8 5 Tea 2 Long Mon Yes
2-Jan-21 Doughnut 2 5 5 Lenthils 3.02 3 4 3 Pingpong 0 Short Tue No
3-Jan-21 Coffee 7 10 9 Taco 4.50 0 4 3 Pingpong 7 Short Wed No
4-Jan-21 Coffee 9 7 8 Sandwich 7.35 2 6 2 Pingpong 5 Short Thu Yes
5-Jan-21 Doughnut 3 10 3 Sandwich 7.35 0 7 6 Tea 7 Long Fri Yes
# Reindex into a proper datetime format
display(garfield_biometrics_copy.set_index(pd.to_datetime(garfield_biometrics_copy.Day)).drop('Day', axis=1).head(5))
Breakfast 9AM 10AM 11AM Lunch Lunch Bill 1PM 2PM 3PM Post Siesta 5PM Commute DayOfWeek WatchTV
Day
2021-01-01 Coffee 6 6 0 Sandwich 7.35 9 8 5 Tea 2 Long Mon Yes
2021-01-02 Doughnut 2 5 5 Lenthils 3.02 3 4 3 Pingpong 0 Short Tue No
2021-01-03 Coffee 7 10 9 Taco 4.50 0 4 3 Pingpong 7 Short Wed No
2021-01-04 Coffee 9 7 8 Sandwich 7.35 2 6 2 Pingpong 5 Short Thu Yes
2021-01-05 Doughnut 3 10 3 Sandwich 7.35 0 7 6 Tea 7 Long Fri Yes
# Reindex into two-day intervals
garfield_biometrics_copy.set_index(pd.to_datetime(garfield_biometrics_copy.Day)).drop('Day', axis=1).resample('2d').agg(lambda x: x.value_counts().idxmax()).head(5)
Breakfast 9AM 10AM 11AM Lunch Lunch Bill 1PM 2PM 3PM Post Siesta 5PM Commute DayOfWeek
Day
2021-01-01 Coffee 2 6 5 Lenthils 3.02 3 4 3 Pingpong 2 Long Mon
2021-01-03 Coffee 7 7 9 Taco 7.35 2 6 3 Pingpong 7 Short Thu
2021-01-05 Doughnut 3 10 3 Lenthils 2.98 5 7 10 Coffee 7 Long Fri
2021-01-07 Coffee 3 10 7 Lenthils 4.40 10 6 3 Coffee 6 Short Mon
2021-01-09 Coffee 6 10 7 Lenthils 2.98 2 3 3 Pingpong 5 Short Thu
# Pivot data
display(garfield_biometrics_copy.pivot(index='Day', columns='Lunch', values='Lunch Bill').fillna(0).sample(5))

# Display heatmap too
import matplotlib.pyplot as plt
ax = sns.heatmap(labeled_garfield_data.set_index(pd.to_datetime(labeled_garfield_data.Day)).pivot(columns=['Lunch', 'WatchTV'], values='Lunch Bill').\
          fillna(0).round().T, annot=True, linewidth=0.5, cbar=False, square=True, alpha=0.3)
ax.set_xticklabels(pd.to_datetime(labeled_garfield_data.Day).dt.strftime('%m-%d-%Y'))
plt.xticks(rotation=45)
pass
Lunch Lenthils Sandwich Taco
Day
8-Jan-21 0.00 0.00 4.4
13-Jan-21 0.00 0.00 4.5
12-Jan-21 0.00 7.39 0.0
1-Jan-21 0.00 7.35 0.0
2-Jan-21 3.02 0.00 0.0

png

Converting to Numerical Matrix

Exclude ID attributes, leakage attributes and include only numerical, temporal, spatial, ordinal, and categorical attributes. Also encode labels accordingly.

# Leave out date attribute
garfield_data = garfield_biometrics_copy.set_index(pd.to_datetime(garfield_biometrics_copy.Day)).drop('Day', axis=1)
# Fix the DayOfWeek too
garfield_data['DayOfWeek'] = list(map(lambda x: x.strftime('%A'), garfield_data.index))
# show preview
display(garfield_data.head(4))
Breakfast 9AM 10AM 11AM Lunch Lunch Bill 1PM 2PM 3PM Post Siesta 5PM Commute DayOfWeek WatchTV
Day
2021-01-01 Coffee 6 6 0 Sandwich 7.35 9 8 5 Tea 2 Long Friday Yes
2021-01-02 Doughnut 2 5 5 Lenthils 3.02 3 4 3 Pingpong 0 Short Saturday No
2021-01-03 Coffee 7 10 9 Taco 4.50 0 4 3 Pingpong 7 Short Sunday No
2021-01-04 Coffee 9 7 8 Sandwich 7.35 2 6 2 Pingpong 5 Short Monday Yes
# Most handy function
garfield_numerical_data = pd.get_dummies(garfield_data)
display(garfield_numerical_data.head(5))
9AM 10AM 11AM Lunch Bill 1PM 2PM 3PM 5PM Breakfast_Coffee Breakfast_Doughnut ... Commute_Short DayOfWeek_Friday DayOfWeek_Monday DayOfWeek_Saturday DayOfWeek_Sunday DayOfWeek_Thursday DayOfWeek_Tuesday DayOfWeek_Wednesday WatchTV_No WatchTV_Yes
Day
2021-01-01 6 6 0 7.35 9 8 5 2 1 0 ... 0 1 0 0 0 0 0 0 0 1
2021-01-02 2 5 5 3.02 3 4 3 0 0 1 ... 1 0 0 1 0 0 0 0 1 0
2021-01-03 7 10 9 4.50 0 4 3 7 1 0 ... 1 0 0 0 1 0 0 0 1 0
2021-01-04 9 7 8 7.35 2 6 2 5 1 0 ... 1 0 1 0 0 0 0 0 0 1
2021-01-05 3 10 3 7.35 0 7 6 7 0 1 ... 0 0 0 0 0 0 1 0 0 1

5 rows × 29 columns

Leading Indicators

Compute quickly correlation coefficients to determine if moving one has any bearing on the output.

  • Correlated Factors


  • Uncorrelated Factors


(labeled_data, scoring_data) = (garfield_numerical_data[:19], garfield_numerical_data[19:])

# Develop a handy function to select input attributes
input_data = lambda df: df[[col for col in df.columns if 'WatchTV' not in col]]
label_data = lambda df: df.WatchTV_Yes
# Display preview
display(input_data(labeled_data).head(3))
9AM 10AM 11AM Lunch Bill 1PM 2PM 3PM 5PM Breakfast_Coffee Breakfast_Doughnut ... Post Siesta_Workout Commute_Long Commute_Short DayOfWeek_Friday DayOfWeek_Monday DayOfWeek_Saturday DayOfWeek_Sunday DayOfWeek_Thursday DayOfWeek_Tuesday DayOfWeek_Wednesday
Day
2021-01-01 6 6 0 7.35 9 8 5 2 1 0 ... 0 1 0 1 0 0 0 0 0 0
2021-01-02 2 5 5 3.02 3 4 3 0 0 1 ... 0 0 1 0 0 1 0 0 0 0
2021-01-03 7 10 9 4.50 0 4 3 7 1 0 ... 0 0 1 0 0 0 1 0 0 0

3 rows × 27 columns

Simple Pearson Correlation

Compute correlation vector between label and input attributes (direction & magnitude of change)

corr_scores = input_data(labeled_data).corrwith(label_data(labeled_data)).to_frame('Correlation')
# Project a score for absolute score -- positive & negative are both indicative
corr_scores['Abs Correlation'] = corr_scores['Correlation'].apply(abs)
corr_scores = corr_scores.sort_values('Abs Correlation', ascending=False)
display(corr_scores.head(100))
Correlation Abs Correlation
Lunch Bill 0.821853 0.821853
Lunch_Sandwich 0.724569 0.724569
Lunch_Lenthils -0.629941 0.629941
Commute_Short -0.566947 0.566947
Commute_Long 0.566947 0.566947
DayOfWeek_Saturday -0.456435 0.456435
DayOfWeek_Monday 0.410792 0.410792
Post Siesta_Pingpong -0.368035 0.368035
DayOfWeek_Wednesday -0.361551 0.361551
Post Siesta_Workout 0.231341 0.231341
Post Siesta_Tea 0.231341 0.231341
11AM -0.211628 0.211628
Breakfast_Doughnut 0.190964 0.190964
Breakfast_Sandwich -0.151186 0.151186
Lunch_Taco -0.149514 0.149514
DayOfWeek_Tuesday 0.121716 0.121716
DayOfWeek_Friday 0.121716 0.121716
DayOfWeek_Sunday 0.121716 0.121716
10AM 0.096233 0.096233
5PM -0.085689 0.085689
9AM -0.082154 0.082154
3PM -0.072357 0.072357
1PM -0.062198 0.062198
Breakfast_Coffee -0.044947 0.044947
2PM 0.043470 0.043470
Post Siesta_Coffee -0.027217 0.027217
DayOfWeek_Thursday -0.018078 0.018078
import plotly.express as px
fig = px.bar(corr_scores, x=corr_scores.index, y='Correlation', template='plotly_dark')
fig.show()

Heart Disease Data

Remember we picked the heart disease data for MVM.

import pandas as pd
cardio_data = pd.read_csv('https://drive.google.com/uc?export=download&id=1Sg6_70n13RF1feOykQYg1pepRXVg6FS8', sep=';')
cardio_data
id age gender height weight ap_hi ap_lo cholesterol gluc smoke alco active cardio
0 0 18393 2 168 62.0 110 80 1 1 0 0 1 0
1 1 20228 1 156 85.0 140 90 3 1 0 0 1 1
2 2 18857 1 165 64.0 130 70 3 1 0 0 0 1
3 3 17623 2 169 82.0 150 100 1 1 0 0 1 1
4 4 17474 1 156 56.0 100 60 1 1 0 0 0 0
... ... ... ... ... ... ... ... ... ... ... ... ... ...
69995 99993 19240 2 168 76.0 120 80 1 1 1 0 1 0
69996 99995 22601 1 158 126.0 140 90 2 2 0 0 1 1
69997 99996 19066 2 183 105.0 180 90 3 1 0 1 0 1
69998 99998 22431 1 163 72.0 135 80 1 2 0 0 0 1
69999 99999 20540 1 170 72.0 120 80 2 1 0 0 1 0

70000 rows × 13 columns

What do we know?

What leading indicators can be gleaned to predict the cardio disease?

display(pd.get_dummies(cardio_data).corr())

# Find leading indicators
corr = pd.get_dummies(cardio_data).corr().cardio.to_frame('corr')
corr['attribute'] = corr.index
fig = px.bar(corr[corr.attribute != 'cardio'], x='attribute', y='corr', template='plotly_dark')
fig.show()
id age gender height weight ap_hi ap_lo cholesterol gluc smoke alco active cardio
id 1.000000 0.003457 0.003502 -0.003038 -0.001830 0.003356 -0.002529 0.006106 0.002467 -0.003699 0.001210 0.003755 0.003799
age 0.003457 1.000000 -0.022811 -0.081515 0.053684 0.020764 0.017647 0.154424 0.098703 -0.047633 -0.029723 -0.009927 0.238159
gender 0.003502 -0.022811 1.000000 0.499033 0.155406 0.006005 0.015254 -0.035821 -0.020491 0.338135 0.170966 0.005866 0.008109
height -0.003038 -0.081515 0.499033 1.000000 0.290968 0.005488 0.006150 -0.050226 -0.018595 0.187989 0.094419 -0.006570 -0.010821
weight -0.001830 0.053684 0.155406 0.290968 1.000000 0.030702 0.043710 0.141768 0.106857 0.067780 0.067113 -0.016867 0.181660
ap_hi 0.003356 0.020764 0.006005 0.005488 0.030702 1.000000 0.016086 0.023778 0.011841 -0.000922 0.001408 -0.000033 0.054475
ap_lo -0.002529 0.017647 0.015254 0.006150 0.043710 0.016086 1.000000 0.024019 0.010806 0.005186 0.010601 0.004780 0.065719
cholesterol 0.006106 0.154424 -0.035821 -0.050226 0.141768 0.023778 0.024019 1.000000 0.451578 0.010354 0.035760 0.009911 0.221147
gluc 0.002467 0.098703 -0.020491 -0.018595 0.106857 0.011841 0.010806 0.451578 1.000000 -0.004756 0.011246 -0.006770 0.089307
smoke -0.003699 -0.047633 0.338135 0.187989 0.067780 -0.000922 0.005186 0.010354 -0.004756 1.000000 0.340094 0.025858 -0.015486
alco 0.001210 -0.029723 0.170966 0.094419 0.067113 0.001408 0.010601 0.035760 0.011246 0.340094 1.000000 0.025476 -0.007330
active 0.003755 -0.009927 0.005866 -0.006570 -0.016867 -0.000033 0.004780 0.009911 -0.006770 0.025858 0.025476 1.000000 -0.035653
cardio 0.003799 0.238159 0.008109 -0.010821 0.181660 0.054475 0.065719 0.221147 0.089307 -0.015486 -0.007330 -0.035653 1.000000

COVID-19

John Hopkins makes COVID data available daily. We visualize cluster heatmaps of COVID in the US over last six months.

Use inline bash magic to download daily CSV data.

%%bash
rm -rf covid_data
mkdir covid_data
cd covid_data
git init
git sparse-checkout init
git config core.sparseCheckout true
git remote add origin https://github.com/CSSEGISandData/COVID-19.git
git fetch --depth=1 origin master
echo "csse_covid_19_data/csse_covid_19_daily_reports_us/*" > .git/info/sparse-checkout
git checkout master
Initialized empty Git repository in /home/jovyan/CloudSDK/covid_data/.git/
Branch 'master' set up to track remote branch 'master' from 'origin'.


From https://github.com/CSSEGISandData/COVID-19
 * branch            master     -> FETCH_HEAD
 * [new branch]      master     -> origin/master
Already on 'master'

Collate

Collate data together temporally and compute active, tested, confirmed, recovered cases in the US.

import pandas as pd, glob, os

def build_pd(tm, file):
    pdf = pd.read_csv(file)
    pdf['Date_'] = tm
    return pdf

covid_us_data = pd.concat([build_pd(pd.to_datetime(os.path.basename(os.path.splitext(filename)[0])), filename) \
                           for filename in glob.glob('covid_data/*/*/*.csv')]).fillna(0).sort_values(['UID', 'Date_'])
covid_us_data['Active'] = covid_us_data['Confirmed'] - covid_us_data['Recovered']
covid_us_data['Active'] = covid_us_data['Active'].fillna(0).apply(lambda x: x if x > 0 else 0)
covid_us_data = covid_us_data.set_index(pd.to_datetime(covid_us_data.Date_))

display(covid_us_data)
Province_State Country_Region Last_Update Lat Long_ Confirmed Deaths Recovered Active FIPS ... People_Tested People_Hospitalized Mortality_Rate UID ISO3 Testing_Rate Hospitalization_Rate Date_ Total_Test_Results Case_Fatality_Ratio
Date_
2020-04-12 American Samoa US 0 -14.271 -170.1322 0 0 0.0 0.0 60.0 ... 3.0 0.0 0.0 16.0 ASM 5.391708 0.0 2020-04-12 0.0 0.000000
2020-04-13 American Samoa US 0 -14.271 -170.1320 0 0 0.0 0.0 60.0 ... 3.0 0.0 0.0 16.0 ASM 5.391708 0.0 2020-04-13 0.0 0.000000
2020-04-14 American Samoa US 0 -14.271 -170.1320 0 0 0.0 0.0 60.0 ... 3.0 0.0 0.0 16.0 ASM 5.391708 0.0 2020-04-14 0.0 0.000000
2020-04-15 American Samoa US 0 -14.271 -170.1320 0 0 0.0 0.0 60.0 ... 3.0 0.0 0.0 16.0 ASM 5.391708 0.0 2020-04-15 0.0 0.000000
2020-04-16 American Samoa US 0 -14.271 -170.1320 0 0 0.0 0.0 60.0 ... 3.0 0.0 0.0 16.0 ASM 5.391708 0.0 2020-04-16 0.0 0.000000
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
2021-02-20 Grand Princess US 2021-02-21 05:30:53 0.000 0.0000 103 3 0.0 103.0 99999.0 ... 0.0 0.0 0.0 84099999.0 USA 0.000000 0.0 2021-02-20 0.0 2.912621
2021-02-21 Grand Princess US 2021-02-22 05:30:43 0.000 0.0000 103 3 0.0 103.0 99999.0 ... 0.0 0.0 0.0 84099999.0 USA 0.000000 0.0 2021-02-21 0.0 2.912621
2021-02-22 Grand Princess US 2021-02-23 05:30:53 0.000 0.0000 103 3 0.0 103.0 99999.0 ... 0.0 0.0 0.0 84099999.0 USA 0.000000 0.0 2021-02-22 0.0 2.912621
2021-02-23 Grand Princess US 2021-02-24 05:31:21 0.000 0.0000 103 3 0.0 103.0 99999.0 ... 0.0 0.0 0.0 84099999.0 USA 0.000000 0.0 2021-02-23 0.0 2.912621
2021-02-24 Grand Princess US 2021-02-25 05:31:00 0.000 0.0000 103 3 0.0 103.0 99999.0 ... 0.0 0.0 0.0 84099999.0 USA 0.000000 0.0 2021-02-24 0.0 2.912621

18520 rows × 21 columns

Ensure we rollup the weekly data and align to Monday

weekly_covid_data = covid_us_data.groupby(['Province_State', 'Lat', 'Long_']).resample('W-MON').agg({'Confirmed':sum, 'Deaths':sum,	'Recovered':sum, 'Active':sum})
display(weekly_covid_data)

# Flatten to make it weekly data; ready for plotting
plot_data = weekly_covid_data.reset_index()
display(plot_data)
Confirmed Deaths Recovered Active
Province_State Lat Long_ Date_
Alabama 32.3182 -86.9023 2020-04-13 7537 192 0.0 7537.0
2020-04-20 32299 986 0.0 32299.0
2020-04-27 42457 1446 0.0 42457.0
2020-05-04 52306 1935 0.0 52306.0
2020-05-11 65805 2596 0.0 65805.0
... ... ... ... ... ... ... ...
Wyoming 42.7560 -107.3025 2021-02-01 361313 4172 348284.0 13029.0
2021-02-08 367489 4368 355956.0 11533.0
2021-02-15 371127 4529 361042.0 10085.0
2021-02-22 375393 4634 365704.0 9689.0
2021-03-01 107932 1342 105347.0 2585.0

2784 rows × 4 columns

Province_State Lat Long_ Date_ Confirmed Deaths Recovered Active
0 Alabama 32.3182 -86.9023 2020-04-13 7537 192 0.0 7537.0
1 Alabama 32.3182 -86.9023 2020-04-20 32299 986 0.0 32299.0
2 Alabama 32.3182 -86.9023 2020-04-27 42457 1446 0.0 42457.0
3 Alabama 32.3182 -86.9023 2020-05-04 52306 1935 0.0 52306.0
4 Alabama 32.3182 -86.9023 2020-05-11 65805 2596 0.0 65805.0
... ... ... ... ... ... ... ... ...
2779 Wyoming 42.7560 -107.3025 2021-02-01 361313 4172 348284.0 13029.0
2780 Wyoming 42.7560 -107.3025 2021-02-08 367489 4368 355956.0 11533.0
2781 Wyoming 42.7560 -107.3025 2021-02-15 371127 4529 361042.0 10085.0
2782 Wyoming 42.7560 -107.3025 2021-02-22 375393 4634 365704.0 9689.0
2783 Wyoming 42.7560 -107.3025 2021-03-01 107932 1342 105347.0 2585.0

2784 rows × 8 columns

import plotly.express as px
px.set_mapbox_access_token("pk.eyJ1IjoibmVkYWxhIiwiYSI6ImNrNzgwenQ5dTBkb3kzbG81dmZsZHk3eGYifQ.nrm4JOJ4OXnJboItkKNp7A")

Plot COVID Geomap

Animate Weekly Progression

plot_data['Week'] = plot_data['Date_'].apply(lambda x: x.strftime('%y/%m/%d'))
fig = px.scatter_mapbox(plot_data.sort_values('Week'), lat="Lat", lon="Long_", animation_frame = 'Week', animation_group = 'Province_State',
                        size="Active", color_continuous_scale=px.colors.cyclical.IceFire,
                        size_max=80, zoom=2.5, hover_name='Province_State', hover_data = ['Active', 'Confirmed', 'Recovered', 'Deaths'],
                        title = 'COVID Raging across US', height=700)
fig.update_layout(mapbox_style="dark")
fig.show()

First Garfield Model

Model Garfield TVitcharoo Bot using simple logistic regression. Logistic regression is similar to linear regression, but instead of predicting a continuous output, it classifies training examples by a set of categories or labels. For example, linear regression on a set of electoral surveys may be used to predict candidate's electoral votes, but logistic regression could be used to predict presidential elect. Logistic regression predicts classes, not numeric magnitude. It can easily be used to predict multiclass problems where there are more than two label categories.

# Training and scoring data
(labeled_data, scoring_data) = (garfield_numerical_data[:19], garfield_numerical_data[19:])
# Collect input
input_data = lambda df: df[[col for col in df.columns if 'WatchTV' not in col]]
# Collect output
label_data = lambda df: df.WatchTV_Yes

X = input_data(labeled_data)
y = label_data(labeled_data)

# Display so we can see label data and input data
display(pd.concat([X.head(3), y.head(3).to_frame('WatchTV_Yes')], axis=1))

# Build a model
from sklearn.linear_model import LogisticRegression
clf = LogisticRegression().fit(X, y)
clf
9AM 10AM 11AM Lunch Bill 1PM 2PM 3PM 5PM Breakfast_Coffee Breakfast_Doughnut ... Commute_Long Commute_Short DayOfWeek_Friday DayOfWeek_Monday DayOfWeek_Saturday DayOfWeek_Sunday DayOfWeek_Thursday DayOfWeek_Tuesday DayOfWeek_Wednesday WatchTV_Yes
Day
2021-01-01 6 6 0 7.35 9 8 5 2 1 0 ... 1 0 1 0 0 0 0 0 0 1
2021-01-02 2 5 5 3.02 3 4 3 0 0 1 ... 0 1 0 0 1 0 0 0 0 0
2021-01-03 7 10 9 4.50 0 4 3 7 1 0 ... 0 1 0 0 0 1 0 0 0 0

3 rows × 28 columns

LogisticRegression()

Use Model to Predict

# Use model to predict scoring data
display(pd.DataFrame(clf.predict(input_data(scoring_data)), columns=['WatchTV']))
# Also display probabilistic scores
display(pd.DataFrame(clf.predict_proba(input_data(scoring_data)), columns=['WatchTV_Yes_0', 'WatchTV_Yes_1']))
WatchTV
0 1
1 0
WatchTV_Yes_0 WatchTV_Yes_1
0 0.018344 0.981656
1 0.948408 0.051592

Explaining the Model

Can we explain the model? Logistic Regression is just a linear regression: where a continuous variable is classed into a category based on a logistic curve.

Logistic Function{width=50%}

import itertools
coefficients = list(itertools.chain(clf.intercept_, *clf.coef_))

# Show beta coefficients
beta = pd.DataFrame(coefficients, columns=['β'])
display(beta.head())

# Predict outcome
Xi = lambda i: pd.concat([pd.DataFrame([(1, 'Intercept')], columns=['X', 'Name']).set_index('Name'),
                input_data(scoring_data).iloc[i].to_frame('X')])
WX = lambda i: pd.concat([beta.reset_index(), Xi(i).reset_index()], axis=1)
display(WX(0).head())

class_prediction = lambda i: (WX(i).β * WX(i).X).sum()

display(scoring_data)
# Output
for i in range(len(scoring_data)):
  print(f'Scoring the sample {i}: {class_prediction(i)}. Garfield watches TV? {class_prediction(i) > 0}')
β
0 -1.524114
1 -0.113571
2 0.060186
3 -0.529752
4 1.353411
index β index X
0 0 -1.524114 Intercept 1.00
1 1 -0.113571 9AM 6.00
2 2 0.060186 10AM 0.00
3 3 -0.529752 11AM 2.00
4 4 1.353411 Lunch Bill 7.35
9AM 10AM 11AM Lunch Bill 1PM 2PM 3PM 5PM Breakfast_Coffee Breakfast_Doughnut ... Commute_Short DayOfWeek_Friday DayOfWeek_Monday DayOfWeek_Saturday DayOfWeek_Sunday DayOfWeek_Thursday DayOfWeek_Tuesday DayOfWeek_Wednesday WatchTV_No WatchTV_Yes
Day
2021-01-20 6 0 2 7.35 6 7 4 6 1 0 ... 1 0 0 0 0 0 0 1 0 0
2021-01-21 9 9 3 2.79 6 9 4 9 1 0 ... 0 0 0 0 0 1 0 0 0 0

2 rows × 29 columns

Scoring the sample 0: 3.979943652693081. Garfield watches TV? True
Scoring the sample 1: -2.911408678641244. Garfield watches TV? False

Naive Bayes Model

Naive Bayes classifiers are built on Bayesian classification methods. These rely on Bayes's theorem, which is an equation describing the relationship of conditional probabilities of statistical quantities. In Bayesian classification, we're interested in finding the probability of a label given some observed features, which we can write as $P(L~|~{\rm features})$. Bayes's theorem tells us how to express this in terms of quantities we can compute more directly:

$$ P(L~|{\rm features}) = \frac{P({\rm features}|~L)P(L)}{P({\rm features})} $$

If we are trying to decide between two labels—let's call them $L_1$ and $L_2$—then one way to make this decision is to compute the ratio of the posterior probabilities for each label:

$$ \frac{P(L_1~|{\rm features})}{P(L_2|{\rm features})} = \frac{P({\rm features}|L_1)}{P({\rm features}|~L_2)}\frac{P(L_1)}{P(L_2)} $$

All we need now is some model by which we can compute $P({\rm features}~|~L_i)$ for each label. Such a model is called a generative model because it specifies the hypothetical random process that generates the data. Specifying this generative model for each label is the main piece of the training of such a Bayesian classifier. The general version of such a training step is a very difficult task, but we can make it simpler through the use of some simplifying assumptions about the form of this model.

This is where the "naive" in "naive Bayes" comes in: if we make very naive assumptions about the generative model for each label, we can find a rough approximation of the generative model for each class, and then proceed with the Bayesian classification. Different types of naive Bayes classifiers rest on different naive assumptions about the data, and we will examine a few of these in the following sections.

from sklearn.naive_bayes import GaussianNB
nb_clf = GaussianNB()
nb_clf.fit(X, y)
nb_clf
GaussianNB()

nb_clf.predict(input_data(scoring_data))
array([1, 1], dtype=uint8)

Standard Scaling

What went wrong? Remember Bayesian models make assumptions about prior probabilities. In our case, we assumed our data followed "Gaussian" distribution, but remember the one hot encoding uses 0 and 1 (bimodal encoding) of features. NB classifier is a parametric model.

from sklearn.preprocessing import StandardScaler
scaler = StandardScaler()
# Normalize into a Gaussian bell curve
scaler.fit(input_data(labeled_data))
# Pretty print
Xstd = pd.DataFrame(scaler.transform(input_data(labeled_data)), columns=input_data(labeled_data).columns)
display(Xstd.head())
9AM 10AM 11AM Lunch Bill 1PM 2PM 3PM 5PM Breakfast_Coffee Breakfast_Doughnut ... Post Siesta_Workout Commute_Long Commute_Short DayOfWeek_Friday DayOfWeek_Monday DayOfWeek_Saturday DayOfWeek_Sunday DayOfWeek_Thursday DayOfWeek_Tuesday DayOfWeek_Wednesday
0 0.339728 -0.132525 -1.793267 1.210436 1.007429 1.216559 0.366103 -0.954296 1.172604 -0.679366 ... -0.516398 1.673320 -1.673320 2.309401 -0.433013 -0.433013 -0.433013 -0.342997 -0.433013 -0.342997
1 -1.179057 -0.412300 0.058476 -1.240525 -0.633241 -0.350534 -0.503392 -1.625838 -0.852803 1.471960 ... -0.516398 -0.597614 0.597614 -0.433013 -0.433013 2.309401 -0.433013 -0.342997 -0.433013 -0.342997
2 0.719425 0.986575 1.539870 -0.402783 -1.453576 -0.350534 -0.503392 0.724558 1.172604 -0.679366 ... -0.516398 -0.597614 0.597614 -0.433013 -0.433013 -0.433013 2.309401 -0.342997 -0.433013 -0.342997
3 1.478817 0.147250 1.169522 1.210436 -0.906686 0.433013 -0.938139 0.053016 1.172604 -0.679366 ... -0.516398 -0.597614 0.597614 -0.433013 2.309401 -0.433013 -0.433013 -0.342997 -0.433013 -0.342997
4 -0.799361 0.986575 -0.682221 1.210436 -1.453576 0.824786 0.800850 0.724558 -0.852803 1.471960 ... -0.516398 1.673320 -1.673320 -0.433013 -0.433013 -0.433013 -0.433013 -0.342997 2.309401 -0.342997

5 rows × 27 columns

# Also display probabilistic scores
display(pd.DataFrame(GaussianNB().fit(Xstd, y).\
                     predict_proba(scaler.transform(input_data(scoring_data))), \
                     columns=['WatchTV_Yes_0', 'WatchTV_Yes_1']))
WatchTV_Yes_0 WatchTV_Yes_1
0 1.0 0.0
1 0.0 1.0

K Nearest Neighbor

The principle behind nearest neighbor methods is to find a predefined number of training samples (K) closest in distance to the new point, and predict the label from these. The number of samples can be a user-defined constant (k-nearest neighbor learning), or vary based on the local density of points (radius-based neighbor learning).

from sklearn.neighbors import KNeighborsClassifier
neigh = KNeighborsClassifier(n_neighbors=5).fit(X,y)
# Use model to predict scoring data
display(pd.DataFrame(neigh.predict(input_data(scoring_data)), columns=['WatchTV']))
# Also display probabilistic scores
display(pd.DataFrame(neigh.predict_proba(input_data(scoring_data)), columns=['WatchTV_No', 'WatchTV_Yes']))
WatchTV
0 1
1 0
WatchTV_No WatchTV_Yes
0 0.4 0.6
1 0.6 0.4

Decision Trees, Random Forest Methods

Decision trees are extremely intuitive ways to classify or label objects: you simply ask a series of questions designed to zero-in on the classification: very similar to 20 questions game where the response can only be a yes/no. Random forests are an example of an ensemble learner built on decision trees. Ensemble methods rely on aggregating the results of an ensemble of simpler estimators. The somewhat surprising result with such ensemble methods is that the sum can be greater than the parts: that is, a majority vote among a number of estimators can end up being better than any of the individual estimators doing the voting

from sklearn.tree import DecisionTreeClassifier
tree = DecisionTreeClassifier().fit(X, y)
# Use model to predict scoring data
display(pd.DataFrame(tree.predict(input_data(scoring_data)), columns=['WatchTV']))
# Also display probabilistic scores
display(pd.DataFrame(tree.predict_proba(input_data(scoring_data)), columns=['WatchTV_Yes_0', 'WatchTV_Yes_1']))
WatchTV
0 1
1 0
WatchTV_Yes_0 WatchTV_Yes_1
0 0.0 1.0
1 1.0 0.0

Visualizing the Decision Tree

import graphviz
from sklearn import tree as dtree
dot_data = dtree.export_graphviz(tree, out_file=None,
                                feature_names=input_data(labeled_data).columns,
                                class_names=['WatchTV_Yes', 'WatchTV_No'],
                                filled=True)

# Draw graph
graph = graphviz.Source(dot_data, format="png")
graph

svg

from sklearn.ensemble import BaggingClassifier
bag = BaggingClassifier(tree, n_estimators=20, max_samples=0.7, random_state=1)
bag.fit(X, y)
# Use model to predict scoring data
display(pd.DataFrame(bag.predict(input_data(scoring_data)), columns=['WatchTV']))
# Also display probabilistic scores
display(pd.DataFrame(bag.predict_proba(input_data(scoring_data)), columns=['WatchTV_Yes_0', 'WatchTV_Yes_1']))
WatchTV
0 1
1 0
WatchTV_Yes_0 WatchTV_Yes_1
0 0.00 1.00
1 0.95 0.05

We have randomized the data by fitting each estimator with a random subset of 70% of the training points. In practice, decision trees are more effectively randomized by injecting some stochasticity in how the splits are chosen: this way all the data contributes to the fit each time, but the results of the fit still have the desired randomness. In Scikit-Learn, an optimized ensemble of randomized decision trees is implemented in the RandomForestClassifier estimator, which takes care of all the randomization automatically.

from sklearn.ensemble import RandomForestClassifier
rfclf = RandomForestClassifier()

rfclf.fit(X, y)
# Use model to predict scoring data
display(pd.DataFrame(rfclf.predict(input_data(scoring_data)), columns=['WatchTV']))
# Also display probabilistic scores
display(pd.DataFrame(rfclf.predict_proba(input_data(scoring_data)), columns=['WatchTV_Yes_0', 'WatchTV_Yes_1']))
WatchTV
0 1
1 0
WatchTV_Yes_0 WatchTV_Yes_1
0 0.20 0.80
1 0.63 0.37

Gradient Boosted Methods

Bagging -- bootstrap aggregation: where all points are randomly selected -- aka without replacement. When we select a few observations more than others due to their difficulty in separating classes (and reward those trees that handle better), we are applying boosting methods. Bossting works by weighting the observations, putting more weight on difficult to classify instances and less on those already handled well. New weak learners are added sequentially that focus their training on the more difficult patterns. This means that samples that are difficult to classify receive increasing larger weights until the algorithm identifies a model that correctly classifies these samples. Replacement is allowed in boosting methods.

from sklearn.ensemble import GradientBoostingClassifier
gbc = GradientBoostingClassifier(random_state=0)

gbc.fit(X, y)
# Use model to predict scoring data
display(pd.DataFrame(gbc.predict(input_data(scoring_data)), columns=['WatchTV']))
# Also display probabilistic scores
display(pd.DataFrame(gbc.predict_proba(input_data(scoring_data)), columns=['WatchTV_No', 'WatchTV_Yes']))
WatchTV
0 1
1 0
WatchTV_No WatchTV_Yes
0 0.000021 0.999979
1 0.999949 0.000051

XGBoost

XGBoost is an algorithm that has recently been dominating applied machine learning and Kaggle competitions for structured or tabular data. XGBoost is an implementation of gradient boosted decision trees designed for speed and performance. XGBoost stands for eXtreme Gradient Boosting.

from xgboost import XGBClassifier
xgb = XGBClassifier()
xgb.fit(X, y)
# Use model to predict scoring data
display(pd.DataFrame(xgb.predict(input_data(scoring_data)), columns=['WatchTV']))
# Also display probabilistic scores
display(pd.DataFrame(xgb.predict_proba(input_data(scoring_data)), columns=['WatchTV_No', 'WatchTV_Yes']))
[05:11:00] WARNING: ../src/learner.cc:1061: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.


/opt/conda/lib/python3.8/site-packages/xgboost/sklearn.py:888: UserWarning:

The use of label encoder in XGBClassifier is deprecated and will be removed in a future release. To remove this warning, do the following: 1) Pass option use_label_encoder=False when constructing XGBClassifier object; and 2) Encode your labels (y) as integers starting with 0, i.e. 0, 1, 2, ..., [num_class - 1].
WatchTV
0 1
1 0
WatchTV_No WatchTV_Yes
0 0.069705 0.930295
1 0.854946 0.145054

Support Vector Machines

Consider the simple case of a classification task, in which the two classes of points are well separated. While presumably any line that separates the points is decent enough, the dividing line that maximizes the margin between the two sets of points closest to the confusion edge is perhaps the best. Notice that a few of the training points just touch the margin: they are indicated by the black circles in this figure. These points are the pivotal elements of this fit, and are known as the support vectors, and give the algorithm its name. Support Vector Machines (SVMs) are parametric classification methods.


from sklearn.preprocessing import StandardScaler
from sklearn.svm import LinearSVC
from sklearn.pipeline import make_pipeline

svm = make_pipeline(StandardScaler(), LinearSVC())
svm.fit(X, y)
# Use model to predict scoring data
display(pd.DataFrame(svm.predict(input_data(scoring_data)), columns=['WatchTV']))
# Also display probabilistic scores
display(pd.DataFrame(svm.decision_function(input_data(scoring_data)), columns=['Z-Distance from Hyperplane']))
WatchTV
0 1
1 0
Z-Distance from Hyperplane
0 0.874192
1 -1.225382

Model Selection

So which of the models are to be selected? How do we know which are better if they all yield different results? Three points --

  1. Non parametric methods do not assume underlying distributions, so they work better for categorical, ordinal variables.
  2. Scikit Learn -- even for decision trees although (theoretically) supports caegorical variables -- requires that we one-hot-encode input features and output labels. Since the effort is intrinsic, it is best to let accuracy dictate model choice.
  3. Intuition and experience -- let the palatability (passes your sniff test) and explainability (can logically articulate to others) -- guide the choice.

Accuracy

Precision

The ratio of correct positive predictions to the total predicted positives. Precision = TP/TP+FP

Recall

The ratio of correct positive predictions to the total positives examples. Recall = TP/TP+FN

Accuracy

Accuracy is defined as the ratio of correctly predicted examples by the total examples. Accuracy = TP+TN/TP+FP+FN+TN

F1-Score

F1 Score is the weighted average of Precision and Recall. Therefore this score takes both false positives and false negatives into account. F1 Score = 2x(Recall x Precision) / (Recall + Precision)

ROC Curve

A ROC curve (receiver operating characteristic curve) graph shows the performance of a classification model at all classification thresholds. Under normal circumstances, say binary classification we chose 0.5 as the binary separator surface, how many flip their direction when it is altered.

Cardio Model

Let us use cardio model to verify accuracy using the testing dataset. See defintion of this dataset on Kaggle

cardio_data = pd.read_csv('https://drive.google.com/uc?export=download&id=1Sg6_70n13RF1feOykQYg1pepRXVg6FS8', sep=';').\
  drop('id', axis=1).\
  rename({'gluc':'glucose',
          'alco':'alcohol',
          'ap_hi':'sistolic_bp',
          'ap_lo':'diastolic_bp' }, \
         axis=1)
# Convert age to years
cardio_data['age'] = cardio_data['age'].apply(lambda x: round(x/365.0))
# Categorical gender
cardio_data['gender'] = cardio_data['gender'].apply(lambda x: {1: 'Female', 2: 'Male'}[x])
# Ordinal Cholesterol and Glucose
cardio_data['cholesterol'] = cardio_data['cholesterol'].apply(lambda x: {1: 'Normal', 2: 'Above Normal', 3: 'Way Above Normal'}[x])
cardio_data['glucose'] = cardio_data['glucose'].apply(lambda x: {1: 'Normal', 2: 'Above Normal', 3: 'Way Above Normal'}[x])
# Binary Columns
cardio_data[['smoke', 'alcohol', 'active', 'cardio']] = cardio_data[['smoke', 'alcohol', 'active', 'cardio']].applymap(lambda x: bool(x))
# Preview
display(cardio_data)
#X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.33, random_state=42)
age gender height weight sistolic_bp diastolic_bp cholesterol glucose smoke alcohol active cardio
0 50 Male 168 62.0 110 80 Normal Normal False False True False
1 55 Female 156 85.0 140 90 Way Above Normal Normal False False True True
2 52 Female 165 64.0 130 70 Way Above Normal Normal False False False True
3 48 Male 169 82.0 150 100 Normal Normal False False True True
4 48 Female 156 56.0 100 60 Normal Normal False False False False
... ... ... ... ... ... ... ... ... ... ... ... ...
69995 53 Male 168 76.0 120 80 Normal Normal True False True False
69996 62 Female 158 126.0 140 90 Above Normal Above Normal False False True True
69997 52 Male 183 105.0 180 90 Way Above Normal Normal False True False True
69998 61 Female 163 72.0 135 80 Normal Above Normal False False False True
69999 56 Female 170 72.0 120 80 Above Normal Normal False False True False

70000 rows × 12 columns

# Convert to numerical format
numerical_cardio = pd.get_dummies(cardio_data)
display(numerical_cardio)

input_set = lambda df: df[[col for col in df.columns if col != 'cardio']]
label_set = lambda df: df.cardio
age height weight sistolic_bp diastolic_bp smoke alcohol active cardio gender_Female gender_Male cholesterol_Above Normal cholesterol_Normal cholesterol_Way Above Normal glucose_Above Normal glucose_Normal glucose_Way Above Normal
0 50 168 62.0 110 80 False False True False 0 1 0 1 0 0 1 0
1 55 156 85.0 140 90 False False True True 1 0 0 0 1 0 1 0
2 52 165 64.0 130 70 False False False True 1 0 0 0 1 0 1 0
3 48 169 82.0 150 100 False False True True 0 1 0 1 0 0 1 0
4 48 156 56.0 100 60 False False False False 1 0 0 1 0 0 1 0
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
69995 53 168 76.0 120 80 True False True False 0 1 0 1 0 0 1 0
69996 62 158 126.0 140 90 False False True True 1 0 1 0 0 1 0 0
69997 52 183 105.0 180 90 False True False True 0 1 0 0 1 0 1 0
69998 61 163 72.0 135 80 False False False True 1 0 0 1 0 1 0 0
69999 56 170 72.0 120 80 False False True False 1 0 1 0 0 0 1 0

70000 rows × 17 columns

Withhold Test Set for Accuracy

# Split training and test set
from sklearn.model_selection import train_test_split
X_train, X_test, y_train, y_test = train_test_split(input_set(numerical_cardio),
                                                    label_set(numerical_cardio),
                                                    test_size=1.0/7)
display(X_train)
age height weight sistolic_bp diastolic_bp smoke alcohol active gender_Female gender_Male cholesterol_Above Normal cholesterol_Normal cholesterol_Way Above Normal glucose_Above Normal glucose_Normal glucose_Way Above Normal
47699 56 155 59.0 120 80 False False True 1 0 0 1 0 0 1 0
13197 58 174 75.0 120 80 True False True 0 1 0 1 0 0 1 0
69968 44 157 61.0 110 90 False False True 0 1 0 1 0 0 1 0
60973 58 176 74.0 120 80 False False True 0 1 0 1 0 0 1 0
67236 42 157 51.0 110 70 False False True 1 0 0 1 0 0 1 0
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
18889 44 167 65.0 120 80 False False True 1 0 0 1 0 0 1 0
2600 40 166 56.0 110 80 False False True 1 0 0 1 0 0 1 0
35483 56 163 130.0 140 80 False False True 1 0 0 1 0 0 1 0
20175 60 162 56.0 120 80 False False True 1 0 0 1 0 0 1 0
41407 54 163 62.0 90 70 False False True 1 0 0 1 0 0 1 0

60000 rows × 16 columns

Build the model

from xgboost import XGBClassifier
gboost = XGBClassifier()
gboost.fit(X_train, y_train)
/opt/conda/lib/python3.8/site-packages/xgboost/sklearn.py:888: UserWarning:

The use of label encoder in XGBClassifier is deprecated and will be removed in a future release. To remove this warning, do the following: 1) Pass option use_label_encoder=False when constructing XGBClassifier object; and 2) Encode your labels (y) as integers starting with 0, i.e. 0, 1, 2, ..., [num_class - 1].



[05:11:03] WARNING: ../src/learner.cc:1061: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.





XGBClassifier(base_score=0.5, booster='gbtree', colsample_bylevel=1,
              colsample_bynode=1, colsample_bytree=1, gamma=0, gpu_id=-1,
              importance_type='gain', interaction_constraints='',
              learning_rate=0.300000012, max_delta_step=0, max_depth=6,
              min_child_weight=1, missing=nan, monotone_constraints='()',
              n_estimators=100, n_jobs=4, num_parallel_tree=1, random_state=0,
              reg_alpha=0, reg_lambda=1, scale_pos_weight=1, subsample=1,
              tree_method='exact', validate_parameters=1, verbosity=None)

# Predict using the model on withheld test set
y_pred = gboost.predict(X_test)
display(pd.concat([pd.DataFrame(y_pred, columns=['Predicted Cardio']).reset_index(drop=True),
                   y_test.to_frame('Actual Withheld Cardio').reset_index(drop=True),
                   X_test.reset_index(drop=True)], axis=1))
Predicted Cardio Actual Withheld Cardio age height weight sistolic_bp diastolic_bp smoke alcohol active gender_Female gender_Male cholesterol_Above Normal cholesterol_Normal cholesterol_Way Above Normal glucose_Above Normal glucose_Normal glucose_Way Above Normal
0 False True 62 165 55.0 110 70 False False True 1 0 0 1 0 0 1 0
1 True True 58 162 87.0 220 140 True True True 0 1 1 0 0 1 0 0
2 True False 58 160 62.0 130 90 False False True 0 1 0 1 0 0 1 0
3 True True 63 160 60.0 150 80 False False True 1 0 0 0 1 1 0 0
4 True True 60 180 95.0 140 80 False True True 0 1 1 0 0 0 1 0
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
9995 False False 44 165 65.0 120 80 False False True 1 0 0 1 0 0 1 0
9996 True True 62 184 96.0 140 80 False True False 0 1 0 0 1 0 1 0
9997 False True 56 166 55.0 110 70 False False True 1 0 0 1 0 0 1 0
9998 True True 58 171 80.0 180 100 False False False 0 1 0 0 1 0 0 1
9999 True True 58 160 72.0 130 80 False False True 1 0 0 0 1 0 1 0

10000 rows × 18 columns

Report Accuracy

from sklearn.metrics import precision_score, accuracy_score, recall_score
from sklearn.metrics import confusion_matrix, plot_confusion_matrix


cf_matrix = confusion_matrix(y_pred, y_test, labels=[False, True])
tn, fp, fn, tp = cf_matrix.ravel()
fig = sns.heatmap(cf_matrix, annot=True, fmt='d', cmap='Blues')
display(pd.DataFrame([(round(precision_score(y_test, y_pred)*100, 2),
               round(accuracy_score(y_test, y_pred)*100, 2),
               tn, fp, fn, tp
               )], columns=['Precision',
                            'Accuracy',
                            'True Negatives',
                            'False Positives',
                            'False Negatives',
                            'True Positives'
                            ]).T.applymap(round))

fig
0
Precision 75
Accuracy 73
True Negatives 3867
False Positives 1541
False Negatives 1138
True Positives 3454
<AxesSubplot:>

png

Understanding ROC Curve

# Plot ROC Curve
from sklearn.metrics import plot_roc_curve
plot_roc_curve(gboost, X_test, y_test)
<sklearn.metrics._plot.roc_curve.RocCurveDisplay at 0x7fdcfabc6c70>

png

EMNIST

The EMNIST dataset is a set of handwritten character digits derived from the NIST Special Database 19 and converted to a 28x28 pixel image format and dataset structure that directly matches the MNIST dataset. Let us use this dataset to train and detect character scribes on a piece of white paper.

import tensorflow.compat.v2 as tf
import tensorflow_datasets as tfds

tf.enable_v2_behavior()

# Load MNIST dataset
(ds_train, ds_test), ds_info = tfds.load(
    'mnist',
    split=['train', 'test'],
    shuffle_files=True,
    as_supervised=True,
    with_info=True,
)

# Convert image into a flattened tensor
def normalize_img(image, label):
  """Normalizes images: `uint8` -> `float32`."""
  return tf.cast(image, tf.float32) / 255., label

ds_train = ds_train.map(
    normalize_img, num_parallel_calls=tf.data.experimental.AUTOTUNE)
ds_train = ds_train.cache()
ds_train = ds_train.shuffle(ds_info.splits['train'].num_examples)
ds_train = ds_train.batch(128)
ds_train = ds_train.prefetch(tf.data.experimental.AUTOTUNE)
ds_test = ds_test.map(
    normalize_img, num_parallel_calls=tf.data.experimental.AUTOTUNE)
ds_test = ds_test.batch(128)
ds_test = ds_test.cache()
ds_test = ds_test.prefetch(tf.data.experimental.AUTOTUNE)

Train the Keras Model

model = tf.keras.models.Sequential([
  tf.keras.layers.Flatten(input_shape=(28, 28, 1)),
  tf.keras.layers.Dense(128,activation='relu'),
  tf.keras.layers.Dense(10, activation='softmax')
])
model.compile(
    loss='sparse_categorical_crossentropy',
    optimizer=tf.keras.optimizers.Adam(0.001),
    metrics=['accuracy'],
)

model.fit(
    ds_train,
    epochs=10,
    validation_data=ds_test,
)
Epoch 1/10
469/469 [==============================] - 3s 3ms/step - loss: 0.6352 - accuracy: 0.8247 - val_loss: 0.1969 - val_accuracy: 0.9434
Epoch 2/10
469/469 [==============================] - 1s 1ms/step - loss: 0.1778 - accuracy: 0.9484 - val_loss: 0.1399 - val_accuracy: 0.9602
Epoch 3/10
469/469 [==============================] - 1s 1ms/step - loss: 0.1248 - accuracy: 0.9647 - val_loss: 0.1169 - val_accuracy: 0.9648
Epoch 4/10
469/469 [==============================] - 1s 1ms/step - loss: 0.0928 - accuracy: 0.9738 - val_loss: 0.1008 - val_accuracy: 0.9690
Epoch 5/10
469/469 [==============================] - 1s 1ms/step - loss: 0.0739 - accuracy: 0.9800 - val_loss: 0.0930 - val_accuracy: 0.9702
Epoch 6/10
469/469 [==============================] - 1s 1ms/step - loss: 0.0622 - accuracy: 0.9823 - val_loss: 0.0783 - val_accuracy: 0.9753
Epoch 7/10
469/469 [==============================] - 1s 1ms/step - loss: 0.0528 - accuracy: 0.9848 - val_loss: 0.0800 - val_accuracy: 0.9760
Epoch 8/10
469/469 [==============================] - 1s 1ms/step - loss: 0.0433 - accuracy: 0.9883 - val_loss: 0.0730 - val_accuracy: 0.9767
Epoch 9/10
469/469 [==============================] - 1s 1ms/step - loss: 0.0382 - accuracy: 0.9899 - val_loss: 0.0710 - val_accuracy: 0.9782
Epoch 10/10
469/469 [==============================] - 1s 1ms/step - loss: 0.0313 - accuracy: 0.9912 - val_loss: 0.0719 - val_accuracy: 0.9778





<tensorflow.python.keras.callbacks.History at 0x7fdcbc3b5370>

Test on Handwriting

We achieved great accuracy on existing MNIST sample. But if we applied to a new handwriting -- aka Seshu's -- does it perform in real world? See my scribble

!wget --quiet -O file.png "https://drive.google.com/uc?export=download&id=1wpGcdElKL0GF4PlE8SheEFFOQiMUb0Vw"
from IPython.display import Image, display
import PIL
from keras.preprocessing.image import img_to_array, load_img
import cv2
from skimage.transform import resize as imresize
# Read input scribble
img = cv2.imread('file.png', cv2.IMREAD_GRAYSCALE)
edged = cv2.Canny(img, 10, 100)

# Detect where areas of interest exis
contours, hierarchy = cv2.findContours(edged, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)

# Create a blank copy to write-over
newimg = img.copy()

# Where each blotch of ink exists, clip and detect
for (x,y,w,h) in [rect for rect in [cv2.boundingRect(ctr) for ctr in contours]]:
    if w >= 10 and h >= 50:
        # Clip some border-buffer zone as well so the digit only covers 50% of the area
        try:
          digit_img = cv2.resize(edged[y-32:y+h+32,x-32:x+w+32], (28,28), interpolation=cv2.INTER_AREA)
          # Convert clipped digit into black-n-white; MNIST standard is BW
          (_, bw_img) = cv2.threshold(digit_img, 5, 255, cv2.THRESH_BINARY | cv2.THRESH_OTSU)
          # Predict the scribbled letter
          digit = model.predict_classes(tf.reshape(bw_img, (1,28,28,1)))[0]
          # Overlay the recognized text right on top of the existing scribble
          cv2.putText(newimg, str(digit), (max(30, x + 50), max(30, y + 50)), cv2.FONT_HERSHEY_SIMPLEX, 4, 0, 8)
        except:
          pass

# Show original image
dimage = lambda x: PIL.Image.fromarray(x).convert("L")
display(dimage(newimg).resize((500, 300)))

png

About

No description, website, or topics provided.

Resources

Readme
Activity

Stars

0 stars

Watchers

1 watching

Forks

0 forks
Report repository

Releases

No releases published

Packages





Contributors

Languages
