Gauge Node had an issue, it's overlap with text node at the bottom. #555

@wongnam

Description

@wongnam

What are the steps to reproduce?

Import this flow :
[{"id":"764efeaa.94e0a","type":"ui_gauge","z":"dceadd9d.ba53c","name":"","group":"c7daf7a2.12ddf8","order":6,"width":"6","height":"4","gtype":"wave","title":"Level","label":"%","format":"{{value}}","min":0,"max":"100","colors":["#00b500","#e6e600","#ca3838"],"seg1":"","seg2":"","x":490,"y":2040,"wires":[]},{"id":"36b0e04e.d1302","type":"ui_text","z":"dceadd9d.ba53c","group":"c7daf7a2.12ddf8","order":7,"width":"6","height":"1","name":"","label":"text 2","format":"{{msg.payload}}","layout":"col-center","x":490,"y":2090,"wires":[]},{"id":"bbe9d6f6.5e4148","type":"ui_text","z":"dceadd9d.ba53c","group":"c7daf7a2.12ddf8","order":5,"width":"6","height":"1","name":"","label":"text 1","format":"{{msg.payload}}","layout":"col-center","x":490,"y":1990,"wires":[]},{"id":"c7daf7a2.12ddf8","type":"ui_group","z":"","name":"Water Tank","tab":"e4c93d0f.07007","order":9,"disp":true,"width":"6","collapse":false},{"id":"e4c93d0f.07007","type":"ui_tab","z":"","name":"Home","icon":"home","order":1}]

What happens?

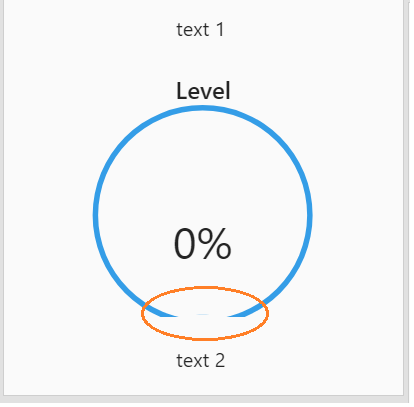

The gauge Node has an issue, it's the overlap with the text node at the bottom. see picture.

What do you expect to happen?

no overlap

Please tell us about your environment:

  • Node-RED-Dashboard version: 2.19.2
  • Node-RED version: 0.20.7
  • node.js version: v8.12.0
  • npm version: 6.9.0
  • Platform/OS: Pi3B+ Raspbian
  • Browser: Chrome on PC
