Project Scope

A REST API Microservices application created using Spring Boot framework in Java, implementing CRUD functionality to store, read, update and delete book data from a database. The purpose of this project is to demonstrate the knowledge and skills I have gained during my software development bootcamp at QA.

Stacks and Tools

• Java
• Spring Boot
• Maven
• MySQL
• Git/GitHub
• JUnit and Mockito - for testing
• Jira - for project management
• H2 database
• H2 console
• MySQL workbench
• Postman - for making API calls
• Scrum - Agile

Challenges

There were a few challenges, one was getting the application to work with multiple tables in a ManyToMany relationship between the authors and books tables. The testing part also presented a challenge as the constructor in my Book entity was different to the constructor I made in the Book DTO class, as a result it took some time to resolve the conflict, but I learnt a great deal during the process.

What went well? / What didn't go as planned?

Overall the project went really well, a lot of the challenges I encountered improved my knowledge of how the spring boot framework works and certainly improved my competency in using Java.

Knowing what I know now, for future projects, I will spend more time planning before jumping into coding the solution just so that the build phase is carried out in the most efficient manner.

Screenshots of API calls

Adding a book to the database

Get All books from the database

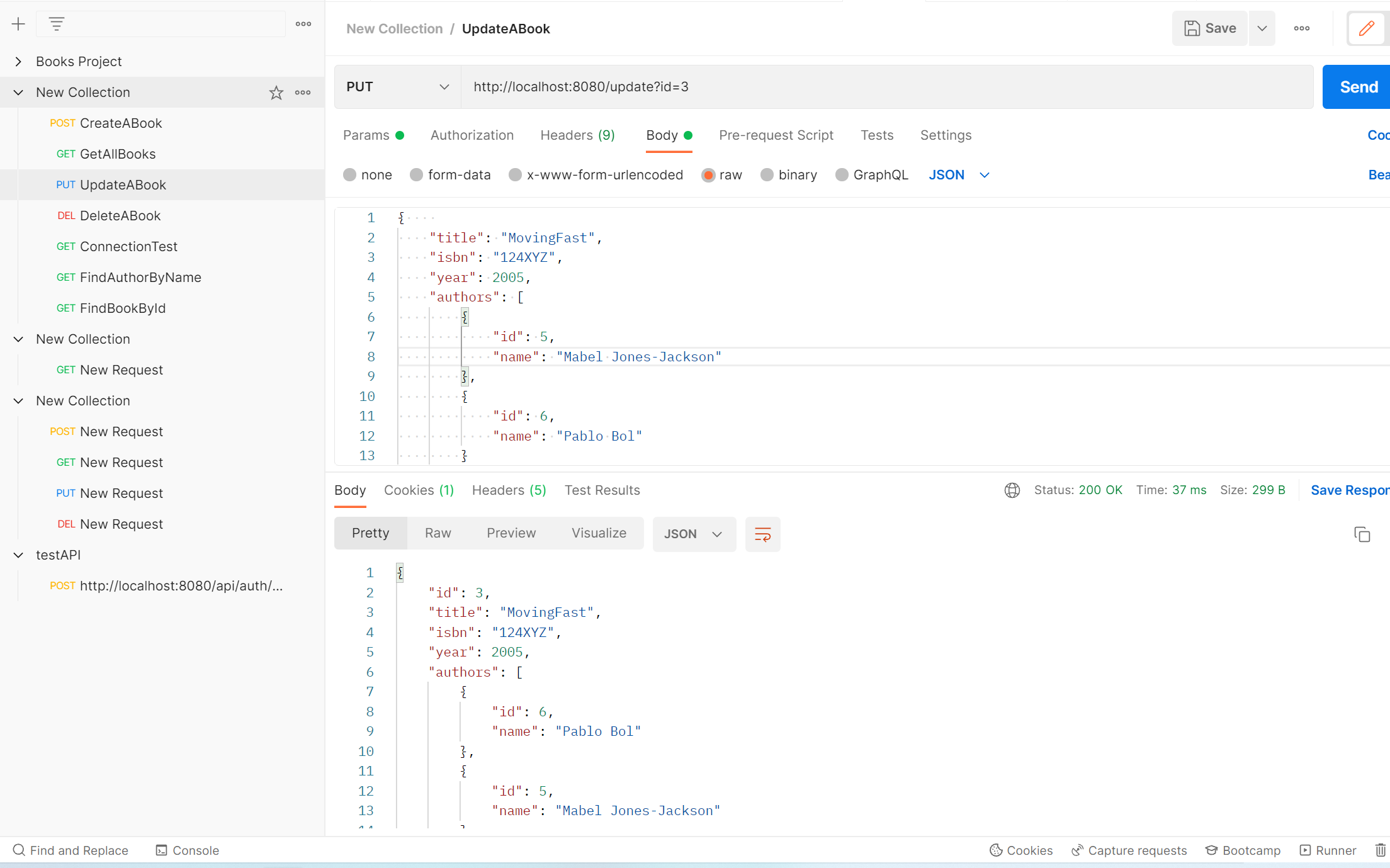

Updata an existing book Before

Update an existing book by ID After

Find author by nameContaining

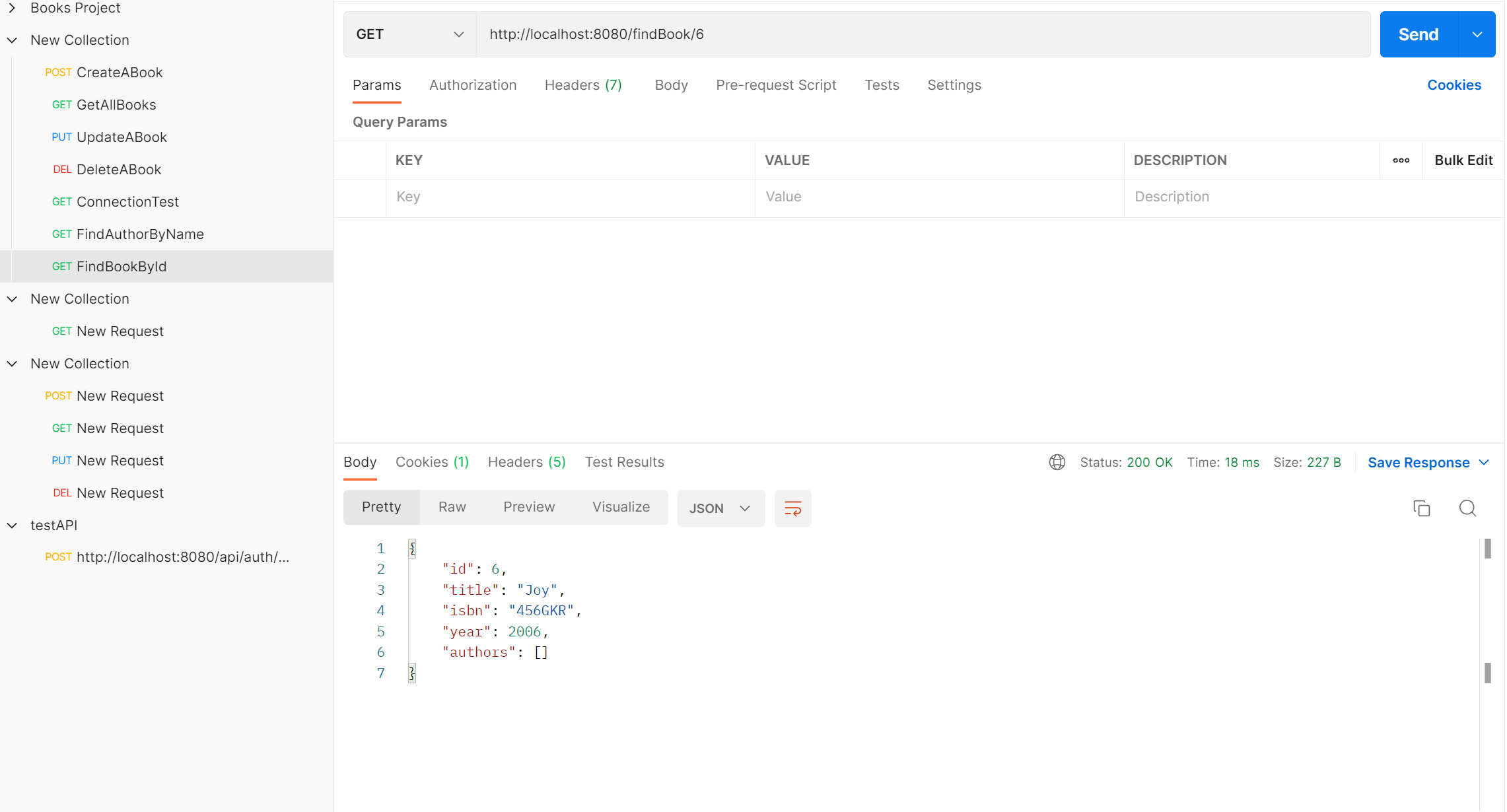

Find book by ID

Delete A Book

Screenshots of Database persistence

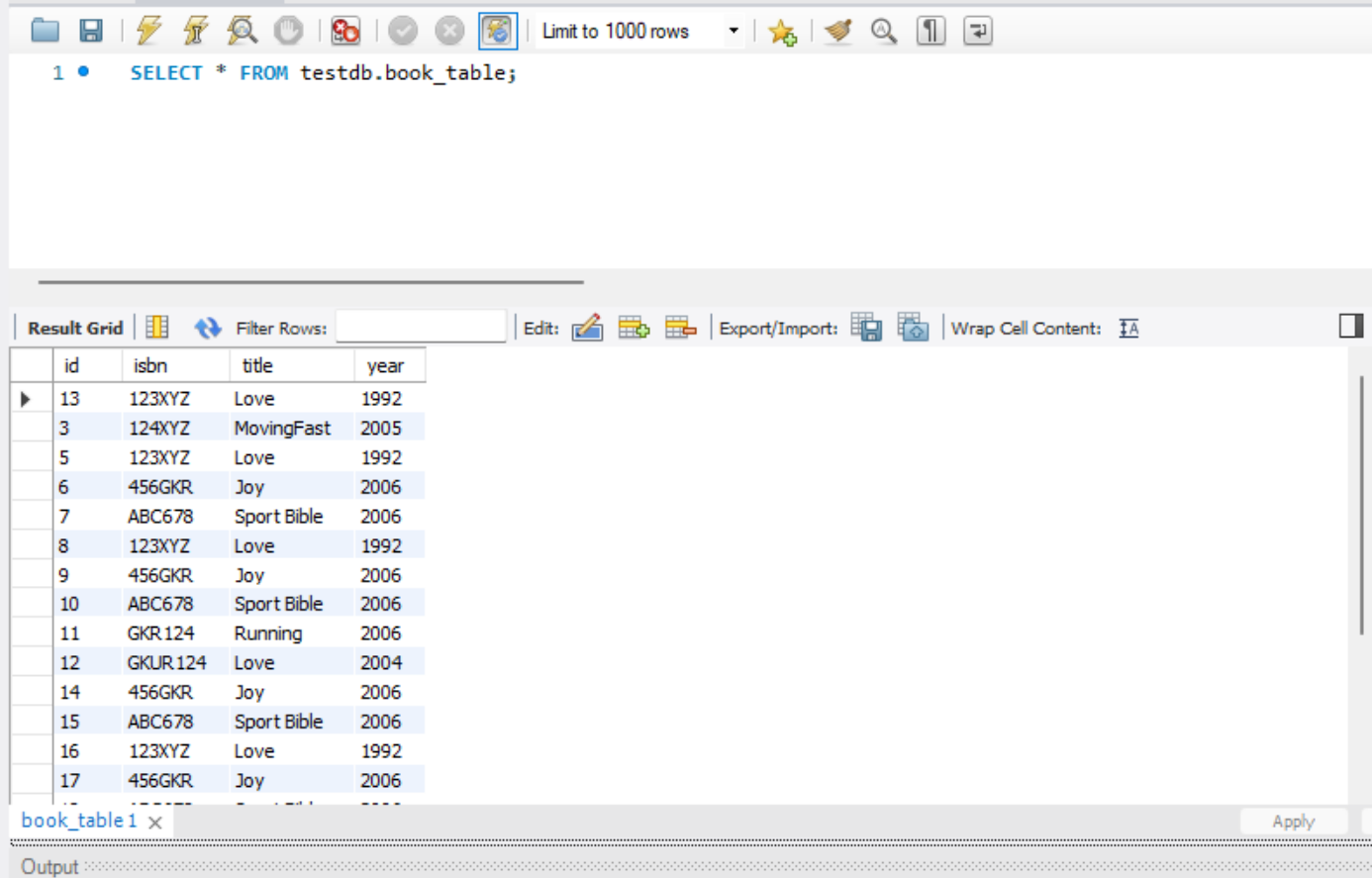

books_table

authors_table

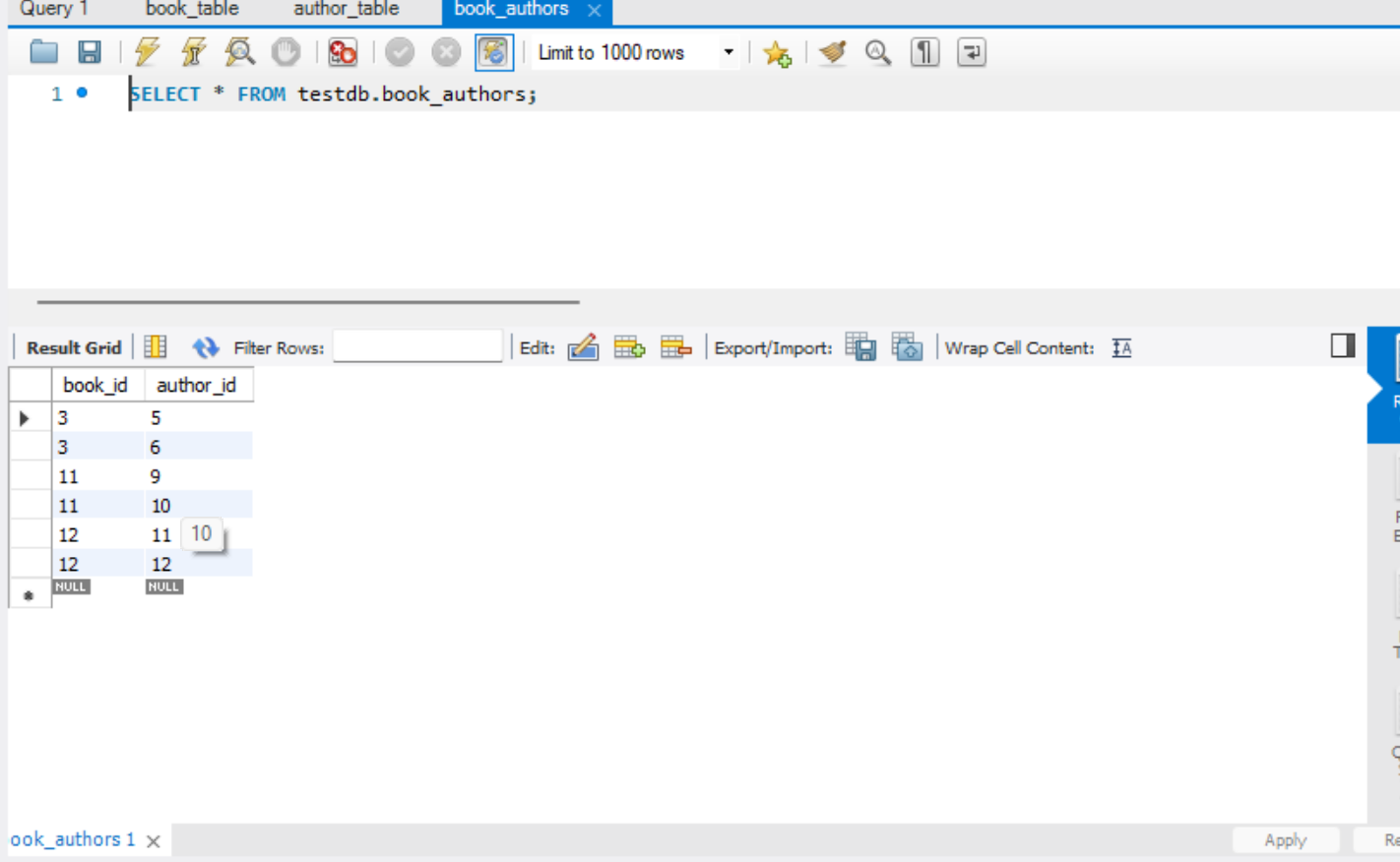

juction_table

Entity Relationship

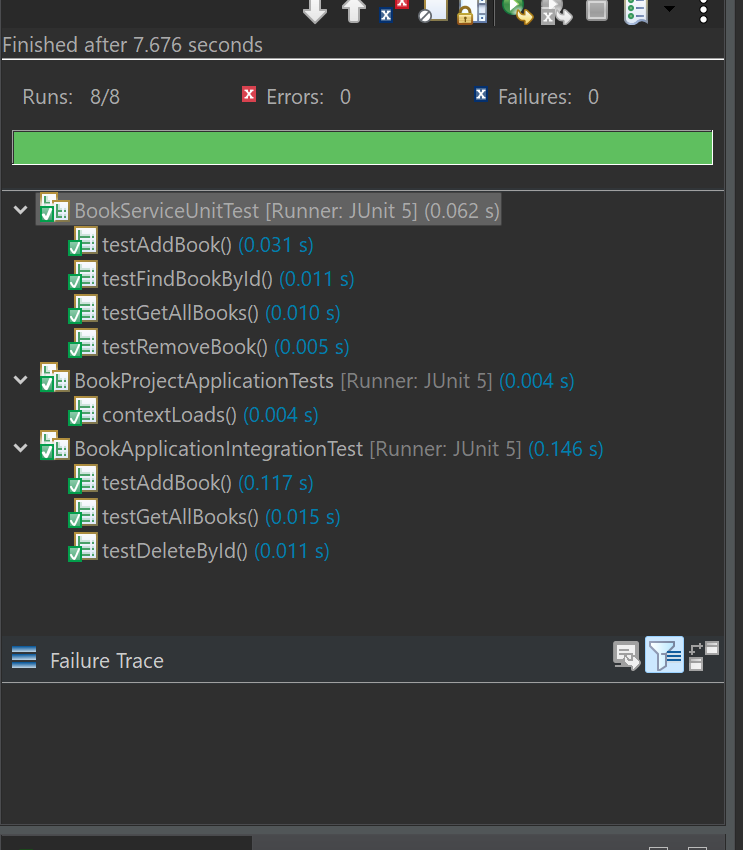

Testing

Possible improvements for future revisions of the project

• Build a frontend for the project using a framework like Angular.
• Create forms so that data can be submited and read in a more pleasing format for the end user.
• Transfer/host the app on a cloud based service such as AWS or Azure.

Risk Assessment

Description	Likelihood	Impact	Responsibilty	Response	Mitigation
No Internet Connection	Unlikely	High	Me	Connect via mobile	Find a library or public place that thas free wifi
GitHub goes down	Unlikely	Medium	GitHub/MicroSoft	Save code locally on machine while the service comes back online	Ensure code is saved at regular intervals both locally and pushed to remote repository
Offsick/Ill	Unlikely	High	Me	Inform tutor/trainer and have contact details readily accessible	Ensure there is a minimum viable product to submit as early as possible during the project
Code doesn't compile	Medium	High	Me	Roll back to last working branch/commit	Ensure each working feature branch is commited and pushed at regular intervals
Loss of Power	Unlikely	High	Me/Power Networks	Save all work and push to remote, if internet connection available	Have a battery/portable power pack available to run machine long enough to save any work in progress

Link to Jira Board
