[BD-27] [TNL-7455] [TNL-7457] Add support for True/False and Fill in the Blank problem types by pcockwell · Pull Request #11 · openedx/cc2olx

pcockwell · 2020-09-09T10:16:56Z

Provides conversion support for these question types:

cc.true_false.v0p1
cc.fib.v0p1

This PR also fixes conversion support for cc.multiple_choice.v0p1 problems, and given that the logic for parsing QTI cc.true_false.v0p1 problems is identical to the logic for parsing cc.multiple_choice.v0p1 problems, the code is reused. Similarly, the logic for generating OLX Multiple Choice and OLX True/False questions are identical, and code is reused there as well.

JIRA tickets:
BLENDED-581
TNL-7455
TNL-7457

Dependencies: Builds directly upon #5

Testing instructions:

Note: Requires Python 3.8.X to work on my machine

Unit Tests:

Create and activate a virtual environment for this project
Install requirements with make requirements
Run tests with make test

Manual Testing:

Create and activate a virtual environment for this project
Install requirements with make requirements
Install the cc2olx CLI with make install
Make note of the install location listed at the end of the install process:

...
creating /home/USERNAME/.pyenv/versions/3.6.10/envs/cc2olx/lib/python3.6/site-packages/cc2olx-0.1.0-py3.6.egg
Extracting cc2olx-0.1.0-py3.6.egg to /home/USERNAME/.pyenv/versions/3.6.10/envs/cc2olx/lib/python3.6/site-packages
cc2olx 0.1.0 is already the active version in easy-install.pth
Installing cc2olx script to /home/USERNAME/.pyenv/versions/cc2olx/bin              # <-------- This line

Installed /home/USERNAME/.pyenv/versions/3.6.10/envs/cc2olx/lib/python3.6/site-packages/cc2olx-0.1.0-py3.6.egg
Processing dependencies for cc2olx==0.1.0
Finished processing dependencies for cc2olx==0.1.0

Find a Common Cartridge course (.imscc file) that contains both True/False questions, and Fill in the Blank questions
Inspect the course on https://common-cartridge-viewer.netlify.app/#/ to locate where the True/False and Fill in the Blank questions are. You will need to navigate to the same location in the Studio after importing your course
Convert the Common Cartridge course with

/home/USERNAME/.pyenv/versions/cc2olx/bin/cc2olx -i /path/to/course.imscc -r zip

This file will be stored in the output directory. Navigate to your Studio, select a course, and import the generated .tar.gz file to overwrite the course.
Navigate to the course outline, and find the sections containing the True/False and Fill in the Blank questions, and inspect the resulting rendering

Reviewers

@0x29a
edX reviewer[s] TBD

openedx-webhooks · 2020-09-09T10:17:03Z

Thanks for the pull request, @pcockwell! I've created BLENDED-581 to keep track of it in Jira. More details are on the BD-27 project page.

When this pull request is ready, tag your edX technical lead.

Also fixes logic for Multiple Choice, and reuses multiple choice code for True/False problems to reduce code duplication

0x29a

👍

Looks good to me.

I tested that:
Tests are passing locally for both python versions.

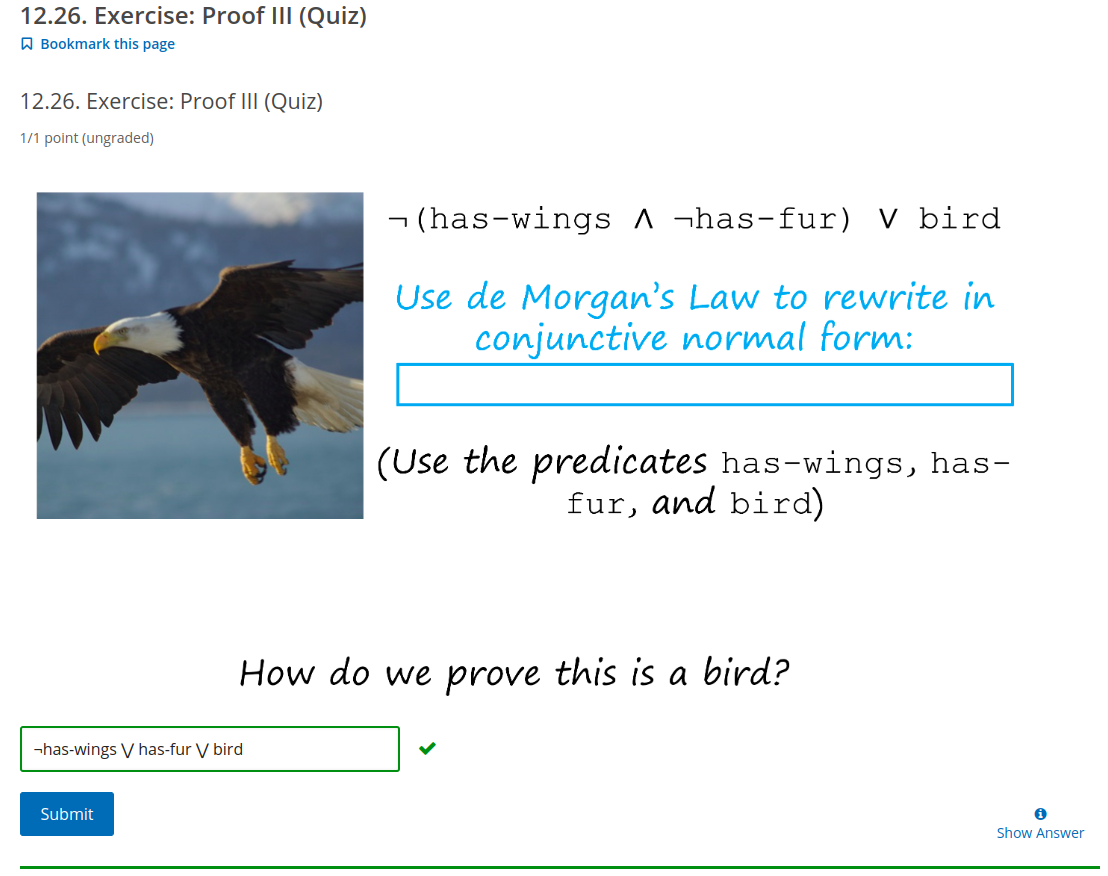

Fill-in-the blank problems are being rendered correctly:

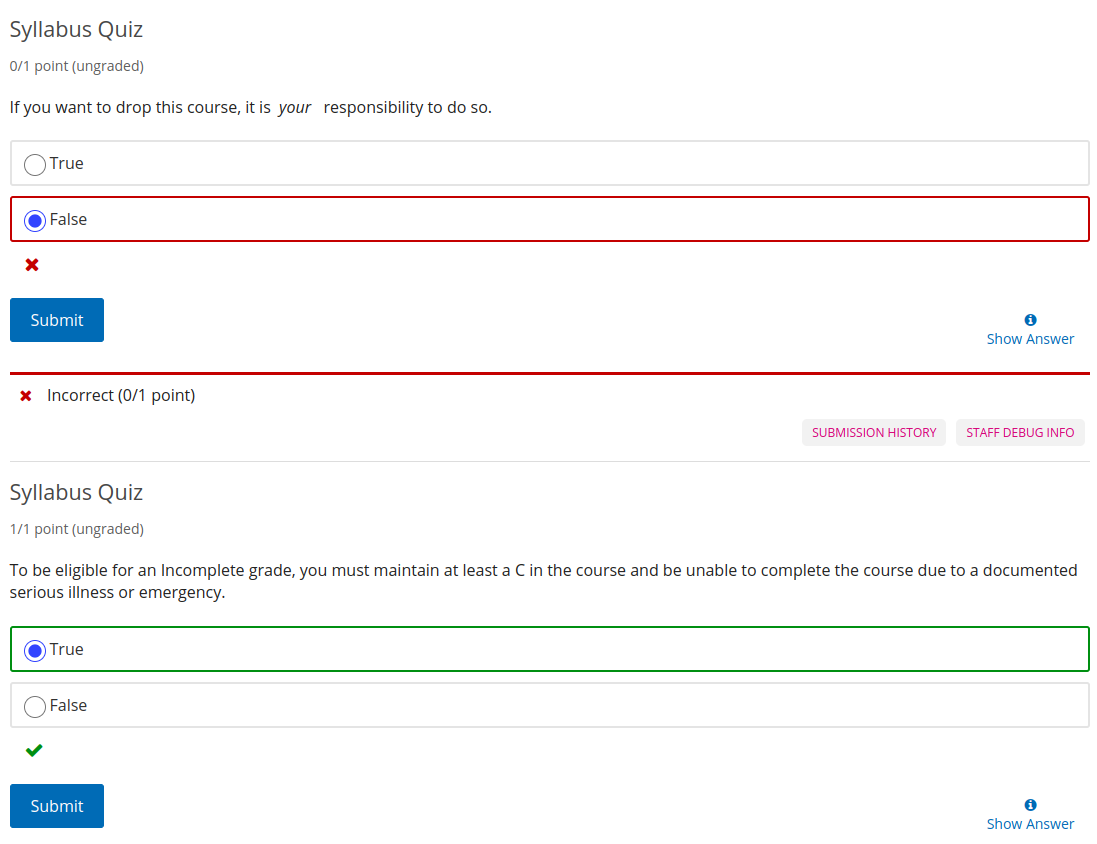

True/false problems are being rendered correctly:
I read through the code
~~I checked for accessibility issues~~
Includes documentation
~~I made sure any change in configuration variables is reflected in the corresponding client's configuration-secure repository.~~

0x29a · 2020-09-16T11:11:11Z

+            # Disregard any file that isn't found
+            try:
+                archive.add(file, alternative_name)
+            except FileNotFoundError:
+                print("{} was not found. Skipping".format(str(file)))
+                pass


0x29a · 2020-09-16T11:17:32Z

+    @property
+    def _problem_parsers_map(self):
+        """
+        Returns: mapping between Common Cartridge profile value and function
+            that parses actual problem node.
+
+        Note: Since True/False problems in QTI are constructed identically to
+            QTI Multiple Choice problems, we reuse `_parse_multiple_choice_problem`
+            for BOOLEAN type problems
+        """
+        return {
+            MULTIPLE_CHOICE: self._parse_multiple_choice_problem,
+            MULTIPLE_RESPONSE: self._parse_multiple_response_problem,
+            FILL_IN_THE_BLANK: self._parse_fib_problem,
+            ESSAY: self._parse_essay_problem,
+            BOOLEAN: self._parse_multiple_choice_problem,
+            PATTERN_MATCH: self._parse_pattern_match_problem,
+        }


Thanks for refactoring this.

azarembok

Looks good, thanks!

azarembok · 2020-09-18T21:04:35Z

+    @property
+    def _problem_parsers_map(self):
+        """
+        Returns: mapping between Common Cartridge profile value and function
+            that parses actual problem node.
+
+        Note: Since True/False problems in QTI are constructed identically to
+            QTI Multiple Choice problems, we reuse `_parse_multiple_choice_problem`
+            for BOOLEAN type problems
+        """
+        return {
+            MULTIPLE_CHOICE: self._parse_multiple_choice_problem,
+            MULTIPLE_RESPONSE: self._parse_multiple_response_problem,
+            FILL_IN_THE_BLANK: self._parse_fib_problem,
+            ESSAY: self._parse_essay_problem,
+            BOOLEAN: self._parse_multiple_choice_problem,
+            PATTERN_MATCH: self._parse_pattern_match_problem,
+        }


openedx-webhooks added blended PR is managed through 2U's blended developmnt program needs triage labels Sep 9, 2020

pcockwell marked this pull request as draft September 9, 2020 10:19

pcockwell changed the title ~~[BD-27] Add support for True/False and Fill in the Blank problem types~~ [BD-27] [TNL-7455] [TNL-7457] Add support for True/False and Fill in the Blank problem types Sep 9, 2020

pcockwell marked this pull request as ready for review September 10, 2020 06:43

TNL-7455 TNL-7457 Add support for True/False and FIB problem types

92c7863

Also fixes logic for Multiple Choice, and reuses multiple choice code for True/False problems to reduce code duplication

pcockwell force-pushed the patrick/BB-2946-bd-27-add-support-for-truefalse-problem-type branch from 230f86b to 92c7863 Compare September 12, 2020 03:27

0x29a approved these changes Sep 16, 2020

View reviewed changes

azarembok approved these changes Sep 18, 2020

View reviewed changes

azarembok merged commit 5fa6f35 into openedx:master Sep 18, 2020

openedx-webhooks added merged and removed needs triage labels Sep 18, 2020

0x29a deleted the patrick/BB-2946-bd-27-add-support-for-truefalse-problem-type branch September 22, 2020 11:04
