[FC-0009] Paste Components (OLX) into any Unit in Studio #31969

bradenmacdonald · 2023-03-20T18:03:20Z

Description

This continues the work from #31904 and implements ticket openedx/modular-learning#12

Affects: course authors [for now, only those who will be participating in the beta test]

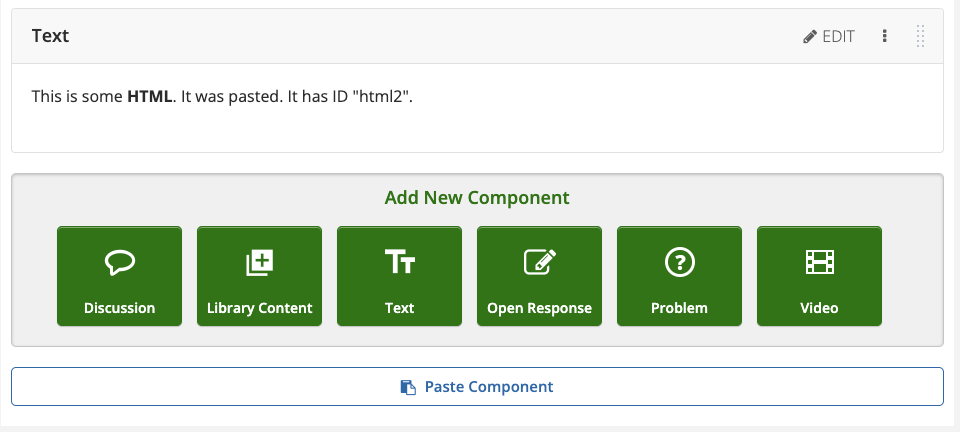

Screenshot of the "Paste Component" button:

Demo video: coming

Supporting information

See tickets linked above.

Testing instructions

Go to (studio)/admin/waffle/flag/ and enable contentstore.enable_copy_paste_feature for Everyone, if you haven't already.
Open two browser tabs so you can see both at the same time. Ideally, they're in different courses.
Use the new Actions menu to select Copy. You should see an animation and the "Paste Component" button should instantly appear in any open browser tabs.
Try pasting into the same course and different course.
Refresh the page and ensure the "Paste Component" button still appears
Try various combinations of copying and pasting
- e.g. try copy, then delete the source block, then paste. It should still work!
- e.g. try within the same course, multiple pastes into the same unit (should get unique IDs), into different courses, etc.

Note: handling of static assets, intra-course links, pythonlib.zip, content groups, and anything along those lines is out of scope for now. Pasting within a course should always work fine. Pasting between courses may have issues if the component uses one or more of these features.

Deadline

"None" if there's no rush, or provide a specific date or event (and reason) if there is one.

Other information

Private ref: MNG-3605

openedx-webhooks · 2023-03-20T18:03:27Z

Thanks for the pull request, @bradenmacdonald!

As a core committer in this repo, you can merge this once the pull request is approved per the core committer reviewer requirements and according to the agreement with your edX Champion.

bradenmacdonald · 2023-04-19T23:34:42Z

@Agrendalath @ormsbee This is ready for review.

cms/djangoapps/contentstore/views/helpers.py

bradenmacdonald · 2023-04-20T18:53:12Z

setup.cfg

I am now using the new api.py import linter for this new content_staging django app; this work was part of my motivation for building that.

Agrendalath

@bradenmacdonald, ~~when I check out your branch, I get the following error in Studio logs. Do I need to do anything specific to get it working?~~

Exception in thread django-main-thread: Traceback (most recent call last): File "/usr/lib/python3.8/threading.py", line 932, in _bootstrap_inner self.run() File "/usr/lib/python3.8/threading.py", line 870, in run self._target(*self._args, **self._kwargs) File "/edx/app/edxapp/venvs/edxapp/lib/python3.8/site-packages/django/utils/autoreload.py", line 64, in wrapper fn(*args, **kwargs) File "/edx/app/edxapp/venvs/edxapp/lib/python3.8/site-packages/django/core/management/commands/runserver.py", line 118, in inner_run self.check(display_num_errors=True) File "/edx/app/edxapp/venvs/edxapp/lib/python3.8/site-packages/django/core/management/base.py", line 419, in check all_issues = checks.run_checks( File "/edx/app/edxapp/venvs/edxapp/lib/python3.8/site-packages/django/core/checks/registry.py", line 76, in run_checks new_errors = check(app_configs=app_configs, databases=databases) File "/edx/app/edxapp/venvs/edxapp/lib/python3.8/site-packages/django/core/checks/urls.py", line 13, in check_url_config return check_resolver(resolver) File "/edx/app/edxapp/venvs/edxapp/lib/python3.8/site-packages/django/core/checks/urls.py", line 23, in check_resolver return check_method() File "/edx/app/edxapp/venvs/edxapp/lib/python3.8/site-packages/django/urls/resolvers.py", line 416, in check for pattern in self.url_patterns: File "/edx/app/edxapp/venvs/edxapp/lib/python3.8/site-packages/django/utils/functional.py", line 48, in __get__ res = instance.__dict__[self.name] = self.func(instance) File "/edx/app/edxapp/venvs/edxapp/lib/python3.8/site-packages/django/urls/resolvers.py", line 602, in url_patterns patterns = getattr(self.urlconf_module, "urlpatterns", self.urlconf_module) File "/edx/app/edxapp/venvs/edxapp/lib/python3.8/site-packages/django/utils/functional.py", line 48, in __get__ res = instance.__dict__[self.name] = self.func(instance) File "/edx/app/edxapp/venvs/edxapp/lib/python3.8/site-packages/django/urls/resolvers.py", line 595, in urlconf_module return import_module(self.urlconf_name) File "/edx/app/edxapp/venvs/edxapp/lib/python3.8/importlib/__init__.py", line 127, in import_module return _bootstrap._gcd_import(name[level:], package, level) File "<frozen importlib._bootstrap>", line 1014, in _gcd_import File "<frozen importlib._bootstrap>", line 991, in _find_and_load File "<frozen importlib._bootstrap>", line 975, in _find_and_load_unlocked File "<frozen importlib._bootstrap>", line 671, in _load_unlocked File "<frozen importlib._bootstrap_external>", line 848, in exec_module File "<frozen importlib._bootstrap>", line 219, in _call_with_frames_removed File "/edx/app/edxapp/edx-platform/cms/urls.py", line 19, in <module> from cms.djangoapps.contentstore import views as contentstore_views File "/edx/app/edxapp/edx-platform/cms/djangoapps/contentstore/views/__init__.py", line 5, in <module> from .component import * File "/edx/app/edxapp/edx-platform/cms/djangoapps/contentstore/views/component.py", line 32, in <module> import openedx.core.djangoapps.content_staging.api as content_staging_api File "/edx/app/edxapp/edx-platform/openedx/core/djangoapps/content_staging/api.py", line 11, in <module> from .models import UserClipboard as _UserClipboard, StagedContent as _StagedContent File "/edx/app/edxapp/edx-platform/openedx/core/djangoapps/content_staging/models.py", line 20, in <module> class StagedContent(models.Model): File "/edx/app/edxapp/venvs/edxapp/lib/python3.8/site-packages/django/db/models/base.py", line 113, in __new__ raise RuntimeError( RuntimeError: Model class openedx.core.djangoapps.content_staging.models.StagedContent doesn't declare an explicit app_label and isn't in an application in INSTALLED_APPS.
Edit: nevermind, running `make studio-static` fixed this.

cms/djangoapps/contentstore/views/component.py

cms/djangoapps/contentstore/views/helpers.py

Agrendalath · 2023-04-24T14:05:05Z

cms/djangoapps/contentstore/views/tests/test_clipboard_paste.py

Nit: did you intentionally decide not to use def setUp(self): (to set self.course_key + self.client there)? I see you're using self.assertEqual instead of a standard assert, so it's a bit odd mix of unittest.TestCase and pytest styles.

I copied this from the other TestCase, where only some of the tests need this setup, which is why it's not in a setUp method. Here I could put it in a setUp method, if you think that's cleaner. Though if we add more tests here, some may not need the course.

As for mixing assert styles, is there a preferred style for the codebase now? I honestly don't know which I "should" be using.

I copied this from the other TestCase, where only some of the tests need this setup, which is why it's not in a setUp method. Here I could put it in a setUp method, if you think that's cleaner. Though if we add more tests here, some may not need the course.

No strong preference here. If you think we can have tests that won't need the course setup, then we can keep it as is.

As for mixing assert styles, is there a preferred style for the codebase now? I honestly don't know which I "should" be using.

I don't see any coding guideline for this, but there were 36 PRs like #26576 that replaced these asserts, so I believe that the pytest style is preferred.

OK, I converted this test suite to pytest style.

openedx/core/djangoapps/olx_rest_api/test_views.py

openedx/core/djangoapps/content_staging/api.py

cms/djangoapps/contentstore/views/helpers.py

Agrendalath

👍

I tested this: verified that pasting works in the devstack
I read through the code
I checked for accessibility issues: n/a
Includes documentation: n/a
I made sure any change in configuration variables is reflected in the corresponding client's configuration-secure repository: n/a

cms/lib/xblock/authoring_mixin.py

…ssues

ormsbee · 2023-04-26T14:59:38Z

Looking through this more now...

ormsbee

Looks great! Just a few minor requests.

ormsbee · 2023-04-26T15:01:23Z

openedx/core/djangoapps/content_staging/api.py

+class StagedContentData(NamedTuple):
+    """ Read-only data model for StagedContent """
+    id: int
+    user_id: int
+    created: datetime
+    purpose: str
+    status: StagedContentStatus
+    block_type: str
+    display_name: str
+
+
+class UserClipboardData(NamedTuple):
+    """ Read-only data model for StagedContent """
+    content: StagedContentData
+    source_usage_key: UsageKey


Per OEP-49, please make these attr classes in data.py unless you have a strong reason for preferring named tuples (and put comments explaining that decision).

I like NamedTuples since they're built-in and have all the functionality we need in this case, but it's no problem at all - I'll change this to use attrs and live in data.py for consistency.

I've moved them to data.py though I found some issues with the OEP-49 recommendation regarding enums - openedx/openedx-proposals#471 - so I'm sticking with Django enums for now.

ormsbee · 2023-04-26T15:08:33Z

openedx/core/djangoapps/content_staging/api.py

+from opaque_keys.edx.keys import UsageKey
+
+from .models import UserClipboard as _UserClipboard, StagedContent as _StagedContent
+from .serializers import UserClipboardSerializer as _UserClipboardSerializer


Interesting way to keep people from importing these from the wrong place. I'm not sure if I prefer it to importing the module and doing models.UserClipboard, but I'm fine with it, fwiw.

I actually thought this is what OEP-49 recommends? "When importing internal app code to be used in the api.py file, prefix it with an underscore so it’s clear it’s for internal use only." Or are you saying the convention is to use from . import models as _models?

You're right, it's there. I must have just forgotten about that part, because I haven't been writing my code like that. 😛 I'll try to do so going forward.

I actually meant:

from . import models

So that all references are to models.UserClipboard. Granted, it doesn't mean people can't re-import it, but it's less likely.

ormsbee · 2023-04-26T15:11:45Z

cms/djangoapps/contentstore/views/helpers.py

+    node = etree.fromstring(olx_str)
+    store = modulestore()
+    with store.bulk_operations(parent_key.course_key):
+        parent_descriptor = store.get_item(parent_key)


A very big descriptor -> block renaming refactor is dropping shortly. Please make check that your naming aligns:

[BD-13][BB-6927] Unify xblock naming descriptor #31492

Hmm, not sure. What I found was that this thing is not a proper XBlock, and it doesn't have a full XBlock runtime, just a CachingDescriptorSystem. So that's why I've called it a descriptor here, and then the line below uses _load_preview_block to convert it from a descriptor to a proper XBlock. I had thought we didn't have to worry about those things anymore but I guess we still do.

So in this case I think the language is clear and necessary but I am not sure it aligns with the changes in that PR. @Agrendalath can you advise?

@ormsbee, @bradenmacdonald, we still use the "descriptor" term in some places. In this case, we are retrieving an "unbound" XBlock from the Modulestore. _load_preview_block handles adding the services and binding student data. Therefore, it is fair to call it a "descriptor", as the only goal of this variable is to pass it to a function that initializes the full runtime.

Great, thanks for the quick reply. That aligns with my understanding here :)

openedx-webhooks · 2023-04-27T16:58:08Z

@bradenmacdonald 🎉 Your pull request was merged! Please take a moment to answer a two question survey so we can improve your experience in the future.

edx-pipeline-bot · 2023-04-27T18:06:52Z

EdX Release Notice: This PR has been deployed to the staging environment in preparation for a release to production.

edx-pipeline-bot · 2023-04-27T18:29:26Z

EdX Release Notice: This PR has been deployed to the production environment.
