Depth Test not working as expected in WebGL

[zanzlanz]

I'm having an issue with the depth test not working with WebGL. It works as expected with C++ OpenGL.
Also, this is my first post, so let me know if this is not the appropriate way to present an issue.

C++ OpenGL compiles to the following correct result:

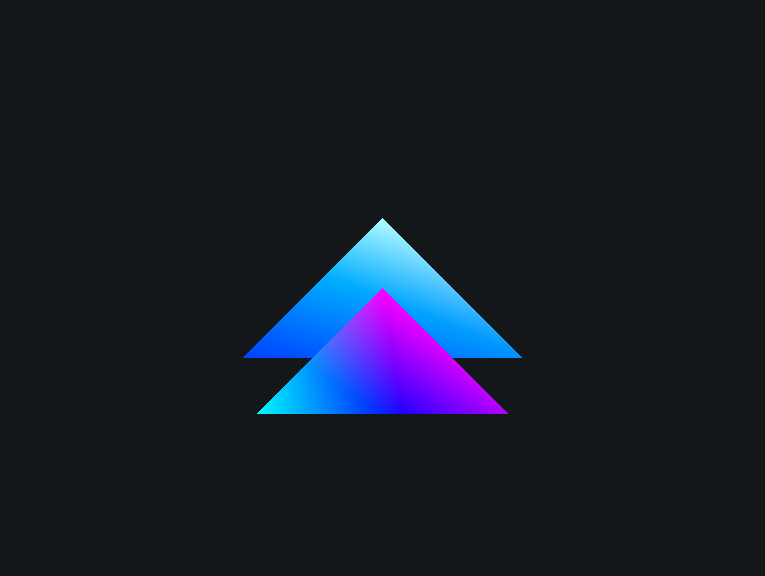

JS WebGL compiles to the following, which is incorrect. Simply notice the triangles are switched:

At the bottom is the entirety of the code I am using to test. I am using the latest versions of Haxe and Lime.
Mostly note the GL calls to force the depth test, and the vertices I am passing to the program. If you switch the order the triangles are positioned in the array, the JavaScript WebGL triangles will swap depths, but the C++ triangles will not. This tells me the depth test is not working for the WebGL context.

In the meantime, is there a workaround for this issue? I've tried everything I could think of so far, but I could be missing something obvious.

Thanks!

package;

import lime.app.Application;
import lime.graphics.opengl.*;
import lime.graphics.RenderContext;
import lime.graphics.Renderer;
import lime.math.Matrix4;
import lime.utils.Float32Array;

class Main extends Application {

    public function new() {
        super();
    }

    var _firstFrame:Bool = true;
    var _vertices:Float32Array;

    public override function render(render:Renderer):Void {

        if (_firstFrame) {
            // Do everything here only on the first frame

            GL.clearColor(.08, .09, .10, 1);

            GL.clearDepthf(1);
            GL.depthFunc(GL.LEQUAL);
            GL.enable(GL.DEPTH_TEST);
            GL.depthMask(true);

            var aspect:Float = window.width / window.height;
            var FOV:Float = Math.tan(45*Math.PI/360.0);
            var near:Float = .1;
            var far:Float = 2;
            var _projectionMatrix:Matrix4 = new Float32Array([
                1 / (FOV * aspect),    0,           0,                                0,
                0,                     1 / FOV,     0,                                0,
                0,                     0,           (near + far) / (near - far),     -1,
                0,                     0,           2 * near * far / (near - far),    0
            ]);


            var _vertexShaderCode =
                #if web
                    "precision mediump float;" +
                #end
                "
                attribute vec3 _vertexPosition;
                varying vec3 _vertexColor;
                uniform mat4 _projectionMatrix;

                void main () {
                    _vertexColor = vec3(cos(_vertexPosition.x * 12.0 + _vertexPosition.y * 8.0), sin(_vertexPosition.x * 10.0 + _vertexPosition.y * 14.0), 1.0);
                    gl_Position = _projectionMatrix * vec4(_vertexPosition, 1.0);
                }
                ";
            var _vertexShader:GLShader = createShader(_vertexShaderCode, GL.VERTEX_SHADER);

            var _fragmentShaderCode =
                #if web
                    "precision mediump float;" +
                #end
                "
                varying vec3 _vertexColor;
                void main () {
                    gl_FragColor = vec4(_vertexColor, 1.0);
                }
                ";
            var _fragmentShader:GLShader = createShader(_fragmentShaderCode, GL.FRAGMENT_SHADER);

            var _shaderProgram:GLProgram = GL.createProgram();
            GL.attachShader(_shaderProgram, _vertexShader);
            GL.attachShader(_shaderProgram, _fragmentShader);
            GL.linkProgram(_shaderProgram);
            GL.useProgram(_shaderProgram);


            // Swapping the top and bottom triangle code does not affect the image in C++
            // But in JavaScript (webGL) the triangles will swap position. This is because it is not performing the depth test.

            _vertices = new Float32Array([
                // Top triangle (closer to camera)
                  0,  .1, -1.0,
                -.2, -.1, -1.0,
                 .2, -.1, -1.0,

                // Bottom triangle (further from camera)
                  0,   0, -1.1,
                -.2, -.2, -1.1,
                 .2, -.2, -1.1

            ]);


            var _vbo:GLBuffer = GL.createBuffer();
            GL.bindBuffer(GL.ARRAY_BUFFER, _vbo);
            GL.bufferData(GL.ARRAY_BUFFER, Math.floor(_vertices.length * Float32Array.BYTES_PER_ELEMENT), _vertices.toBytes(), GL.STATIC_DRAW);

            var _vertexPosition = GL.getAttribLocation(_shaderProgram, "_vertexPosition");
            GL.vertexAttribPointer(_vertexPosition, 3, GL.FLOAT, false, 0, 0);
            GL.enableVertexAttribArray(_vertexPosition);

            var _projectionMatrix_location = GL.getUniformLocation(_shaderProgram, "_projectionMatrix");
            GL.uniformMatrix4fv(_projectionMatrix_location, 1, false, new Float32Array(_projectionMatrix));

            GL.viewport(0, 0, window.width, window.height);

            _firstFrame = false;
        }

        // Every frame (otherwise it flickers in the C++ version)
        GL.clear(GL.COLOR_BUFFER_BIT | GL.DEPTH_BUFFER_BIT);
        GL.drawArrays(GL.TRIANGLES, 0, Math.floor(_vertices.length / 3));
    }

    private function createShader(_source:String, _type:Int):GLShader {
        var _shader = GL.createShader(_type);
        GL.shaderSource (_shader, _source);
        GL.compileShader (_shader);

        return _shader;
    }
}

[jgranick]

Are you using <window depth-buffer="true" /> in your project.xml?

I believe the stencil and depth buffers are disabled by default when we initialize the window

[zanzlanz]

I was not using that! That was a very easy fix, thanks so much. It works as expected now.

For the future, where in the Haxe or Lime documentations could I have found that?

Edit: Perhaps I shouldn't have closed the thread after asking a question haha. My bad!

[jgranick]

This is (unfortunately!) an area where the documentation isn't thorough enough.

You can find properties available on Lime window configuration (which we update when you set the <window /> tag in a project.xml file) here:

http://api.openfl.org/lime/app/WindowConfig.html

Camel-case properties (such as allowHighDPI) translate to lowercase and dashes (<window allow-high-dpi="true" />) in XML.

Please ask on the forums, Slack or post here with any issues, and we'll keep working on making things more accessible in the future 😄

[zanzlanz]

Ah I see! I can't imagine figuring that out on my own haha :)
I assume you're talking about the OpenFL forums. I'll definitely use that if I have other issues I can't work around!

Thanks again man, I really appreciate the help!
