List mobile service to mobile client connections by sedroche · Pull Request #3021 · openshift/origin-web-console

sedroche · 2018-06-12T07:23:51Z

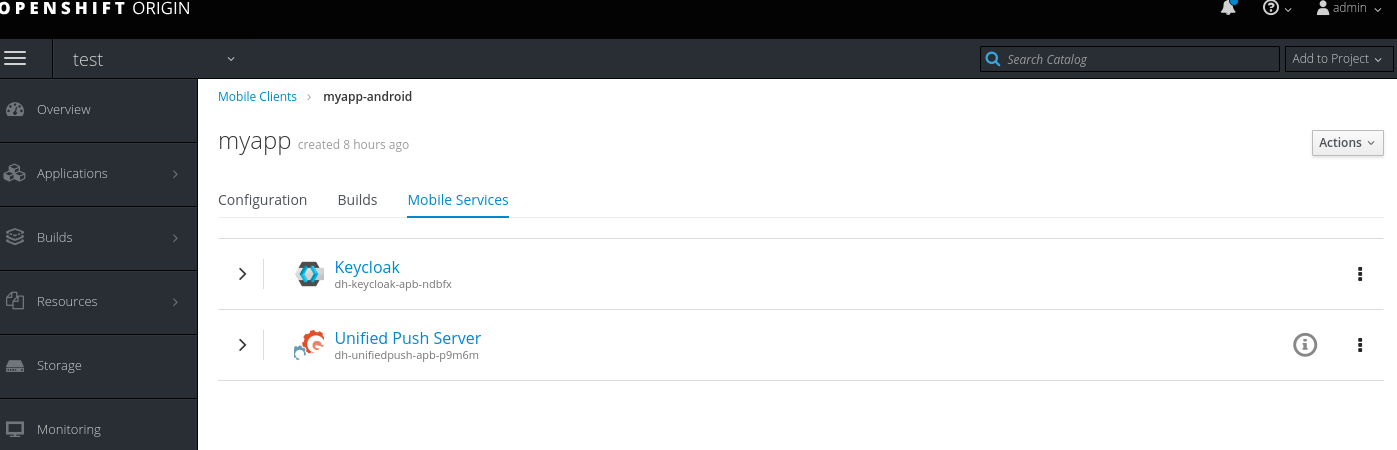

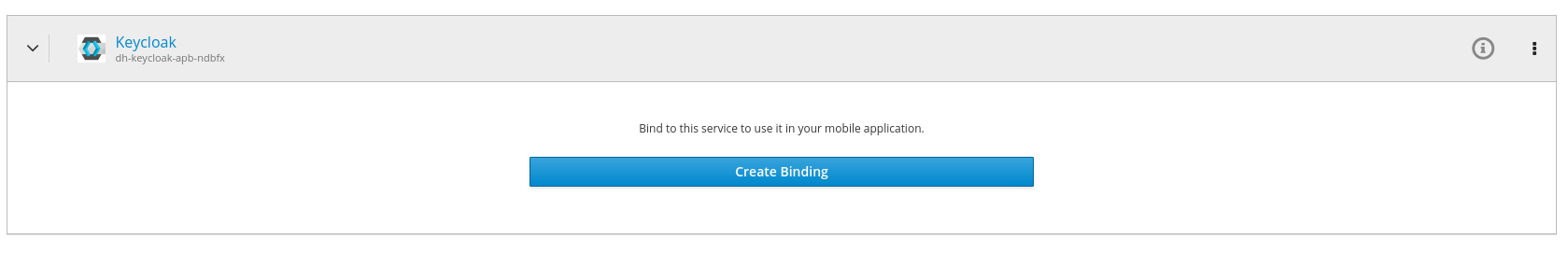

Displaying a list of mobile services that can be bound to a mobile client.

A binding can be created from within the component.

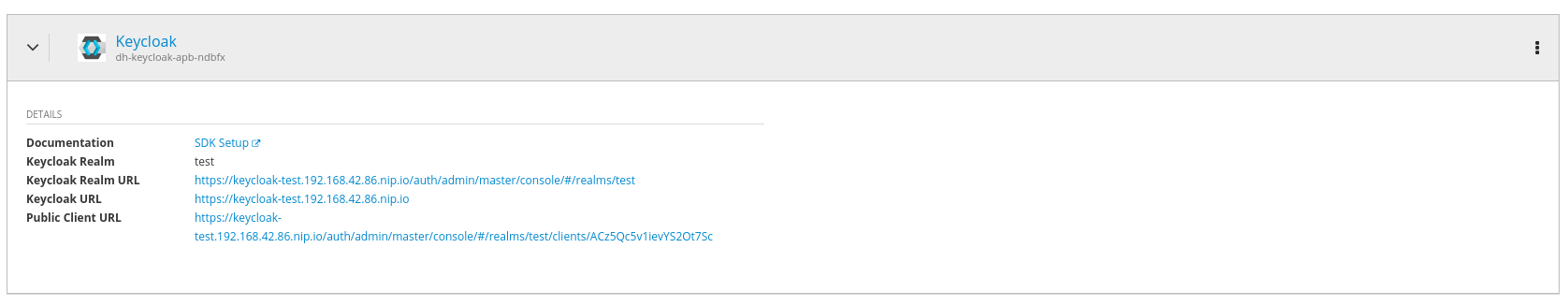

Each service will have configuration created during a binding which will be displayed to the user in this component.

NOTE: This PR makes use of openshift/origin-web-common#334 to identify specific bindings between client <-> service
and openshift/origin-web-common#320
and openshift/origin-web-common#341

benjaminapetersen · 2018-06-15T18:11:48Z

@openshift/team-ux-review

benjaminapetersen · 2018-06-15T20:41:06Z

@cshinn I think similar items related to button placement, etc.

spadgett · 2018-06-18T13:03:31Z

/ok-to-test

cshinn · 2018-06-18T13:45:45Z

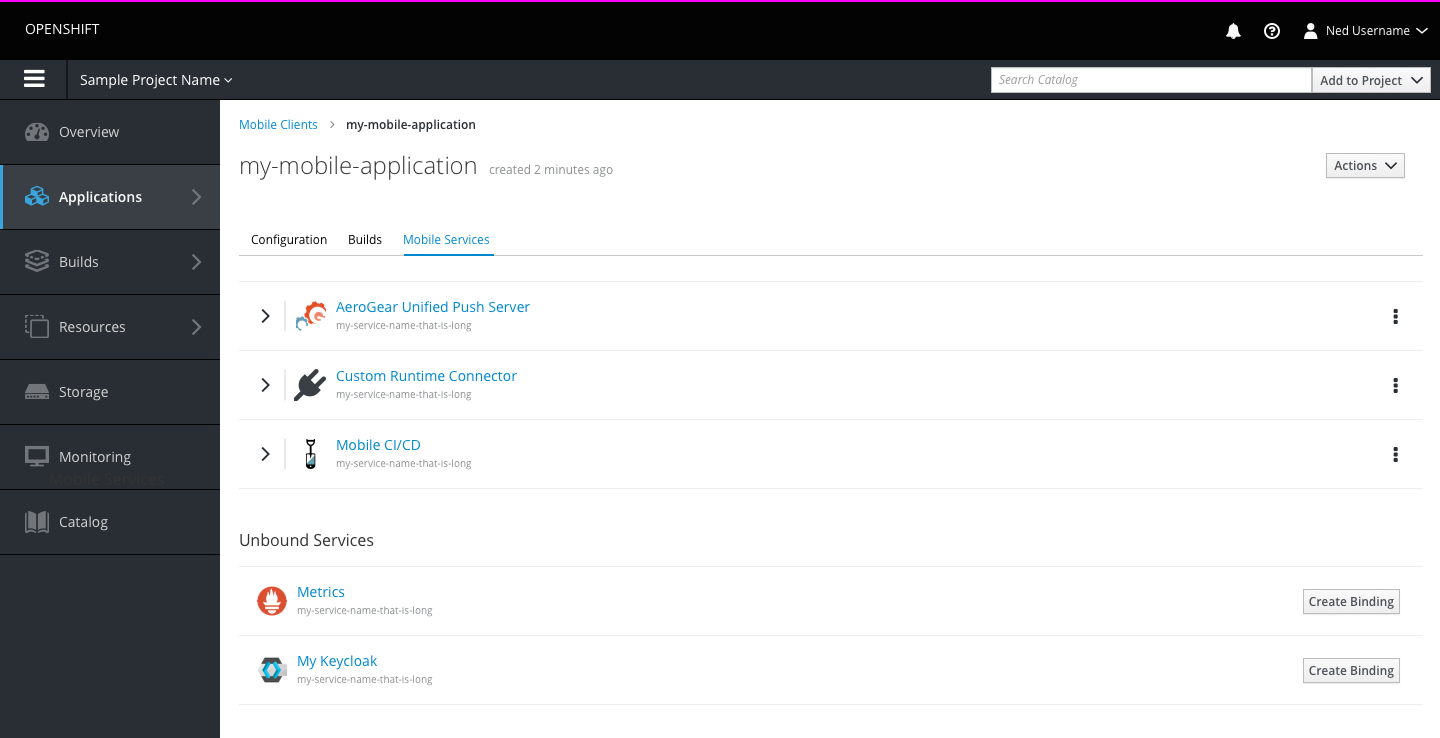

Separating the unbound services more strongly would help get them out of the way for people who don't necessarily want to bind all of their services to a given mobile client. They wouldn't need to expand, but a short message like the PR screenshot could be useful if it's easier for them to expand. In that case, I think it would look better for the button to be fixed width relative to the text inside rather than sized based on the grid.

sedroche · 2018-06-19T12:01:02Z

@cshinn Thanks Chris. I'll start on these changes now.

benjaminapetersen · 2018-06-20T14:18:45Z

+
+      return {
+        generateName: consumerId.toLowerCase() + '-' + _.get(serviceClass, 'spec.externalMetadata.serviceName').toLowerCase() + '-',
+        annotations: {


I believe the annotations $filter can be used to get & set annotations.

Yes, I will update this.

Annotations are already ready to go -> openshift/origin-web-common#341

benjaminapetersen · 2018-06-20T14:23:17Z


      var serviceClass = BindingService.getServiceClassForInstance(svcToBind, ctrl.serviceClasses);
-      BindingService.bindService(svcToBind, application, serviceClass, ctrl.parameterData).then(function(binding){
+


I don't know if other kinds of services would cause this function to bloat over time, but it may be wise to branch early:

// call separate functions early, which can share another function if necessary to deduplicate. ctrl.bindService = function() { if (ctrl.isMobileEnabled && isMobileService(serviceClass)) { bindMobileService(); } else { bindService(); } }

benjaminapetersen · 2018-06-20T14:25:09Z

+      Navigate.toProjectCatalog($routeParams.project, {category: 'mobile', subcategory: 'services'});
+    };
+
+    watches.push(DataService.watch(APIService.getPreferredVersion("clusterserviceclasses"), {namespace: $routeParams.project}, function(serviceClasses){


Should this be within $onInit?

var watchClusterServiceClasses = _.once(function() { ... }); ctrl.$onInit = function() { watchClusterServiceClasses(); // etc. }

benjaminapetersen · 2018-06-20T14:26:12Z

+
+    watches.push(DataService.watch(APIService.getPreferredVersion("clusterserviceclasses"), {namespace: $routeParams.project}, function(serviceClasses){
+      ctrl.serviceClasses = serviceClasses.by("metadata.name");
+      watches.push(DataService.watch(APIService.getPreferredVersion("serviceinstances"), {namespace: $routeParams.project}, function(serviceInstances){


I would probably suggest putting the var serviceInstanceVersion = APIService.getPreferredVersion('serviceinstances') at the top. For the most part we do that everywhere.

Yep, I will update these

benjaminapetersen · 2018-06-20T14:27:24Z

+    watches.push(DataService.watch(APIService.getPreferredVersion("clusterserviceclasses"), {namespace: $routeParams.project}, function(serviceClasses){
+      ctrl.serviceClasses = serviceClasses.by("metadata.name");
+      watches.push(DataService.watch(APIService.getPreferredVersion("serviceinstances"), {namespace: $routeParams.project}, function(serviceInstances){
+        ctrl.serviceInstances = _.filter(serviceInstances.by('metadata.name'), function(serviceInstance){


try running grunt jshint, just to ensure spacing & what not won't fail CI. I think there may be a rule about function() {.

There doesn't seem to be a rule but i have updated this style anyway

benjaminapetersen · 2018-06-20T14:28:21Z

+    var extendedAnnotationSpace = "org.aerogear.binding-ext." + this.apiObject.metadata.name;
+    var watches = [];
+    var bindingsWatch = false;
+    row.bindingsLimit = _.get(row.serviceClass, "spec.externalMetadata.bindingsLimit", 1);


row.$onInit? Not sure if there is a risk on a race condition here, for things like row.bindingsLimit.

Possibly applies to anything that deals with this.apiObject as well.

Even if not a race condition issue, its probably a better convention.

yes, makes sense. Will update.

benjaminapetersen · 2018-06-20T14:38:21Z

+    };
+
+    row.showOverlayPanel = function(panelName, state) {
+      row.parameterData = _.reduce(row.bindData, function(acc, current) {


parameterData is passed in as an attribute, just want to check & verify you do need 2-way data binding here.

No, I believe one way is correct. The child component only uses parameterData

benjaminapetersen · 2018-06-20T14:39:50Z

+    };
+
+    row.showOverlayPanel = function(panelName, state) {
+      row.parameterData = _.reduce(row.bindData, function(acc, current) {


Nit: i think we typically use result for the accumulator var in a _.reduce. That, or a name that describes the object being built, in this case something like paramData.

benjaminapetersen · 2018-06-20T14:40:54Z

+  .mobile-service-instance-row {
+    .icon {
+      clear: both;
+      color: #888;


Any $pf- var for the color?

benjaminapetersen · 2018-06-20T14:41:16Z

+          margin: 0 10px;
+          display: block;
+          float: left;
+          font-size: 1.6em;


$pf- var for font-size?

Could you point to where the $pf- vars are defined please?

The console's own vars are in styles/_variables.less. The paths to the PF files we are importing can be found in styles/main.less. That will be in bower_components/patternfly/. A good start would be patternfly/src/less/variables.less.

benjaminapetersen · 2018-06-20T14:41:48Z

+      <div class="list-pf-name">
+        <h3>
+          <span class="logo" ng-if="row.serviceClass.spec.externalMetadata.imageUrl">
+            <img src="{{row.serviceClass.spec.externalMetadata.imageUrl}}">


title or alt on the img for accessibility purposes?

sedroche · 2018-06-22T13:36:32Z

@cshinn I have updated this view with your suggested changes. Hopefully everything looks good, let me know if you require any more changes.

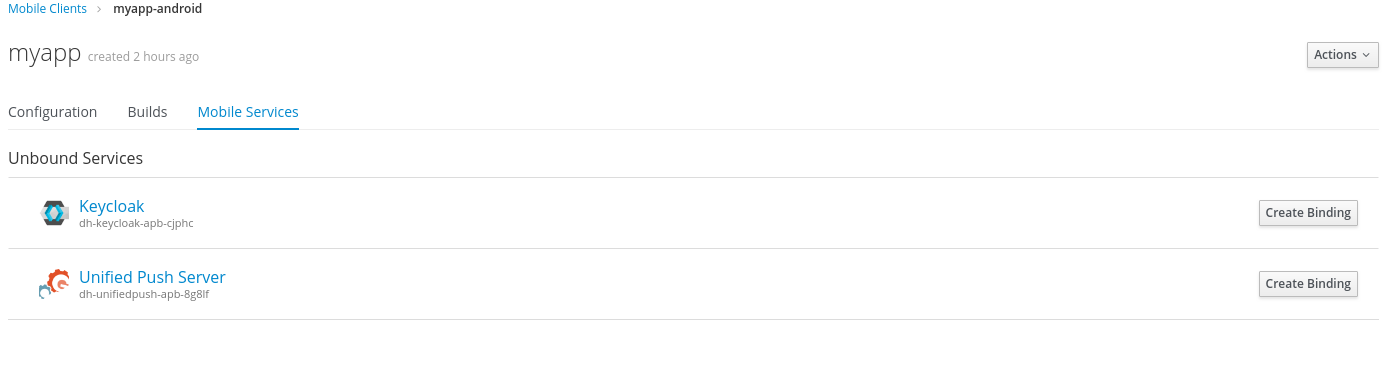

Unbound Services

Bound and unbound

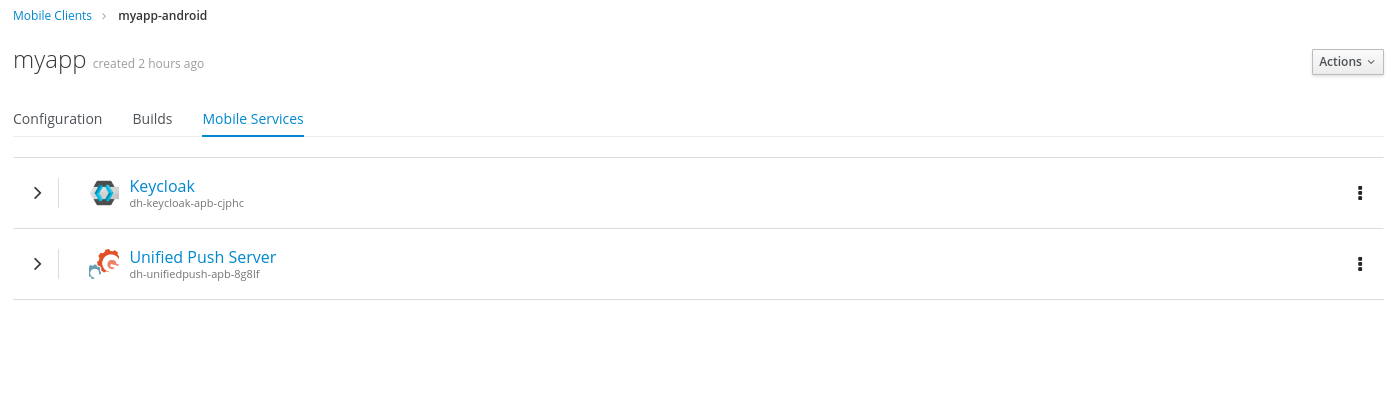

Both Bound

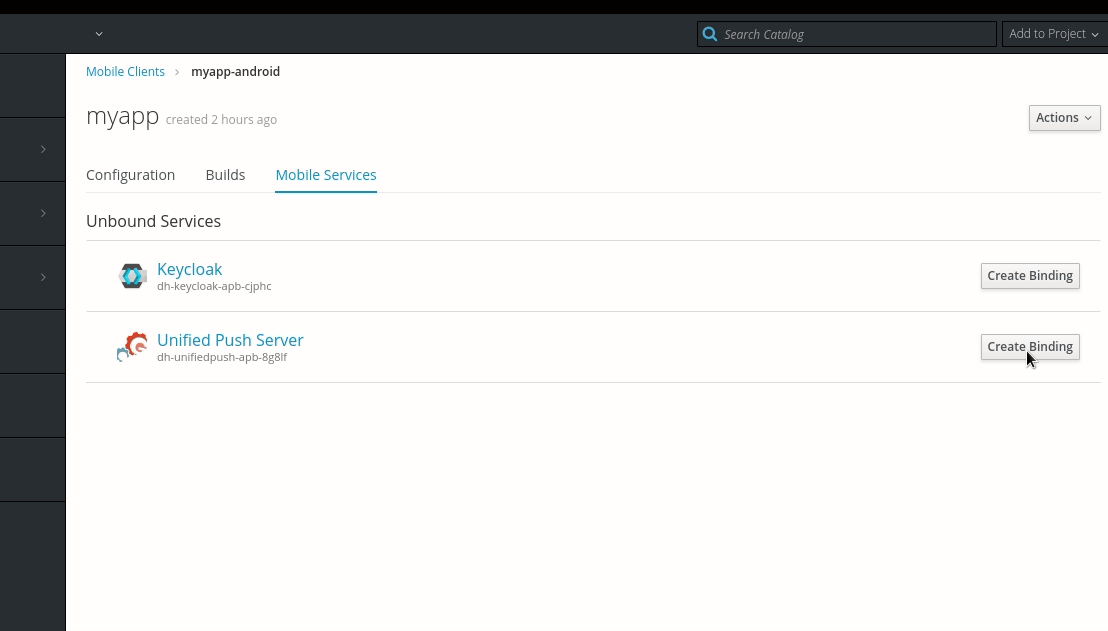

Creating binding flow

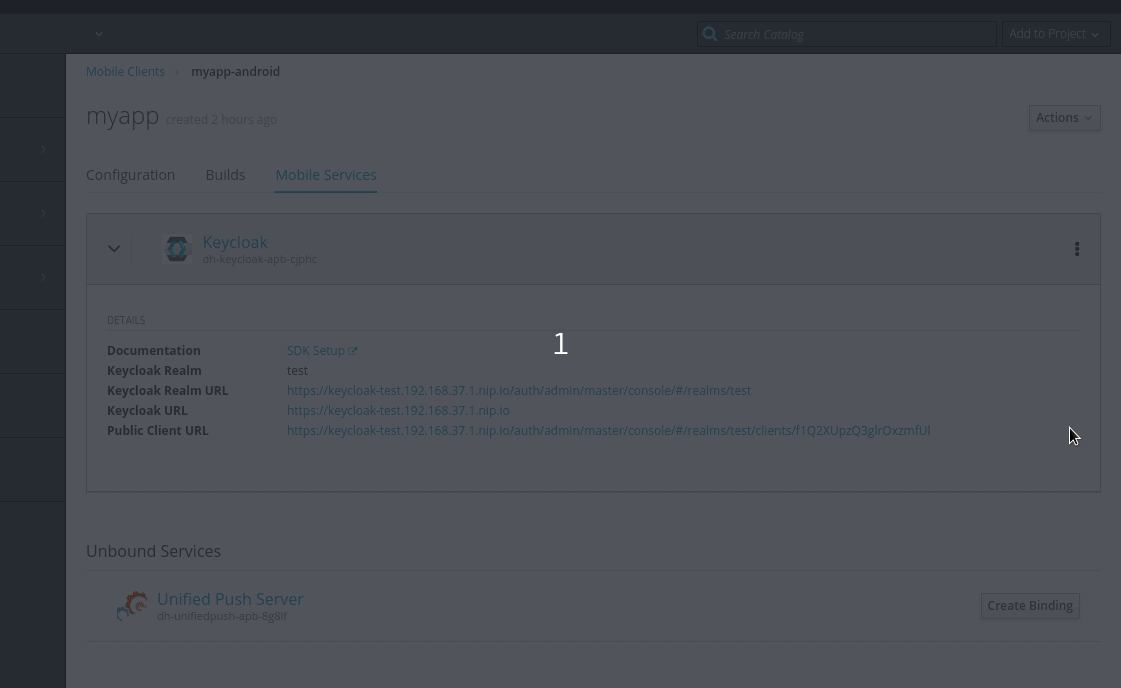

Deleting binding flow

sedroche · 2018-06-22T13:42:13Z

@benjaminapetersen I have applied some feedback here if you can take a second look. Cheers.

cshinn · 2018-06-22T17:33:08Z

@sedroche looks good! I'm not sure if this is the correct PR to address it, but it'd probably be good to get mobile service icons with transparent backgrounds so that they don't look off when hovered/selected. Could also save time to skip the modal when there's only one choice of binding.

beanh66 · 2018-06-25T13:01:20Z

@cshinn We removed the section header called "DETAILS" for the CNV flows. I believe @rhamilto pointed out that this style is reserved for specific items such as BUILDS, NETWORKING, etc. Wondering if the same applies here.

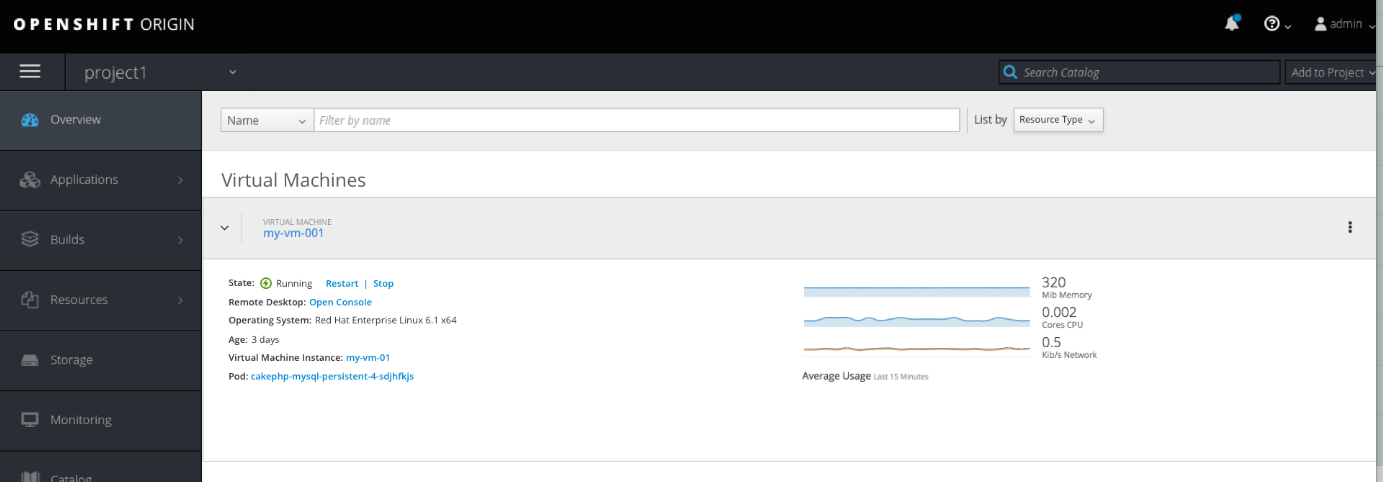

See CNV design:

cshinn · 2018-06-25T14:01:41Z

@beanh66 that's a good point. @sedroche in cases where there's only one set of data under a bound service, it probably makes sense to leave that out to be consistent
