SolarSystem

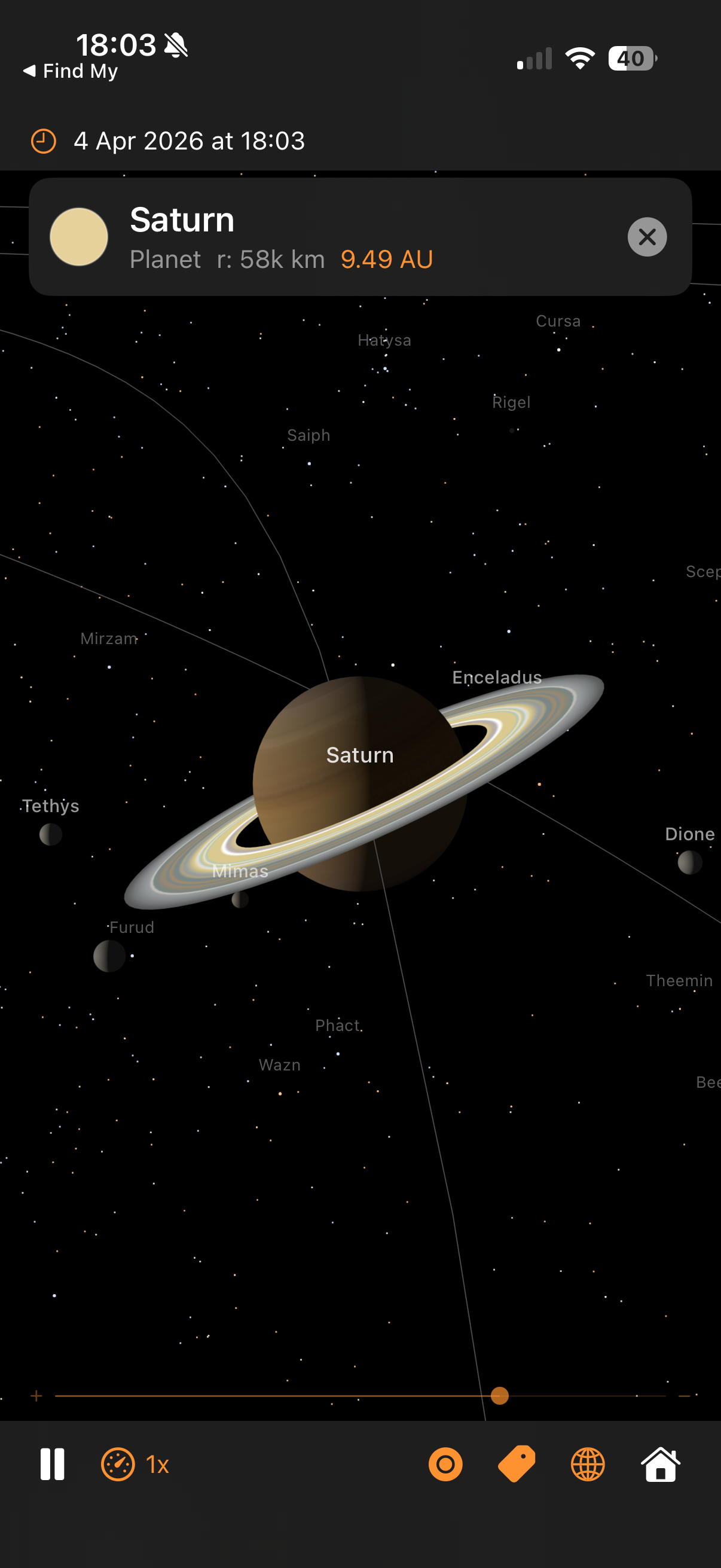

A real-time solar system simulation for iPhone and Mac, powered by real orbital mechanics, NASA texture maps, and 8,920 real stars from the Hipparcos catalogue. One multi-platform Xcode target builds natively for iOS and macOS from the same source code.

Features

• Accurate planetary positions — Keplerian orbital elements from JPL calculate where every planet actually is right now
• NASA texture maps — All 9 planets, Earth's Moon, Jupiter's Galilean moons, and Pluto use real imagery from NASA, USGS, and Cassini
• 8,920 real stars — Hipparcos catalogue with correct positions, magnitudes, and B-V colours. Recognisable constellations, Milky Way density
• Realistic rotation — Every body spins at its real IAU sidereal rate with correct axial tilt. Venus rotates backwards, Uranus rolls on its side
• Tidally locked moons — Earth's Moon, all Galilean moons, and Saturn's moons always show the correct face to their parent
• Saturn's rings — Custom geometry with Cassini colour and transparency maps, correctly tilted and non-rotating
• Beautiful Sun — Procedural granulation texture, limb darkening, 4-layer corona, 25-day rotation
• Interactive exploration — One-finger drag to pan, two-finger drag to orbit, pinch to zoom, zoom slider
• Planet shortcuts — Tap planet labels or use the globe menu to fly to any body and see its moon system
• Time control — Real-time through 1,000,000x speed, reverse, Reset to Now
• Smart labels — Separate toggles for planet, moon, and star labels. Auto-deconflicted, occluded behind planets, persisted across launches
• 11 space missions — Historical and active mission trajectories with multi-vehicle support, runtime lunar orbit/landing phases, live telemetry (MET, distance, speed), and timed event detection. Lunar missions (apollo8, apollo11, apollo13, artemis2), interplanetary gravity-assist tours (cassini, voyager1, voyager2, bepicolombo, parker), transfer arcs (perseverance), and outer planet flybys (newhorizons) all selectable via -mission <id> or the in-app missions menu. The mission UI shows a glass-morphism telemetry panel, an orange timeline scrubber, and animated event banners as each trajectory milestone passes. Lunar missions get a lazy-follow camera that frames Earth and the trajectory Sun-side until you drag. Trajectory data is one-shot exported from the companion web app into a bundled JSON resource — re-run node tools/export-missions.mjs when upstream data changes.
• International Space Station — Toggleable via the Satellites menu. Procedural 3D model with central truss, pressurised modules, four pairs of solar panels, and two radiators; orbits Earth at 408 km altitude and 51.6° inclination with a 92-minute period.

Requirements

• iOS 17.0+ / macOS 14.0+ (Sonoma)
• Xcode 16+
• iPhone build optimised for iPhone 16 Pro; Mac build runs natively on Apple Silicon and Intel

Setup

1. Clone or copy the project
2. Open SolarSystem.xcodeproj in Xcode
3. Build and run on simulator or device

No API keys, no external dependencies — pure Apple frameworks.

How It Works

1. Current time is converted to Julian centuries from J2000.0 epoch
2. Orbital elements are computed for each body from JPL data with linear rates
3. Kepler's equation is solved iteratively (Newton-Raphson) to find each body's position
4. Positions are scaled logarithmically so the whole solar system fits on screen
5. IAU rotation is applied — axial tilt and spin angle from real sidereal periods
6. SceneKit renders with PBR materials, NASA textures, and 60fps updates
7. 8,920 stars from the Hipparcos catalogue form the background with real positions and colours
8. SwiftUI overlays provide labels, controls, and a zoom slider

Controls

iPhone / iPad

Gesture	Action
One-finger drag	Pan / translate the view
Two-finger drag	Orbit / rotate the viewing angle
Pinch	Zoom in and out
Zoom slider	Fine zoom control (right edge)
Tap body or label	Select and fly to that body
Double-tap	Return to full solar system view

Mac

Input	Action
Left-mouse drag	Pan / translate the view
Right-mouse drag	Orbit / rotate the viewing angle
Scroll wheel / 2-finger scroll	Zoom in and out
Trackpad pinch	Zoom in and out
Zoom slider	Fine zoom control
Click body or label	Select and fly to that body
Double-click	Return to full solar system view

Toolbar

• Play/Pause — Freeze or resume orbital motion
• Speed menu — 0.1x to 1,000,000x, reverse, Reset to Now
• Orbit toggle — Show/hide orbital path lines
• Label menu — Independent toggles for Planets, Moons, Stars
• Satellites menu — Toggle the ISS model (antenna icon)
• Missions menu — Pick any of 11 space missions to replay, or stop the current replay (airplane icon)
• Planet picker — Jump to any planet, the Sun, or overview
• Home — Return to the full solar system overview

Launch Arguments

Argument	Example	Description
-timeScale	10000	Speed up orbital motion (overridden by -mission)
-date	2024-01-01	Override current date
-focus	saturn	Start focused on a body
-mission	apollo11	Replay a mission: jumps simulation time to the launch date and applies an auto-speed preset
-showISS / -hideISS		Toggle the ISS satellite model
-showOrbits		Draw orbital paths
-hideLabels		Hide all labels
-innerOnly		Inner solar system only
-logPositions		Log AU coordinates to console
-frameLog		Print per-frame timing diagnostics (fps, slow frames, sub-phase breakdown)

Running on Mac

The fastest way to get the app onto your Mac:

./run-macos.sh                                 # build Release, install to /Applications, launch
./run-macos.sh -mission apollo11 -focus earth  # any launch-arg works

The script builds Release, kills any running instance, copies into /Applications (or ~/Applications if unprivileged), and opens a fresh copy. Pass any of the launch args below on the command line.

Testing

Run the unit suite (scaling, CatmullRom curves, mission waypoint resolution, event detection):

xcodebuild -project SolarSystem.xcodeproj -scheme SolarSystem \
  -destination 'platform=iOS Simulator,name=iPhone 16 Pro' test \
  CODE_SIGNING_ALLOWED=NO

Build only:

xcodebuild -project SolarSystem.xcodeproj -scheme SolarSystem \
  -destination 'platform=iOS Simulator,name=iPhone 16 Pro' build \
  CODE_SIGNING_ALLOWED=NO

Tech Stack

• SwiftUI — UI, overlays, gesture state
• SceneKit — GPU-accelerated 3D rendering
• Foundation — Date calculations, UserDefaults
• simd — Vector mathematics

Zero external dependencies.

Documentation

• CLAUDE.md — Developer reference and architecture
• architecture.html — Interactive diagrams with SVG illustrations
• tutorial.html — Build narrative and development story

Credits and Licences

This project uses publicly available texture maps and star catalogue data for non-commercial, educational purposes.

Textures

Body	Source	Licence
Earth	NASA Blue Marble Next Generation (Dec 2004)	Public domain
Moon	NASA Lunar Reconnaissance Orbiter Camera	Public domain
Mars	USGS Viking MDIM21 mosaic, via Wikimedia	Public domain
Jupiter	NASA/JPL/SSI Cassini cylindrical map PIA07782	Public domain
Pluto	NASA/JHUAPL/SwRI New Horizons colour map	Public domain
Europa	NASA/JPL Voyager/Galileo mosaic, via Wikimedia	Public domain
Mercury	Solar System Scope	CC-BY 4.0
Venus	Solar System Scope	CC-BY 4.0
Uranus	Solar System Scope	CC-BY 4.0
Neptune	Solar System Scope	CC-BY 4.0
Saturn (body)	Planet Pixel Emporium by James Hastings-Trew	Free non-commercial
Saturn (rings)	Planet Pixel Emporium by James Hastings-Trew	Free non-commercial
Io	Assembled by Steve Albers from NASA/JPL data	Public domain source data
Ganymede	Assembled by Steve Albers from NASA/JPL data	Public domain source data
Callisto	Assembled by Bjorn Jonsson from NASA/JPL data	Public domain source data

Star Data

Resource	Source	Licence
HYG Star Database v38	astronexus/HYG-Database by David Nash. Compiled from ESA Hipparcos, Yale Bright Star Catalogue, and Gliese Catalogue of Nearby Stars.	CC-BY-SA 2.0

Orbital and Rotation Data

• Planetary orbital elements — JPL "Keplerian Elements for Approximate Positions of the Major Planets" (Standish, 1992)
• IAU rotation models — IAU Working Group on Cartographic Coordinates and Rotational Elements
