Code for a counter that outputs the time difference between two input signals. Works on an Arduino Due with TC8 (Channel 2 Counter 2 )
- Capture Pins are 11(TIOA) and 12(TIOB) on the Arduino Due
- To test simply short the Pins 7,11 and 12 together so you can see the duty cycle of a PWM on Pin 7.
Copied as much as possible from the arduino forum [0].
There are two versions in the repository. One for finding a fault where the complete Status register is dumped and one that is the bare minimum so you know what is needed.
The datasheet [1] offers all the sources I needed, most importantly Figure 36-5 Capture Mode:

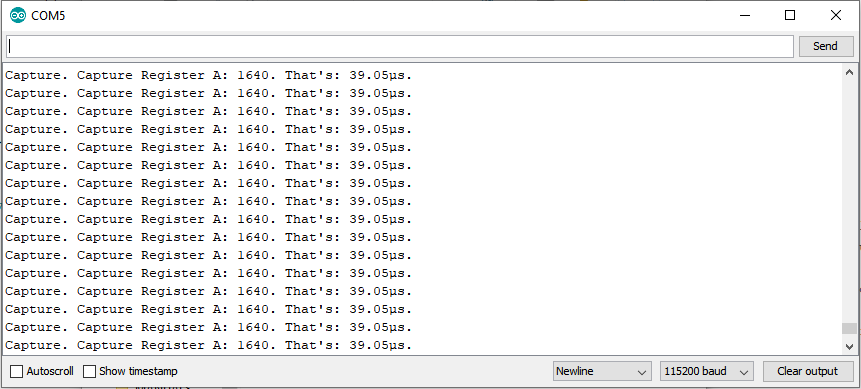

The output on the Console prints the Capture Register value and the corresponding time difference.
The resolution is 23ns (1/42MHz).
