Notice

• Miscellaneous test images

Boards

Allwinner:      # NanoPi M1/NEO/Plus2, OrangePi One/PC/R1 & Tritium
Amlogic:        # Le Potato, Odroid C4/HC4/N2/N2+ & Radxa Zero
Broadcom:       # Raspberry Pi 0W/2B/3B+/4B
Rockchip:       # NanoPC-T4, Renegade, ROCK64 & ROCKPro64
Samsung:        # Odroid XU4

WIP:		# Cubietruck, Cubox-i, Banana Pi M5/P2 Zero, NanoPi R4S/R4SE/R5S
		# Odroid C1/M1, Pinebook Pro & Radxa Rock5b

Dependencies for Debian Bullseye and Ubuntu Jammy Jellyfish

• Recommended host: Debian Bullseye

Install options:

• Run the ./install.sh script (recommended)
• Run builder make commands (dependency: make)
• Review package list and install manually

---

Instructions

Install dependencies

make ccompile   # x86_64
make ncompile   # aarch64

Menu interface

make config     # Create user data file
make menu       # Open menu interface
make dialogrc   # Set builder theme (optional)

Miscellaneous

make cleanup    # Clean up image errors
make purge      # Remove sources directory
make purge-all  # Remove sources and output directory

Config Menu (Linux kernel options)

• Review the userdata.txt file for further options: locales, timezone and nameserver(s)
• 1 active | 0 inactive

Name:			# Your name
Username:		# Your username
Password:		# Your password
Hostname:		# Set custom system hostname

Distribution
Distro:			# Supported: debian, devuan and ubuntu
Release:		# Debian: bullseye, bookworm, testing, unstable and sid
			# Devuan: chimaera, daedalus, testing, unstable and ceres
			# Ubuntu: focal and jammy
Network Manager		# 1 networkmanager | 0 ifupdown

U-Boot and Linux
U-Boot:			# Supported: v2022.10
Branch:			# Supported: 5.15 and current stable
Build:			# Kernel build version number
Menuconfig:		# Run uboot and kernel menuconfig
Compiler:		# Defaults at gcc-10
Crosscompile:		# 1 cross compile | 0 native compile
Caching on:		# Ccache

Extra wireless support
rtl88XXau:		# Realtek 8812AU/21AU wireless support
rtl88XXbu:		# Realtek 88X2BU wireless support
rtl88XXcu:		# Realtek 8811CU/21CU wireless support
rtl8188eu:		# Realtek 8188EU wireless support

Customize
Defconfig:		# User defconfig
Name:			# Name of _defconfig (must be placed in defconfig dir.)

User options
Logging:		# Logging > output/logs/$board-*.log (Menu interface only)
Verbosity:		# Verbose
Devel Rootfs:		# Developer rootfs tarball
Compress img:		# Auto compress img > img.xz
User scripts:		# Review the README in the files/userscripts directory
User service:		# Create user during first boot (bypass the user information above)

Odroids
petitboot:		# Enable boot option

Customize image

• custom.txt

# filesystem types: ext4 btrfs xfs
FSTYPE="ext4"
# options: true false
ENABLE_EFI="false"

User defconfig

# config placement: defconfig/$NAME_defconfig
The config menu will append _defconfig to the end of the name in the
userdata.txt file.

User patches

Patches "-p1" placed in patches/userpatches are applied during compilation.

Aircrack (rtl88XXau)

# change from 0 to 1
aircrack=0

Amlogic eMMC boot (u-boot only)

# change from 0 to 1
emmc=0

Usage

• Review the Wiki

/boot/rename_to_useraccount.txt

• Headless: rename file to useraccount.txt and fill in the variables
• Headful: don't rename file & get prompted to create a user account

NAME=""
USERNAME=""
PASSWORD=""

/boot/rename_to_credentials.txt

Rename file to credentials.txt and input your wifi information.

SSID=""				# Service set identifier
PASSKEY=""			# Wifi password
COUNTRYCODE=""			# Your country code

# set static ip (ifupdown)
MANUAL="n"			# Set to y to enable a static ip
IPADDR=""			# Static ip address
NETMASK=""			# Your Netmask
GATEWAY=""			# Your Gateway
NAMESERVERS=""			# Your preferred dns

# set static ip (network-manager)
MANUAL="n"			# Set to y to enable a static ip
IPADDR=""			# Static ip address
GATEWAY=""			# Your Gateway
DNS=""				# Your preferred dns

For headless use: ssh user@ipaddress

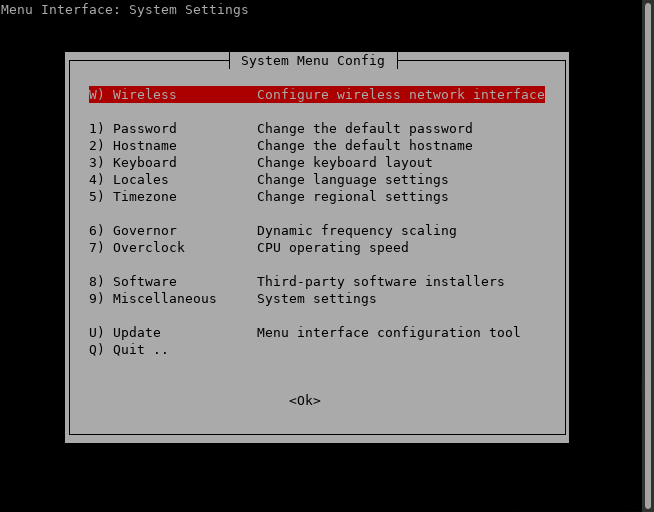

System menu config (menu-config)

---

Support

Should you come across any bugs, feel free to either open an issue on GitHub or talk with us directly by joining our channel on Libera; #arm-img-builder or Discord
