Added a new combined mode example #39
Merged
Conversation
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
This is a modification of all-in-one.py. It adds another mode where all EnviroPlus and PMS5003 sensor readings are combined on one screen. Each variable that is displayed can have custom warning limits assigned which change the color of the text according to a predefined RGB palette. It allows for a quick glance of all sensor readings at once in order to jugde if everything is OK in the air or to quickly pinpoint a sensor reading that requires attention. In addition, the new combined mode saves each reading as soon as it is received for graphing later. As in all-in-one.py, moving your finger close to the proximity sensor switches the mode.
Member
|
Thank you for taking the time to put this together and raise a PR! |
|
This PR doesn't work properly on Python 3 because the row and column calculations need to use // to force integer division. Also it is possible to show °C and kΩ simply by pasting these characters into the units list. |
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
3 participants
Add this suggestion to a batch that can be applied as a single commit.
This suggestion is invalid because no changes were made to the code.
Suggestions cannot be applied while the pull request is closed.
Suggestions cannot be applied while viewing a subset of changes.
Only one suggestion per line can be applied in a batch.
Add this suggestion to a batch that can be applied as a single commit.
Applying suggestions on deleted lines is not supported.
You must change the existing code in this line in order to create a valid suggestion.
Outdated suggestions cannot be applied.
This suggestion has been applied or marked resolved.
Suggestions cannot be applied from pending reviews.
Suggestions cannot be applied on multi-line comments.
Suggestions cannot be applied while the pull request is queued to merge.
Suggestion cannot be applied right now. Please check back later.
Created a new combined.py that is a modification of all-in-one.py. It adds another mode where all EnviroPlus and PMS5003 sensor readings are combined on one screen.
Each variable that is displayed can have custom warning limits assigned which change the color of the text according to a predefined RGB palette. It allows for a quick glance of all sensor readings at once in order to jugde if everything is OK in the air or to quickly pinpoint a sensor reading that requires attention.
In addition, the new combined mode saves each reading as soon as it is received for graphing later. As in all-in-one.py, moving your finger close to the proximity sensor switches the mode.

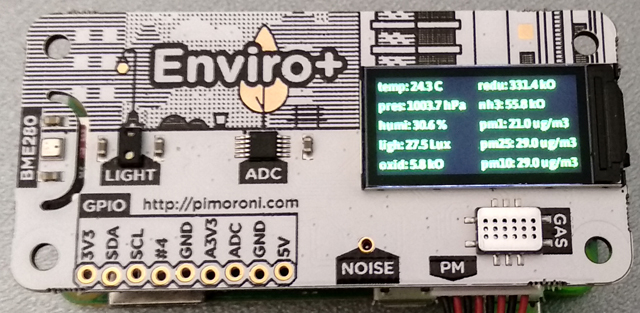

Photo:
