This PR introduced a remark plugin to supplement code blocks of the form:

```ebnf+diagram
TableName ::= ( Identifier '.' )? Identifier
```

with an SVG syntax diagram. A <SyntaxDiagram> shortcode is introduced for the user to toggle between the diagram and EBNF.

This is intended to gradually replace the entire media/sqlgram directory, to unify the appearances, simplify documentation process, and improve accessibility (images can't be searched).

Preview

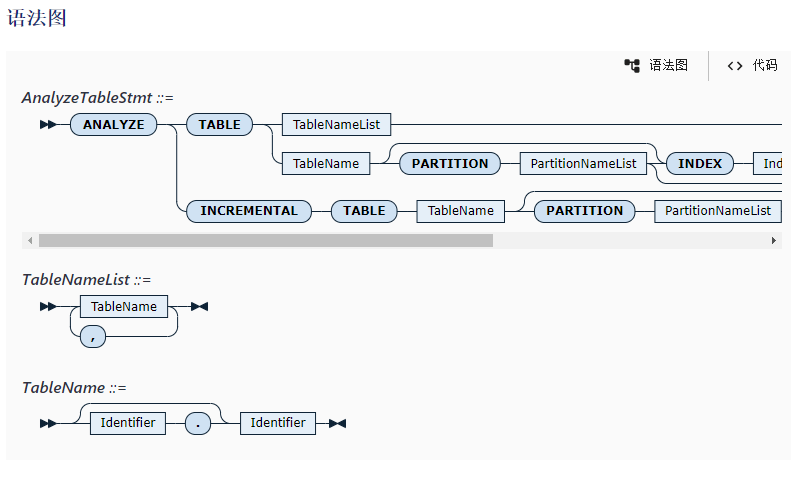

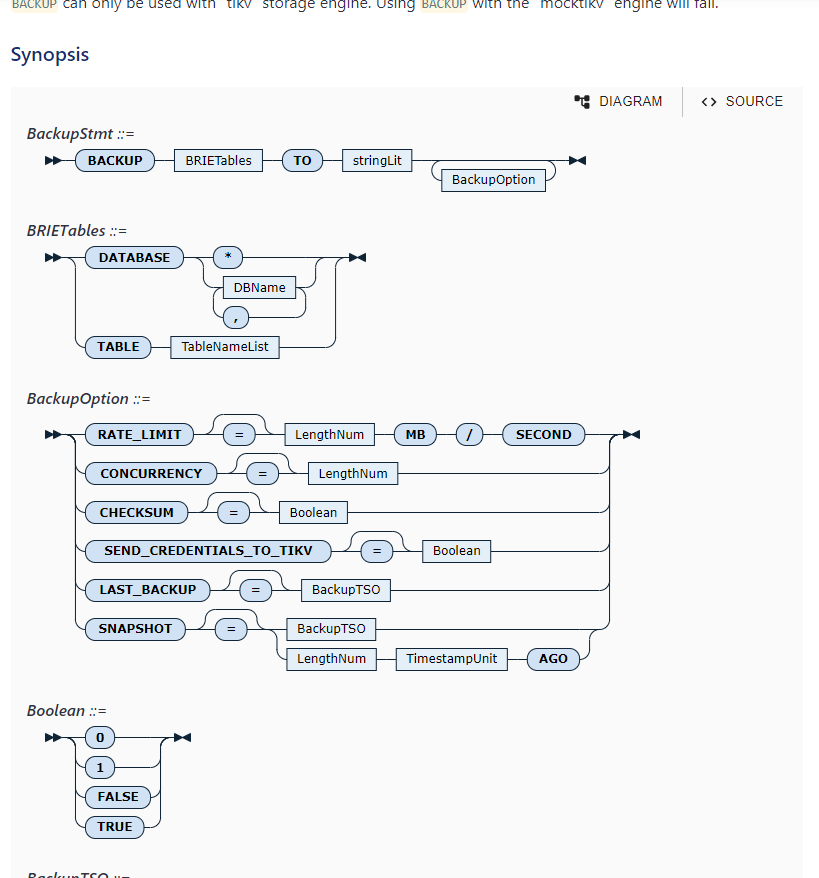

Syntax diagram view

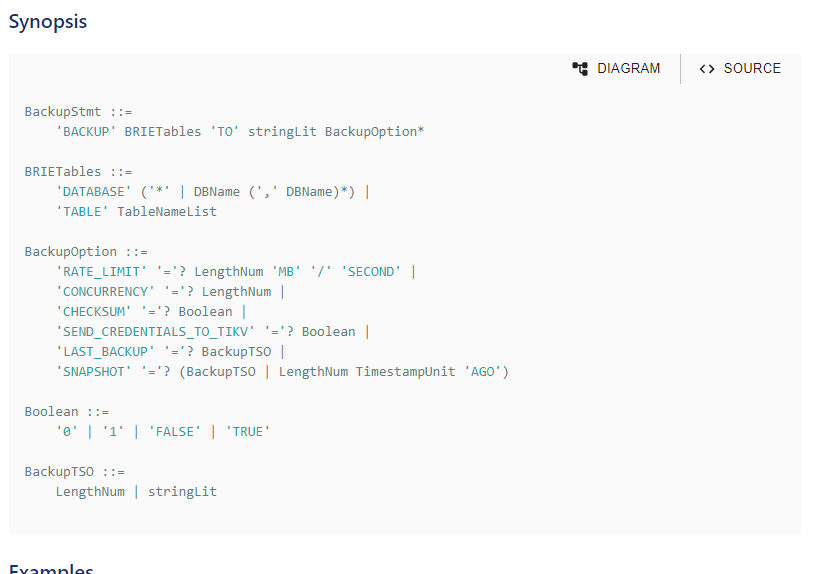

Source code view

The syntax diagram is generated using @prantlf/railroad-diagrams, and the style has been tweaked to mimic the Railroad Diagram generator used to produce the original images. There are two differences though:

  1. The diagrams do not "wrap". You have to scroll horizontally if they become too long.
  2. The drop shadow filter does not work on Chrome, so they are removed.

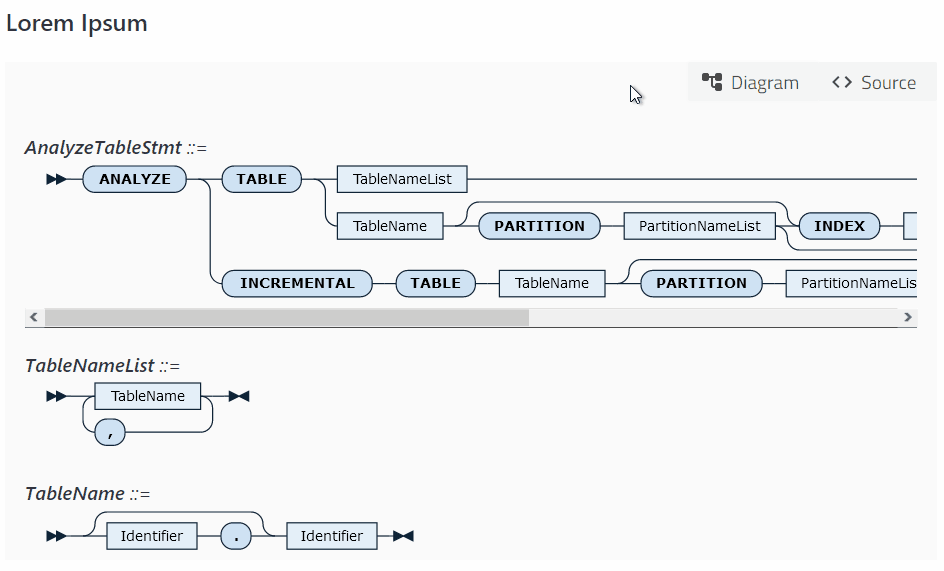

Horizontal scrollbar

3-fs8

In theory @prantlf/railroad-diagrams has the Stack element for manually breaking up the diagram into multiple rows. But in reality there is some bug in the height calculation which caused different rows to overlap. So in this PR we won't include such feature. (And scrolling is needed for mobile anyway.)
