pastel

Real-time multiplayer drawing & guessing.

No accounts. No ads. No JSON. Just grab a link and draw.

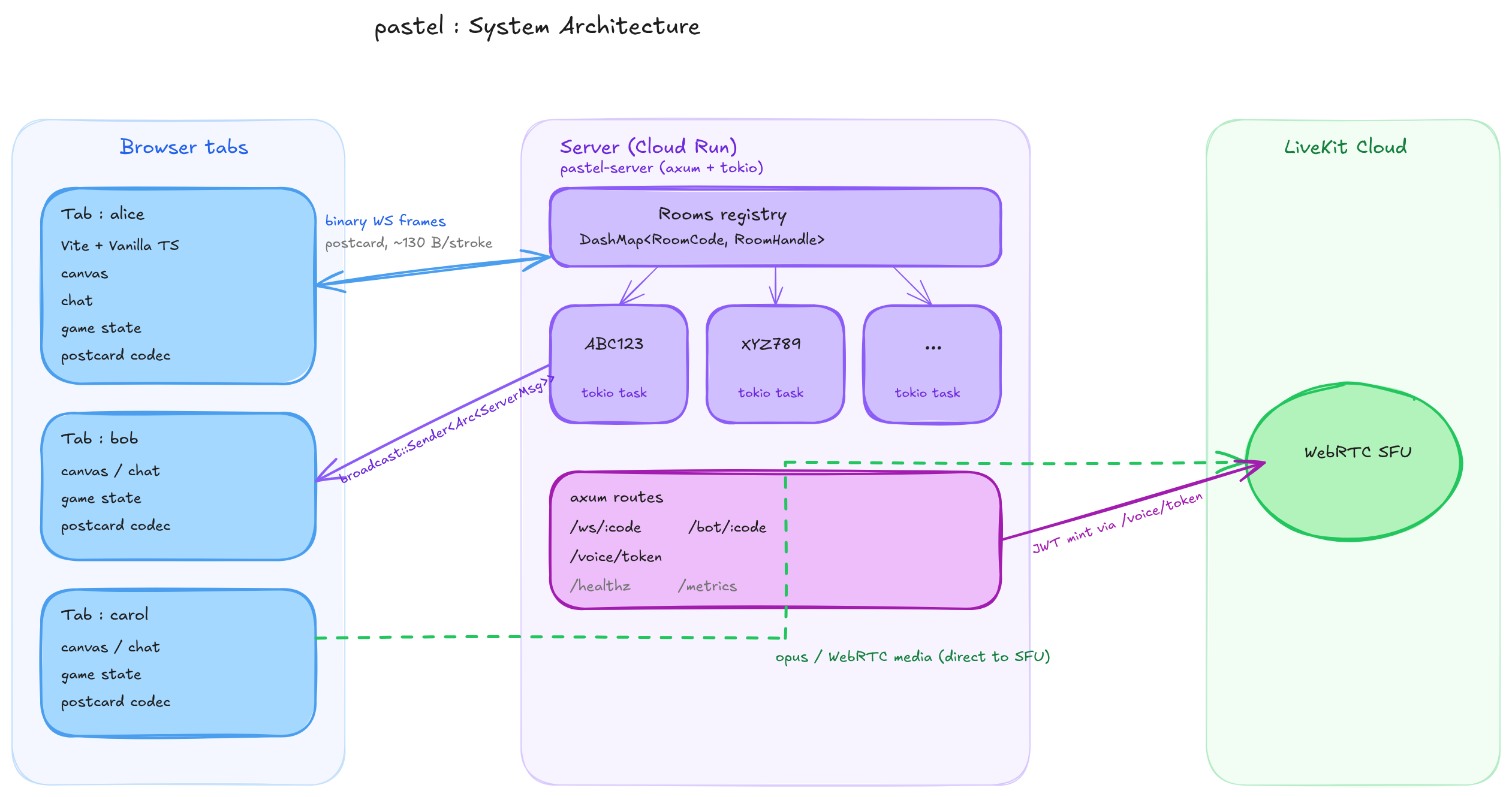

Rust on the back. TypeScript on the front. Binary WebSockets between.

Cap.2026-05-28.at.23.42.56.mp4

The game in 30 seconds

Pick a mode. Start a room. Share the link.

When a friend joins, hit "Let's go!" Or add a bot.

Mode	Rounds	Words offered
Sprint	3	7
Standard	5	5
Marathon	7	3

Every player draws once per round. The drawer picks a word, everyone else guesses in chat. Hints reveal automatically (one letter at 60s, 30s, 10s remaining). First correct guess scores most, each next earns 0.7x of the previous. The drawer earns half the round total.

A room sits in the lobby for 120 seconds before it expires and frees its six-character code. The host sees a live countdown.

Features

Gameplay

Three modes: Sprint (3 rounds), Standard (5), Marathon (7)
Mode-driven word offering: 7 / 5 / 3 choices respectively
Per-round drawer rotation, every player draws once
Auto hint reveal at 60s, 30s, 10s remaining
Tiered scoring: first correct guesser scores most, each next gets 0.7x
Drawer earns half the round total
Close-guess detection via Levenshtein distance, surfaced as a private "so close!" pill
Two-minute lobby expiry with live countdown so dead rooms free their codes

Voice

Opt-in per room from the landing page
LiveKit Cloud + WebRTC under the hood
500KB SDK lazy-loaded only when the mic is tapped
Pre-warmed in parallel with the avatar picker if you ticked the voice toggle
Green ring + bouncing equalizer on active speakers' avatars
Per-speaker mute on your end without telling anyone
Bg music ducks automatically while your mic is live so it doesn't bleed through WebRTC

Reactions

Guessers can tap "looking good" (sparkle) or "i'm lost" (question) during a round
Each reaction broadcasts as a small system line in chat
When 50%+ of guessers agree on a mood, the drawer sees a soft pastel banner ("they're loving it" or "they're a bit lost, try clearer strokes")
Resets every round

Audio

Three CC0 lofi tracks fade between scenes (landing, lobby, in-game)
Short procedural Tone.js SFX for round start, correct guess, round end, join, game over
Separate toggles for bg music and sfx, both persist in localStorage, both default on
Music auto-ducks under live voice

Avatars

DiceBear big-smile, five customisable parts (skin, hair, eyes, mouth, accessory)
Persisted in localStorage, reused on reload
Bots get their own avatars
Host gets a tiny coral dot at the avatar's top-right
Bots get a grey dot at the bottom-right
You get an ink-coloured ring around your own avatar
Idle bounce in the lobby

Bots

Three difficulties: chill, normal, sweaty
Real human sketches from Google Quick Draw (295 words, 30KB binary asset)
Tiered bot word pool so a bot never picks a word it has no drawing for
Per-difficulty guess pacing only; drawing speed is identical and feels human
Personality chat: greets on join, reacts to others' correct guesses, announces own turn, reacts to reveals
Bots never hold the host badge; an all-bot room auto-shuts-down

Reload safety

Per-browser client_token UUID in localStorage
Reload skips the avatar picker entirely
Server matches the token against a departed map and restores the original PlayerId
Same row on the scoreboard, same accumulated score, same rotation slot
Bye-on-room-close routes to a friendly "this room is gone" screen

Host controls

First human joiner is host, never a bot
Kick with approval flow: kicked tokens get held until the host approves a rejoin
Host transfer skips bots and picks the oldest remaining human
Canvas-event pill + chat system line announce the change

Scoreboard

Filtered to players currently in the room (departed players keep score internally for resumption)
Animated score pops on change
Sorted by rank with #1, #2, #3 markers
Correct guessers row gets a pink-turquoise gradient highlight

Canvas

Fixed 960x600 logical coordinate space, DPI-aware backing store
Quadratic Bezier midpoint smoothing, velocity-modulated width
Strokes chunked at 64 points per batch
Persistent replay model survives resize, DPI change, and reload
Non-drawers can scribble while others draw, only they see it
Floating event pills for "wiped the canvas", "got it!", "is now the host"

Run it locally

Stable Rust (edition 2021), Node 20+, npm. Two terminals:

# Backend
cargo run -p pastel-server
# listens on 0.0.0.0:7070

# Frontend
cd frontend && npm install && npm run dev
# Vite at http://127.0.0.1:5173, proxies /ws, /bot, /voice to the backend

Add a bot from the CLI:

curl -X POST 'http://localhost:7070/bot/ROOMCODE?difficulty=medium'

Voice is optional. Create a project at cloud.livekit.io and drop your three keys into crates/pastel-server/.env:

LIVEKIT_URL=wss://your-project.livekit.cloud
LIVEKIT_API_KEY=...
LIVEKIT_API_SECRET=...

.env is gitignored. The server runs fine without these; voice rooms just return a 503 voice not configured from GET /voice/token.

Tests & quality checks

# Correctness
cargo test --workspace        # 75+ tests
cd frontend && npm test       # 48 tests

# Lint, format, typecheck
cargo fmt --all
cargo clippy --workspace --all-targets -- -D warnings
cd frontend && npm run typecheck && npm run build

Pre-commit hook runs cargo fmt --check on .rs files.

Test highlights:

Cross-codec hex fixtures (Rust + TS must agree on bytes)
Proptest round-trip on every wire variant
Virtual-time game tests (tokio::time::pause + advance)
Kicked-rejoin flow: approve, reject, candidate disconnect, fresh-token bypass
Same-browser rejoin restores the original PlayerId
Departed players are filtered from RoundEnd / GameOver scoreboards
Bot-only rooms auto-shutdown; lobby times out at 120s; Start cancels the expiry
Host transfer skips bots; bots joining first do not become host
Real WebSocket integration tests against in-process axum

Load test

Local (loopback)

1000 concurrent WebSocket clients, 125 rooms, 30 seconds, 10 strokes/s each:

connections: 1000/1000 (0 failed)
throughput:  300k sent, 2.4M broadcast (8x fanout)
p50:         0.13 ms
p95:         0.27 ms
p99:         0.35 ms
max:         46.21 ms

p99 round-trip under half a millisecond. Faster than one animation frame at 60 Hz.

cargo run --release -p pastel-loadtest -- \
    --clients 1000 --per-room 8 --duration 30 --rate 10

Production (Cloud Run, asia-south1)

Same binary, pointed at the deployed instance over wss://. Single Cloud Run instance (2 vCPU, 2 GiB, concurrency 200, min/max instances = 1).

Phase	Setup	Connections	p50	p95	p99
Smoke	50 clients, 7 rooms, 5 strokes/s, 20s	50 / 50	31 ms	145 ms	173 ms
Realistic-scale steady-state	200 clients, 25 rooms, 5 strokes/s, 30s	200 / 200	215 ms	2.2 s	5.0 s
Realistic stroke rate	200 clients, 25 rooms, 2 strokes/s, 30s	200 / 200	35 ms	490 ms	2.2 s
Handshake burst (200)	200 connect-only joins	200 / 200	—	—	—
Handshake burst (500)	500 connect-only joins	500 / 500	—	—	—

Throughput at phase 2: 30,000 sends, 240,000 broadcasts, fanout 8.00x. Handshake throughput across phases 4a / 4b: 148 / 282 full TLS + WS + Hello + Welcome round-trips per second.

# Steady-state
cargo run --release -p pastel-loadtest -- \
    --addr wss://<your-cloud-run-url> \
    --clients 200 --per-room 8 --duration 30 --rate 2

# Pure handshake throughput (no stroke loop)
cargo run --release -p pastel-loadtest -- \
    --addr wss://<your-cloud-run-url> \
    --clients 500 --per-room 8 --connect-only --duration 1 --rate 0

Read of the data. p50 at the realistic 2 strokes/s rate is 35 ms, essentially equal to the laptop -> asia-south1 RTT floor. The wire protocol and room actor disappear into the network latency. Connection setup and fanout both held to zero errors across every phase. One single Cloud Run instance comfortably supports ~200 concurrent players spread over 25 rooms while sustaining a 280-handshake/sec join burst.

What's working

100% connection success across every phase. 50, 200, and 500 TLS + WebSocket handshakes all landed cleanly. No dropped joins, no retry storms, no LB rejections.
Zero wire errors. 270k+ stroke broadcasts in the realistic-scale test, every one of them parsed cleanly on the client side. The postcard codec and validator hold up under real production traffic end-to-end.
Perfect 8x fanout under load. The room actor delivered every stroke to every subscriber in the realistic-scale phase. No silent drops, no broadcast-lag bypasses, no orphaned subscribers.
Network-floor p50 at realistic rates. 35 ms RTT means the wire format + room actor + Cloud Run + TLS stack collectively add a few hundred microseconds on top of physics. There is no perceptible protocol overhead to optimise away.
Excellent handshake throughput. 282 fresh joins/sec from a single client machine means a viral link share landing 500 people on the room at once is absorbed in under two seconds with no failures.
One small instance does the job. A single 2 vCPU / 2 GiB Cloud Run instance sustains 200 concurrent players (25 rooms) at gameplay rates while still having headroom for join bursts. The current deployment is production-ready as-is for an early-launch audience.

What still needs work

The p99 tail at 5 strokes/s (5.0 s in the steady-state phase). The server delivers every frame, but writes queue under high contention on one instance. Most likely cause: tokio scheduling fairness across 200 socket write tasks sharing one runtime. Plan: reduce per-stroke fanout work (coalesce points by player into bigger batches before the broadcast hit), and look at a per-room dedicated runtime if profiling confirms the scheduler is the bottleneck. Real users don't sustain 5 strokes/sec, so this is a "before scale" investigation, not a "now" fix.
Single-instance ceiling. Today rooms live in-memory in one actor per process, so --max-instances=1. The next concurrency jump (Cloud Run scale-out, multi-region) needs a shared room registry. A Redis-backed lookup keyed by RoomCode would let any instance route a connection to the room actor's owner (or hand off ownership), without changing the per-room actor model. Plumbing is straightforward; not needed under 200 concurrent.
Handshake-burst tail. ~4% of close-side WS frames threw transient errors during the 500-client burst (teardown races, not connect failures). Cosmetic but worth tightening with a graceful WS_CLOSE
- drain loop in the client side before drop.

Deploy

The repo ships a multi-stage Dockerfile (Rust builder + Node builder + slim runtime) that builds in one shot and is ready for Cloud Run. WebSocket sessions work fine with Cloud Run's 60-minute request timeout.

For production:

Enable session affinity so reconnects land on the same instance
Set --min-instances=1 and --max-instances=1 for the simplest topology (rooms live in-memory in one actor; multi-instance needs a shared registry, which is on the roadmap)
Wire LiveKit env vars through Secret Manager. The server reads them via dotenvy locally and Cloud Run env vars in prod

Engineering deep dives

Screw JSON

The wire is postcard-encoded binary. Each direction is one enum:

pub enum ClientMsg { Hello, Stroke, Chat, Guess, Game, Pong, React }
pub enum ServerMsg { Welcome, Stroke, Chat, Guess, Presence, Game, Ping, Bye, WordOptions, DrawerWord, JoinPending, DrawingFeedback }

A 30-point stroke batch is about 130 bytes. The JSON equivalent is about 600. Across 10 rooms at 60 Hz that is the difference between "fine" and "you should worry about egress".

The TypeScript codec is hand-written (~300 lines). Both sides assert the same fixture hex. If either drifts, both builds break.

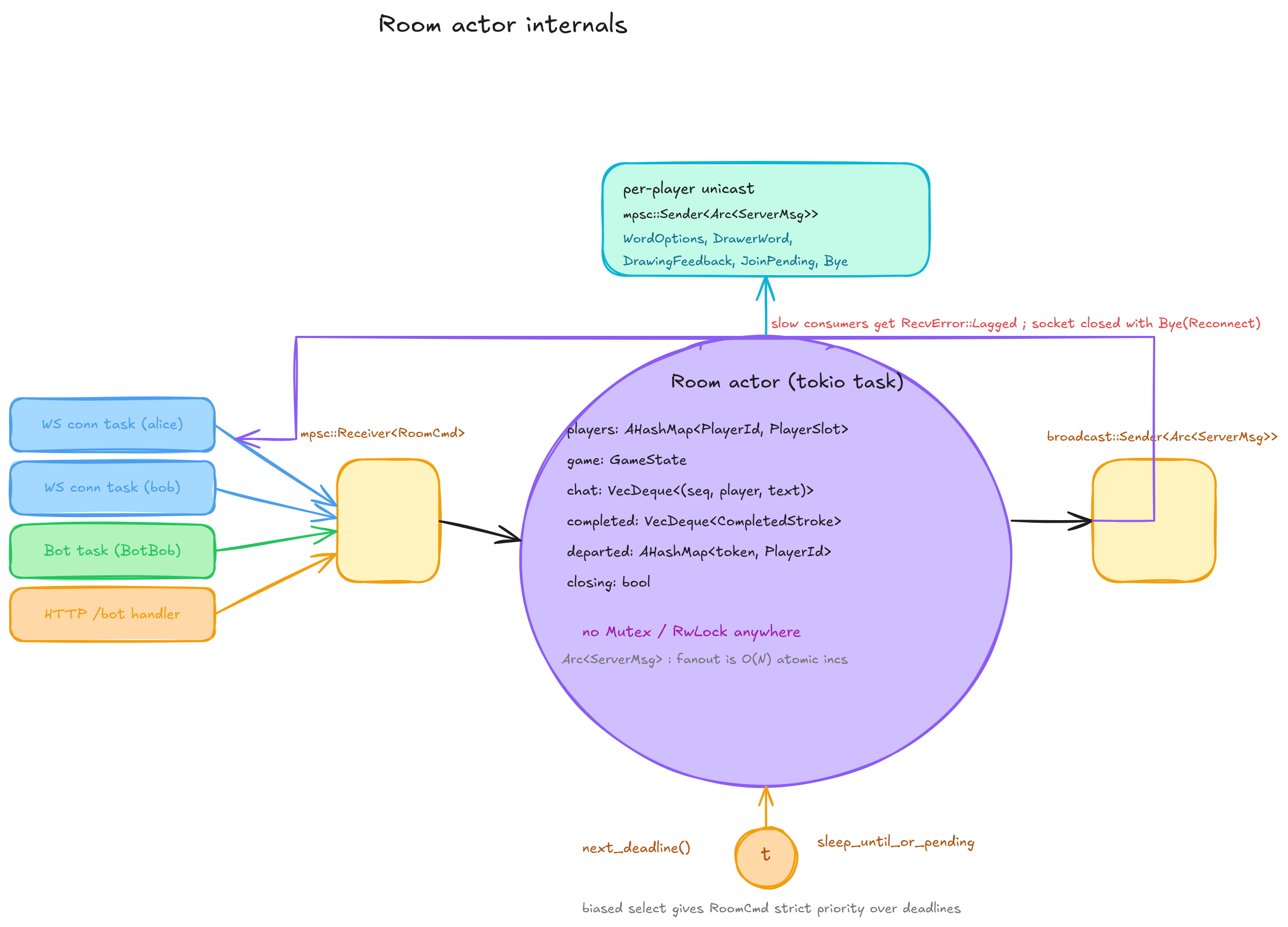

One actor per room, no locks

stateDiagram-v2
    [*] --> Lobby
    Lobby --> ChoosingWord: Start
    Lobby --> [*]: 120s timeout (room expires)
    ChoosingWord --> Drawing: PickWord / timeout
    Drawing --> RoundEnd: all guessed / timeout
    RoundEnd --> ChoosingWord: next turn
    RoundEnd --> GameOver: last turn
    GameOver --> ChoosingWord: rematch

Each room is one tokio task that owns its state. Lock-free hot path:

mpsc::Receiver<RoomCmd> inbox from connection tasks
broadcast::Sender<Arc<ServerMsg>> for room-wide fanout (slow consumers get dropped, not back-pressured)
Per-player mpsc for unicast (drawer's word, word options, drawing feedback)
Arc<ServerMsg> so fanout is O(subscribers x atomic-inc)

Biased select gives commands strict priority over deadlines.

Avatar wire format

7 bytes per player. Each field is a u8 index into the client-side parts table. The server validates ranges but treats the bytes as opaque. Art source can change without touching the wire.

struct Avatar { skin: u8, hat: u8, hair: u8, eyes: u8, mouth: u8, specs: u8, earrings: u8 }

Bots: real sketches, no AI

No fake AI. No LLM. No image recognition. The bot is a real game client that runs as a tokio task inside the server process, talking directly to its RoomHandle. Zero WebSocket overhead, zero serialization.

Drawing. 295 words have real human sketches from Google Quick Draw. A Python script fetches one recognized drawing per word, encodes stroke coordinates into a compact binary (word + stroke count + per-stroke u8 x/y deltas), and writes drawings.bin (30KB total). The server include_bytes! it at compile time. At runtime the bot scales Quick Draw's 0-255 coords to the 960x600 canvas with padding, emitting intermediate points when deltas exceed i8 range. Strokes replay with human-like timing (300-700ms between strokes, 60-150ms between batches).

Guessing. The bot reads the word_mask from RoundStart (e.g. _ _ _ _ _), filters the full word pool by character count, shuffles, and tries candidates one at a time. On each HintReveal it narrows by checking revealed letters. One guess, wait for response, schedule the next. Pace slows naturally as attempts pile up.

Words. Bot drawers are restricted to a curated bot-friendly word list (easy / medium / hard tiers) so they never pick a word with no drawing.

Reload as the same player

Each browser persists a client_token UUID in localStorage. The room keeps a departed: HashMap<token, PlayerId> that records voluntary disconnections. On the next Hello with that token the join path recovers the original PlayerId before allocating a new one. Kicked tokens never enter departed; they continue to flow through the host-approval path.

Room lifecycle

spawn_room          -> lobby_deadline = now + 120s, on_close set
handle_leave        -> if humans_left == 0: closing = true
handle_deadline     -> if Lobby and deadline elapsed: closing = true
finalize_close      -> send Bye(RoomClosed) to every slot, run on_close
on_close (Rooms)    -> DashMap::remove(&code)

The frontend treats Bye(RoomClosed) as a fatal screen so a timed-out or abandoned room sends every participant a "this room is gone" card.

Voice: JWTs + lazy SDK

LiveKit Cloud handles the WebRTC; we just mint JWTs. The token endpoint (crates/pastel-server/src/voice.rs) signs with jsonwebtoken using HS256 and the claims LiveKit expects: iss is your API key, sub is name-XXXXXX, video grant maps room to the pastel room code, roomJoin / canPublish / canSubscribe all true.

The frontend dynamic-imports livekit-client only on first mic tap. That keeps the main bundle at ~360KB / 105KB gzip. The voice chunk is 500KB / 132KB gzip and only loaded for users who actually want voice.

If you opt into voice on the landing page, both the chunk and the LiveKit room connection are warmed in parallel with the avatar picker so the only post-tap cost is the browser mic permission and the publish.

Canvas rendering

Fixed logical 960x600 coordinate space. Backing store sized to cssSize x devicePixelRatio for crisp Retina rendering. Pointer events converted CSS to logical via getBoundingClientRect. Quadratic Bezier midpoint smoothing, velocity-modulated width. Strokes chunked at 64 points per batch. A persistent completedStrokes model lets the canvas survive resize, DPI change, and reload.

Repo layout

crates/
  pastel-proto/        wire types, codec, validation, proptest fixtures
  pastel-room/         per-room actor, game state machine, scoring, lifecycle
  pastel-server/       axum + WS, room registry, bot spawner, LiveKit tokens
  pastel-loadtest/     simulated WS clients, standalone bot, Quick Draw data
frontend/
  public/music/        three CC0 lofi tracks (landing / lobby / game)
  src/main.ts          the wire-up
  src/proto.ts         ClientMsg / ServerMsg codec + types
  src/canvas.ts        pointer capture, Bezier, DPI, replay model
  src/avatar.ts        DiceBear big-smile render + parts table
  src/avatarPicker.ts  name + avatar picker modal, hasStoredIdentity helpers
  src/voice.ts         LiveKit client wrapper (lazy-loaded)
  src/music.ts         HTMLAudioElement bg scene switcher + procedural sfx
  src/chat.ts          chat panel with avatar chips + guess mode
  src/game.ts          client game state + mode options
  src/gameUI.ts        lobby, word pick, round end, game over overlays + countdown
  src/roundIntro.ts    animated round-start card with scoreboard
  src/canvasEvent.ts   floating event pills over the canvas
  src/toast.ts         transient notifications
  src/dialog.ts        custom confirm dialogs
  src/kicked.ts        fatal + pending screens
  src/landing.ts       centered landing with mode tiles + voice opt-in
  src/toolbar.ts       brushes, palette, clear (single-pen on mobile)
  src/ws.ts            WebSocket client, backoff, resume_from

How it stacks up against skribble

skribble.io is great. We just wanted a version with the things that always nagged us:

Voice chat baked in. Talk to your room while you draw. Skribble has none of this.
Lofi soundtrack that fits the vibe. Different track per scene. Skribble is silent.
Bots that draw real human sketches. Powered by Google Quick Draw, not a fake AI. Skribble's bots don't draw at all.
Reactions during the round. Guessers can signal "looking good" or "i'm lost" and the drawer sees a banner when half the room agrees.
Reload = same player. Browser fingerprint via localStorage means a refresh doesn't make you a stranger with a new score.
Binary wire (postcard). A 30-point stroke batch is 130 bytes here, ~600 in JSON. Fewer bytes on every fanout to every player.
Cute hand-drawn avatars with a parts editor. Skribble's are stick figures.

We're not trying to replace skribble. Just making something we actually want to play with friends.

Credits

Made with:

open-lofi for the three CC0 background tracks
DiceBear for the avatar parts
LiveKit for the WebRTC plumbing
Phosphor Icons for the UI iconography
Google Quick Draw for the bot sketches

What's next

Team mode. Two teams play in parallel, each with their own canvas, word, and drawer rotation. Stroke broadcasts are team-scoped. The wire already carries TeamId fields. See .docs/notes/ROADMAP.md for the full plan.

Name		Name	Last commit message	Last commit date
Latest commit History 177 Commits
.githooks		.githooks
.github		.github
assets		assets
crates		crates
frontend		frontend
.dockerignore		.dockerignore
.gitignore		.gitignore
CONTRIBUTING.md		CONTRIBUTING.md
Cargo.lock		Cargo.lock
Cargo.toml		Cargo.toml
Dockerfile		Dockerfile
README.md		README.md

Folders and files

Latest commit

History

Repository files navigation

pastel

Table of contents

The game in 30 seconds

Features

Gameplay

Voice

Reactions

Audio

Avatars

Bots

Reload safety

Host controls

Scoreboard

Canvas

Run it locally

Tests & quality checks

Load test

Local (loopback)

Production (Cloud Run, asia-south1)

What's working

What still needs work

Deploy

Engineering deep dives

Screw JSON

One actor per room, no locks

Avatar wire format

Bots: real sketches, no AI

Reload as the same player

Room lifecycle

Voice: JWTs + lazy SDK

Canvas rendering

Repo layout

How it stacks up against skribble

Credits

What's next

About

Resources

Contributing

Uh oh!

Stars

Watchers

Forks

Releases

Packages 0

Uh oh!

Contributors

Uh oh!

Languages

Packages
