Cannot modify xaxis and yxais labels for type="scatter3d" #2284
Description
Brief description of the problem:
I cannot modify the labels for the x-axis and y-axis. Copied from web page fig1 ; xaxis = list(title = 'XXXXXXXXXXXX') and yaxis = list(title = 'YYYYYYYYYYY') they render properly. When rendering as fig2: plot_ly(type="scatter3d",mode = "markers" ; the labels for x an y axis are incorrect. Both plots print in rstudio but fig2 's axis labels are incorrect. No errors are presented. Please see attacthed PDF with screen prints.
[plotly axis labels.pdf](https://github.com/plotly/plotly.R/files/12268079/plotly.axis.labels.pdf)
# insert reprex here
``` r
[plotly axis labels.pdf](https:/
[plotly axis labels.pdf](https://github.com/plotly/plotly.R/files/12268082/plotly.axis.labels.pdf)
/github.com/plotly/plotly.R/files/12268078/plotly.axis.labels.pdf)
#fig1
# clean out environemnt
rm(list = ls(all.names = TRUE))
library(plot3D)
library(plotly)
#> Loading required package: ggplot2
#>
#> Attaching package: 'plotly'
#> The following object is masked from 'package:ggplot2':
#>
#> last_plot
#> The following object is masked from 'package:stats':
#>
#> filter
#> The following object is masked from 'package:graphics':
#>
#> layout
library(ggplot2)
library(stats)
library(stats4)
library(graphics)
library(crosstalk)
library(rgl)
library(plotrix)
#>
#> Attaching package: 'plotrix'
#> The following object is masked from 'package:rgl':
#>
#> mtext3d
library(tidyr)
library(RColorBrewer)
library(dplyr)
#>
#> Attaching package: 'dplyr'
#> The following objects are masked from 'package:stats':
#>
#> filter, lag
#> The following objects are masked from 'package:base':
#>
#> intersect, setdiff, setequal, union
library(readr)
##########################
# resolve library conflicts
conflicted::conflicts_prefer(plotly::filter)
#> [conflicted] Will prefer plotly::filter over any other package.
conflicted::conflicts_prefer(plotly::layout)
#> [conflicted] Will prefer plotly::layout over any other package.

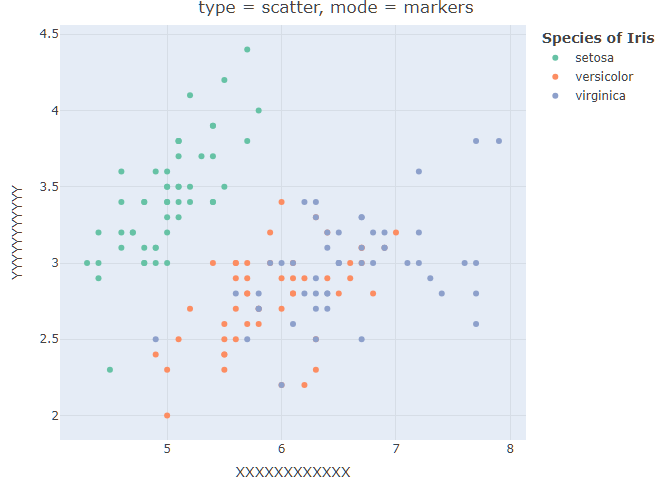

fig1 <- plot_ly(data = iris ,x = ~Sepal.Length, y = ~Sepal.Width, color = ~Species, type = 'scatter', mode = 'markers')%>%
layout(title = 'type = scatter, mode = markers', plot_bgcolor = "#e5ecf6", xaxis = list(title = 'XXXXXXXXXXXX'),
yaxis = list(title = 'YYYYYYYYYYY'), legend = list(title=list(text='<b> Species of Iris </b>')))
fig1
#> PhantomJS not found. You can install it with webshot::install_phantomjs(). If it is installed, please make sure the phantomjs executable can be found via the PATH variable.
Created on 2023-08-05 with reprex v2.0.2
```r
# insert reprex here
``` r
#fig2
# clean out environemnt
rm(list = ls(all.names = TRUE))
library(plot3D)
library(plotly)
#> Loading required package: ggplot2
#>
#> Attaching package: 'plotly'
#> The following object is masked from 'package:ggplot2':
#>
#> last_plot
#> The following object is masked from 'package:stats':
#>
#> filter
#> The following object is masked from 'package:graphics':
#>
#> layout
library(ggplot2)
library(stats)
library(stats4)
library(graphics)
library(crosstalk)
library(rgl)
library(plotrix)
#>
#> Attaching package: 'plotrix'
#> The following object is masked from 'package:rgl':
#>
#> mtext3d
library(tidyr)
library(RColorBrewer)
library(dplyr)
#>
#> Attaching package: 'dplyr'
#> The following objects are masked from 'package:stats':
#>
#> filter, lag
#> The following objects are masked from 'package:base':
#>
#> intersect, setdiff, setequal, union
library(readr)
##########################
# resolve library conflicts
conflicted::conflicts_prefer(plotly::filter)
#> [conflicted] Will prefer plotly::filter over any other package.
conflicted::conflicts_prefer(plotly::layout)
#> [conflicted] Will prefer plotly::layout over any other package.
fam17npg02 <- data.frame(x=c(77,77),y=c(61,77),z=c(77,79),p=c("np","np"),pcolor=c("BLACK","BLACK"))

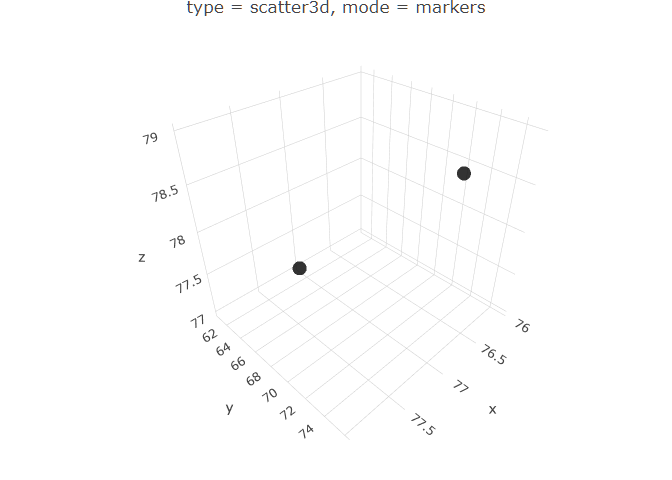

fig2 <- plot_ly(type="scatter3d",mode = "markers",
fam17npg02,
x = fam17npg02$x,
y = fam17npg02$y,
z = fam17npg02$z,
name="fam17npg02",
opacity = 0.8, color = I(fam17npg02$pcolor)) %>%
layout(title = 'type = scatter3d, mode = markers', plot_bgcolor = "#e5ecf6", xaxis = list(title = 'XXXXXXXXXXXX'),
yaxis = list(title = 'YYYYYYYYYYY'), legend = list(title=list(text='<b> Species of Iris </b>')))
fig2
#> PhantomJS not found. You can install it with webshot::install_phantomjs(). If it is installed, please make sure the phantomjs executable can be found via the PATH variable.
Created on 2023-08-05 with reprex v2.0.2
