Translator Ruby to JavaScript

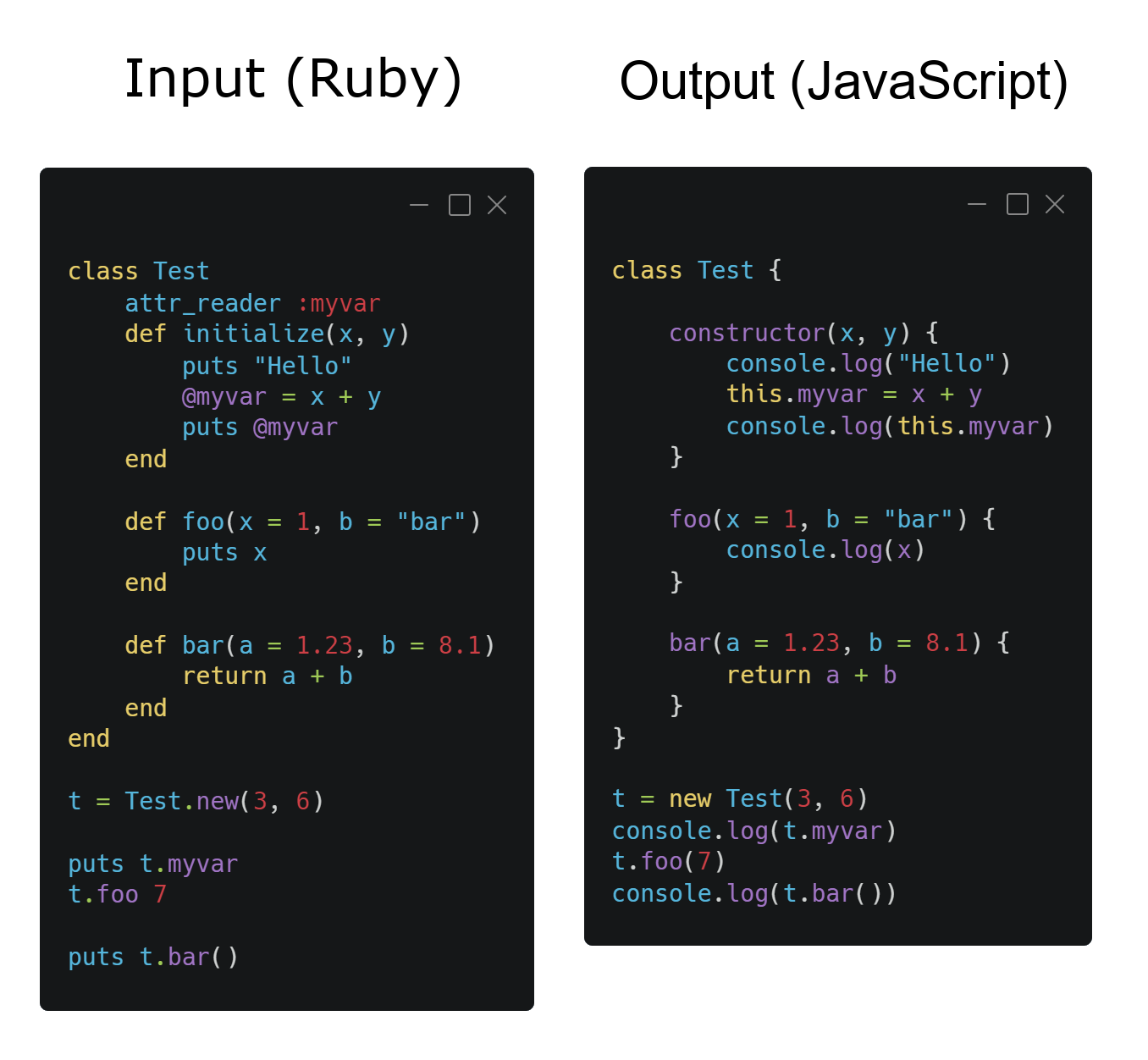

Translator written in Python, which allows you to convert your Ruby code into JavaScript code. A sample conversion:

Table of contents

• Introduction
• Manual
• Technology
• How it works
  • AST tree showcase
• Components

Manual

To run the translator you will need:

• python3
• PLY library. You can install it using

pip install ply

• jsbeautifier library. You can install it using

pip install jsbeautifier

Prepare a Ruby file and run the translator using

python translator.py PATH_TO_FILE

The program will execute translation and it will create a file out.js in the main directory. This is the output JavaScript program.

Technology

The translator was implemented using Python 3 and two libraries:

PLY - the library used in order to parse Ruby using python's implementation of lex and yacc LALR(1) parser.

jsbeautifier - the library used for beautifying the output code.

How it works

The translator reads an input file written in Ruby. Every component required by PLY library is defined within tree_builder. It includes lexer and yacc definitions i.e. tokens, grammar, operator precedence and actions responsible for building an AST tree.

Each token is declared within the tokens array and the corresponding regular expressions are defined as variables named t_TOKEN_NAME or as methods with the same names. These methods take a token as an argument and include a docstring determining the regex. Inside the method you can execute required operations like casting token's value to desired type. A method should return token.

Example method handling BOOLEAN tokens:

def t_BOOLEAN(t):
    r'true|false'
    t.value = bool(t.value)
    return t

Next we create a lexer.

lexer = lex.lex()

Similarly we prepare the parser. It consists of methods named p_NAME. Just like with tokens, this method includes a docstring which represents a part of a grammar. A complete grammar can be constructed using all of these methods.

Example method defining simple arithmetic and boolean operators:

def p_expression(p):
    '''
    expression : expression MULTIPLY expression
               | expression DIVIDE expression
               | expression PLUS expression
               | expression MINUS expression
               | expression POWER expression
               | expression MODULO expression
               | expression AND expression
               | expression OR expression
    '''

    # p[0], p[1] ... are the distinct parts in the above grammar (eg. p[2] is an operator token)
    p[0] = OperatorFactory.get(p[2], p[1], p[3]) # creates node in an AST tree

In the syntax_tree.nodes there are nodes which will be used to build an AST tree. In the above method we are using an OperatorFactory to generate a proper node. As most of the operators are shared between both Ruby and JavaScript OperatorFactory usually generates a GenericOperator with a proper symbol.

Example Identifier node:

class Identifier:
    def __init__(self, name):
        self.name = name

    def __str__(self):
        out = "Identifier("
        out += "Name: " + str(self.name)
        out += ")"
        return out

    def toJavaScript(self):
        return self.name

After AST tree has been created, toJavaScript() method is called on the root node of the tree. Thanks to the recursive call of that method each node converts its children to JavaScript, meaning the root node's method outputs a complete converted code.

Ultimately, for better readability, the output code is processed by jsbeautifier.

AST tree showcase

Here is a simple program and its AST tree represented as flowchart

Input:

a = [7, 2**3]
puts a[0] + a[1]

Output:

a = [7, 2 ** 3]
console.log(a[0] + a[1])

AST tree:

Components

translator.py - main executable which takes path to a Ruby file as input and then passes it to tree_builder.py. Next it converts the tree to JavaScript and beautifies the code and saves it into out.js file.

build_tree.py - creates an AST tree using lexer and parser and defined grammar rules.

Recognized elements of language:

• arithmetic operations
• boolean operations
• methods and method calls
• if..else blocks
• while loops
• array declarations and array access operators
• classes
  • methods and constructors
  • instance variables
  • instance creation

nodes - classes defining AST tree components. Each node implements a toJavaScript() method which converts it to JavaScripts.

sample folder - includes sample conversion showcases.
